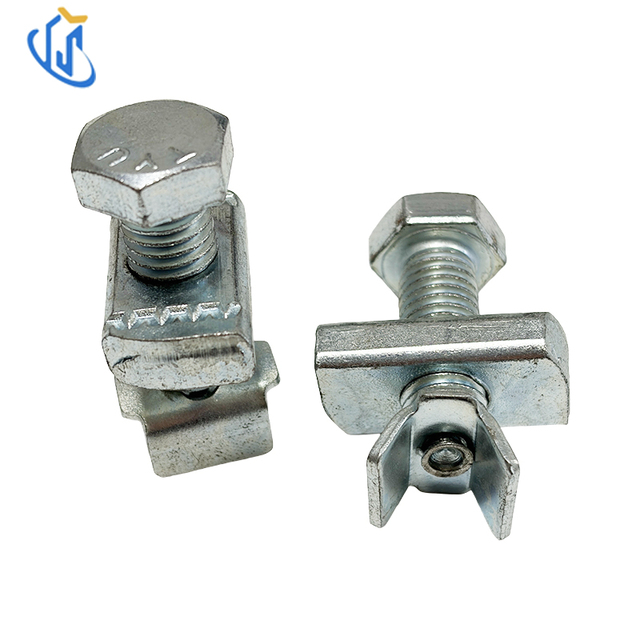

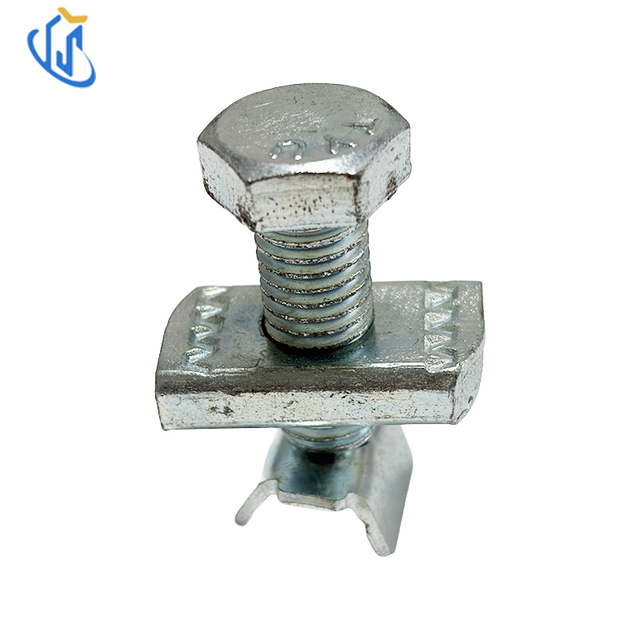

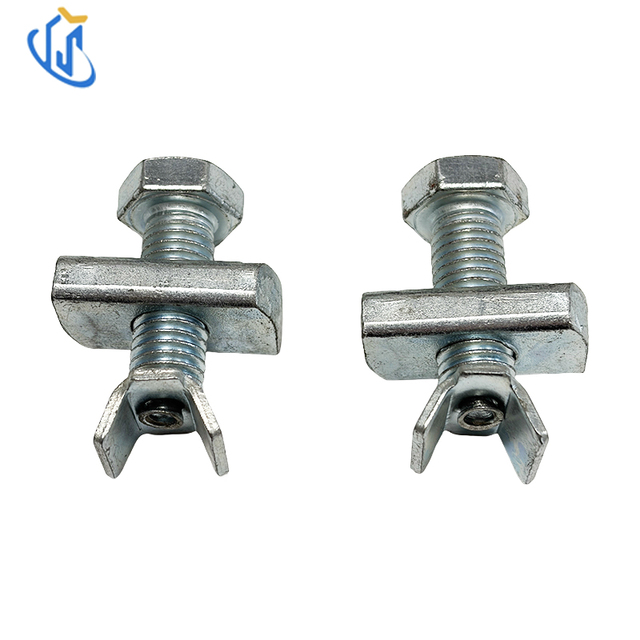

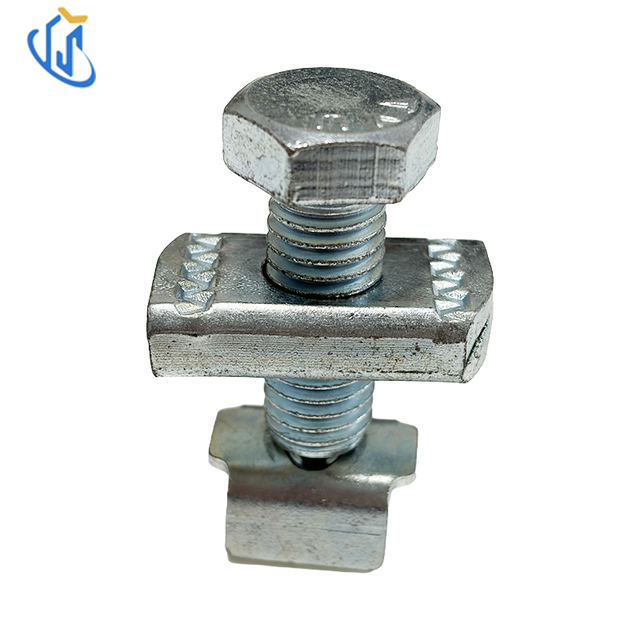

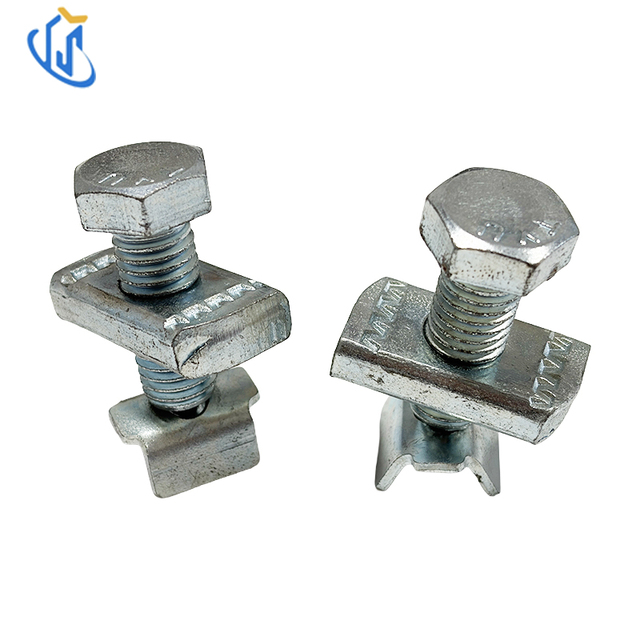

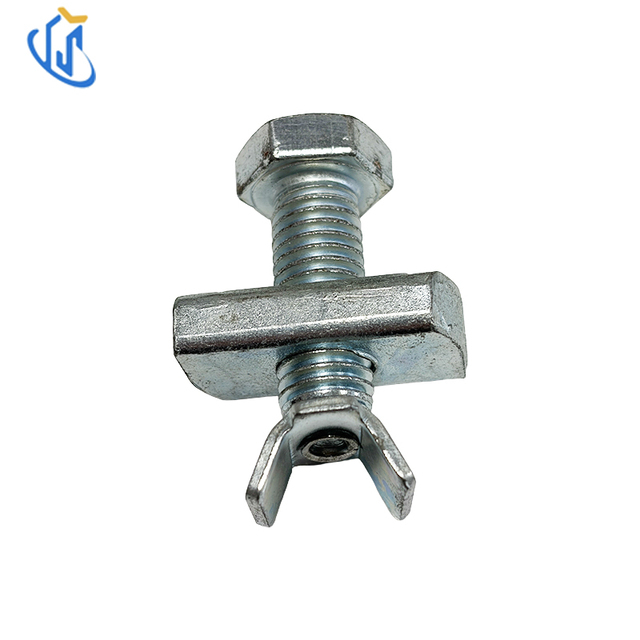

Electro-Galvanized Strut Anchor Bolt

Overview

UTT7410 Anchor Bolt is a specialized mechanical anchoring fastener designed for strut channel systems. Manufactured from high-quality carbon steel with electro-galvanized finish, it provides reliable corrosion resistance and mechanical performance. Featuring an expansion design, it is inserted into concrete or masonry through strut channels to provide secure anchoring for brackets, hangers and equipment.

Available in standard sizes M10 and M12 with a fixed length of 40mm, it is suitable for use with standard strut channels. Widely applied in HVAC installations, electrical support, industrial piping and general construction projects, it ensures stable and reliable anchoring for various strut channel applications.

Key Features

Core Function: Provide secure mechanical anchoring for strut channel systems in concrete and masonry

Raw Material: High-quality carbon steel

Surface Finish: Electro-galvanized

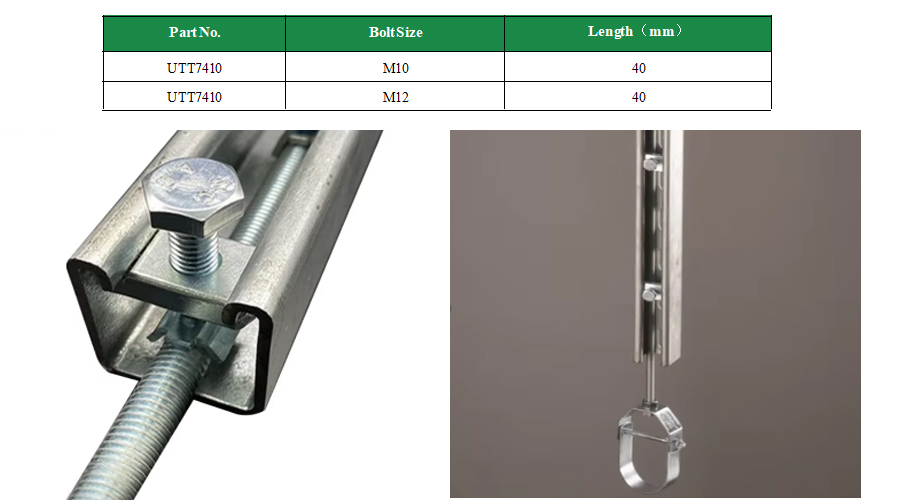

Standard Sizes: M10, M12

Standard Length: 40mm

Grade: 4.8, 6.8, 8.8

Design Feature: Expansion anchor design for reliable mechanical locking

Customization Service: Custom sizes, grades and finishes are available on request

Application Scenarios

1. HVAC Piping Systems: Anchoring strut channels, brackets and hangers to concrete structures for overhead piping installations.

2. Electrical Installations: Securing strut channel frames, cable trays and electrical equipment to concrete and masonry.

3. Industrial Equipment Mounting: Reliable anchoring of machinery components and production line frames using strut channel systems.

4. General Construction Projects: Versatile fastener for anchoring strut channel structures in various building applications.

Step-by-Step Installation Guide

1. Select the suitable UTT7410 Anchor Bolt size according to strut channel specification and load requirements.

2. Drill a hole in the concrete/masonry to the specified diameter and depth through the strut channel.

3. Clean the hole thoroughly to remove dust and debris.

4. Insert the anchor bolt through the strut channel into the hole.

5. Tighten the nut to expand the anchor sleeve, securing both the bolt and strut channel in place.

Industry Compliance

1. Conforms to general manufacturing standards for mechanical anchor bolts and construction fasteners.

2. Electro-galvanized finish meets international anti-corrosion specifications for indoor and humid environments.

3. All products pass dimensional, material strength and surface treatment inspection before delivery.

Core Product Advantages

Specialized for Strut Channels:

Designed to work seamlessly with standard strut channel systems for integrated anchoring solutions.

Compact Size & Standard Length:

Fixed 40mm length with M10/M12 sizes, ideal for common strut channel applications.

Corrosion-Resistant Finish:

Electro-galvanized carbon steel construction provides reliable corrosion resistance for indoor use.

Reliable Mechanical Locking:

Expansion anchor design ensures strong, secure anchoring in concrete and masonry.

Versatile Compatibility:

Compatible with standard strut channel accessories, hangers and brackets for full system integration.

Durable Construction:

High-quality carbon steel and expansion mechanism ensures long service life under continuous use.

FAQ

Q1: What material and finish does the anchor bolt adopt?

A1: It is made of carbon steel with electro-galvanized finish.

Q2: What sizes and length are available?

A2: Standard sizes include M10 and M12 with a fixed length of 40mm.

Q3: What grade options are available?

A3: Grades 4.8, 6.8 and 8.8 are available.

Q4: What is the main purpose of this anchor bolt?

A4: It is a specialized anchoring fastener designed for use in strut channel systems.

Q5: Where is the anchor bolt widely applied?

A5: It is commonly used in HVAC installations, electrical support, industrial equipment mounting and general construction projects.
