UTT7411
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Finish: | |
| Size: | |
| Thickness: | |
| Quantity: | |

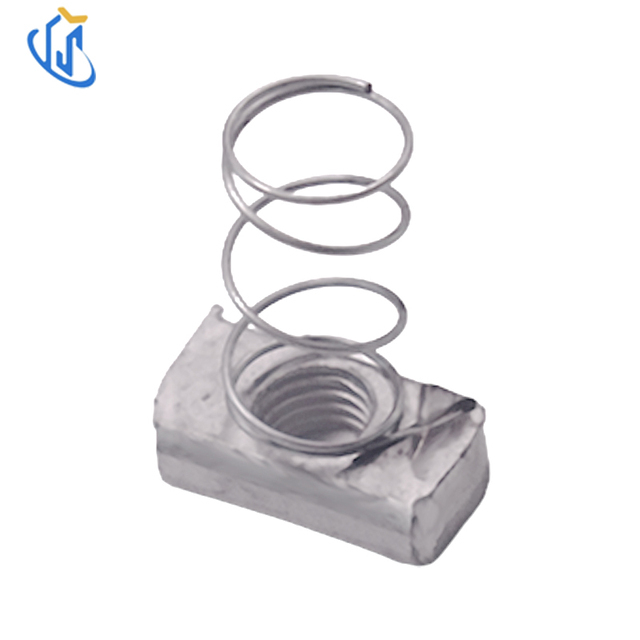

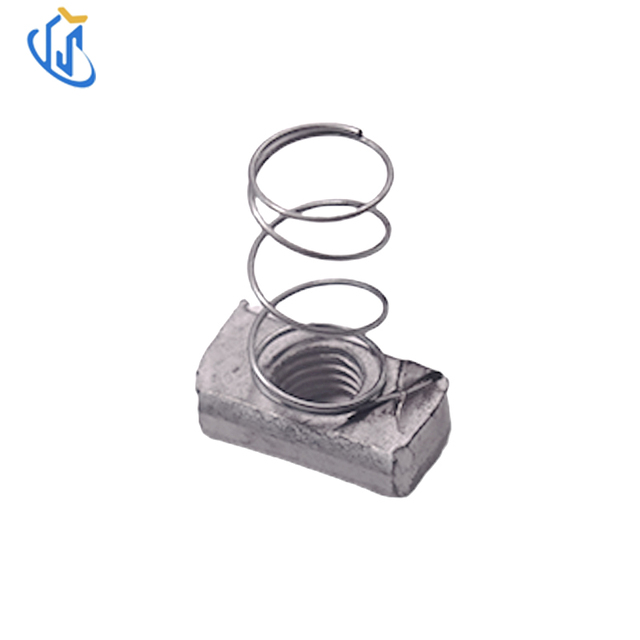

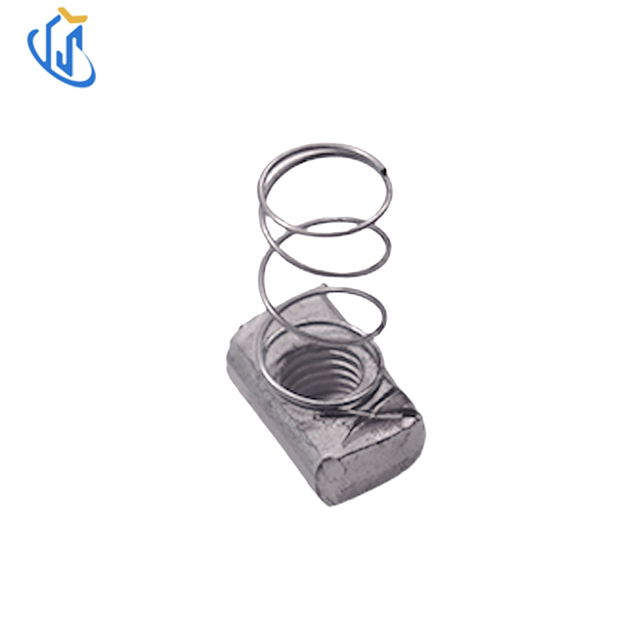

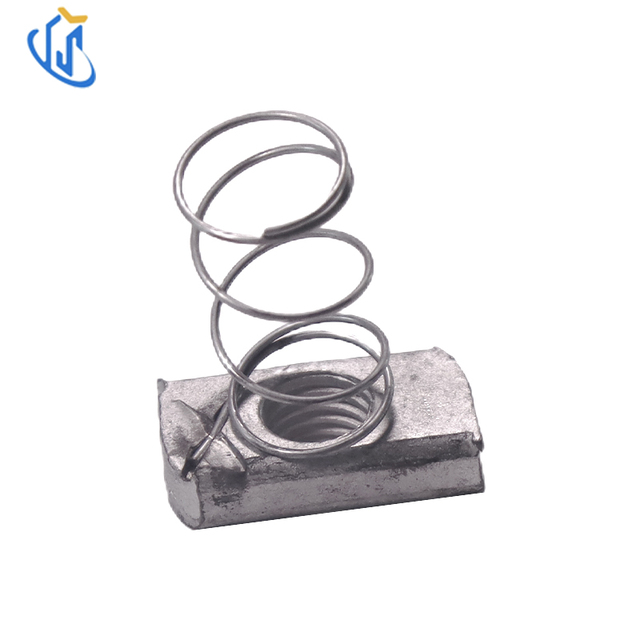

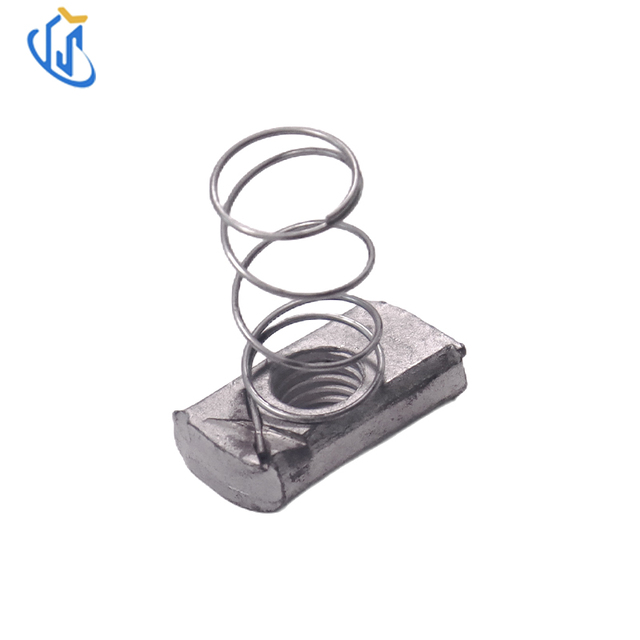

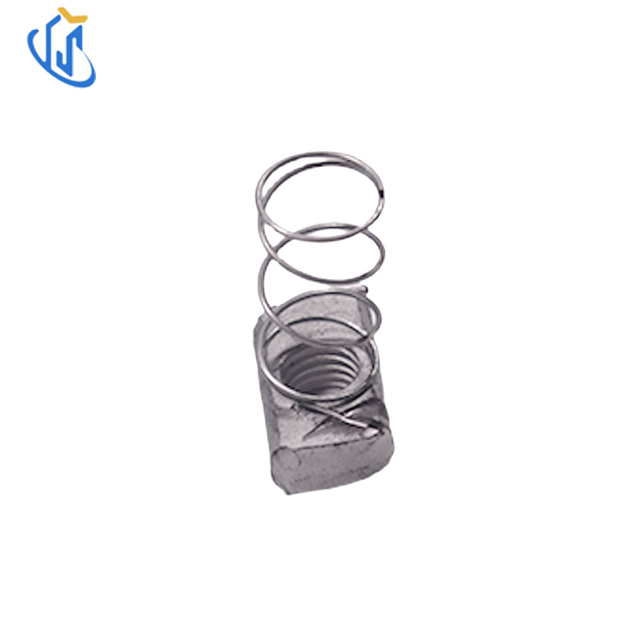

UTT7411 Spring Nut is a specialized fastener designed for 41mm-wide strut channel systems, also known as channel spring nut. Manufactured from high-quality carbon steel or stainless steel, it features electro-galvanized or stainless steel finishes to provide corrosion resistance for different environments. Built-in serrated edges lock tightly into the channel profile, ensuring a secure and stable hold.
Available in standard sizes M6, M8, M10, M12 with thickness options of 6mm and 8mm, it enables quick, hassle-free installation without tools. Widely applied in HVAC installations, electrical support, industrial piping and general strut channel framing projects, it simplifies fastening tasks while ensuring reliable performance.
Core Function: Quick and secure fastening for strut channel systems with serrated locking edges
Raw Material: Carbon Steel / Stainless Steel
Surface Finish: Electro-galvanized / Stainless Steel
Standard Sizes: M6, M8, M10, M12
Thickness Options: 6mm, 8mm
Design Feature: Built-in serrated edges for tight, anti-slip locking in strut channels
Customization Service: Custom sizes, grades and finishes are available on request
Item | Specification |
|---|---|
Model | UTT7411 Spring Nut |
Raw Material | Carbon Steel / Stainless Steel |
Surface Treatment | Electro-galvanized / Stainless Steel |
Standard Sizes | M6, M8, M10, M12 |
Thickness Options | 6mm, 8mm |
Compatible Channel Width | 41mm-wide strut channels |
Core Performance | Quick tool-free installation, serrated anti-slip locking |
Customization | Custom sizes, grades and finishes supported |
Main Application | Fastening accessory for 41mm strut channel systems |
Sample Supply | Free pre-order test samples available |
HVAC Piping Systems: Fastening brackets, hangers and accessories to 41mm strut channels in overhead piping installations.
Electrical Installations: Securing cable trays, conduits and electrical equipment frames to strut channel systems.
Industrial Equipment Mounting: Quick and secure fastening of machinery components to strut channel frames.
General Strut Framing: Versatile fastener for modular strut channel structures in construction and industrial projects.
Select the suitable UTT7411 Spring Nut according to bolt size and strut channel specification.
Compress the spring nut and insert it into the strut channel through the slot.
Release the nut, allowing the spring to push it against the channel edges.
Slide the nut to the desired position along the channel.
Attach the bracket, pipe hanger or equipment to the nut using the corresponding bolt and tighten to secure the connection.
Conforms to general manufacturing standards for strut channel fasteners and construction accessories.
Electro-galvanized and stainless steel finishes meet international anti-corrosion specifications for indoor and humid environments.
All products pass dimensional, material strength and surface treatment inspection before delivery.
Quick Tool-Free Installation: Spring-loaded design allows easy insertion and positioning in strut channels without tools, improving installation efficiency.
Serrated Anti-Slip Locking: Built-in serrated edges lock tightly into the channel profile, preventing slipping and ensuring a stable hold.
Comprehensive Size Range: Available in M6-M12 sizes with 6mm/8mm thickness options to match different strut channel specifications.
Multiple Material & Finish Options: Carbon steel or stainless steel with electro-galvanized or stainless steel finishes for various environments.
Versatile Compatibility: Designed for 41mm-wide strut channels, compatible with standard strut channel accessories, hangers and brackets.
Durable Construction: High-quality materials combined with corrosion-resistant finishes ensure long service life under continuous use.
Q1: What materials and finishes are available for the spring nut?
A1: Materials include carbon steel or stainless steel, with electro-galvanized or stainless steel finishes.
Q2: What sizes and thicknesses are available?
A2: Standard sizes include M6, M8, M10, M12 with thickness options of 6mm and 8mm.
Q3: What strut channel size is this nut designed for?
A3: It is designed for use with 41mm-wide strut channels.
Q4: What is the main purpose of the spring nut?
A4: It is a tool-free fastening accessory designed for quick and secure installation in strut channel systems.
Q5: Where is the spring nut widely applied?
A5: It is commonly used in HVAC installations, electrical support, industrial equipment mounting and general strut framing projects.
