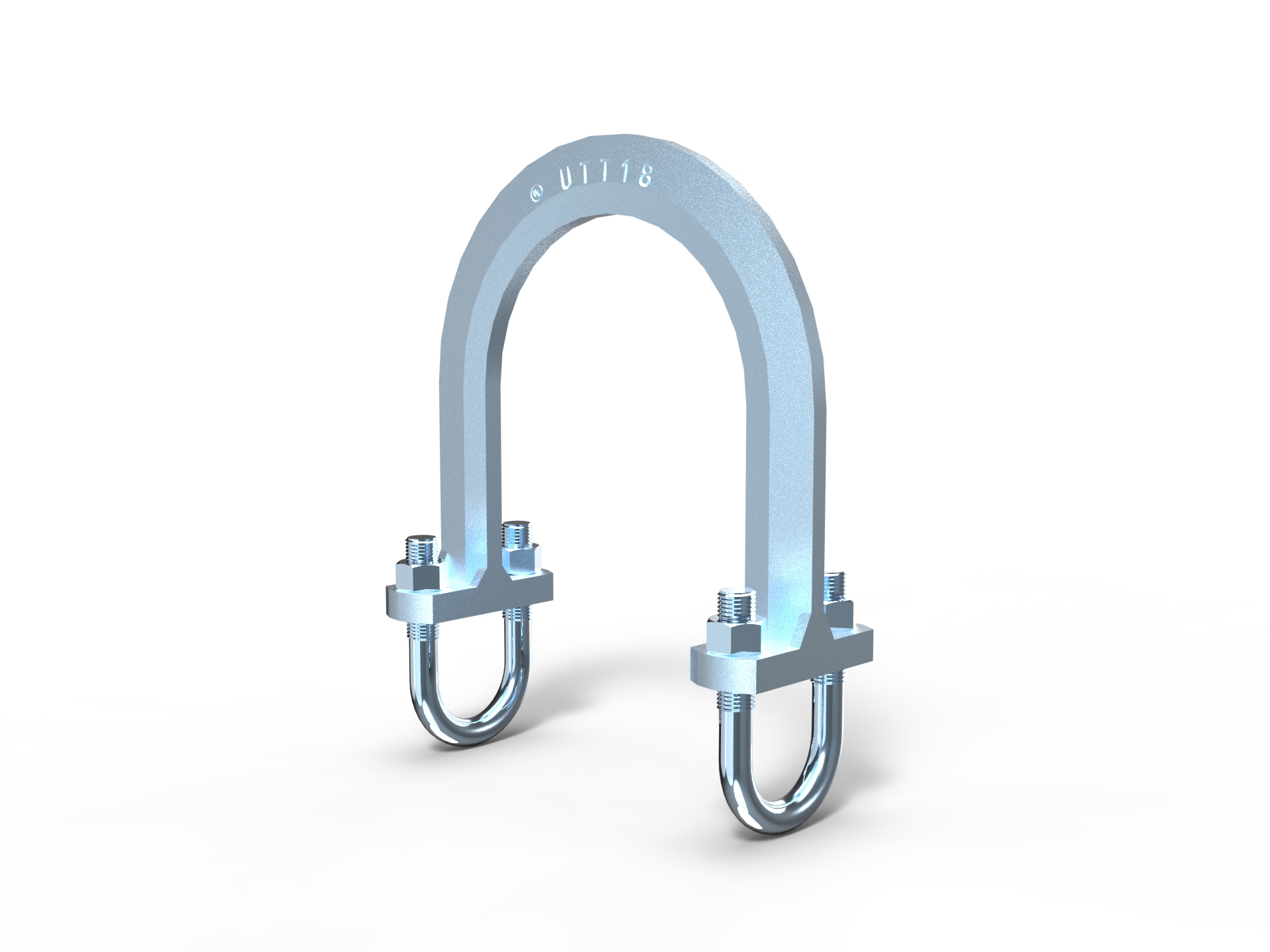

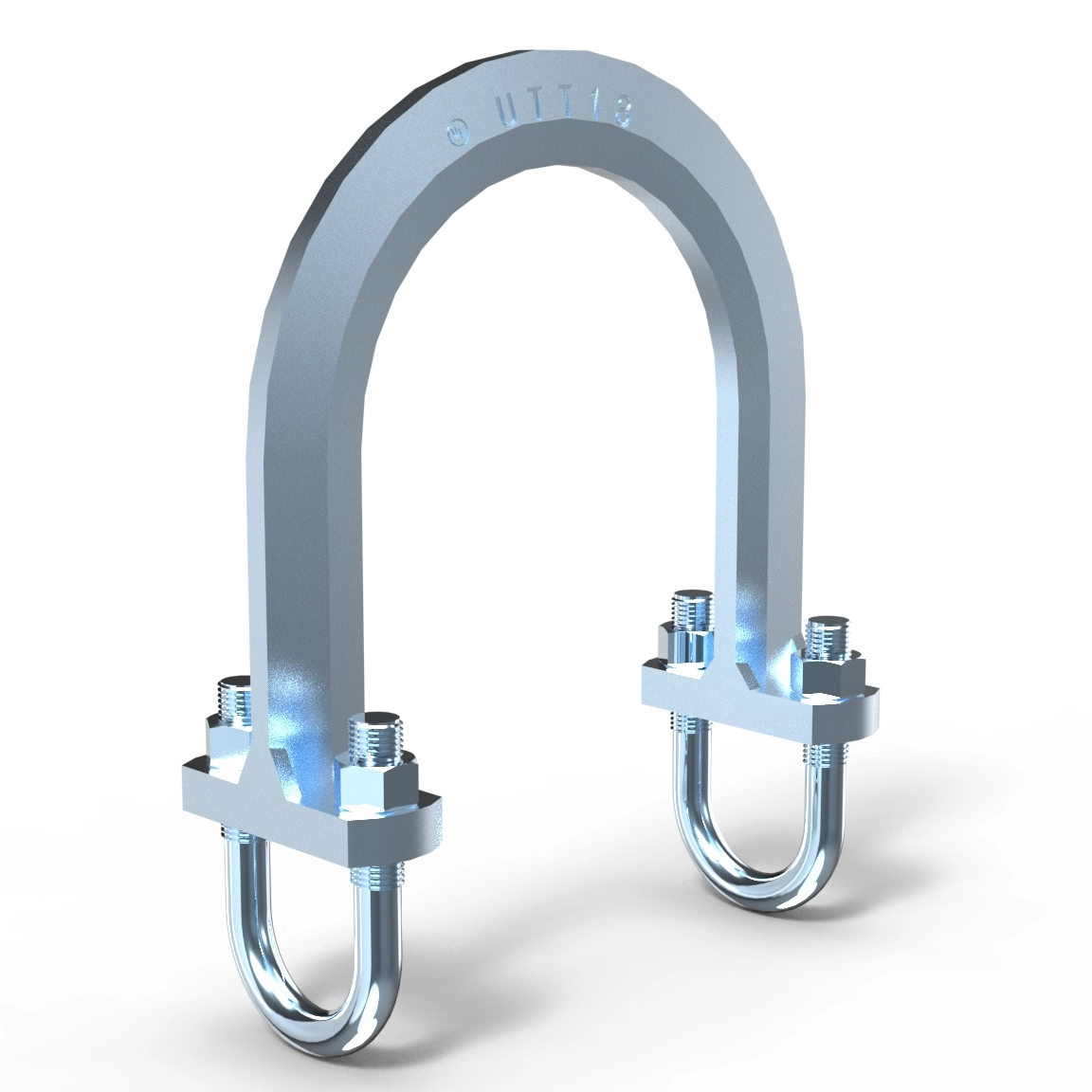

UTT18
UTTERLY
| Material: | |
|---|---|
| Color: | |
| Sample: | |
| Cerificate: | |
| Finish: | |
| Quantity: | |
Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions.
Type： Sprinkler Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454
Size: Pipe size 1½＂(40) thru 8＂(200).
Material: Ductile iron QT450
Finish: Electro-galvanized
Approvals:
UL Maximum Design Load | |||||
Pipe Size | lbs. | KN | Wt. Each | ||
1＂(25mm) Brace Pipe | |||||
lb. | kg | ||||
1½ | (40) | 680 | (3.02) | 1.23 | (0.56) |
2 | (50) | 680 | (3.02) | 1.36 | (0.62) |
2½ | (65) | 680 | (3.02) | 1.45 | (0.66) |
3 | (80) | 680 | (3.02) | 1.54 | (0.70) |
4 | (100) | 680 | (3.02) | 1.76 | (0.80) |
5 | (125) | 1090 | (4.84) | 2.16 | (0.98) |
6 | (150) | 1370 | (6.09) | 2.20 | (1.00) |
8 | (200) | 1370 | (6.09) | 2.79 | (1.27) |
Step 1 | Step 2 |
 |  |
Install:

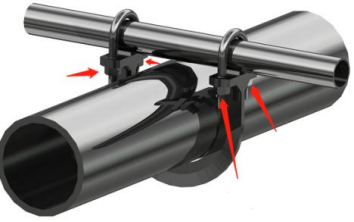

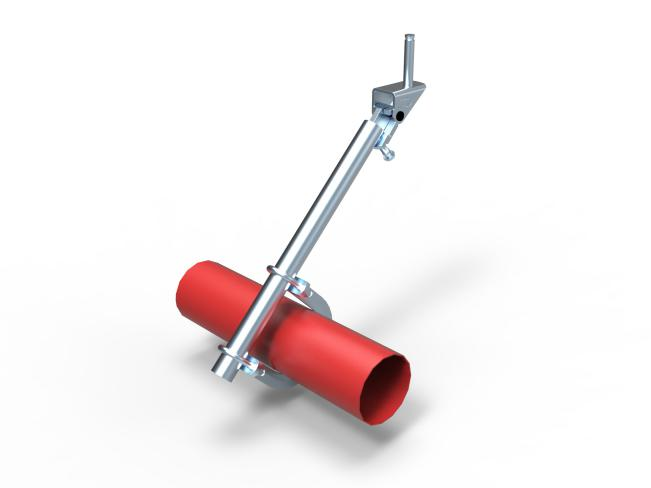

The pipe clamp with pipe and other accessories' connection is as shown in the figure； The accessories of UTT18 use the sch40 1-inch pipe； Tightened the nuts until 40~45N·M once the four nuts are installed, the installation is complete. | |
