UTT8003
UTTERLY
| Material: | |
|---|---|
| Finish: | |
| Size: | |
| Sample: | |
| MOQ: | |
| Delivery: | |
| Quantity: | |

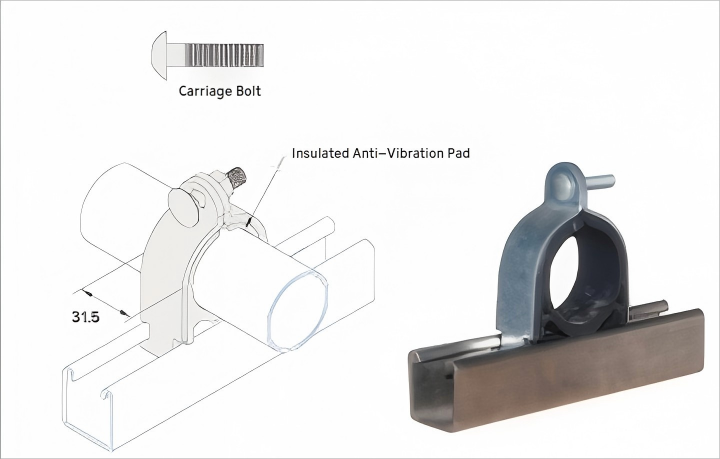

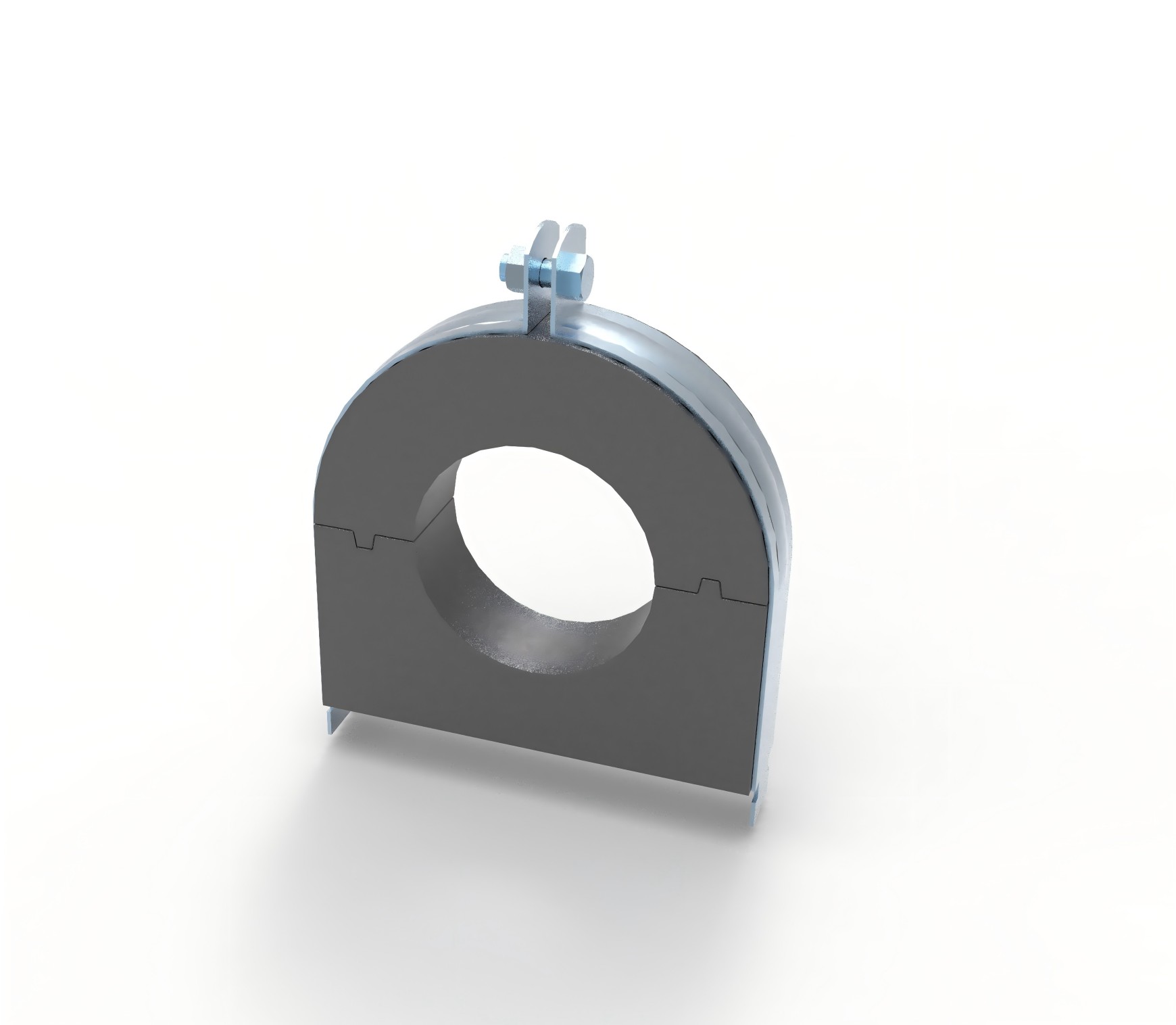

UTT8003 Insulation Pipe Clamp
Material:
High-quality carbon steel / Stainless steel
Surface Treatment:
Electro-galvanized (zinc plating), Hot-dip galvanized
Galvanization Standard:
Minimum zinc coating thickness of 7μm for electro-galvanized finish;
Minimum zinc coating thickness of 45μm for hot-dip galvanized finish
Insulated Anti-Vibration Pad:
Made from UV-resistant thermoplastic elastomer.
Material of the Insulated Pad:
Hard rubber.
Temperature Rating:
45°C to +135°C
Product Includes:
Clamp + Insulated Anti-Vibration Pad + Carriage Bolt and Nut
Applications:
Primarily used for securing vibrating pipes with pipe clamps. The pipe is fully wrapped in a flexible rubber seat, effectively eliminating rigid contact points and minimizing vibration. Suitable for use in high and low-pressure piping systems, fire protection systems, refrigeration and HVAC systems, as well as electrical wiring and cable installations.
Product Features:
Provides excellent vibration dampening, noise reduction, and insulation.
Easy to install and ideal for space-saving, cost-efficient layouts by allowing tight pipe-to-pipe installation.
Utilizes channel steel structure for improved load-bearing performance.
Equally effective for vertical pipe installations.
| Model | OD(m) | Thickness | Carriage Bolt | W/100 |
| UTT8003 | 19.1-21.7 | 1.5m | Mox25 | 7 |
| 25.0-27.2 | 1.5m | Mox25 | 8 | |
| 31.8-34.0 | 2.0nn | Mbx25 | 9 | |
| 38.1-42.7 | 2.0nn | M6x25 | 9 | |
| 48.6-50.8 | 2.6m | MB×40 | 18 | |
| 60.5-63.5 | 2.5nn | M8×40 | 21 | |
| 75.0-76.3 | 2.5mn | M8×40 | 24 | |
| 89.1-90.0 | 2.5m | M8×40 | 27 | |
| 108.0-114.3 | 3.0nn | H10×40 | 40 | |
| 125.0-139.8 | 3.0nn | M10×40 | 47 | |
| 159.0-165.2 | 3.5m | W10×40 | 58 | |
| 200.0-216.3 | 3.5m | M10×40 | 76 |
