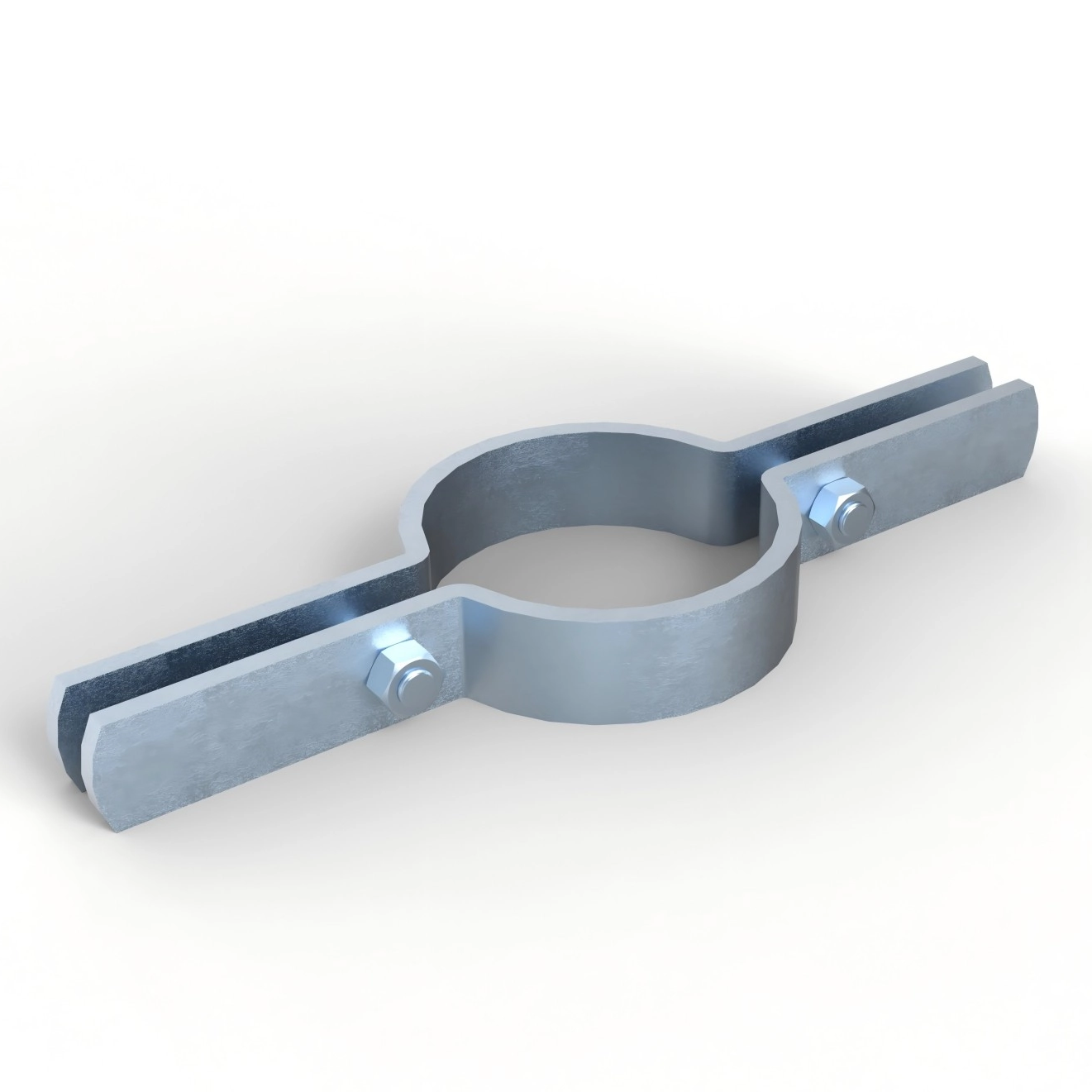

UTT50 FM UL Riser Clamp
Function: Recommend for suspension vertical steel pipe risers.
Size: 1/2"Thru 8"
Material: Carbon Steel
Finish: Black,Pained or Galvanzed
Approval:

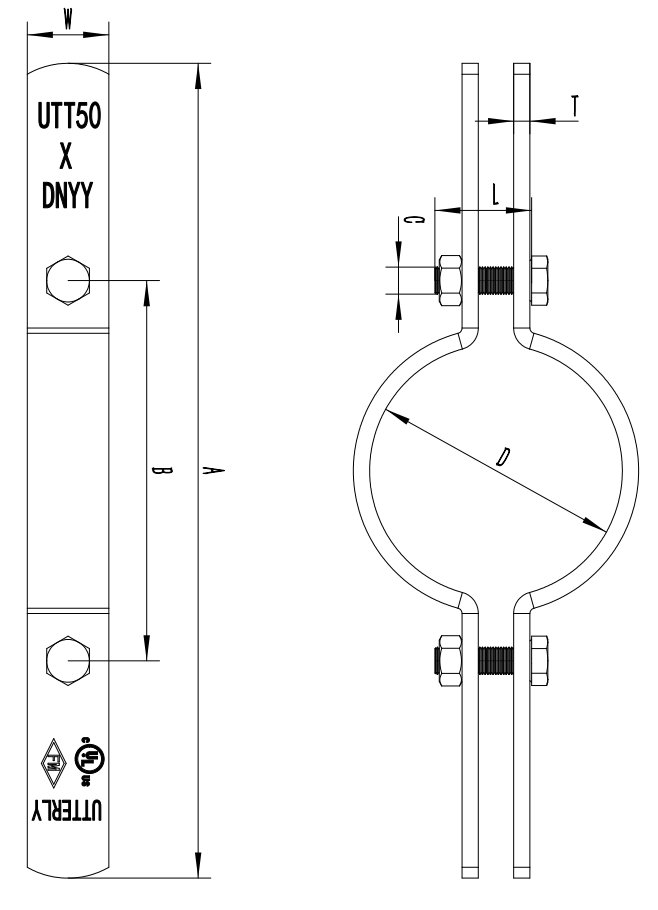

| Size | A | B | C | D | T | W | L | Max. Rec. Load | |||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | lbs | KN |
| 1/2" | DN15 | 8.39 | 213 | 2.4 | 61 | 3/8" | M10 | 1/2" | 21.3 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 3/4" | DN20 | 8.62 | 219 | 2.76 | 70 | 3/8" | M10 | 3/4" | 26.7 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1" | DN25 | 9.02 | 229 | 3.11 | 79 | 3/8" | M10 | 1" | 33.4 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1-1/4" | DN32 | 9.17 | 233 | 3.27 | 83 | 3/8" | M10 | 1-1/4" | 42.2 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1-1/2" | DN40 | 9.84 | 250 | 3.86 | 98 | 3/8" | M10 | 1-1/2" | 48 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 2" | DN50 | 10.12 | 257 | 4.17 | 106 | 3/8" | M10 | 2" | 60.3 | 0.18 | 4.5 | 1.18 | 30 | 1.50 | 38 | 750 | 3.34 |
| 2-1/2" | DN65 | 11.02 | 280 | 4.8 | 122 | 3/8" | M10 | 2-1/2" | 73 | 0.22 | 5.7 | 1.18 | 30 | 1.50 | 38 | 850 | 3.78 |
| 3" | DN80 | 11.81 | 300 | 5.51 | 140 | 3/8" | M10 | 3" | 88.9 | 0.22 | 5.7 | 1.18 | 30 | 1.50 | 38 | 1050 | 4.67 |
| 4" | DN100 | 12.99 | 330 | 7.05 | 179 | 1/2" | M12 | 4" | 114.3 | 0.22 | 5.7 | 1.57 | 40 | 2.48 | 63 | 1500 | 6.67 |
| 5" | DN125 | 14.45 | 367 | 8.03 | 204 | 1/2" | M12 | 5" | 141.3 | 0.22 | 5.7 | 1.57 | 40 | 2.48 | 63 | 2000 | 8.9 |
| 6" | DN150 | 15.91 | 404 | 8.98 | 228 | 1/2" | M12 | 6" | 168.3 | 0.22 | 5.7 | 1.57 | 40 | 2.48 | 63 | 2650 | 11.79 |
| 8" | DN200 | 18.19 | 462 | 11.97 | 304 | 5/8" | M16 | 8" | 219.1 | 0.37 | 9.5 | 1.97 | 50 | 2.48 | 63 | 4050 | 18.02 |
