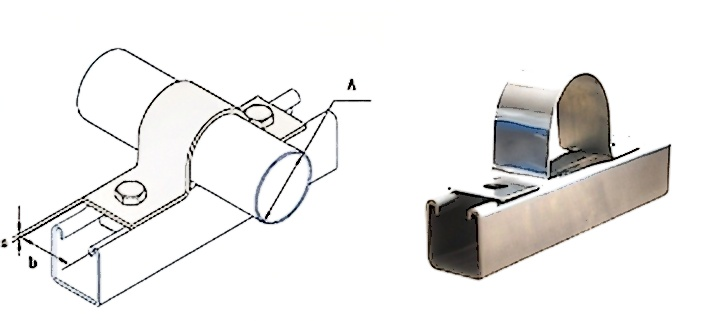

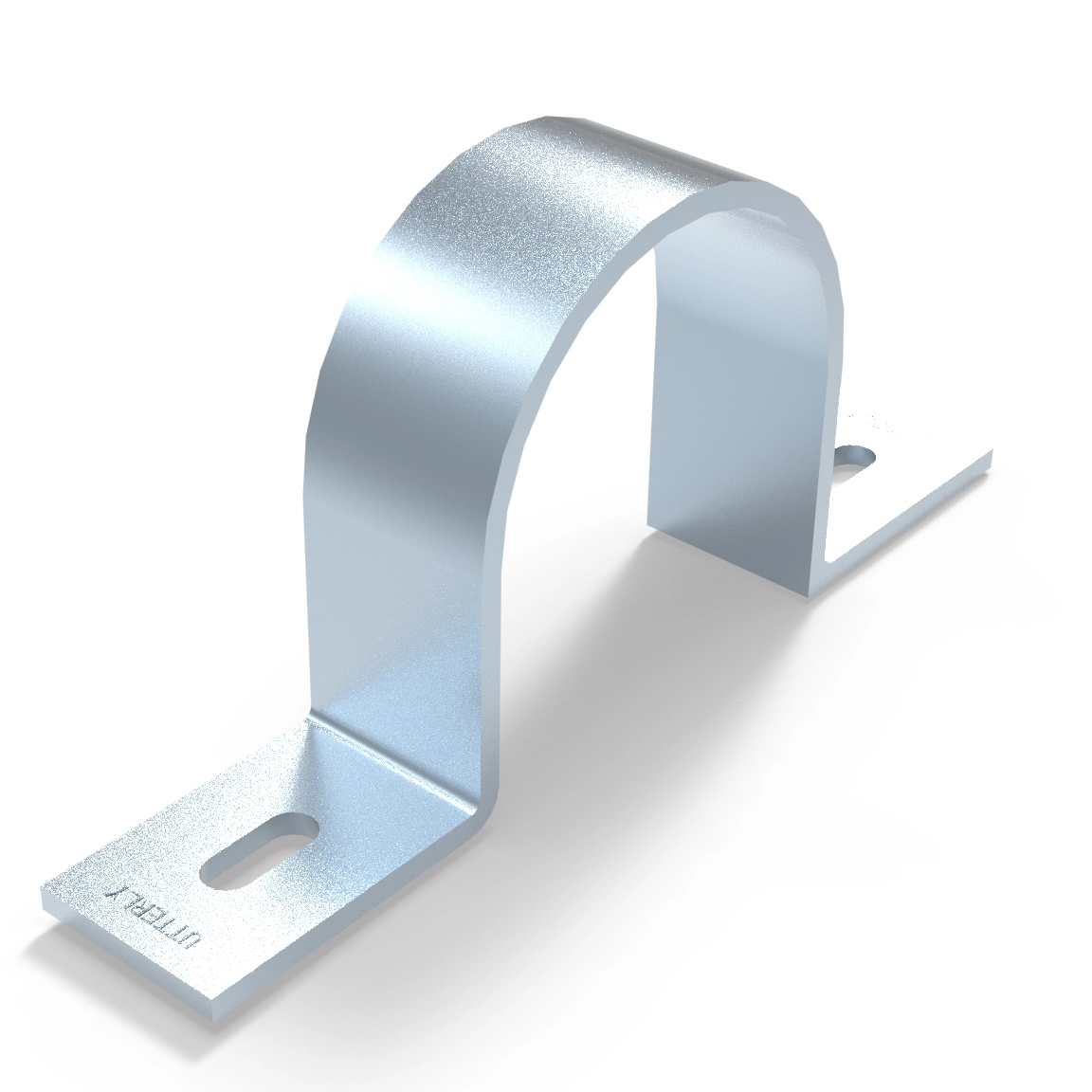

UTT82 Standard Saddle Clamp
Material: Carbon Steel, Stainless Steel
Application:
Designed for securing pipes with minimal vibration. Ideal for use in fire protection systems, drainage systems, water supply systems, sprinkler systems, and other piping installations requiring reliable support and stabilization.
Product Features:
Easy and convenient installation
Enhanced load-bearing performance through direct integration with channel steel structures
Suitable for both horizontal and vertical pipe installations
| Nominal Diameter NB (mm) | Outer Pipe Diameter A (mm) | b*s(mm) | W/100 | Design Load |
| 15 | 21 | 41x1.5 | 11.8 | 2.46KN |
| 20 | 27 | 41x1.5 | 14.1 | 2.46KN |
| 25 | 34 | 41x2.0 | 15.9 | 2.46KN |
| 32 | 43 | 41x2.0 | 17.7 | 2.46KN |
| 40 | 48 | 41x2.0 | 42.6 | 2.46KN |
| 50 | 60 | 41x2.0 | 51.7 | 2.46KN |
| 65 | 76 | 41x2.5 | 60.3 | 2.46KN |
| 80 | 89 | 41x2.5 | 68.9 | 2.46KN |
| 100 | 114 | 41x3.0 | 79.8 | 3.57KN |
| 125 | 140 | 41x3.0 | 89.8 | 3.57KN |
| 150 | 168 | 41x3.5 | 102.1 | 4.44KN |
