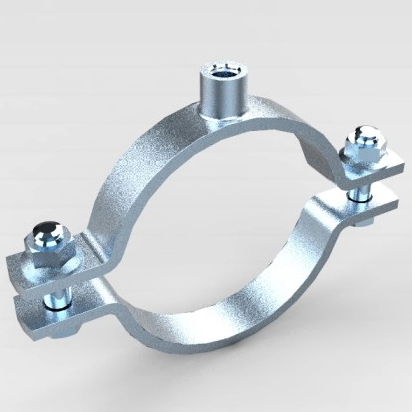

UTT62 Plain Pipe Clamp
Size Range：1/2″ through 4″
Material：Carbon steel
Finish：Zinc plated, other finish available upon request
Features：
● Contains easy closing mechanism.
● Flared edges and specially designed welding area help protect CPVC piping.
● Plastic washers help prevent crushing the CPVC or plastic pipe and assure a floating fit.

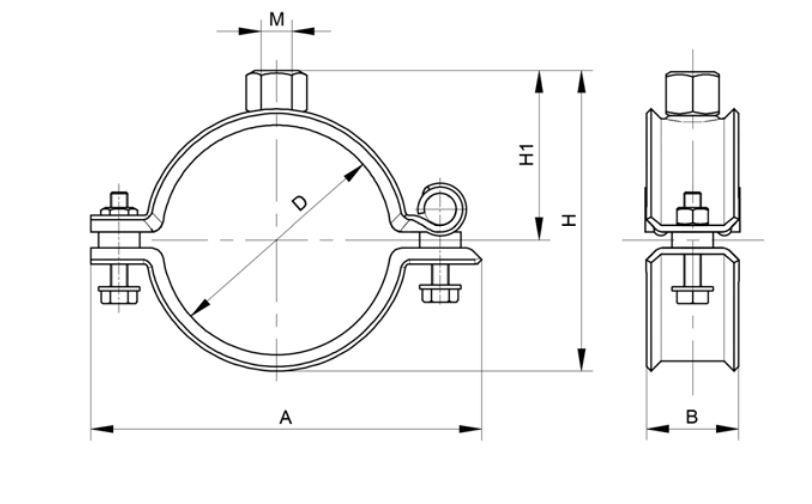

| Part Number | Nominal Pipe Size | D | M | A | B | H1 | H | Max.Rec. Load | ||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | Ibs | N | |
| CC04-015 | 1/2" | DN15 | 0.85 | 21.5 | 3/8” UNC | M10 | 2.76 | 70 | 1.18 | 30 | 1.06 | 27 | 1.65 | 42 | 250 | 1110 |
| CC04-020 | 3/4" | DN20 | 1.06 | 27 | 299 | 76 | 1.14 | 29 | 1.85 | 47 | ||||||
| CC04-025 | 1" | DN25 | 132 | 33.5 | 3.27 | 83 | 1.30 | 33 | 2.17 | 55 | ||||||
| CC04-032 | 1/4" | DN32 | 1.67 | 42.3 | 3.62 | 92 | 1.48 | 37.5 | 2.48 | 63 | ||||||
| CC04-040 | 11/2" | DN40 | 1.91 | 48.5 | 3.74 | 95 | 1.61 | 41 | 2.80 | 71 | 320 | 1420 | ||||
| CC04-050 | 2" | DN50 | 2.38 | 60.5 | 4.33 | 110 | 1.85 | 47 | 3.27 | 83 | ||||||
| CC04-065 | 21/2" | DN65 | 2.89 | 73.5 | 4.88 | 124 | 2.11 | 53.5 | 3.74 | 95 | ||||||
| CC04-065A | 21/₂" | DN65 | 3.03 | 77 | 5.00 | 127 | 2.17 | 55 | 3.86 | 98 | ||||||
| CC04-080 | 3" | DN80 | 3.50 | 89 | 5.51 | 140 | 242 | 61.5 | 4.37 | 111 | 380 | 1690 | ||||
| CC04-090 | 31/₂" | DN90 | 4.02 | 102 | 6.10 | 155 | 2.70 | 68.5 | 4.92 | 125 | ||||||
| CC04-100 | 4" | DN100 | 4.53 | 115 | 6.57 | 167 | 2.93 | 74.5 | 5.43 | 138 | 440 | 1950 | ||||
