UTT8002
UTTERLY
| Material: | |
|---|---|
| Finish: | |
| Size: | |
| Sample: | |
| MOQ: | |
| Delivery: | |
| Quantity: | |

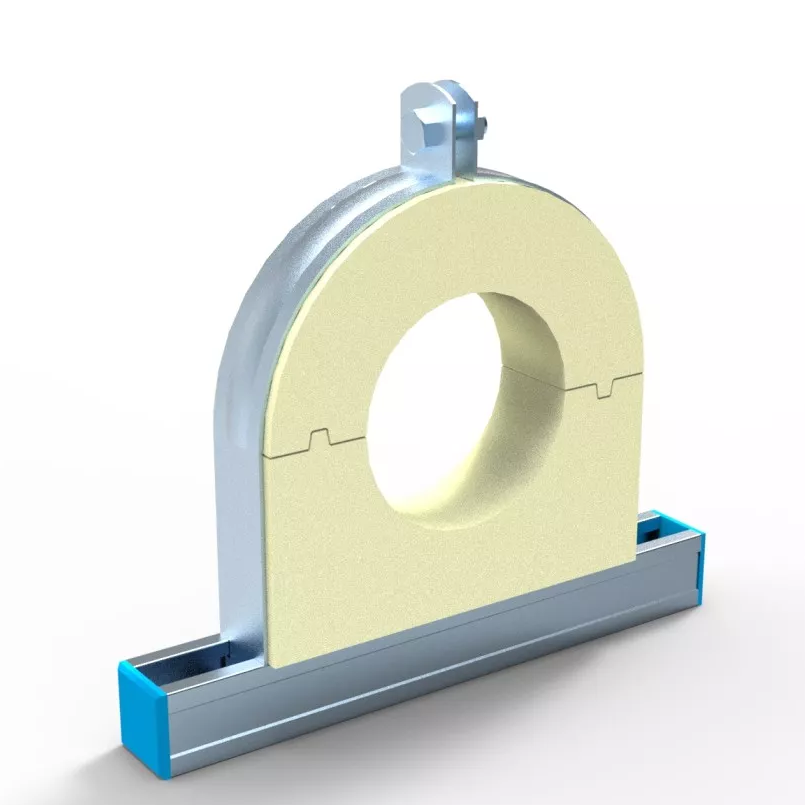

UTT8002 Insulation Pipe Clamp
Metal Material:
High-quality carbon steel, stainless steel.
Surface Treatment:
Electro-galvanized (zinc plating), hot-dip galvanized.
Galvanizing Standards:
Electro-galvanized zinc coating thickness: 7 μm
Hot-dip galvanized coating minimum thickness: 45 μm
Insulation Ring Material:
High-density polyurethane.
Product Includes:
Clamp + Carriage Bolt + Nut + Insulation Ring
Application Scope:
Suitable for chilled water, condensate water, and other low-temperature pipelines, as well as steam condensate lines.
Product Features:
Easy and efficient on-site installation.
Pipes can be mounted closely together, saving both space and cost.
Utilizes channel steel structure for improved load-bearing capacity.

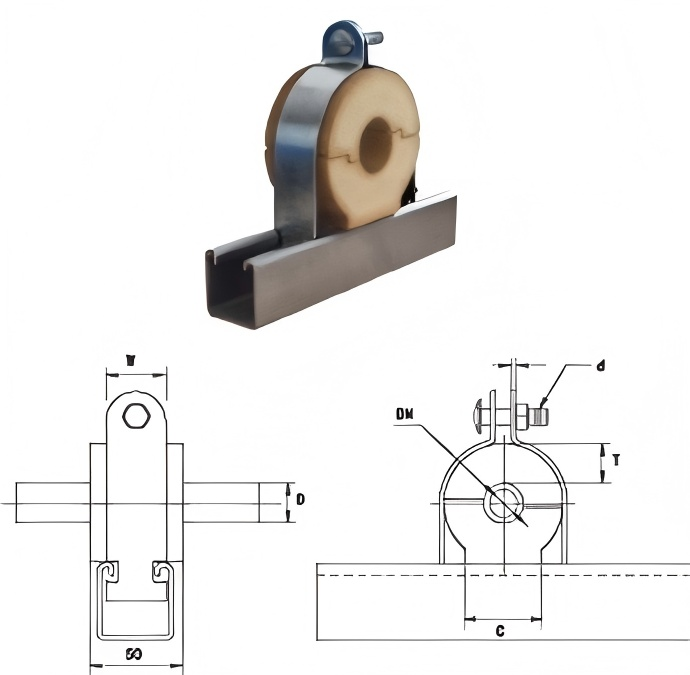

| Model | Nominal Diameter | OD | T=20mm | T=25mm | T=30m | T=40mm | T=50mm | T | W | d | Load |
| DN(mm) | D(m) | C(mm) | kN | ||||||||
| UTT8002-015 | 15 | 21.7 | 35 | 38 | 42 | 48 | / | 1.5 | 25 | M10 | 0.9 |
| UTT8002-020 | 20 | 27.2 | 41 | 44 | 47 | 54 | 61 | 1.5 | 25 | M10 | 1.07 |
| UTT8002-025 | 25 | 34 | 47 | 51 | 54 | 61 | 67 | 1.5 | 25 | M10 | 1.35 |
| UTT8002-032 | 32 | 42.7 | 56 | 59 | 63 | 69 | 76 | 2 | 25 | M10 | 1.65 |
| UTT8002-040 | 40 | 48.6 | 62 | 65 | 69 | 75 | 82 | 2 | 25 | M10 | 1.8 |
| UTT8002-050 | 50 | 60.5 | 74 | 77 | 81 | 87 | 94 | 2 | 25 | M10 | 2.23 |
| UTT8002-065 | 65 | 76.3 | 90 | 93 | 96 | 103 | 110 | 2.5 | 25 | M10 | 2.69 |
| UTT8002-080 | 80 | 89.1 | 102 | 106 | 109 | 116 | 122 | 2.5 | 25 | M10 | 3.01 |
| UTT8002-100 | 100 | 114.3 | / | 131 | 134 | 141 | 148 | 2.5 | 25 | M10 | 3.67 |
| UTT8002-125 | 125 | 139.8 | 157 | 160 | 167 | 173 | 3 | 32 | M12 | 4.21 | |
| UTT8002-150 | 150 | 165.2 | 182 | 185 | 192 | 100 | 3 | 32 | M12 | 4.96 | |
| UTT8002-200 | 200 | 216.3 | / | 236 | 243 | 250 | 3 | 32 | M12 | 6.37 | |
| UTT8002-250 | 250 | 267.4 | / | / | 294 | 301 | 4 | 50 | M12 | 7.77 | |
| UTT8002-300 | 300 | 318.5 | / | / | 345 | 419 | 4 | 50 | M16 | 8.93 |
