Overview

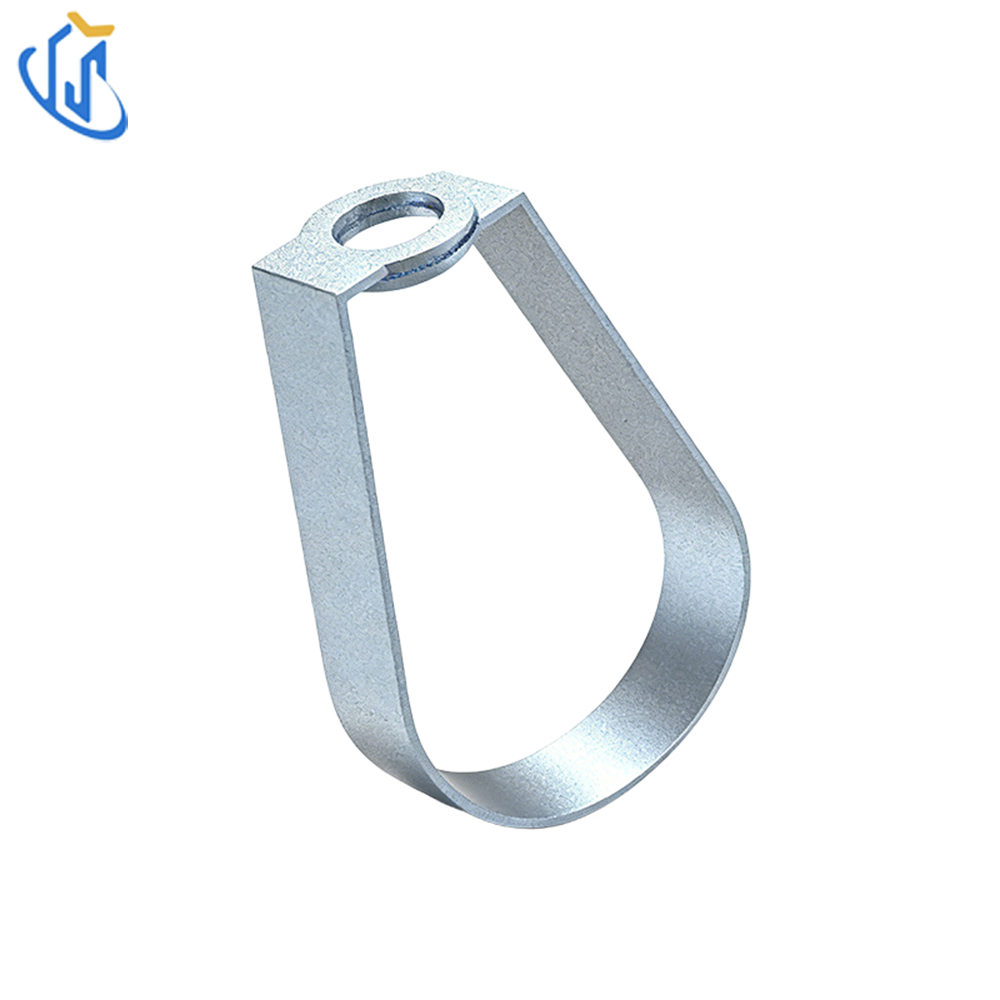

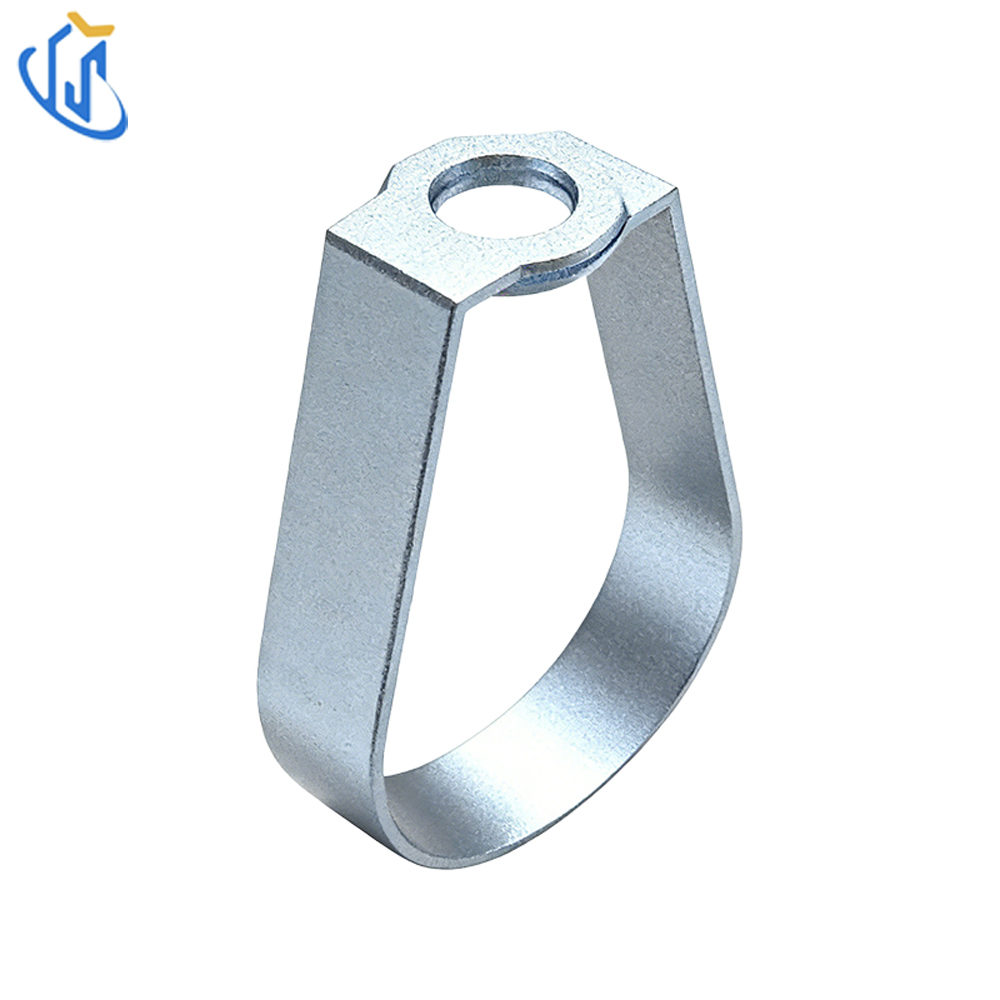

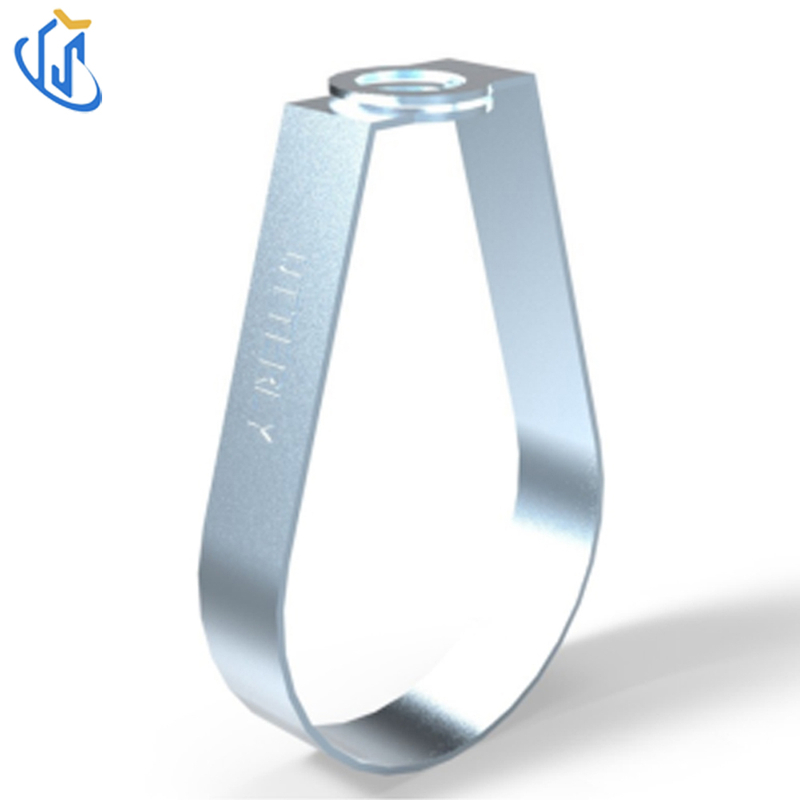

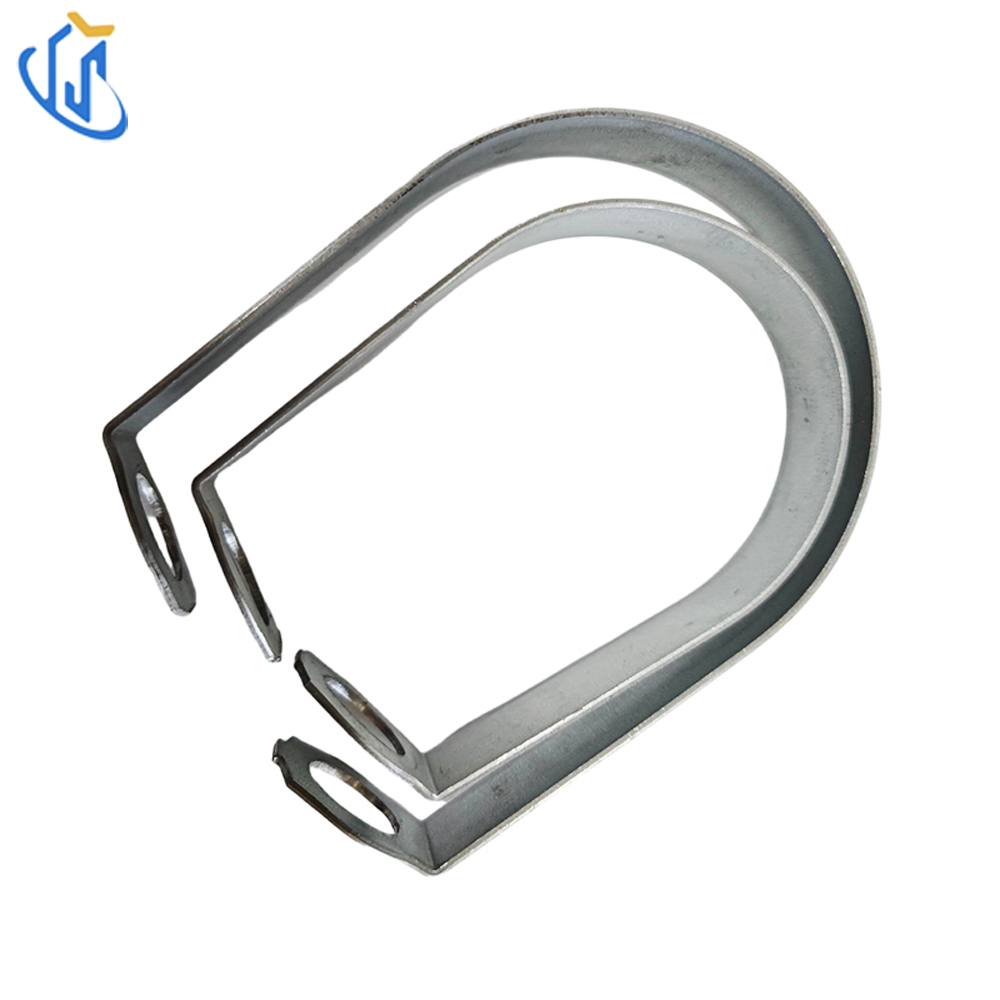

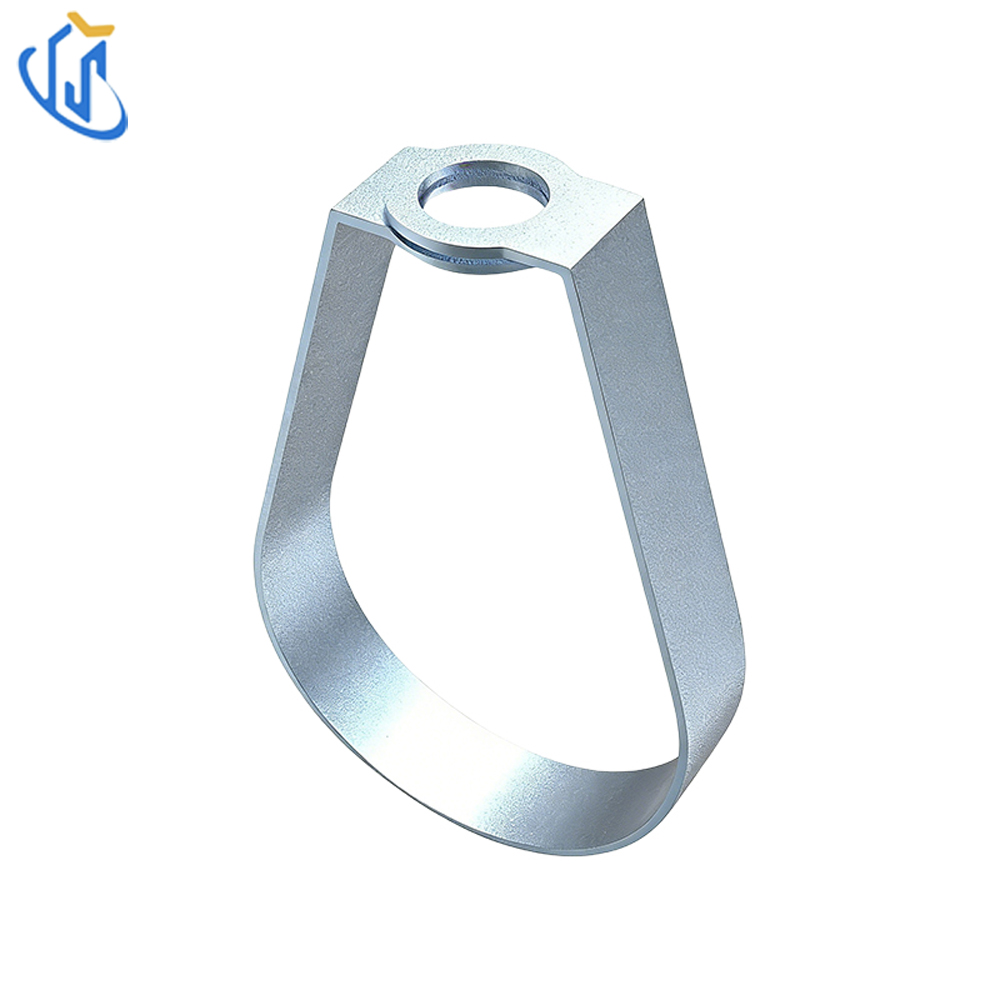

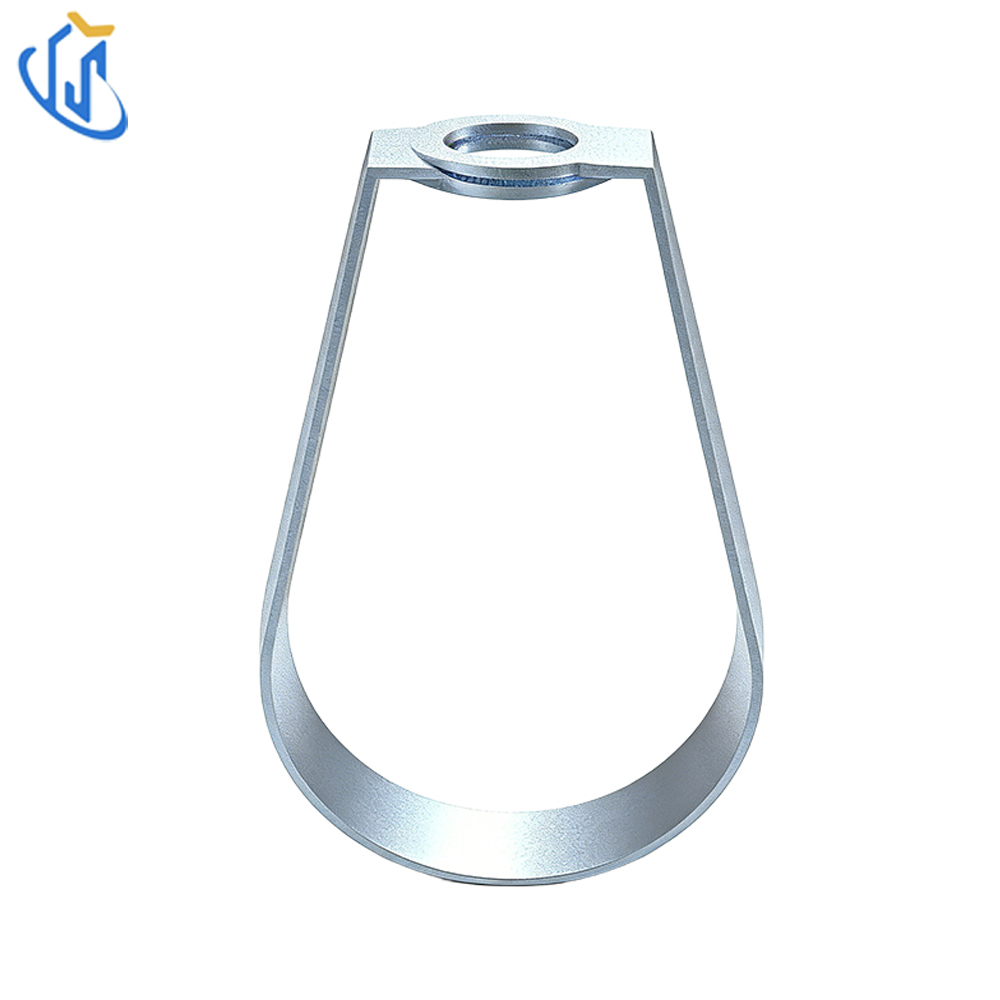

UTT42 adjustable band hanger without swivel nut is one-piece stamped pre-galvanized carbon steel pipe suspension component specially for non-insulated stationary sprinkler piping. Key reinforced part adopts double-layer steel plate design to improve load capacity; vertical height can be adjusted between 5/8 inch ~2 inch by matched threaded rod and two separate nuts (nuts sold separately). Lower nut fine-tunes pipeline mounting gradient, top lock nut prevents loosening caused by pipeline vibration, full specification covers DN20~DN200, widely applied in fire sprinkler, MEP plumbing and industrial fixed pipeline suspension projects.
Key Features
Core Function: Gravity suspension for non-insulated stationary piping, adjust pipeline pitch and vertical height via double nuts
Raw Material: Full pre-galvanized carbon steel (integral stamping molding)
Surface Finish: Pre-galvanized anti-rust coating
Applicable Pipe Size: DN20~DN200（3/4''~8''）
Matching Thread Rod: M10 / M12 / M16 multi-spec thread rod
Vertical Adjust Range: 5/8" ~ 2" adjustable height
Structural Advantage: Double-layer thickened load-bearing area; no built-in swivel nut (nuts purchased separately)

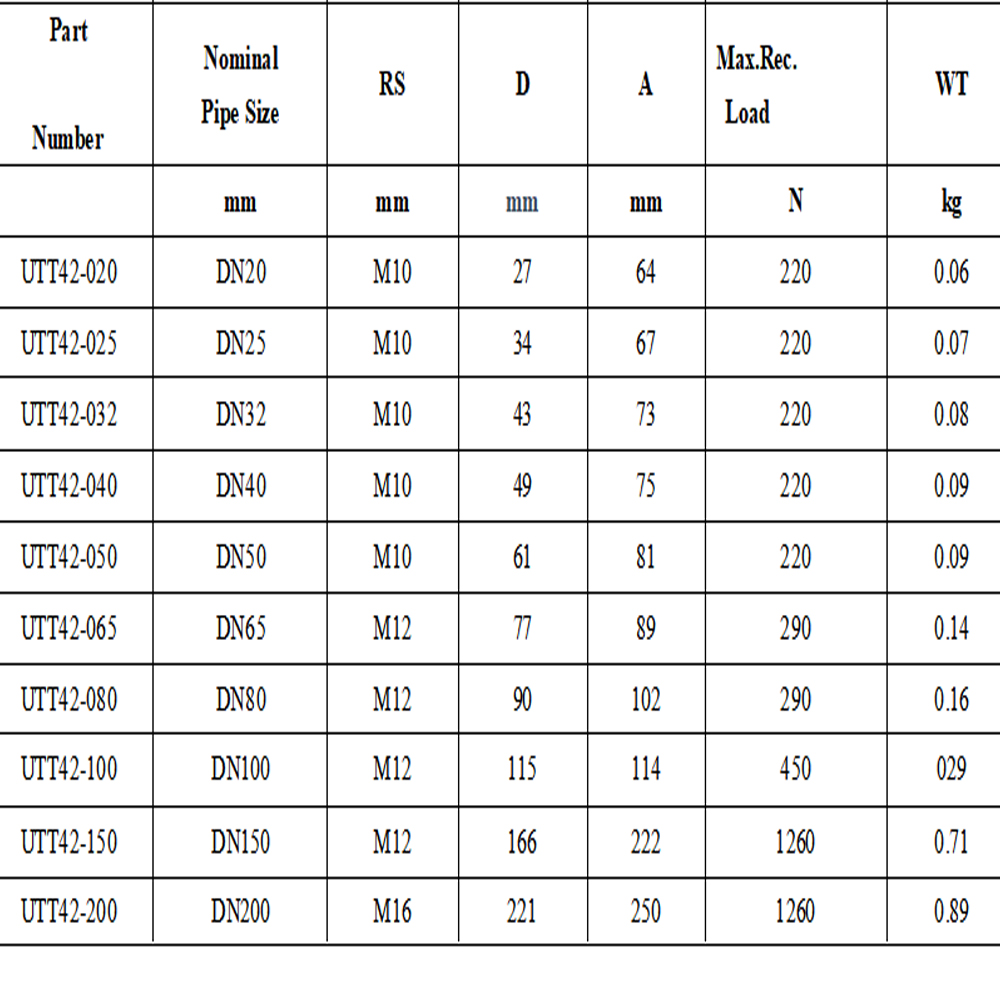

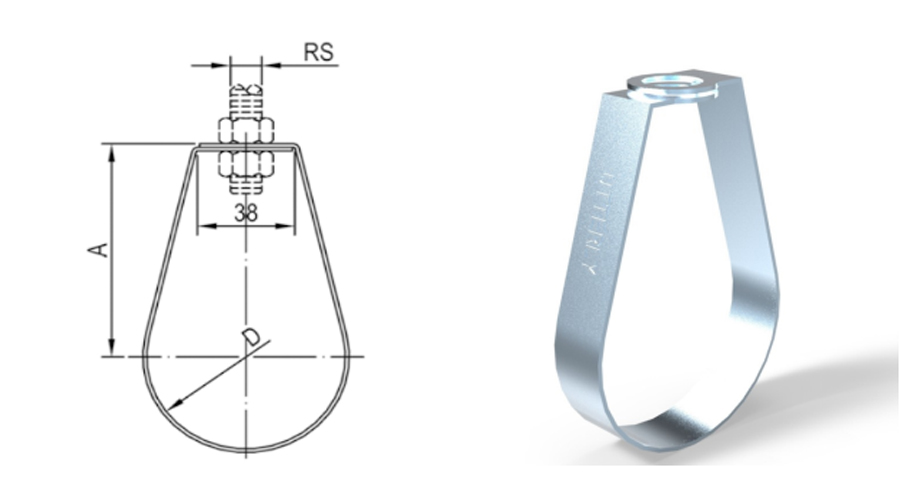

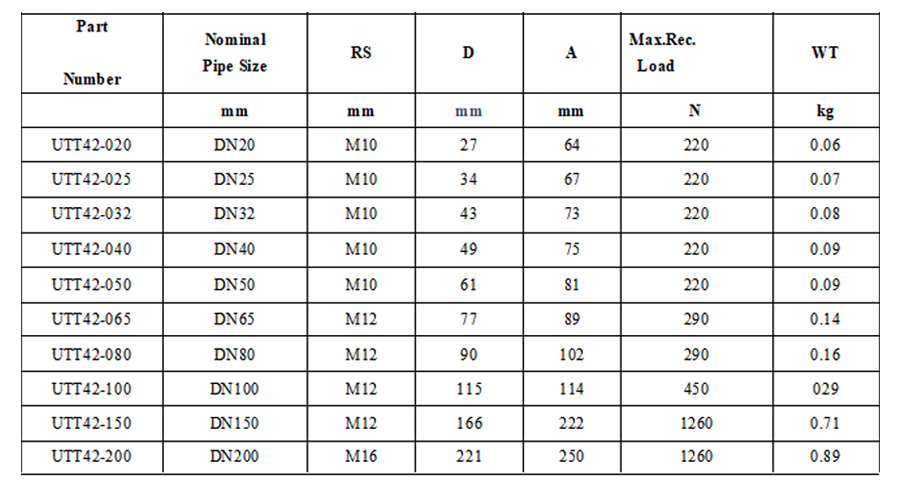

Product Parameter Table
| Item | Specification |
| Model | UTT42 Series（DN20~DN200） |
| Raw Material | Pre-galvanized Carbon Steel |
| Applicable Pipe | DN20(3/4")~DN200(8") |
| Matching Thread | M10 / M12 / M16 |
| Max Recommended Load | 220N~1260N graded by size |
| Unit Weight | 0.06kg~0.89kg |
| Vertical Adjust Range | 5/8"~2" |
| Note | Fixing nuts not included in product price |
| Sample Supply | Free pre-order test samples available |
Application Scenarios
1.Fire Sprinkler System: Standard suspension hanger for automatic fire non-insulated fixed sprinkler pipelines compliant with NFPA13 design requirements.
2.MEP & HVAC Engineering: Gravity support for bare cold/hot water pipeline in high-rise, shopping mall and commercial buildings.
3.Industrial Construction: Fixed suspension accessory for factory process non-insulated piping layout.

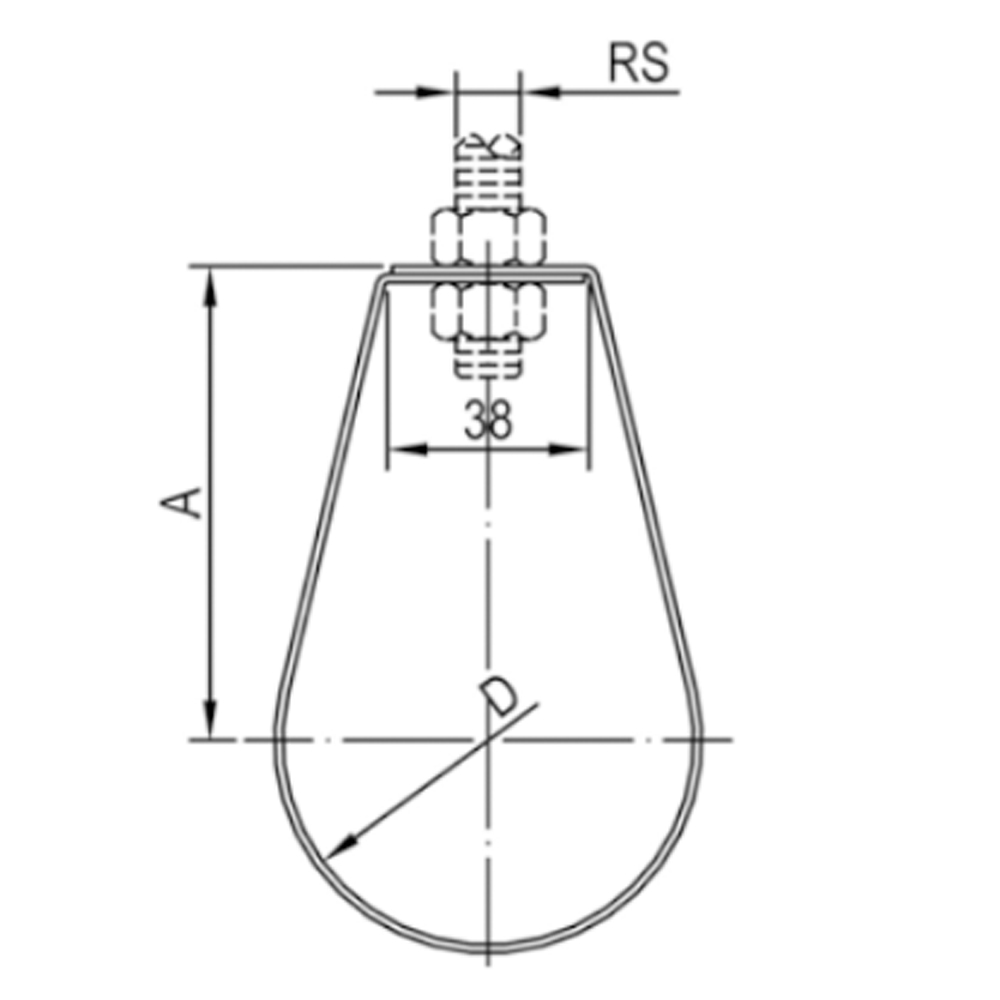

Step-by-Step Installation Guide
1.Fix M10/M12/M16 standard threaded rod onto ceiling anchor or upper channel steel in advance.
2.Wrap integrated UTT42 band tightly around outer wall of target bare pipeline.
3.Screw two separate matching nuts onto suspension threaded rod, hang UTT42 hanger onto the middle of double nuts.
4.Rotate lower nut to adjust pipeline mounting gradient and vertical height within 5/8"~2" adjustable range.
5.Tight top lock nut firmly after dimension confirmation to avoid vibration loosening and complete installation.
Industry Compliance
1.Conforms to MSS SP-58/SP-69 international pipe hanger manufacturing specifications & NFPA13 fire protection installation standard.
2.Pre-galvanized surface meets ASTM anti-corrosion coating industry criteria.
3.All finished products pass factory dimensional inspection and graded load sampling test before delivery.
Core Product Advantages
Double-Layer Thickened Load-Bearing Design
Key stressed area with double steel thickness for higher structural strength and stable long-term load bearing.
Large Range Vertical Adjustable Height
5/8''~2'' adjustment space easily offsets on-site construction elevation errors and pipeline gradient needs.
Non-Swivel Compact Structure
No built-in swivel nut simplifies product structure, reduces cost; customer selects matching nuts separately per demand.
Graded Load & Complete Size Coverage
From DN20 small pipe to DN200 large pipe with graded rated load to satisfy different pipeline weight demands.
Pre-Galvanized Whole Body
Integral pre-galvanization avoids partial rusting, good corrosion resistance for conventional indoor construction environment.
Full UTT Series Matching
Perfectly compatible with UTT threaded rod, beam adapters and pipe clamps for integrated suspension bracing system.
FAQ
Q1: What is the core structural feature of UTT42?
A1: Integral stamping forming, double thickness reinforcement on load-bearing position, no built-in swivel nut.
Q2: Vertical adjustable scope?
A2: Vertical height adjustable between 5/8 inch to 2 inch via double matching nuts.
Q3: Matching thread rod specifications?
A3: M10 for small size DN20~DN50, M12 for DN65~DN150, M16 for DN200 large pipe.
Q4: Are fixing nuts included with product?
A4: Nuts are not contained in product price and need separate purchase.
Q5: Applicable pipeline type?
A5: Designed exclusively for non-insulated stationary cold/hot water & fire sprinkler bare pipelines.
