Overview

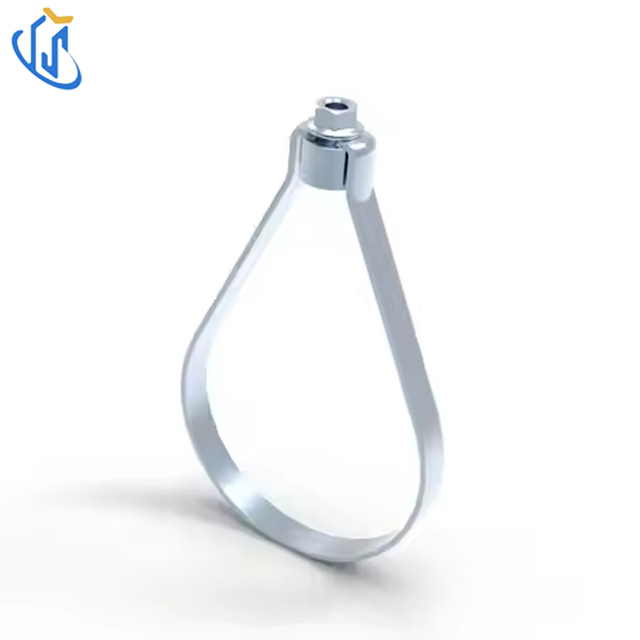

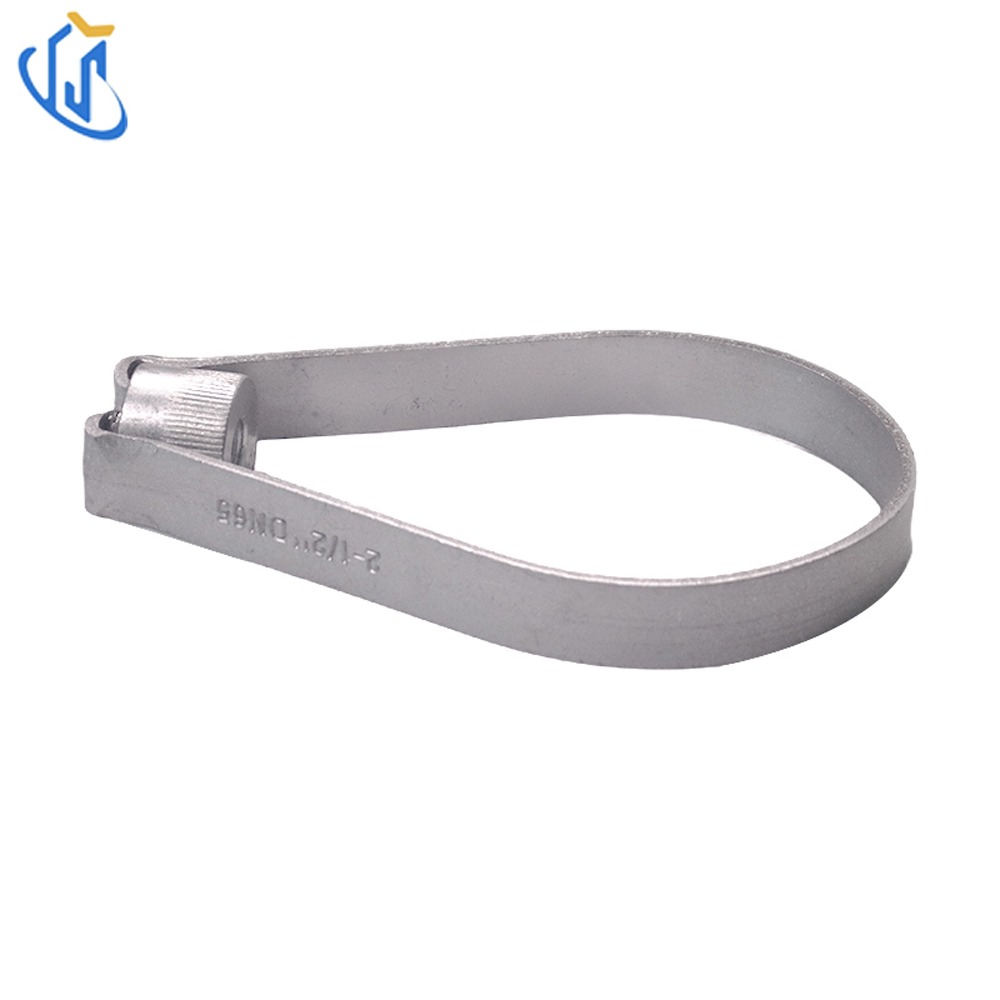

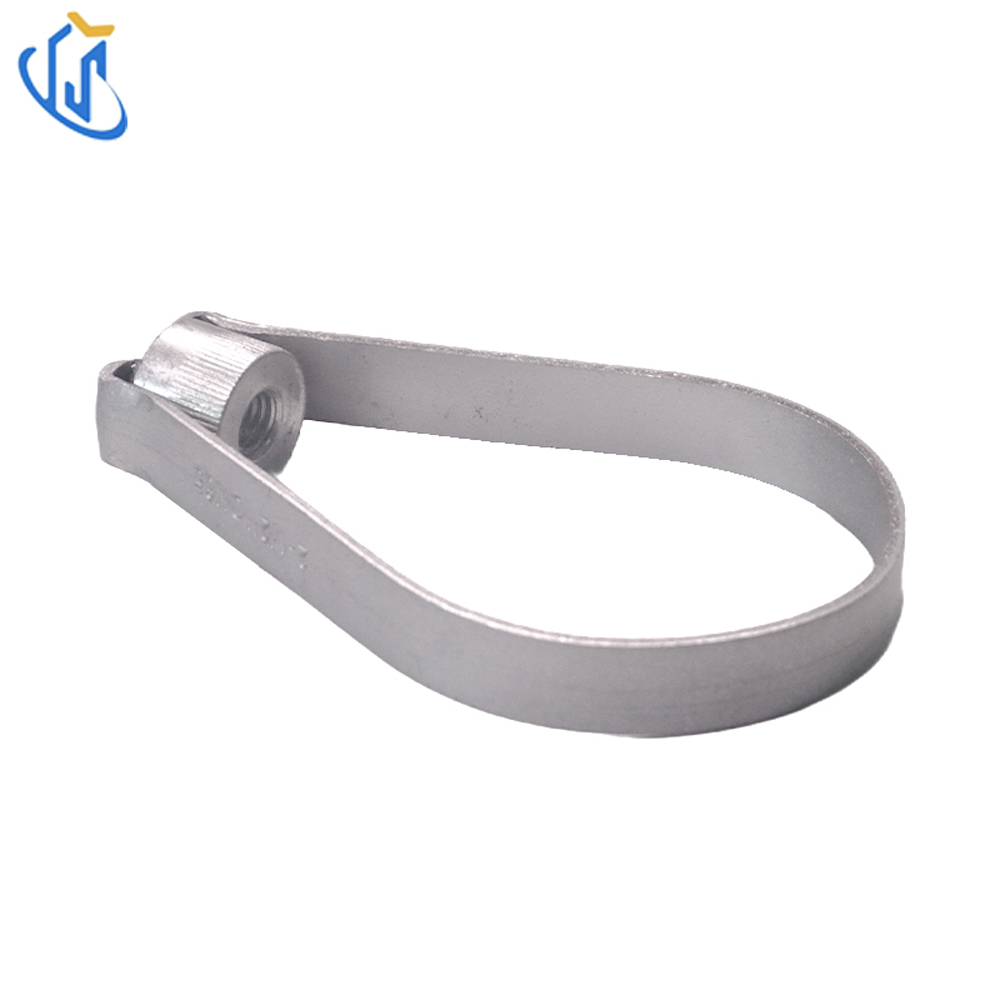

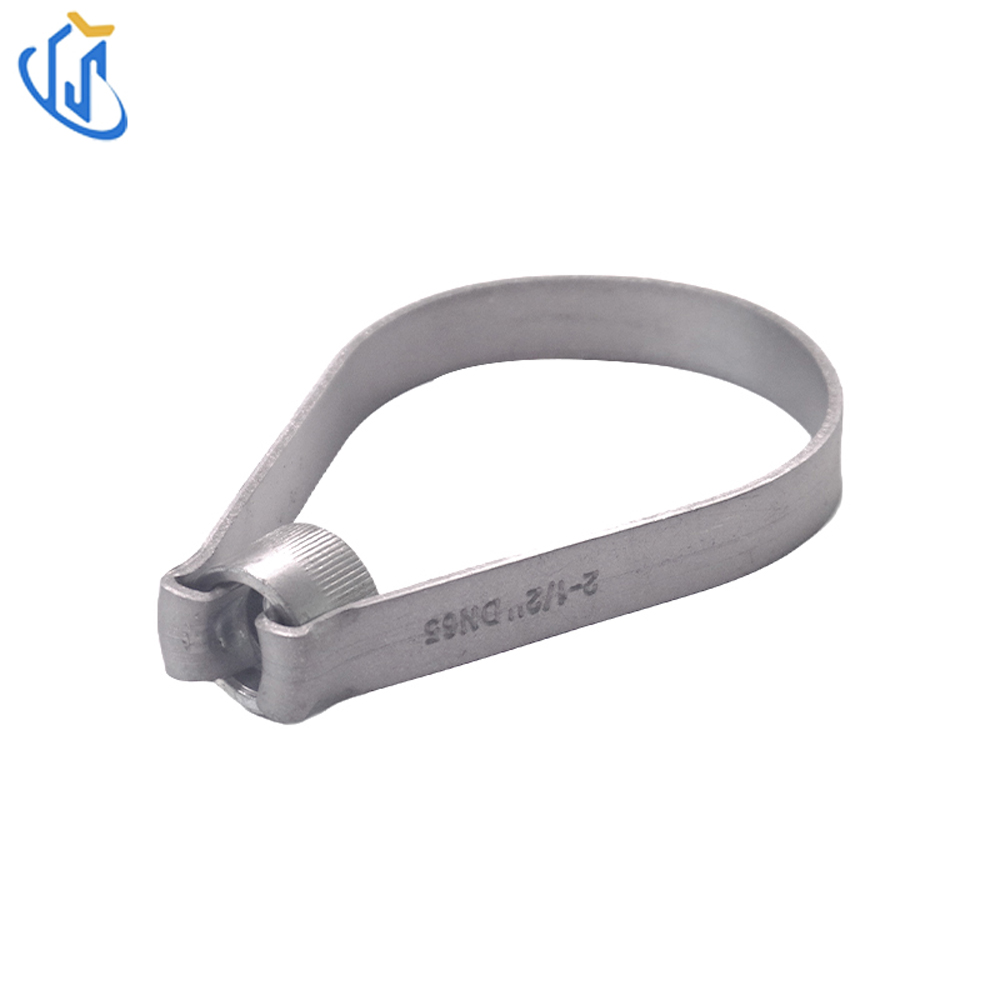

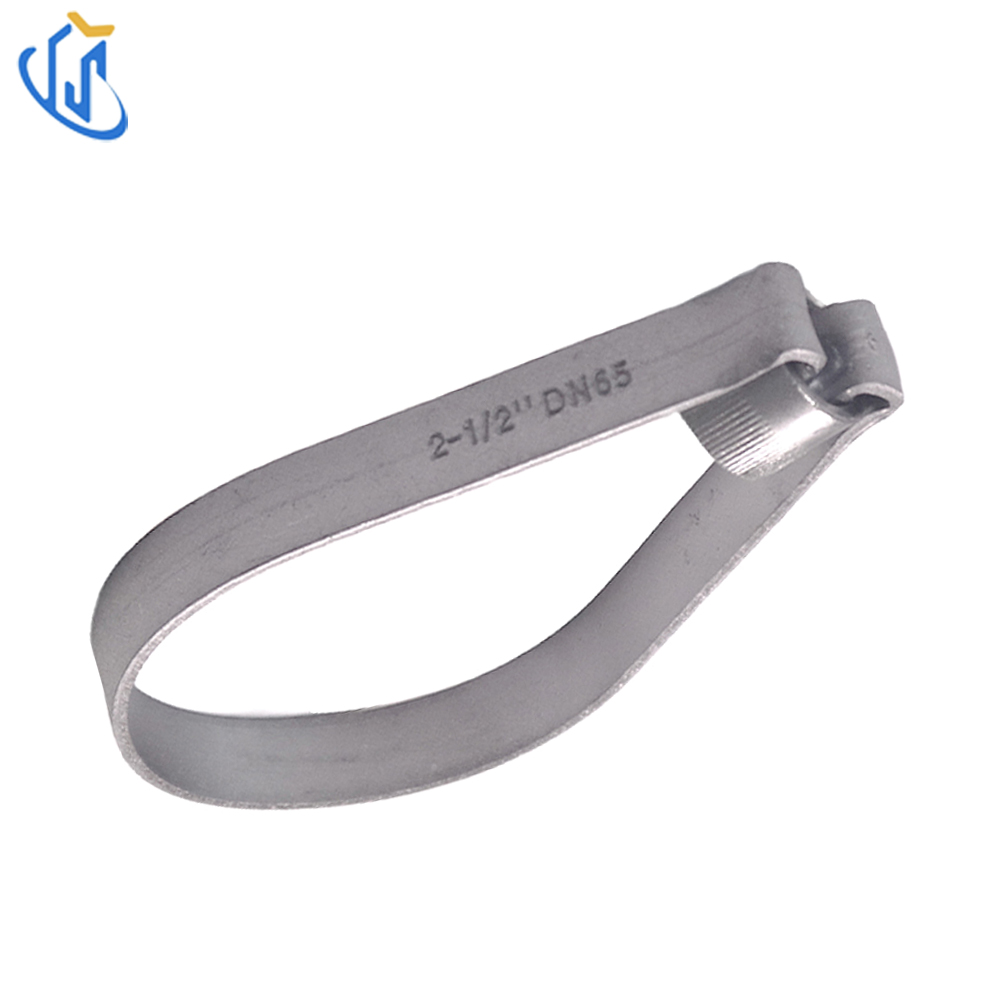

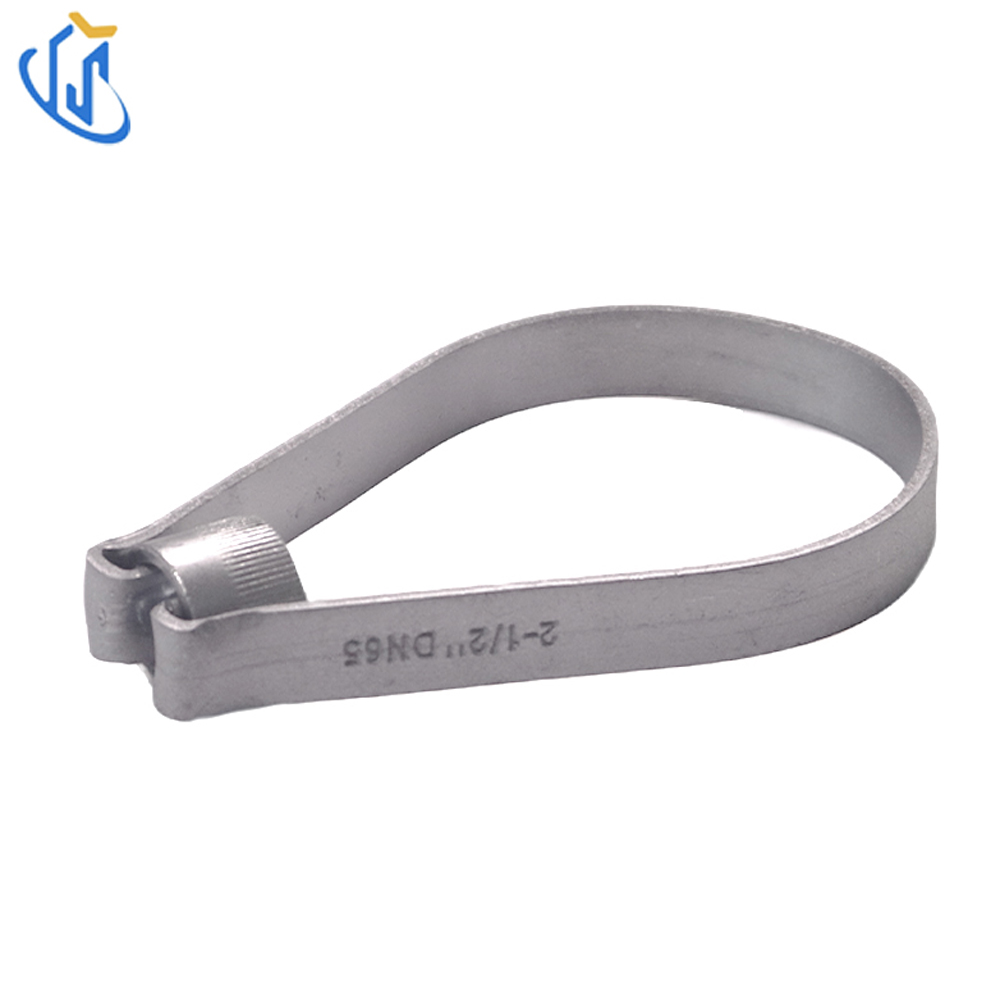

UTT41 cup nut loop hanger is standard MSS SP-58(Type7) gravity suspension fitting dedicated for automatic fire sprinkler pipeline. Constructed from carbon steel with two optional galvanized finishes, complete assembly includes formed steel loop strap, flange nut and cup nut; vertical height can be freely fine-tuned via matching nuts, available with M8/M10/M12 threaded rod specification covering DN25~DN200 pipe sizes, widely used for fire protection, MEP cold/hot water pipeline fixed suspension in commercial and industrial buildings.
Key Features
Core Function: Vertical adjustable suspension bracket to bear dead gravity load of stationary sprinkler pipelines
Raw Material: High-strength carbon steel
Surface Finish: Pre-galvanized / Electro-galvanized two options
Compliance Standard: MSS SP-58 / MSS SP-69 Type7 industry specification
Applicable Pipe Range: 1/2''~8''(DN25~DN200)
Matching Thread Rod: M8 / M10 / M12 three common specifications

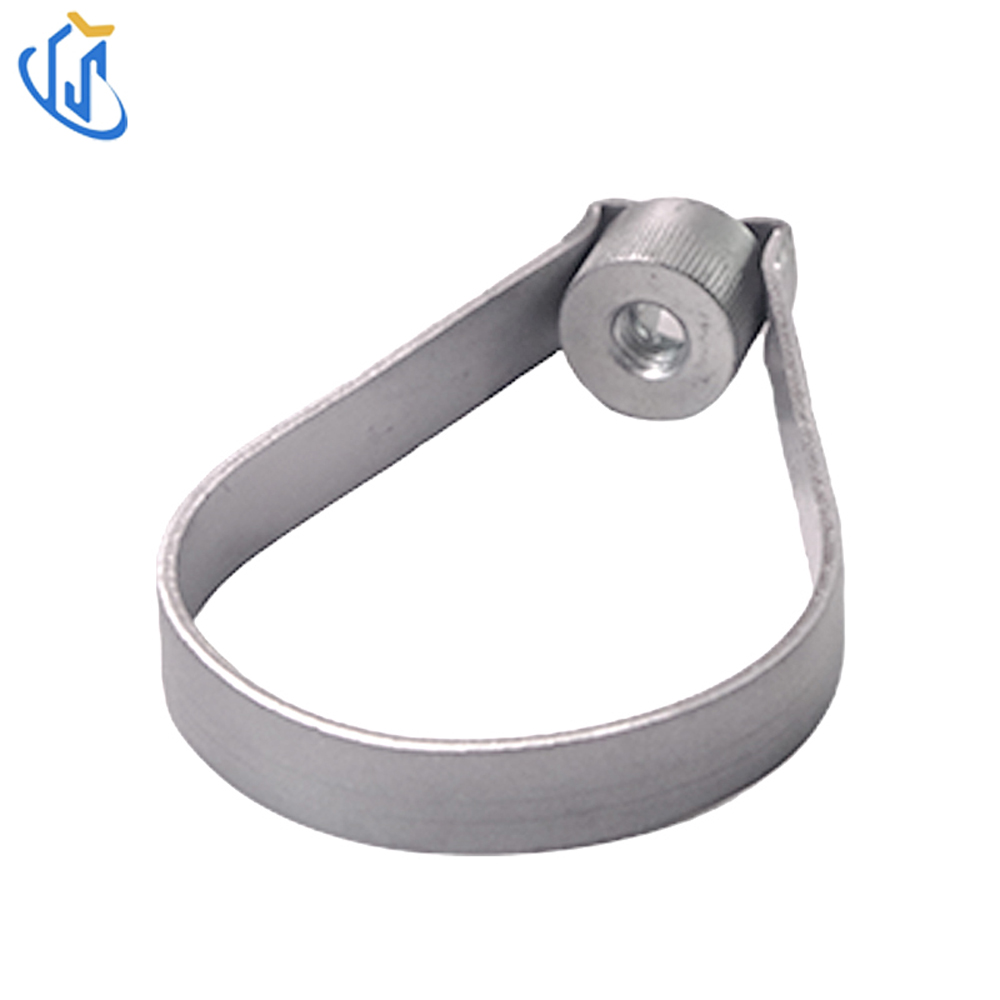

Adjustment Feature: Cup nut + flange nut design for flexible vertical installation height adjustment

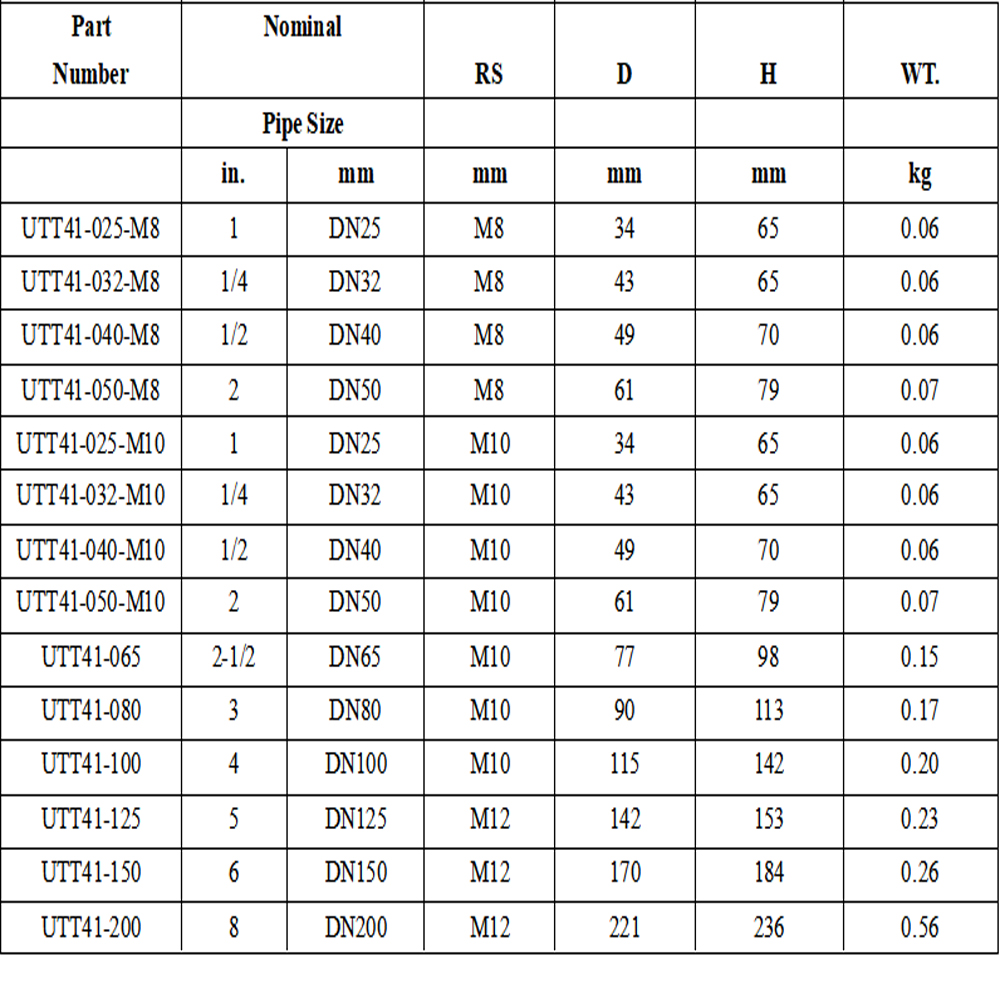

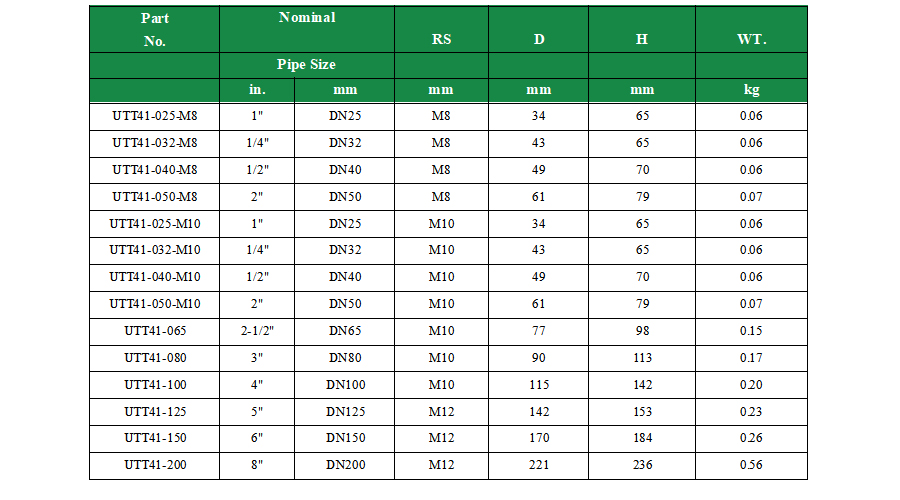

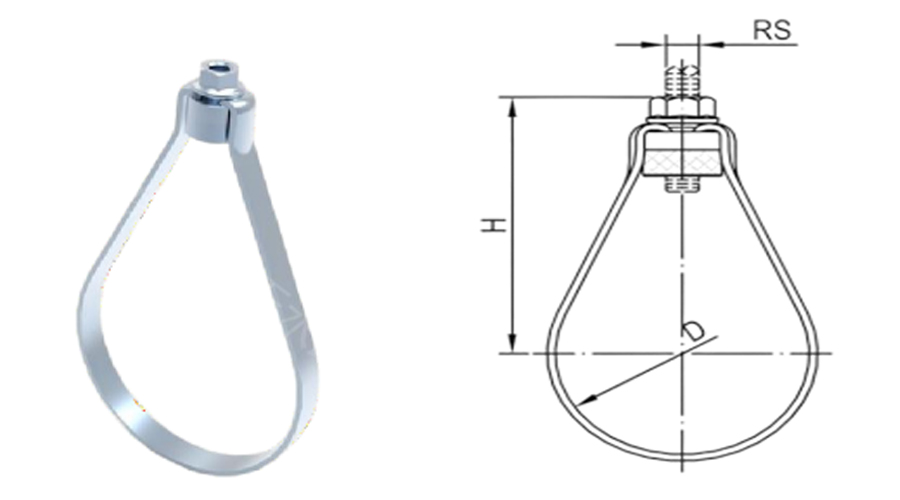

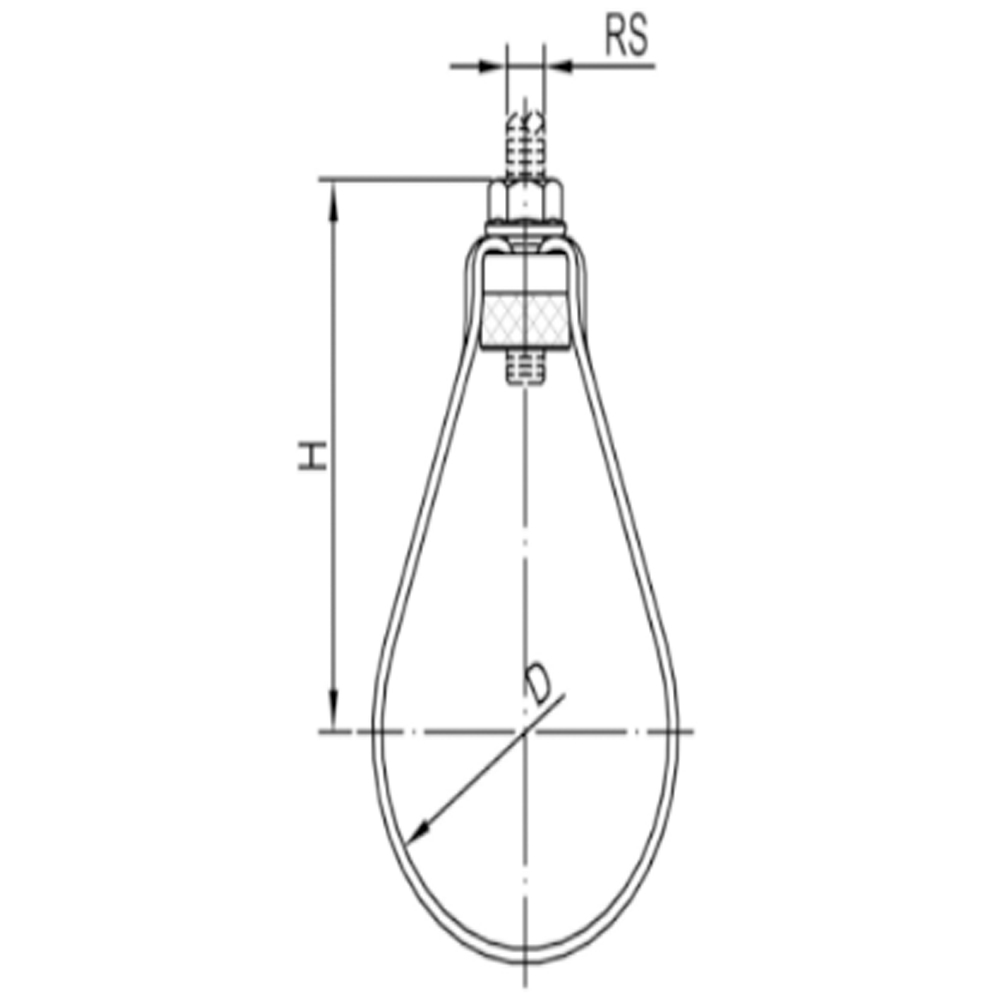

| Item | Specification |
| Model | UTT41 Series (split into M8/M10/M12 sub-models) |
| Raw Material | Carbon Steel |
| Surface Treatment | Pre-galvanized / Electro-galvanized |
| Applicable Pipe | DN25(1")~DN200(8") |
| Matching Thread Rod | M8 / M10 / M12 |
| Executive Standard | MSS SP-58 / SP-69 Type7 |
| Unit Weight | 0.06kg~0.56kg per piece |
| Sample Supply | Free pre-order test samples available |
Application Scenarios
1.
Fire Sprinkler System: Standard vertical suspension support for automatic fire sprinkler bare pipelines compliant with NFPA and MSS standards.
2.
MEP & HVAC Engineering: Gravity suspension fixing for non-insulated cold/hot water stationary pipelines of shopping malls, high-rise buildings.
3.
Industrial Construction: Regular pipe suspension accessory for factory process piping and public building plumbing projects.
Step-by-Step Installation Guide
1.Fix M8/M10/M12 threaded rod onto upper structural channel or ceiling anchoring point in advance.
2.Wrap UTT41 formed steel loop around outer wall of target pipeline closely.
3.Screw flange nut and cup nut onto hanging threaded rod, hook loop onto nut assembly.
4.Rotate cup & flange nut oppositely to adjust pipeline vertical mounting height to design dimension.
5.Lock double nuts tightly after height confirmation to finish fixed suspension installation.
Industry Compliance
1.Full compliance with international MSS SP-58 & SP-69 Type7 pipe hanger manufacturing specification.
2.Pre-galvanized & electro-galvanized coating meet global anti-corrosion industry acceptance criteria.
3.Every finished piece passes factory dimension inspection and gravity load sampling test before delivery.
Core Product Advantages
Dual Galvanized Surface Choices
Pre-galvanized for regular indoor environment, electro-galvanized for humid space to prevent rust effectively.
Nut-type Vertical Adjustable Structure
Cup+flange double nut design enables on-site free height fine adjustment to solve construction elevation deviation.
Complete Size Coverage
Full specs from DN25 to DN200 match mainstream sprinkler pipe sizes, three thread rod options for flexible matching.
MSS Standard Certified Design
Standard Type7 hanger conforms to international engineering acceptance norms for US/EU export projects.
Lightweight Stable Load Performance
Reasonable structural weight design ensures reliable gravity bearing without excessive material waste.
Full UTT Series Compatibility
Perfectly matched with UTT series threaded rod, beam adapters and pipe clamps for integrated suspension bracing system.
FAQ
Q1: What standard does UTT41 follow?
A1: Manufactured per MSS SP-58 & MSS SP-69 Type7 international pipe hanger specification.
Q2: Available surface options?
A2: Pre-galvanized and electro-galvanized two kinds of anti-rust finish.
Q3: Matching thread rod specs?
A3: Three options: M8, M10 and M12 for different load requirements.
Q4: Applicable pipe range?
A4: DN25 (1 inch) up to DN200 (8 inch) standard sprinkler pipeline.
Q5: How to realize vertical adjustment?
A5: Adjust mounting height via cooperation of flange nut and cup nut on suspension threaded rod.
