UTT7405
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface Finish: | |
| Quantity: | |

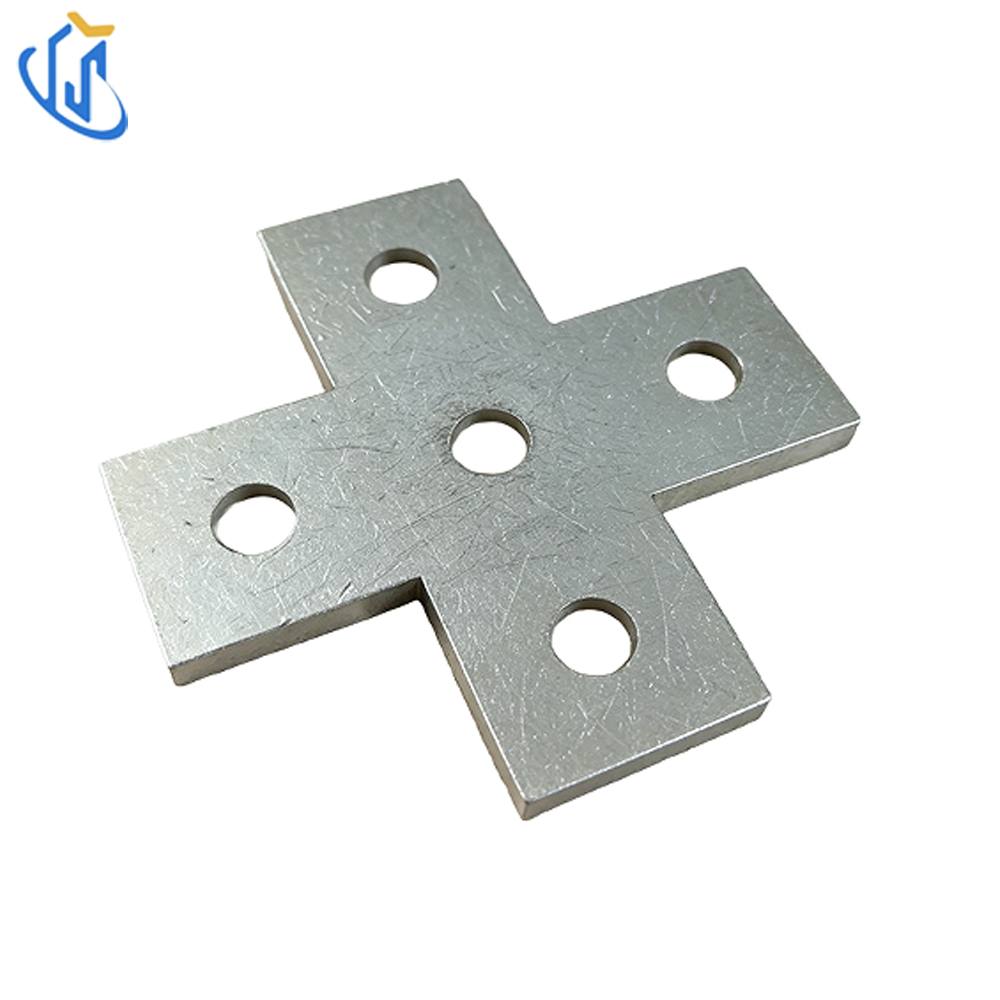

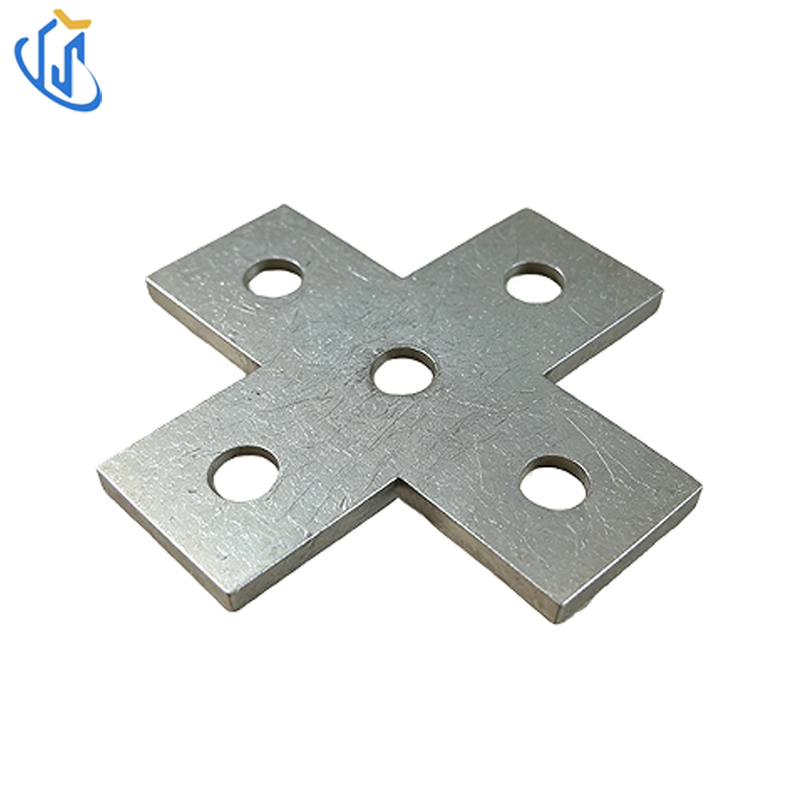

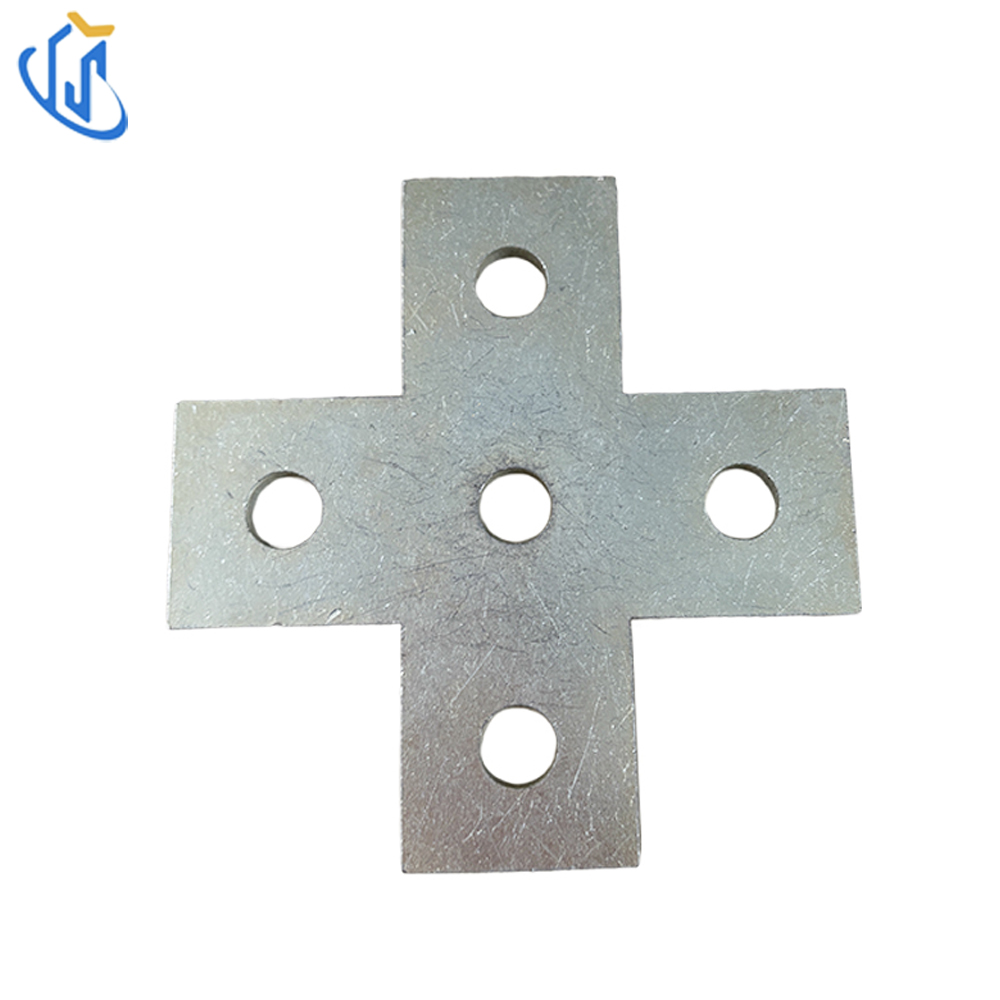

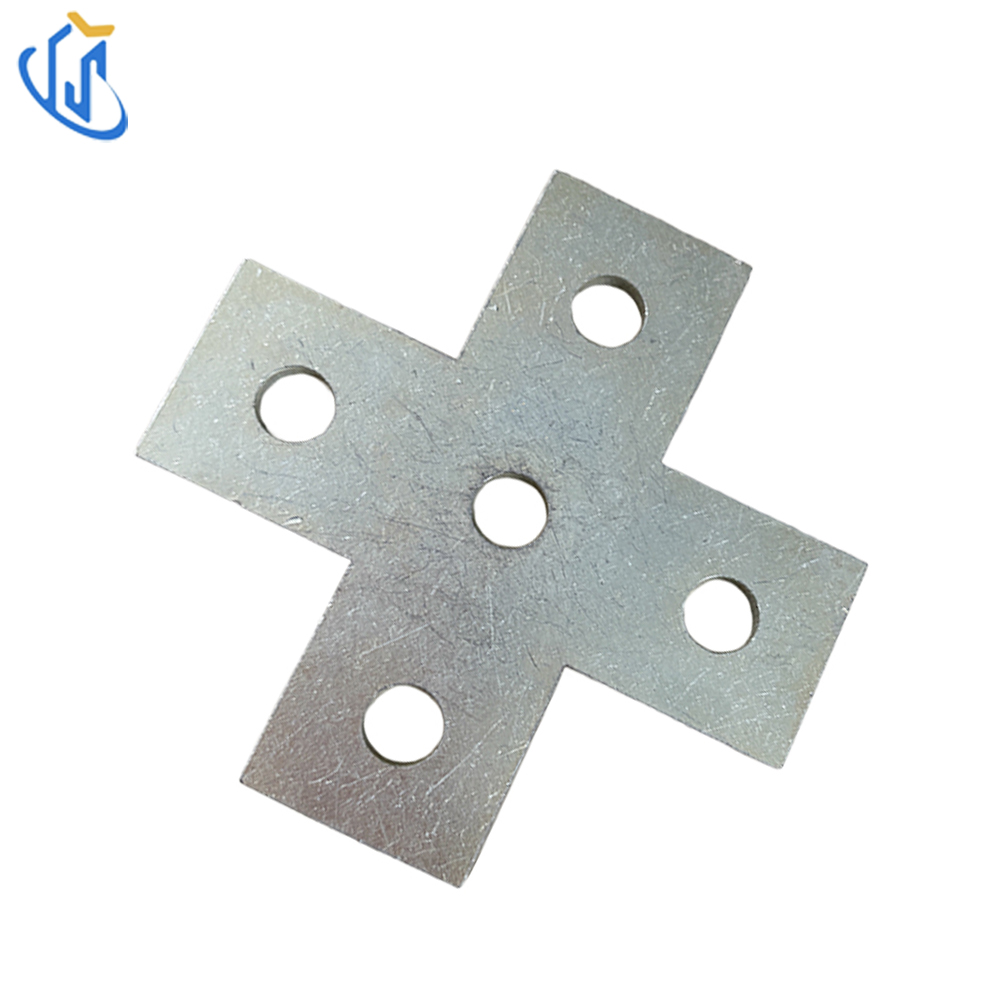

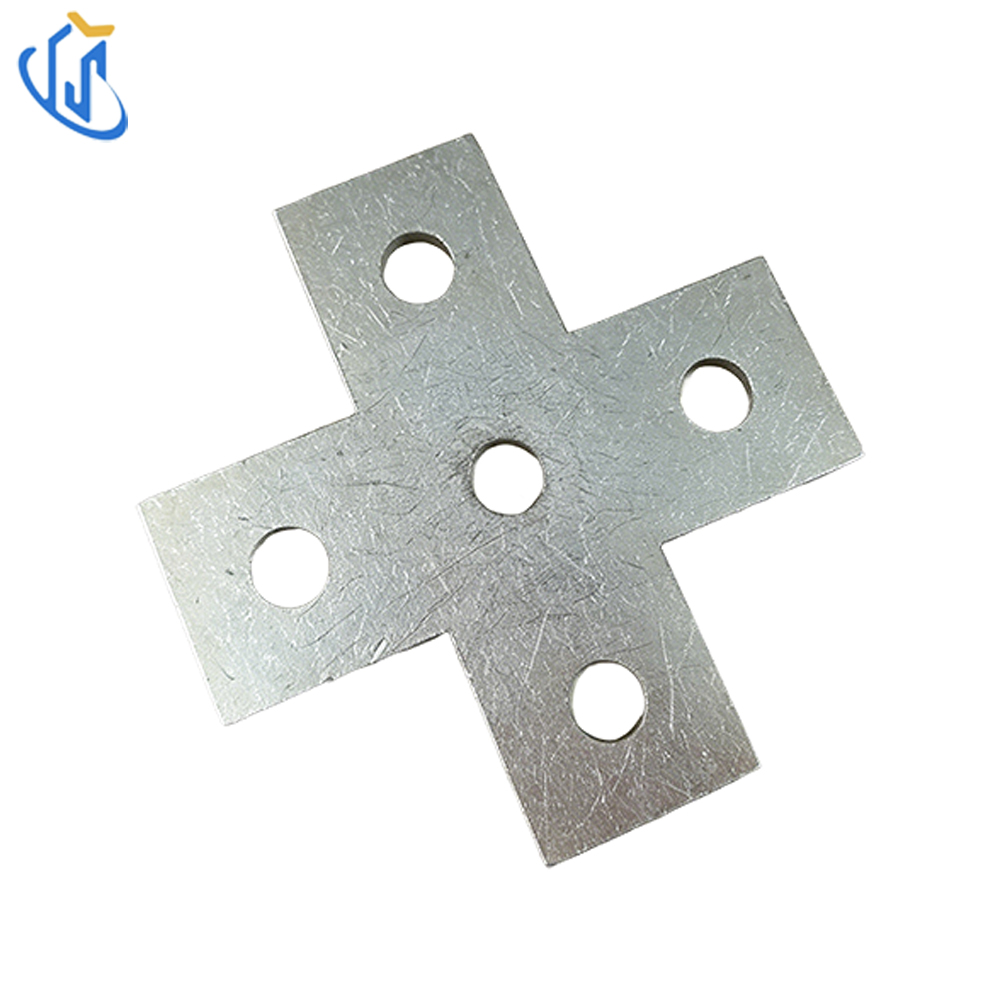

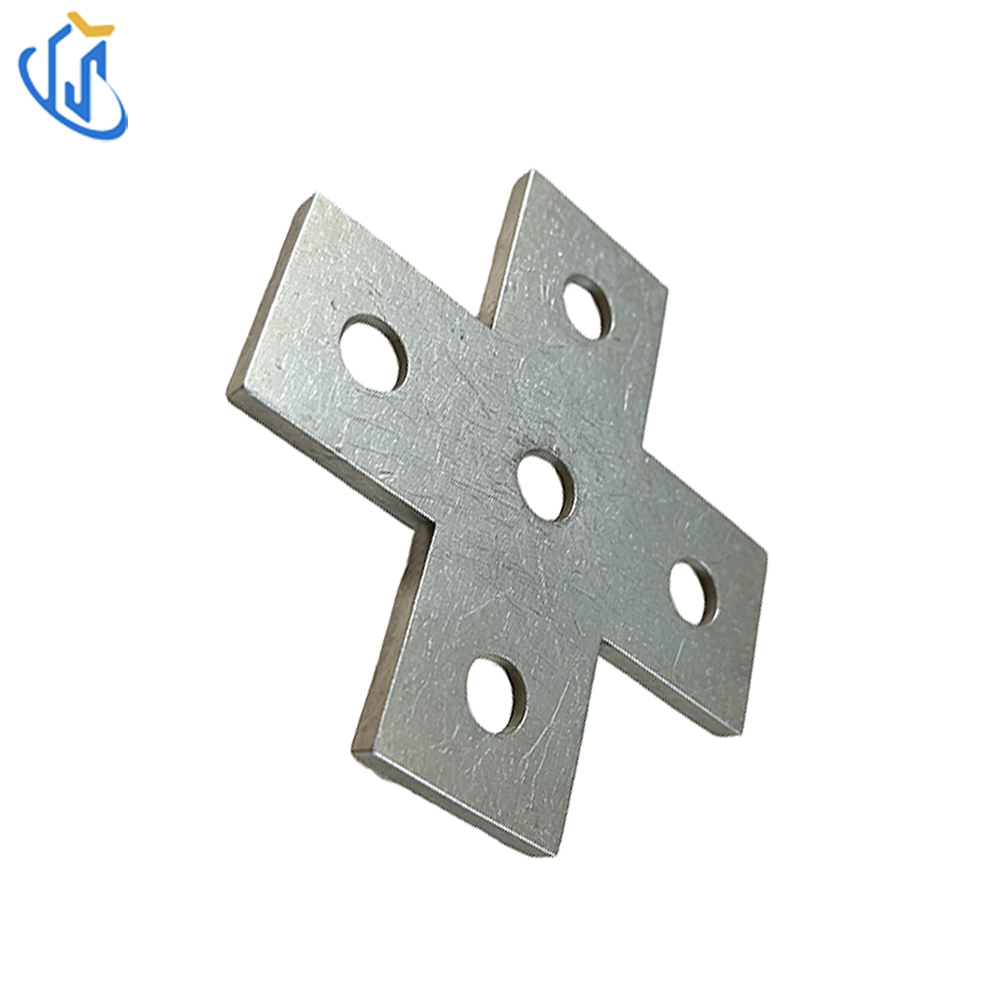

UTT7405 5-hole flat plate bracket is a professional connecting accessory for strut channel systems. Made of high-strength carbon steel, it has three surface treatments to adapt to indoor, humid and outdoor corrosive environments. This product is specially used for quick connection of cross-shaped channel steel at a 90° angle. With anti-slip and anti-loosening functions, it can work with other strut accessories to greatly enhance the overall strength and stability of the bracket system. Its standard specification is 138×138×5mm with a weight of 322g, and customized sizes are also supported. It is widely used in electromechanical installation, HVAC projects and structural metal framing, serving as a reliable connecting component for cross channel assembly.
Core Function: Realize quick 90° connection for cross-shaped channel steel, anti-slip and anti-loosening
Raw Material: High-strength carbon steel
Surface Finish: Black finish / Electro-galvanized / Hot-dip galvanized (HDG)

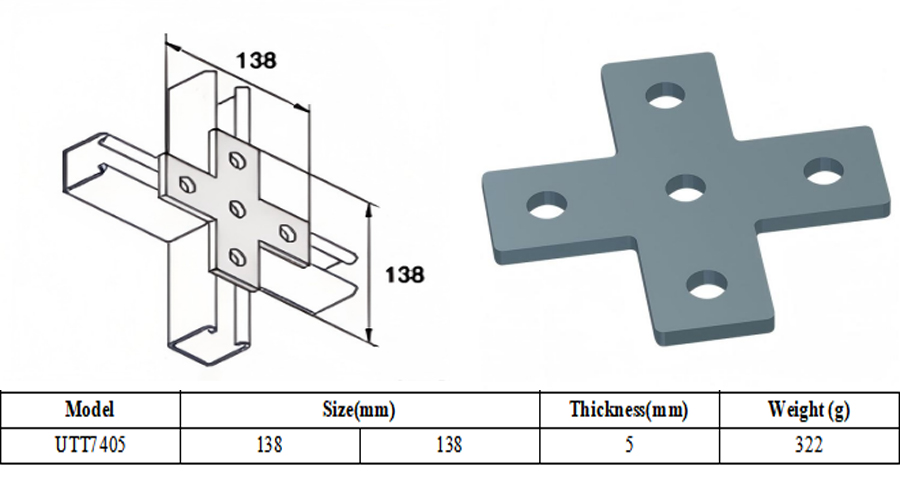

Standard Size: 138×138mm, Thickness: 5mm
Unit Weight: 322g
Customization Service: Custom sizes are available on request
Item | Specification |
|---|---|
Model | UTT7405 Series |
Raw Material | Carbon Steel |
Surface Treatment | Black / Electro-galvanized / Hot-dip galvanized (HDG) |
Standard Dimension | 138×138mm, Thickness: 5mm |
Unit Weight | 322g |
Customization | Custom sizes supported |
Main Application | Quick 90° connection for cross-shaped channel steel |
Sample Supply | Free pre-order test samples available |
1.Strut Channel System: Quick connection fitting for cross-shaped channel steel with 90° angle in pipeline support projects.
2.Electrical Installation: Reinforcing connector for cross frames of electrical equipment and cable trays.
3.HVAC Engineering: Connecting part for cross support frames of air ducts and pipelines.
4.Structural Framing: Anti-loose connecting component for 90° cross metal framing systems.
1.Select the suitable UTT7405 5-hole flat plate bracket according to channel steel size and installation requirements.
2.Place the bracket at the 90° cross joint of two channel steels.
3.Align the five holes with the mounting holes on the channel steel.
4.Insert bolts and nuts, then tighten them evenly to complete the connection.
5.Check the assembly to confirm anti-slip and anti-loose performance with stable connection.
1.Conforms to general manufacturing standards for strut channel connecting fittings.
2.Black, electro-galvanized and hot-dip galvanized finishes all meet international anti-corrosion specifications.
3.All products pass dimensional and appearance inspection before delivery.
Black finish for cost-effective indoor use; electro-galvanized for regular humid areas; hot-dip galvanized for outdoor and severely corrosive environments.
Professional design for cross-shaped channel steel, realizing fast and convenient assembly.
Optimized structure effectively prevents slipping and loosening, improving connection safety.
Matches perfectly with other strut accessories to strengthen the whole bracket system.
Standard size for common projects, and customized sizes for special engineering demands.
High-strength carbon steel resists deformation under long-term load for long service life.
Q1: What surface finishes are available for UTT7405 bracket?
A1: Three options: black finish, electro-galvanized and hot-dip galvanized.
Q2: What material is the UTT7405 5-hole flat plate bracket made of?
A2: It is made of high-strength carbon steel.
Q3: Does UTT7405 support customized sizes?
A3: Yes, we can produce custom sizes as required.
Q4: What is the main purpose of UTT7405?
A4: It is used for quick 90° connection of cross-shaped channel steel.
Q5: What are the special features of UTT7405?
A5: It has anti-slip and anti-loosening functions, and can enhance the stability of the bracket system.
