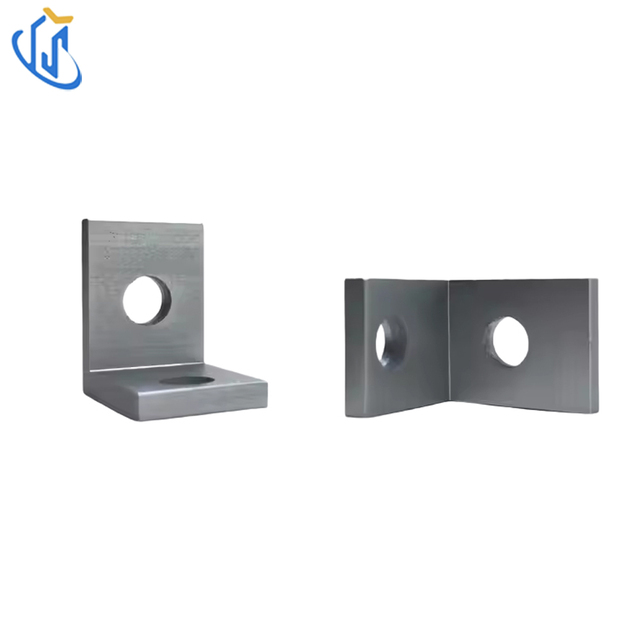

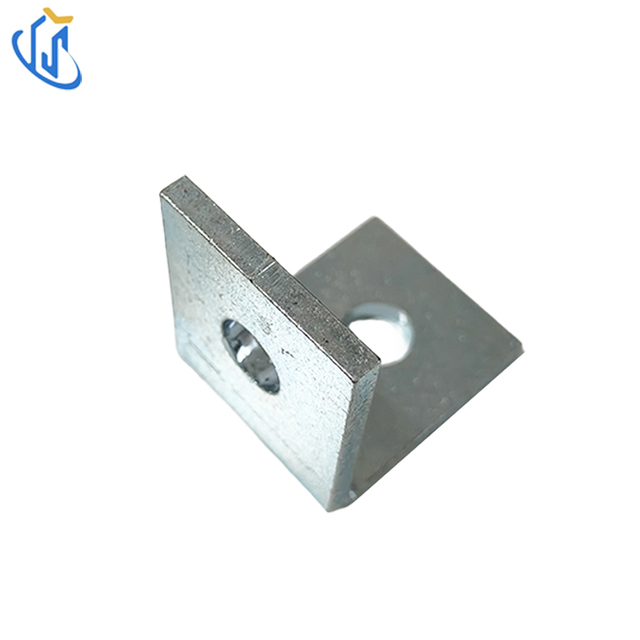

90° Angle Connector for Strut Channel Frames

Overview

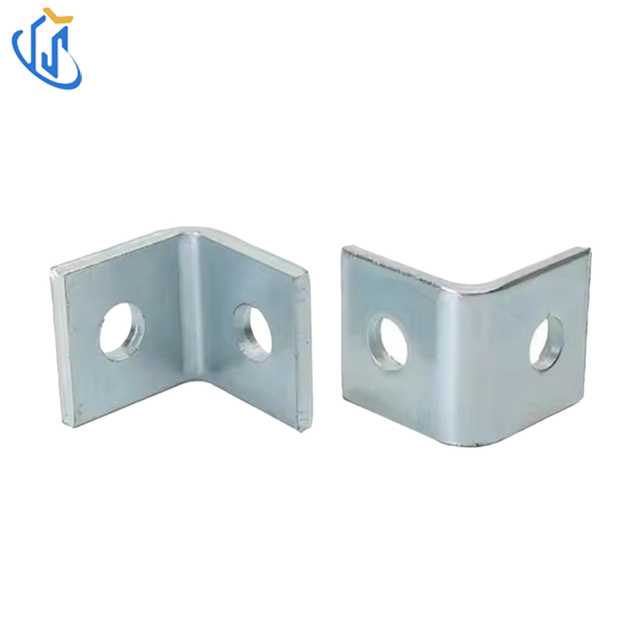

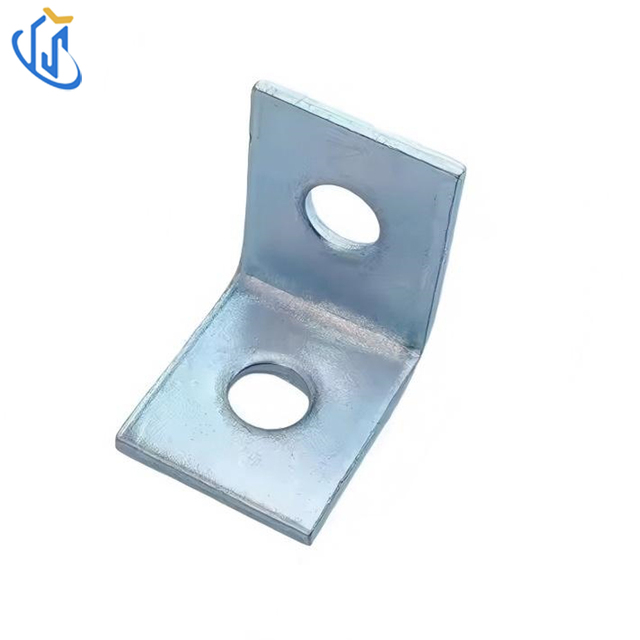

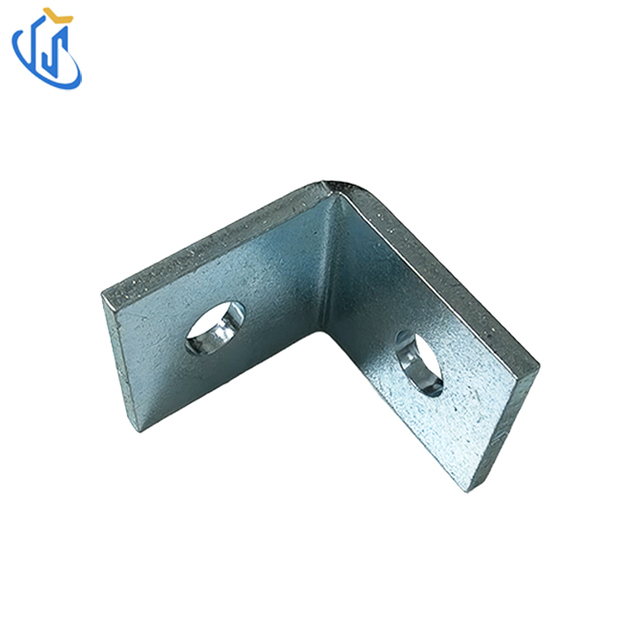

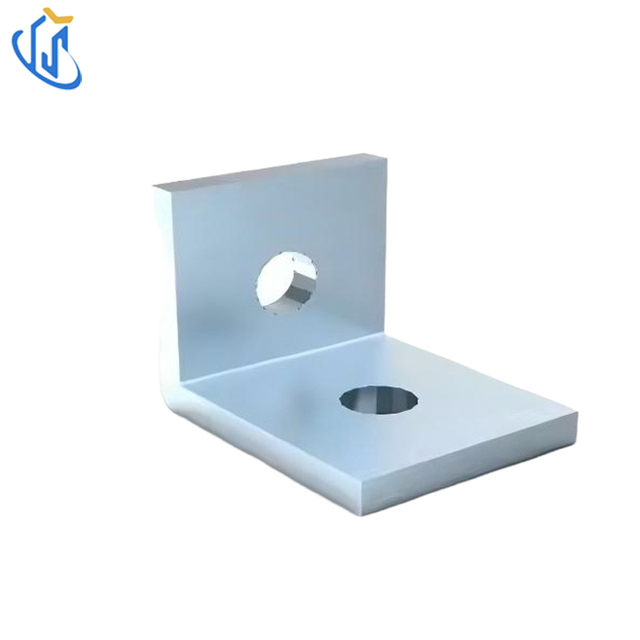

UTT7301 90º Angle Connector is a classic corner connecting accessory for strut channel systems. Manufactured from high-strength carbon steel, it offers three surface treatments to adapt to dry indoor, humid and outdoor corrosive environments. This angle connector is specially designed for assembling metal frames using strut channels. It comes with a complete range of standard sizes corresponding to different rod specifications, with clear hole dimensions, rated maximum load and unit weight data. Custom sizes are also supported to satisfy special engineering demands. Widely used in electromechanical installation, HVAC projects and structural metal framing, it is a fundamental and reliable component for building strut channel frames.

Key Features

Core Function: Assemble stable metal frames with strut channels

Raw Material: High-strength carbon steel

Surface Finish: Black finish / Electro-galvanized / Hot-dip galvanized (HDG)

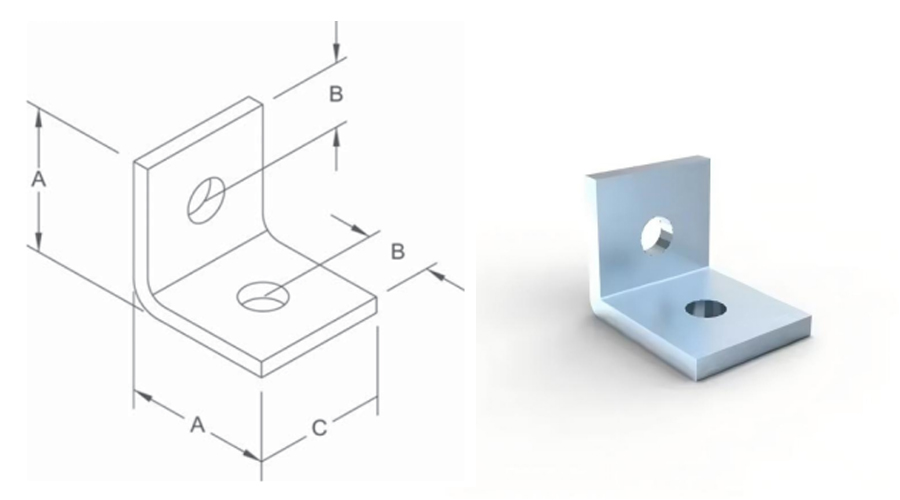

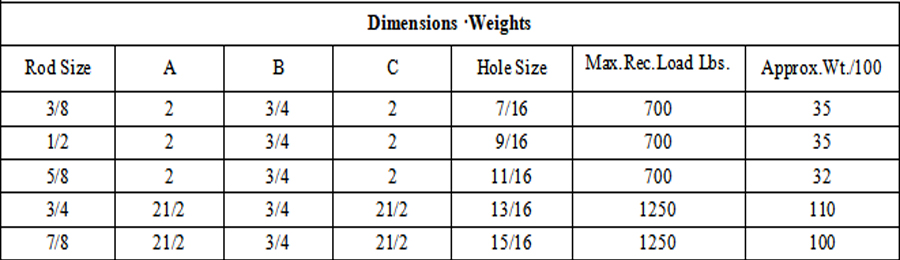

Standard Sizes: Matches 3/8", 1/2", 5/8", 3/4", 7/8" rod sizes

Max Recommended Load: 700 Lbs / 1250 Lbs (varies by size)

Customization Service: Custom sizes are available on request

Application Scenarios

1.Strut Channel System: Standard corner connector for building various metal frames with strut channels in pipeline support projects.

2.Electrical Installation: Corner fitting for metal frames of electrical equipment and cable trays.

3.HVAC Engineering: Connecting component for support frames of air ducts and pipelines.

4.Structural Framing: Universal 90° corner joint for light-duty metal framing systems.

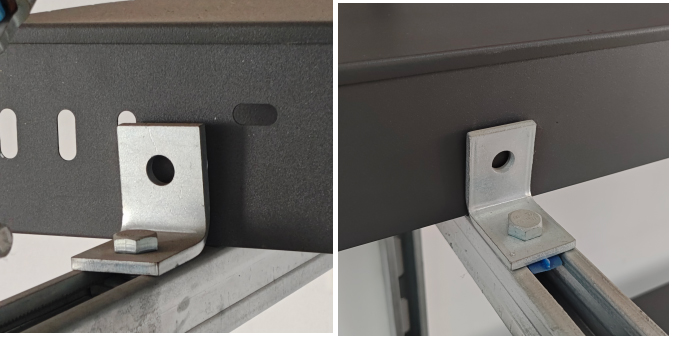

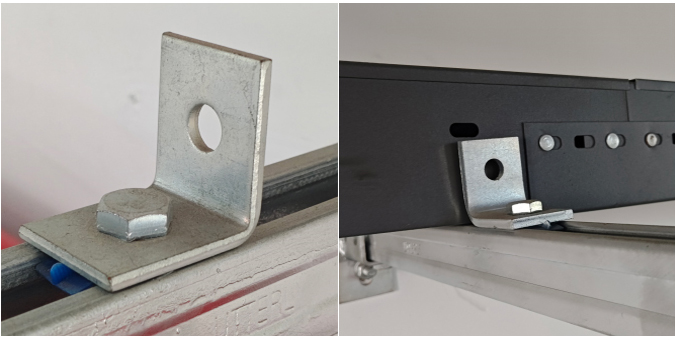

Step-by-Step Installation Guide

1.Select the suitable UTT7301 90º Angle Connector according to rod size and strut channel specification.

2.Place the angle connector at the 90° corner of strut channels to form frame structure.

3.Align the reserved holes of the connector with the mounting holes on strut channels.

4.Insert bolts and nuts, then tighten them evenly to complete frame assembly.

5.Inspect the overall connection to ensure firm installation and safe load bearing.

Industry Compliance

1.Conforms to general manufacturing standards for strut channel connecting fittings.

2.Black, electro-galvanized and hot-dip galvanized finishes all meet international anti-corrosion specifications.

3.All products pass dimensional, load and appearance inspection before delivery.

Core Product Advantages

1.Three Surface Options:

Black finish for cost-effective indoor use; electro-galvanized for regular humid areas; hot-dip galvanized for outdoor and severely corrosive environments.

2.Complete Size Range:

Multiple standard sizes match common rod specifications, covering most frame assembly scenarios.

3.Clear Load Rating:

Marked with maximum recommended load to ensure safe use in different working conditions.

4.Sturdy Structure:

90° angle design provides excellent structural stability for metal frames.

5.Standard & Custom Sizes:

Standard sizes for regular projects, and customized sizes for special engineering demands.

6.High Material Strength:

Durable carbon steel resists deformation under long-term load for long service life.

FAQ

Q1: What surface finishes are available for UTT7301 angle connector?

A1: Three options: black finish, electro-galvanized and hot-dip galvanized.

Q2: What material is the UTT7301 90º Angle Connector made of?

A2: It is made of high-strength carbon steel.

Q3: Does UTT7301 support customized sizes?

A3: Yes, we can produce custom sizes as required.

Q4: What is the main purpose of UTT7301?

A4: It is used to assemble metal frames with strut channels.

Q5: Does UTT7301 have different load specifications?

A5: Yes, its maximum recommended load varies with different sizes, including 700 Lbs and 1250 Lbs.
