UTT7404
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface Finish: | |
| Quantity: | |

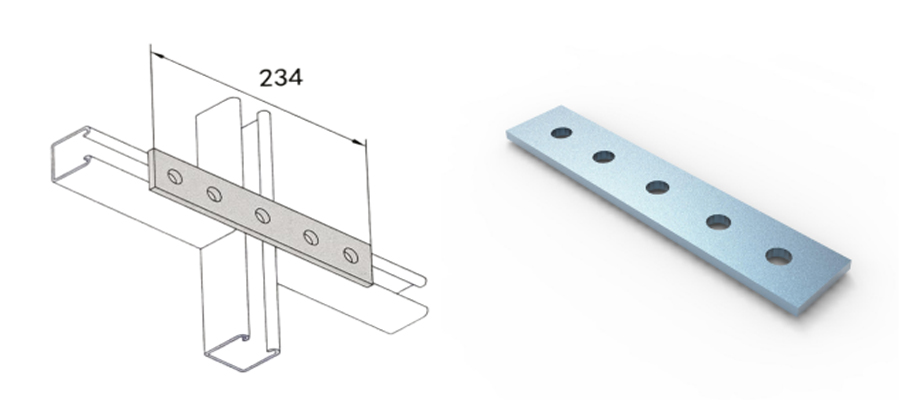

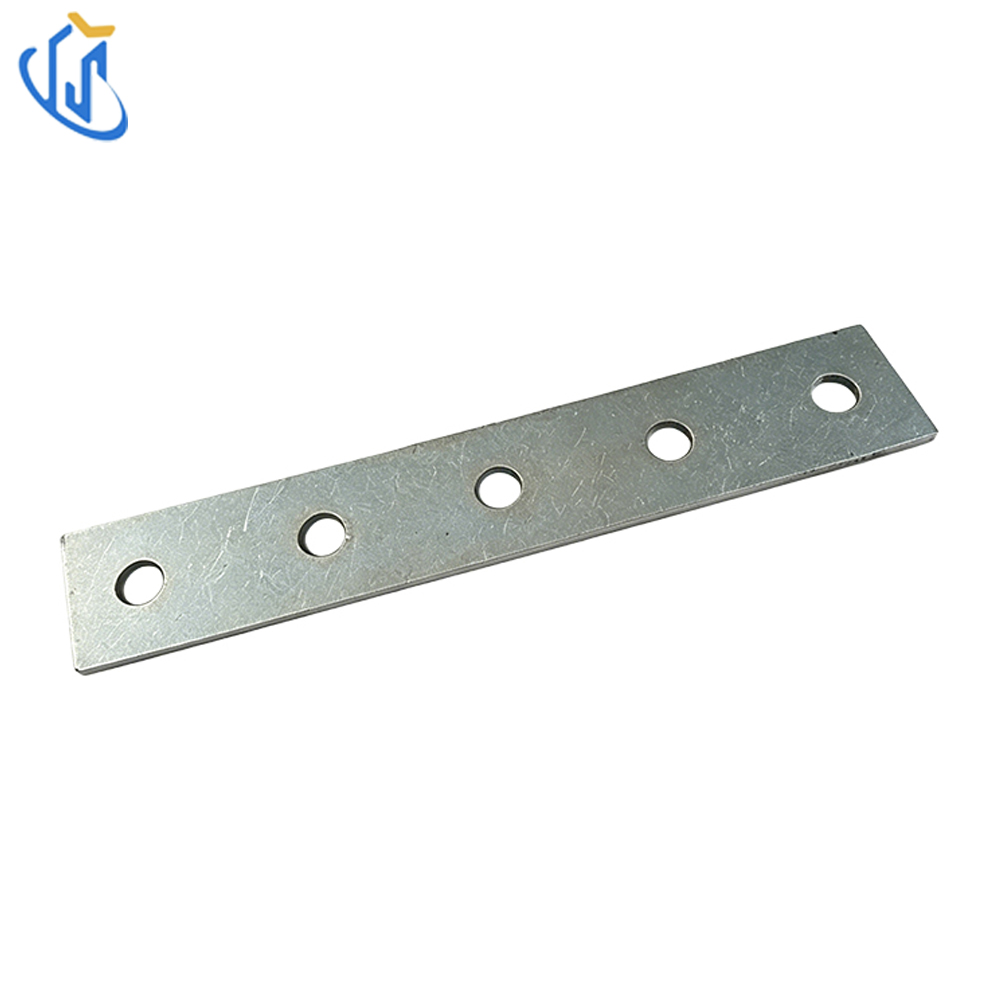

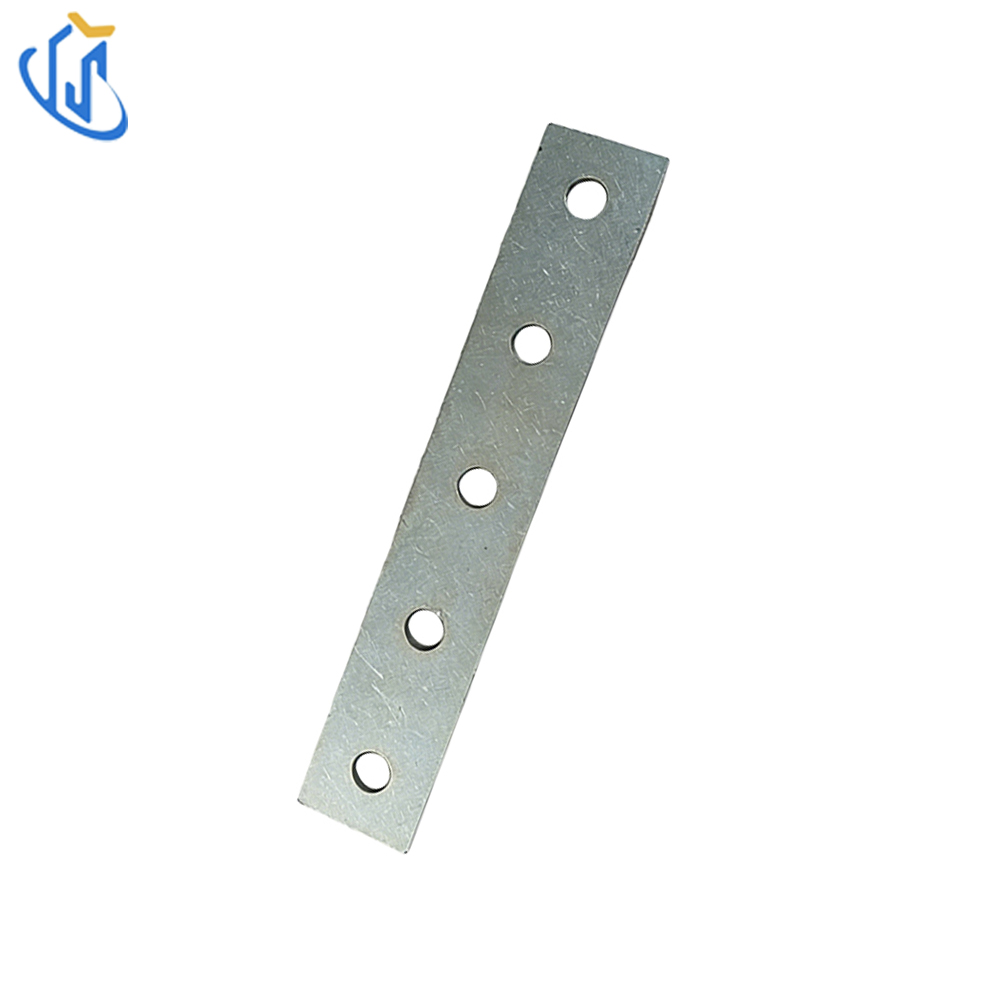

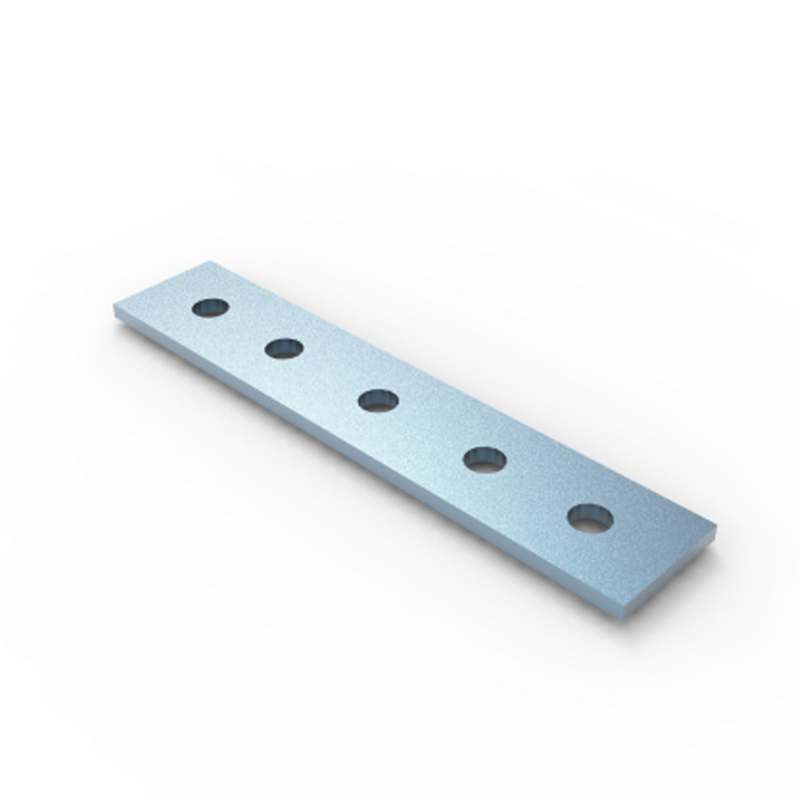

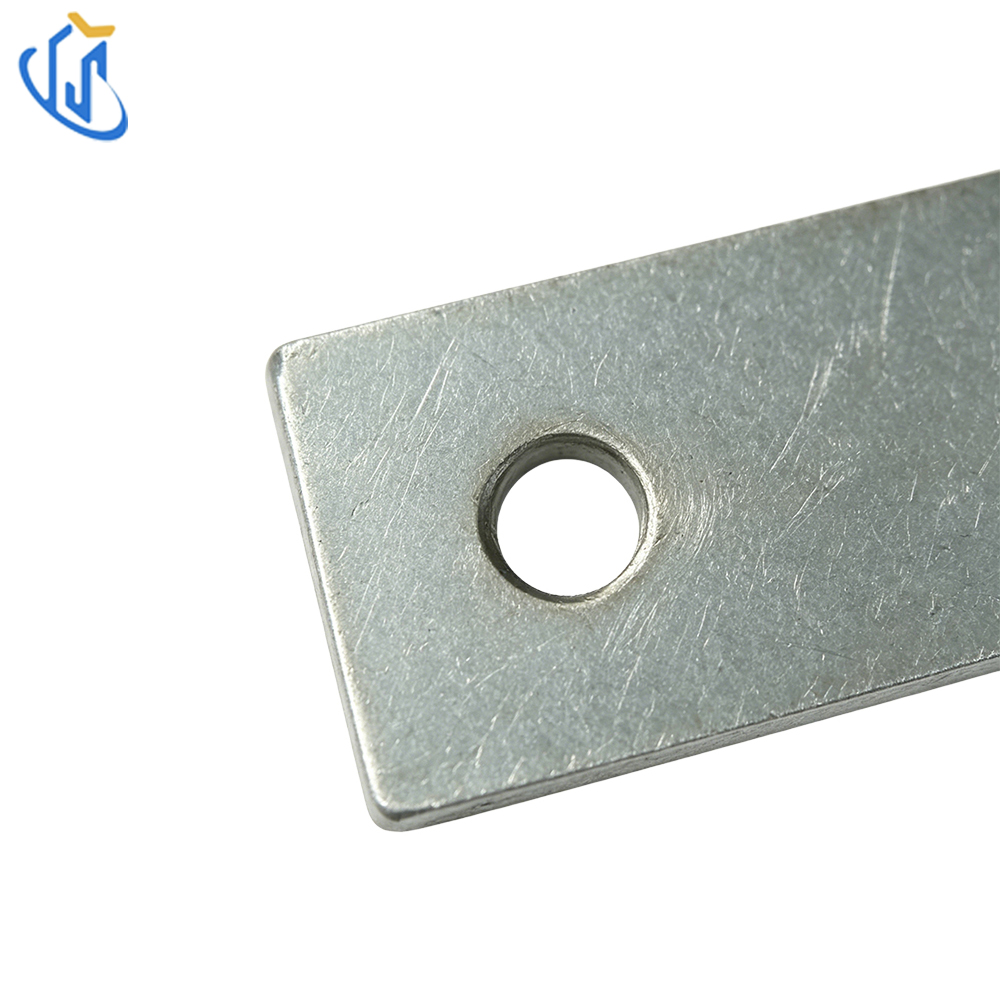

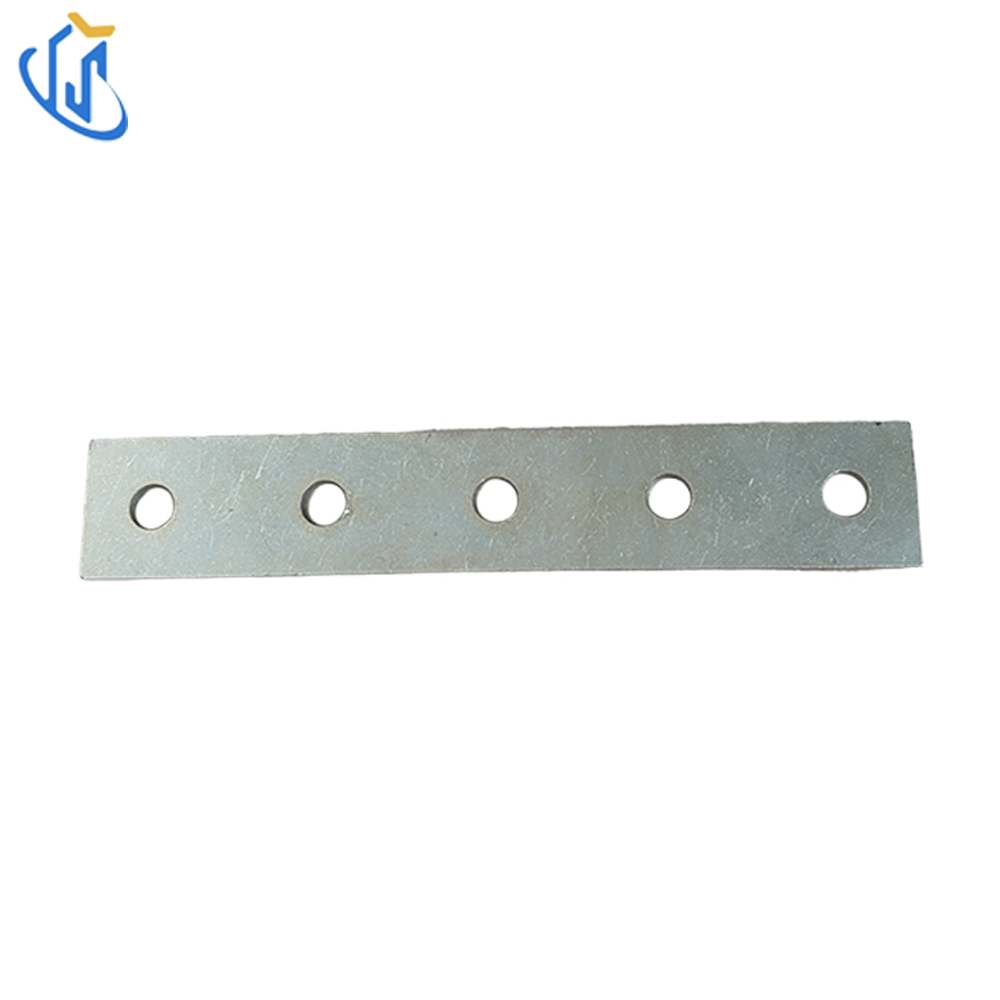

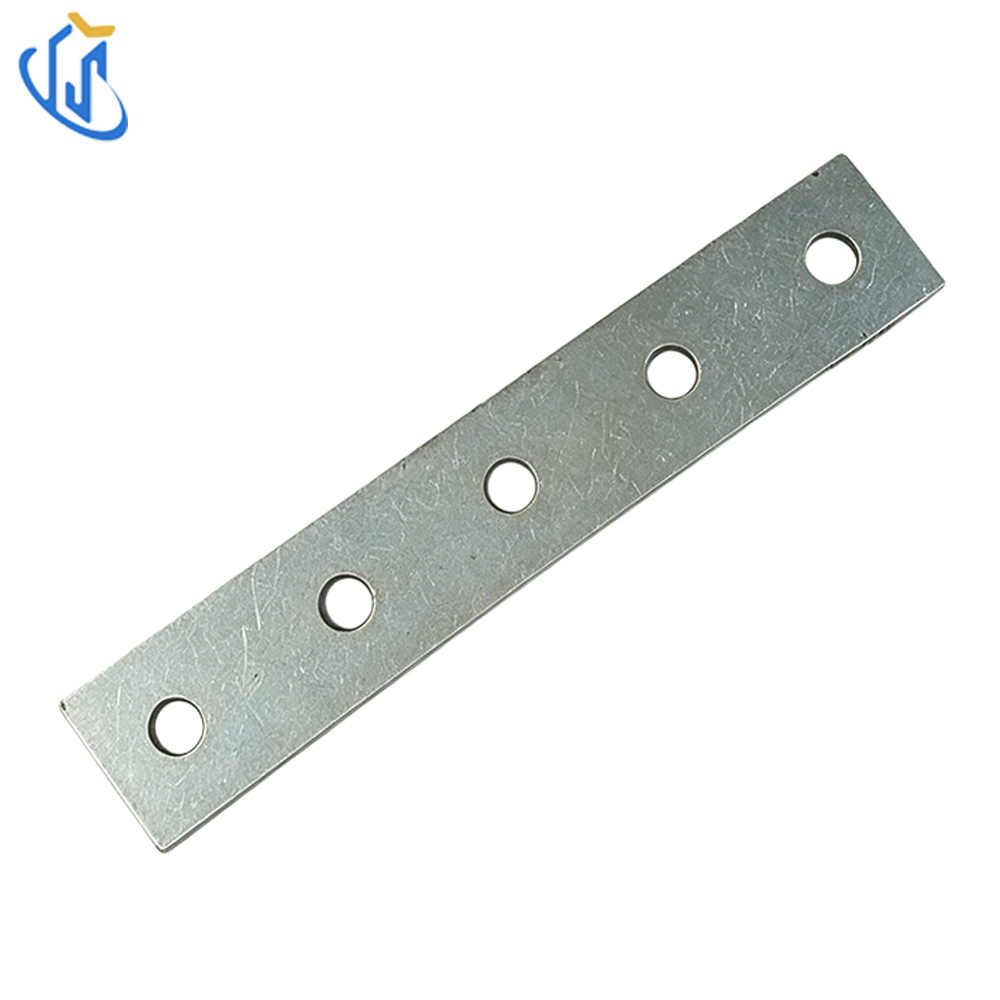

UTT7404 5-hole flat plate bracket is a practical connecting accessory for strut channel systems. Manufactured from high-strength carbon steel, it provides three surface treatments to adapt to dry indoor, humid and outdoor corrosive environments. The flat plate with five pre-drilled holes enables stable installation and uniform force bearing, effectively securing different objects to strut channels. Besides standard specifications, customized sizes are acceptable for special construction requirements. Widely applied in electromechanical installation, HVAC projects and structural metal framing, it is a reliable basic fastener for strut systems.
Core Function: Fasten various components and hardware onto strut channels steadily
Raw Material: High-strength carbon steel
Surface Finish: Black finish / Electro-galvanized / Hot-dip galvanized (HDG)
Structural Feature: 5-hole design for balanced force distribution
Customization Service: Custom sizes are available on request
Item | Specification |
|---|---|
Model | UTT7404 Series |
Raw Material | Carbon Steel |
Surface Treatment | Black / Electro-galvanized / Hot-dip galvanized (HDG) |
Structure | 5-hole flat plate |
Customization | Custom sizes supported |
Main Application | Fixing components on strut channels |
Sample Supply | Free pre-order test samples available |
1.Strut Channel System: Universal fastening bracket for all kinds of components mounted on C-channel frames in pipeline support projects.
2.Electrical Installation: Auxiliary fixing part for electrical equipment and cable tray metal frames.
3.HVAC Engineering: Matching fastener for air duct and pipeline support frames.
4.Structural Framing: Connecting and fixing component for light-duty metal framing systems.
1.Select the suitable UTT7404 5-hole flat plate bracket according to the strut channel size and installation requirements.
2.Place the bracket at the designated mounting position on the strut channel.
3.Align the five holes with the mounting holes on the strut channel and components.
4.Insert bolts and nuts, then tighten them evenly to complete the fastening work.
5.Inspect the connection to confirm it is firm and stable without looseness.
1.Conforms to general manufacturing standards for strut channel connecting fittings.
2.Black, electro-galvanized and hot-dip galvanized finishes all meet international anti-corrosion specifications.
3.All products pass dimensional and appearance inspection before delivery.
Black finish for cost-effective indoor use; electro-galvanized for regular humid areas; hot-dip galvanized for outdoor and severely corrosive environments.
Multiple holes spread pressure evenly, improving overall connection stability and load-bearing capacity.
Suitable for various strut channels and matched components, covering most conventional fastening scenarios.
Standard sizes for common projects, and customized sizes for special engineering demands.
High-strength carbon steel resists deformation under long-term load for long service life.
Pre-punched holes simplify assembly and save construction time.
Q1: What surface finishes are available for UTT7404 bracket?
A1: Three options: black finish, electro-galvanized and hot-dip galvanized.
Q2: What material is the UTT7404 5-hole flat plate bracket made of?
A2: It is made of high-strength carbon steel.
Q3: Does UTT7404 support customized sizes?
A3: Yes, we can produce custom sizes as required.
Q4: What is the main purpose of UTT7404?
A4: It is used to fix different components onto strut channels.
Q5: What is the advantage of the 5-hole design in UTT7404?
A5: It distributes force evenly and enhances the firmness of the connection.
