Electro Galvanized UTT70 Seismic Brace Connection Base Plate

Product Overview

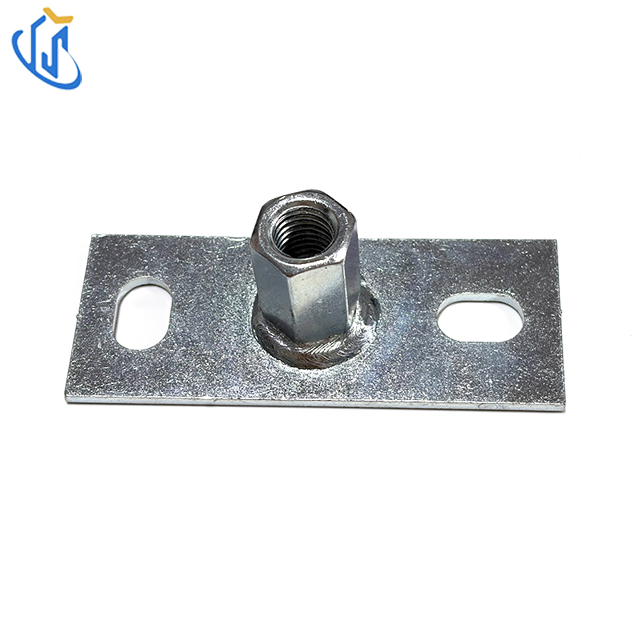

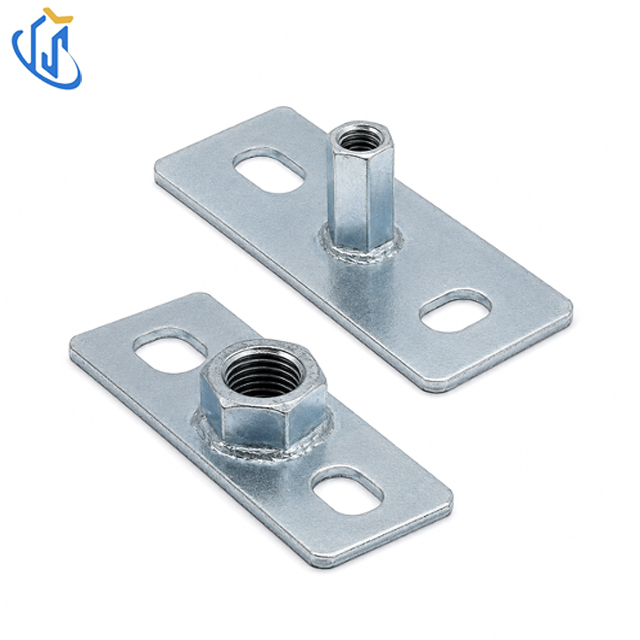

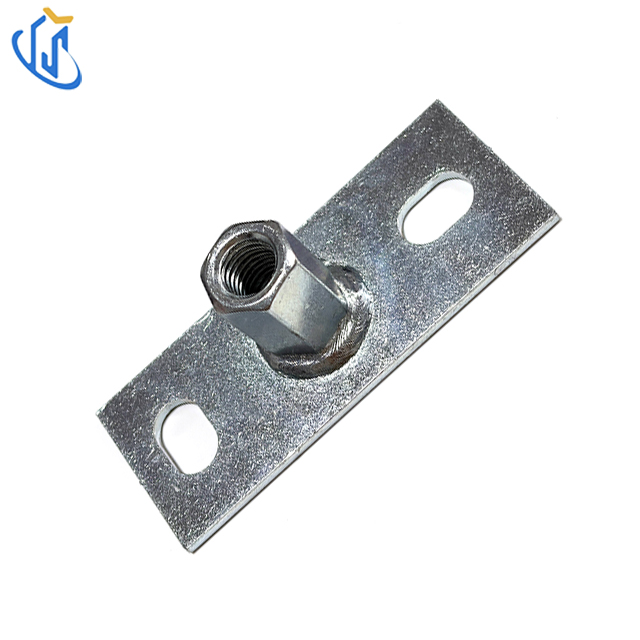

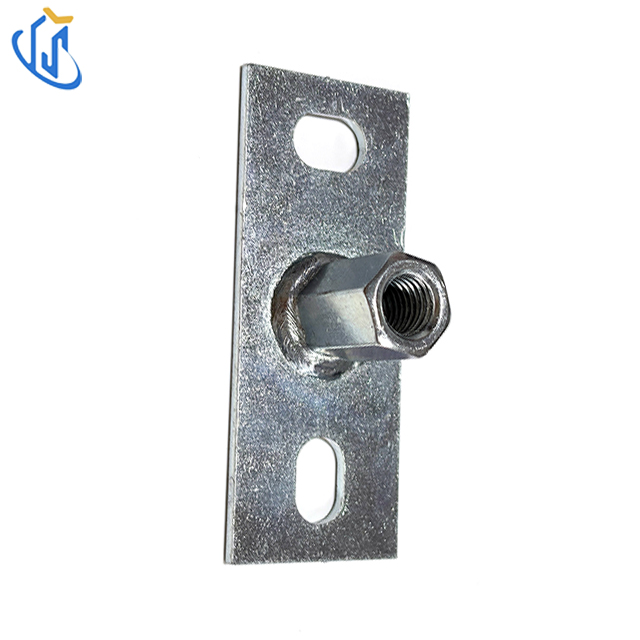

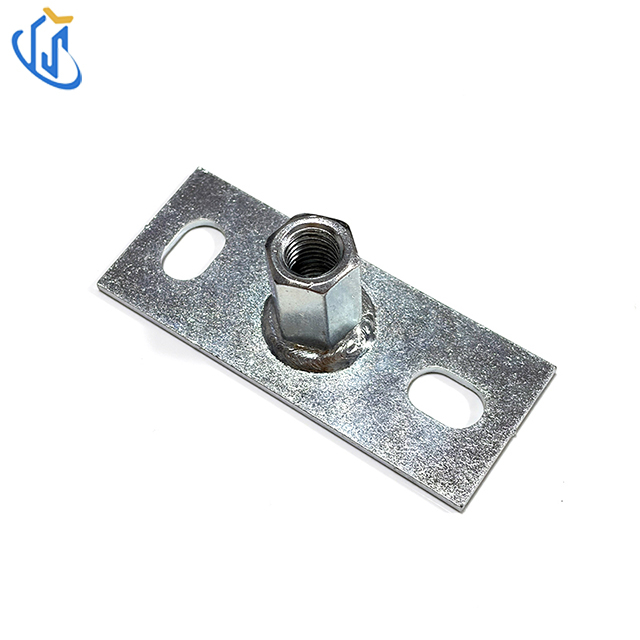

UTT70 seismic brace connection base plate is a professional mounting plate accessory developed for fire sprinkler pipe support and seismic bracing systems. The product adopts a carbon steel plate as the main base, with a threaded nut insert welded in the center to realize fast connection with threaded rods, suspenders or upper structural accessories. The two slotted mounting holes allow position adjustment during on-site installation, which can effectively compensate for minor deviations in hole positions, pipe centerlines and structural mounting points.

The surface is treated with electro-galvanized anti-corrosion coating, which provides good rust resistance in dry indoor environments such as office ceilings, shopping mall pipe shafts, mechanical rooms and fire protection equipment floors. UTT70 can be used as a bottom connection plate, hanger transition plate or seismic brace mounting plate, and is often used together with UTT series pipe clamps, brace pipes and structural attachments to form a complete overhead fire pipe support and seismic restraint system.

Core Structural & Functional Advantages

Integrated threaded connection design:

• The central threaded nut insert provides a reliable connecting interface for threaded rods and suspenders, simplifying the assembly of pipe hangers and brace assemblies;

Dual slotted hole design:

• Two elongated mounting holes allow flexible adjustment of installation position, which is convenient for on-site alignment and reduces the difficulty of construction caused by prefabrication deviation;

High-strength carbon steel base plate:

• The flat steel plate structure has strong bearing capacity and deformation resistance, and can maintain stable performance under long-term pipe load and building vibration;

Electro-galvanized anti-rust surface:

• The zinc-coated surface reduces oxidation and rust, making it suitable for indoor commercial building pipelines and mechanical equipment room environments;

Simple and practical installation structure:

• No complex assembly process is required, and it can be quickly connected with common fasteners such as threaded rods, bolts, nuts and washers;

Wide compatibility:

• Suitable for fire sprinkler pipe hangers, seismic brace lower connection points, overhead pipe support transition plates and other installation scenarios.

Standard Installation Method

The installation of UTT70 connection base plate should be carried out according to the following basic steps:

1. Determine the installation position according to the pipeline layout drawing, and align the base plate with the structural mounting point or hanger rod;

2. Connect the central threaded hole of UTT70 with the threaded rod, suspender or corresponding upper fitting, and ensure the thread is engaged smoothly;

3. Use bolts, nuts and washers to fix the base plate through the two slotted holes, and adjust the position to ensure accurate alignment with the pipe centerline;

4. After the position is confirmed to be correct, tighten the fasteners in place to form a stable connection point;

5. Connect the lower end with pipe clamps, brace pipes or other UTT series fittings as required to complete the overall support assembly.

Application Scenarios

1. Fire sprinkler pipe hanger connection base plate;

2. Overhead fire pipe seismic brace lower mounting plate;

3. Mechanical equipment room pipe support transition plate;

4. Commercial building ceiling fire protection pipe fixing accessory;

5. Seismic restraint system matching UTT series pipe clamps and brace fittings;

6. Installation projects requiring threaded rod connection and slotted hole adjustment.

Factory Supply & Technical Service

We supply UTT70 electro-galvanized connection base plate according to standard export packaging requirements. The product can be provided as a single part or combined with other UTT series pipe clamps, brace pipes, bolts, nuts and washers to form a complete pipe support assembly. We can provide product dimension drawings, material specifications, surface treatment instructions and installation reference pictures for engineering design and tender submission. Custom drawings, non-standard sizes, laser LOGO marking and neutral export packaging can also be arranged according to customer project requirements.

FAQ Section

What is UTT70 used for?

UTT70 is a seismic brace connection base plate used for fire sprinkler pipe hangers, lower brace connection points and overhead pipe support transition plates.

1. What material is UTT70 made of?

   UTT70 is made of carbon steel with electro-galvanized anti-rust surface treatment.

2. Does UTT70 have threaded holes?

   Yes, UTT70 has a centrally welded threaded nut insert for connecting threaded rods or suspenders.

3. What are the slotted holes used for?

   The two slotted mounting holes allow flexible position adjustment during installation, which helps align the base plate with pipe centerlines and structural mounting points.

4. Can UTT70 be used with other UTT series fittings?

   Yes, UTT70 can be used together with UTT series pipe clamps, brace pipes, structural attachments and standard fasteners to form a complete seismic brace assembly.

5. Is customized service available?

   Custom dimension drawings, laser LOGO marking and neutral export packaging can be arranged according to project requirements.

Packing & Delivery Terms

1. Export Standard Packing: Each UTT70 base plate packed in plastic bag, outer reinforced export carton; large quantity can be packed on wooden pallet to avoid deformation during transportation.

2. Lead Time: Standard UTT70 products ship within 5–10 working days; customized sizes will be confirmed according to order quantity and production schedule.

3. Global Logistics Support: We cooperate with professional sea freight, air freight and international express forwarders to deliver fire protection pipe support fittings worldwide.
