FM UL Certified Heavy Duty Adjustable Strut Channel Base for Beam Support

Product Overview

The Seismic Sway Brace System is designed to effectively brace piping systems against sway and seismic disturbances. Manufactured with high-quality carbon steel and ductile iron, and finished with electro-galvanizing for superior corrosion resistance, these components provide robust structural integrity. Compliant with NFPA 13 standards and UL, FM, and CE certified, this system ensures reliable protection for your fire protection piping networks.

Key Features

• International Certifications: UL Listed, FM Approved, and CE marked, meeting stringent fire safety and structural standards.

• Premium Materials: Constructed from heavy-duty Carbon Steel and Ductile Iron (QT450) for maximum load-bearing capacity.

• Code Compliant: Designed for installation in accordance with NFPA 13 (Standard for the Installation of Sprinkler Systems).

• High Compatibility: Suitable for Sprinkler Pipes including Sch 10, Sch 40, GB/T 3091, and JIS G3454, fitting braced pipes up to 8 inches.

• Secure Installation: Features a shear bolt design that ensures consistent torque—simply tighten until the bolt heads break off.

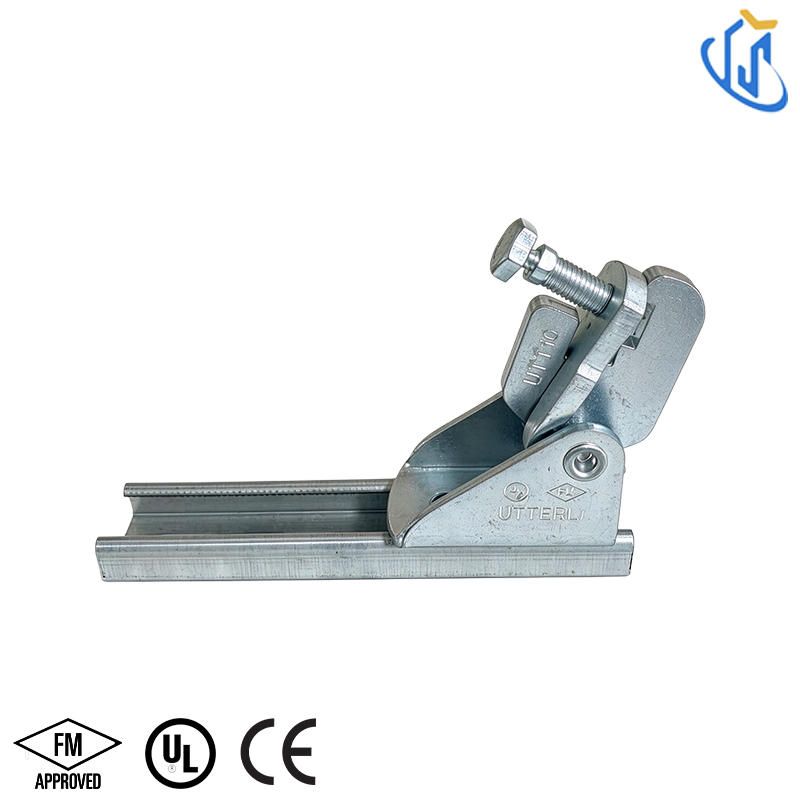

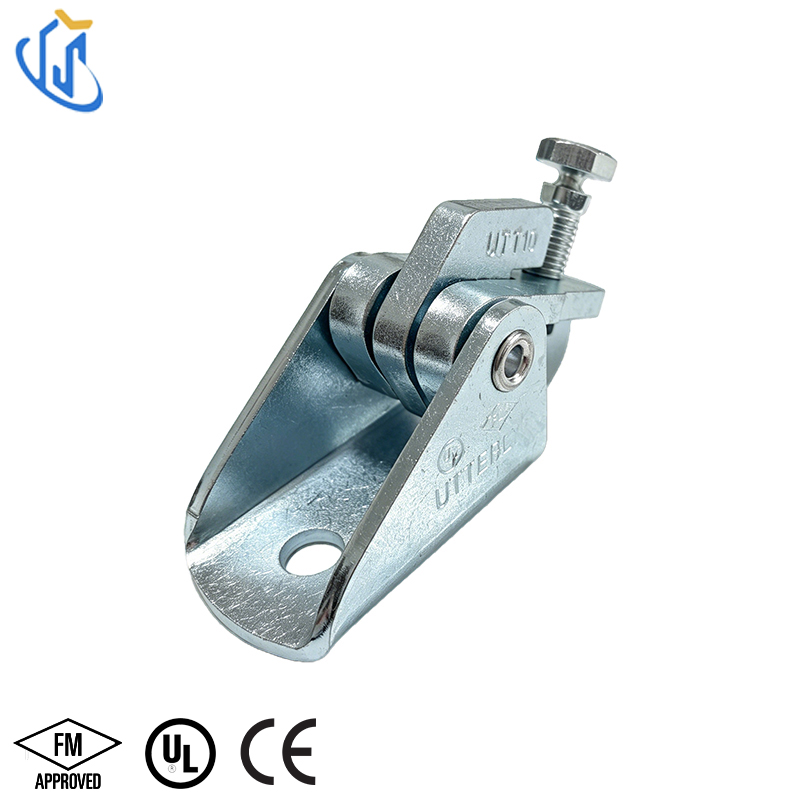

UTT10 Universal Sway Bracing Attachment

• Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting. Joined together with a bracing pipe element, it forms a complete sway brace assembly.

• Type: Sprinkler Pipe Sch 10, Sch 40, GB/T 3091, JIS G3454.

• Size: One size fits braced pipe up to 8" with a 1/2" bolt hole for structure.

• Material: Carbon Steel

• Finish: Electro-galvanized

• Certifications: FM UL CE

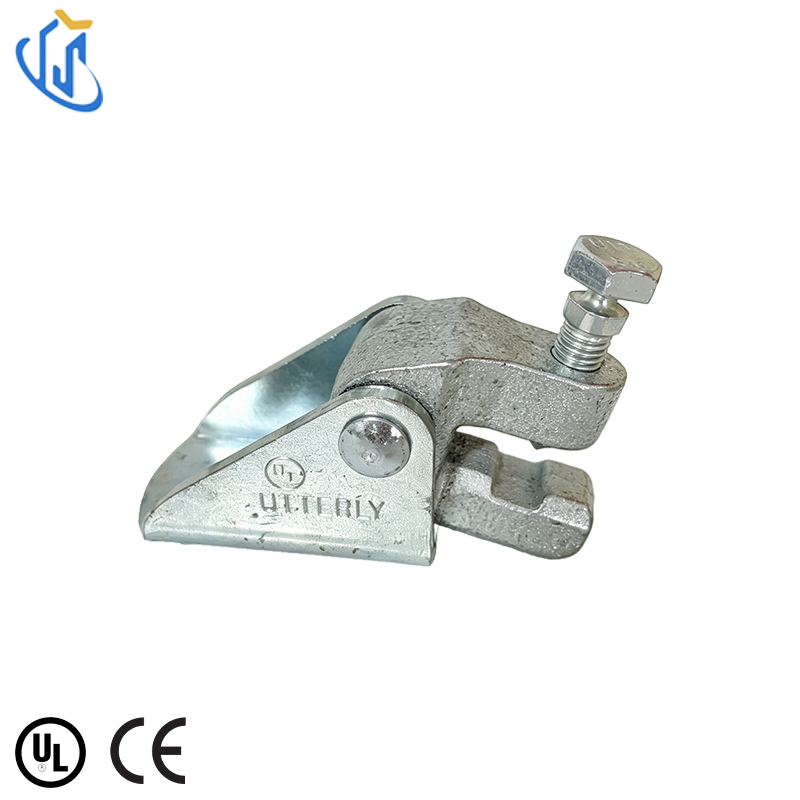

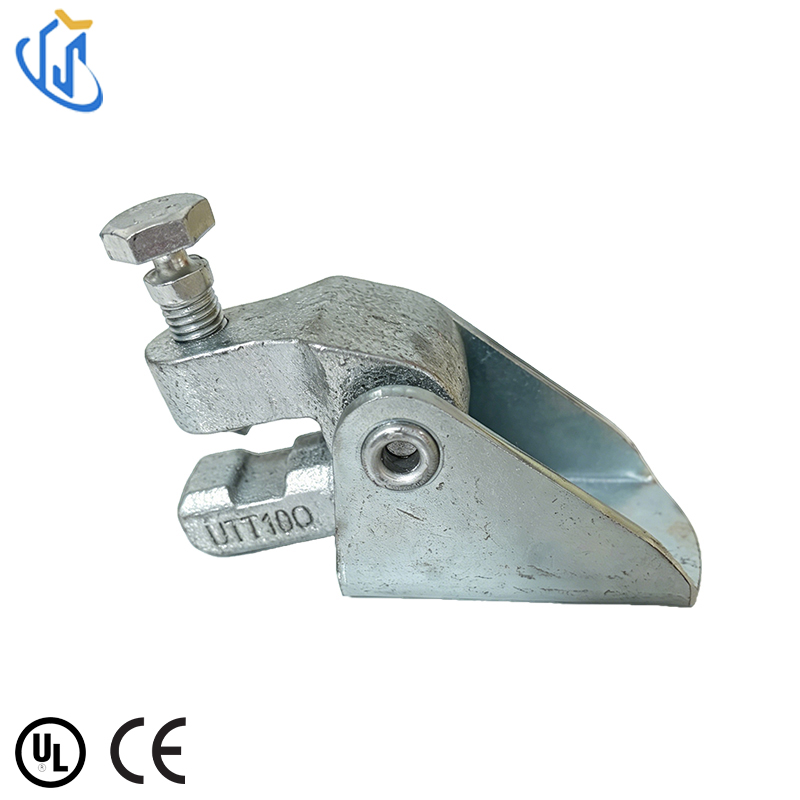

UTT10Q C-Clamp Structural Attachment

• Function: Designed for bracing pipe against sway and seismic disturbance. Used in conjunction with a UTT Manufacturing structural attachment fitting to form a complete sway brace assembly.

• Type: Sprinkler Pipe Sch 10, Sch 40, GB/T 3091, JIS G3454.

• Size: One size fits braced pipe up to 8" with a 1/2" bolt hole for structure.

• Material: Carbon Steel & Ductile Iron QT450

• Finish: Electro-galvanized

• Certifications: UL CE

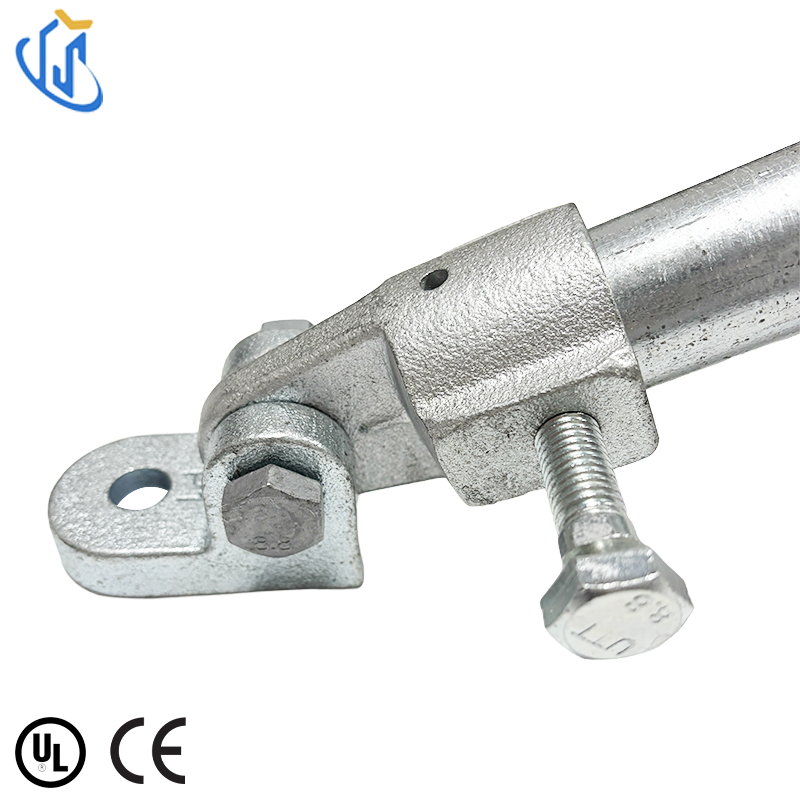

UTT071 Structural Attachment

• Function: Designed for bracing pipe against sway and seismic disturbance. Used in conjunction with a UTT structural attachment fitting to form a complete sway brace assembly.

• Type: Sprinkler Pipe Sch 10, Sch 40, GB/T 3091, JIS G3454.

• Size: One size fits braced pipe up to 8" with a 1/2" bolt hole for structure.

• Material: Ductile Iron QT450

• Finish: Electro-galvanized

• Certifications: UL CE

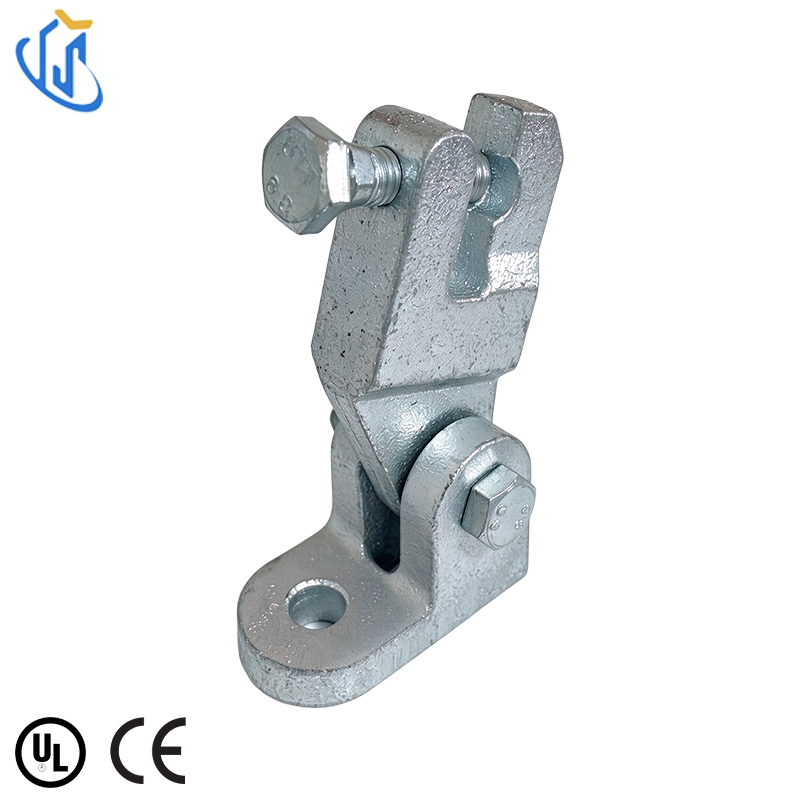

UTH10 Structural Attachment

• Function: Designed for bracing pipe against sway and seismic disturbance. Used in conjunction with a UTT structural attachment fitting to form a complete sway brace assembly.

• Type: Sprinkler Pipe Sch 10, Sch 40, GB/T 3091, JIS G3454.

• Size: One size fits braced pipe up to 8" with a 1/2" bolt hole for structure.

• Material: Ductile Iron QT450

• Finish: Electro-galvanized

• Certifications: UL CE

UTT1001 Structural Attachment

• Function: For bracing pipe against sway and seismic disturbances. The building attachment component of a sway brace system. The UTT1001 is used in conjunction with the UTT18, UTT13, or UTT60 Pipe Clamp and joined together with a brace pipe per NFPA 13.

• Size: Combination with 1" and 1-1/4" round pipes.

• Material: Carbon Steel

• Finish: Electro-galvanized

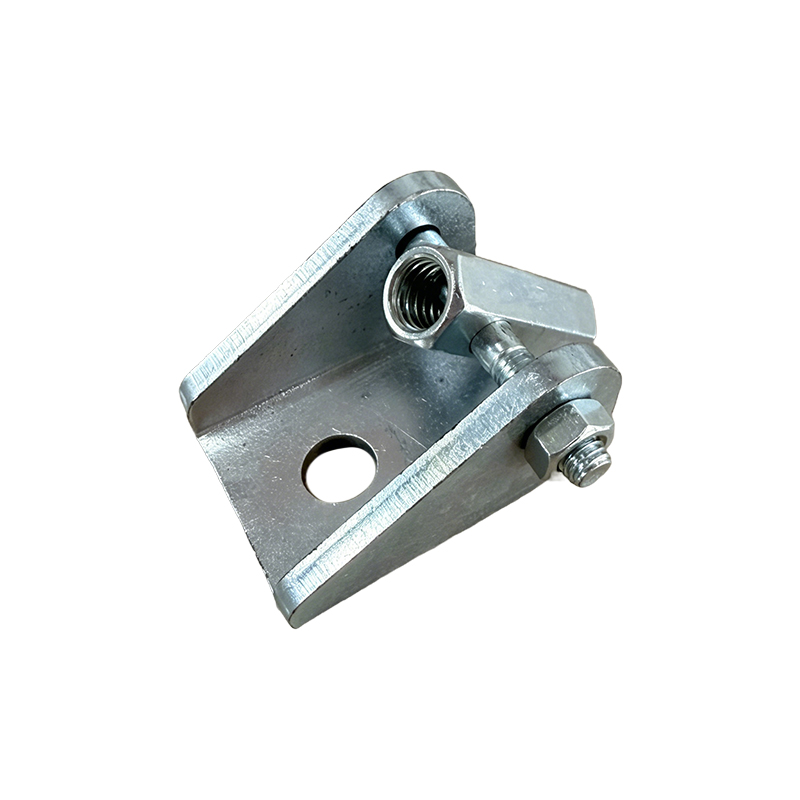

UTT1002 Threaded Rod Swivel Sway Bracing Fitting

• Function: Designed for bracing pipe against sway and seismic disturbance. Used in combination with threaded rod.

• Size: Combination with 1/4" - 1" threaded rods.

• Material: Carbon Steel

• Finish: Electro-galvanized

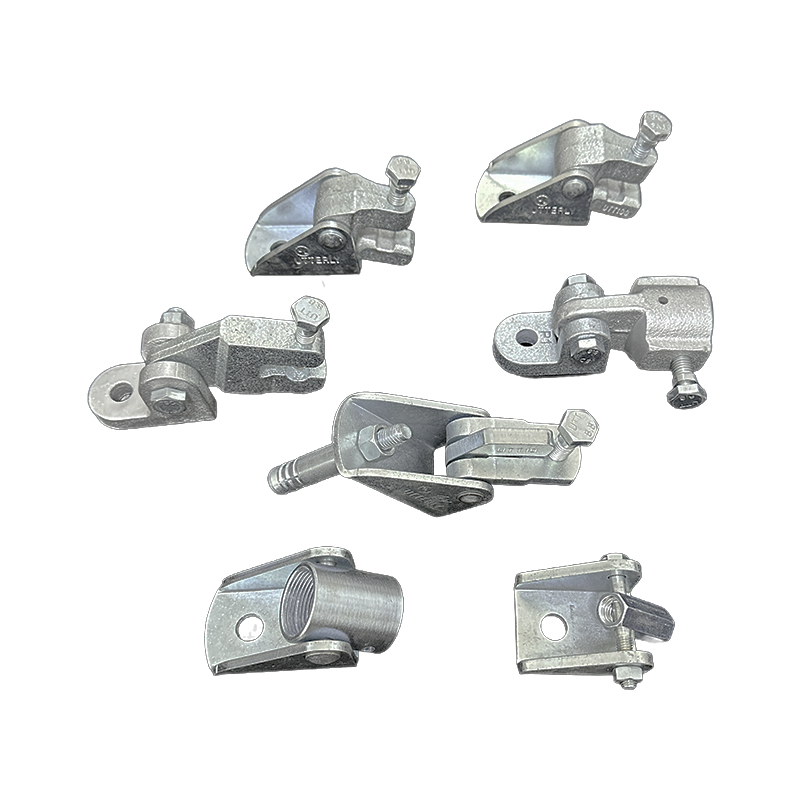

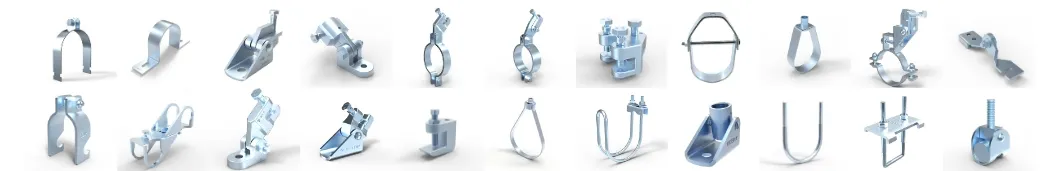

Product Show

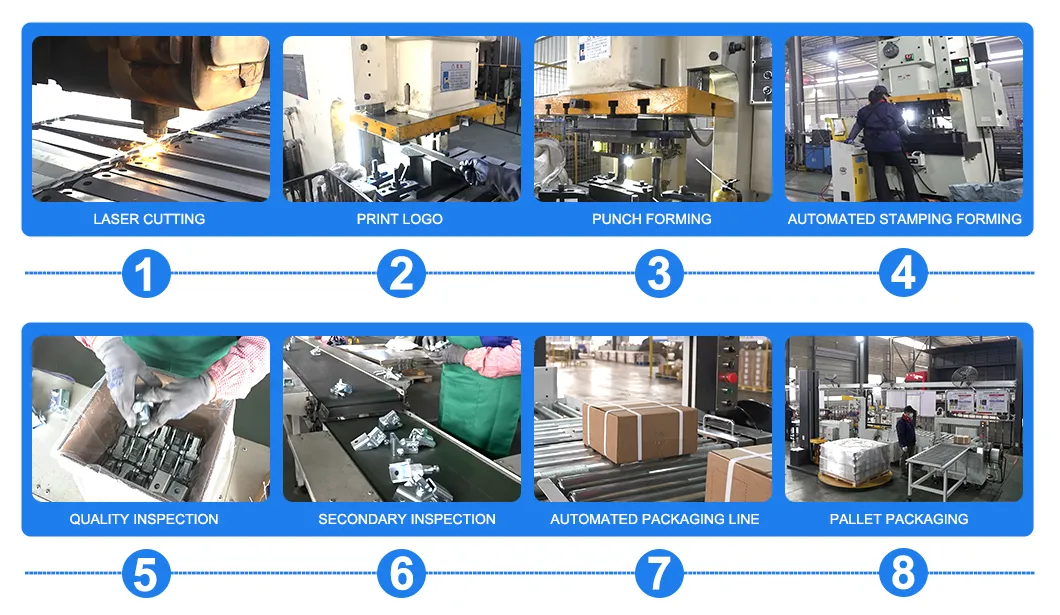

Production Process
