Overview

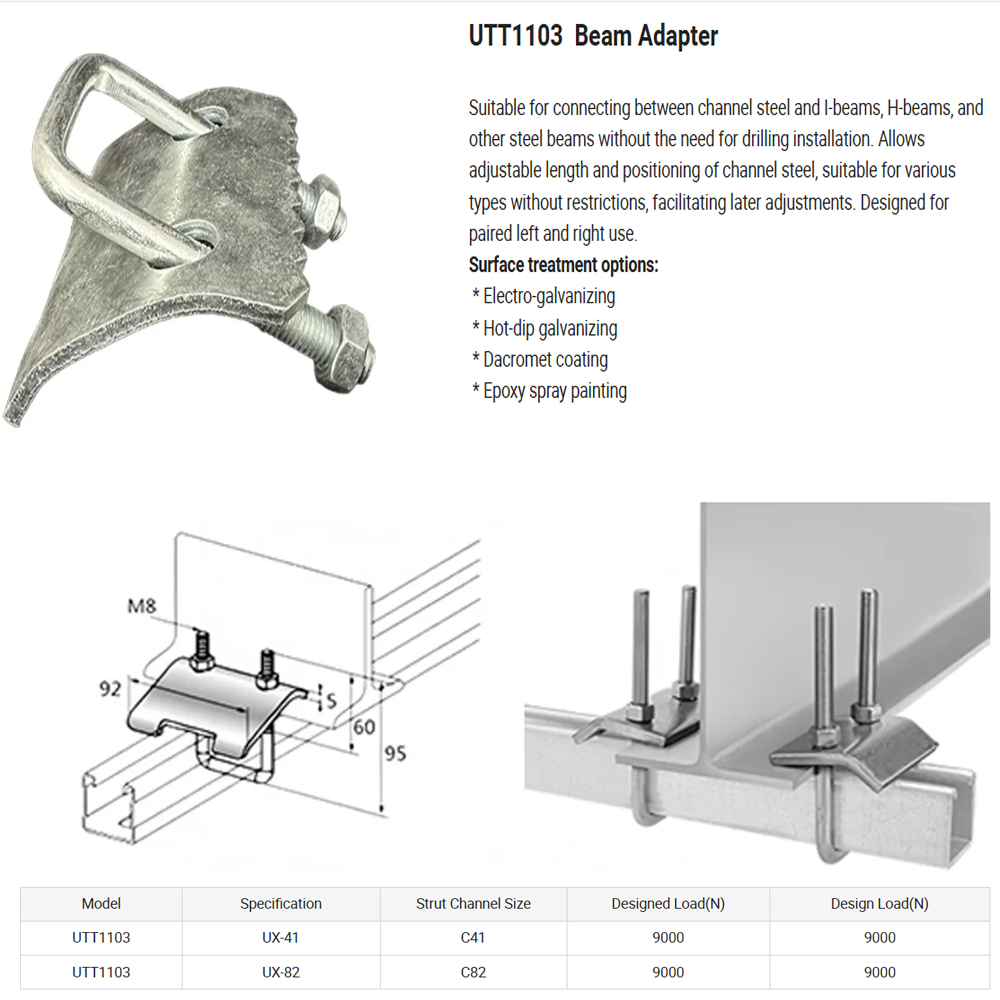

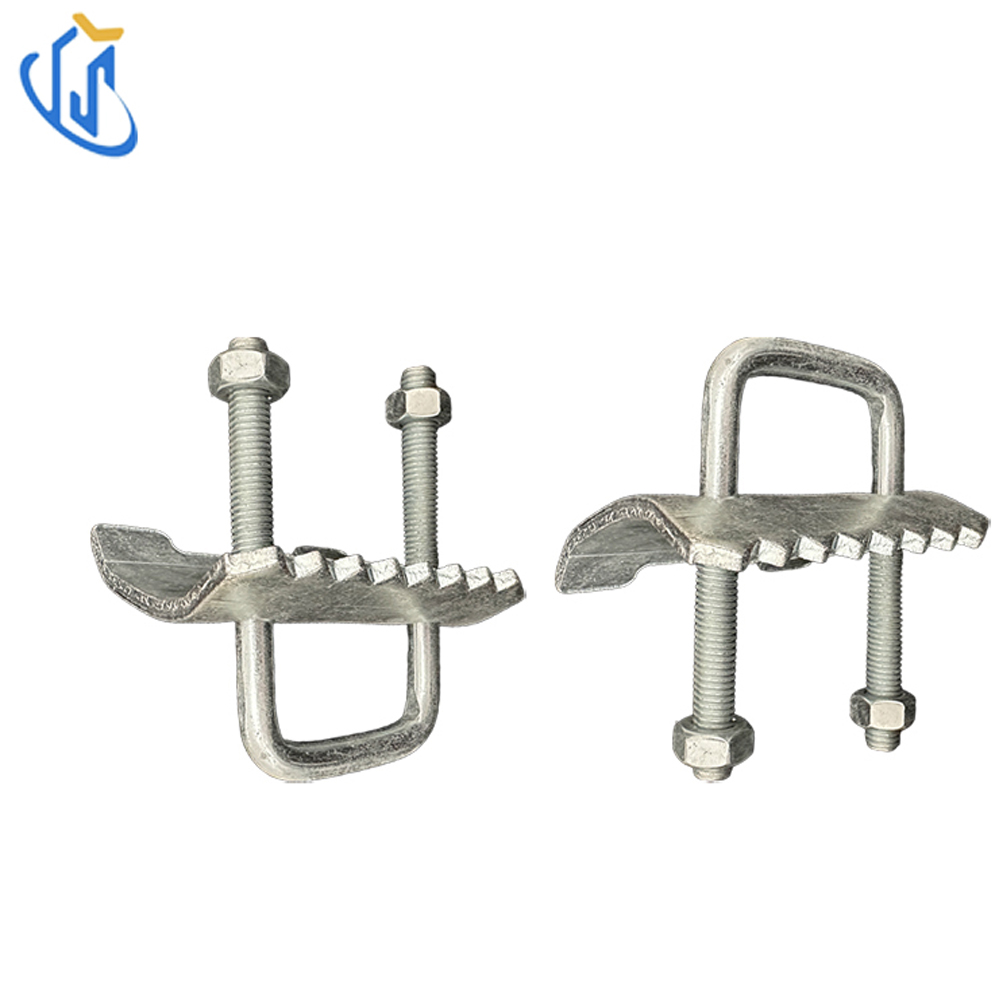

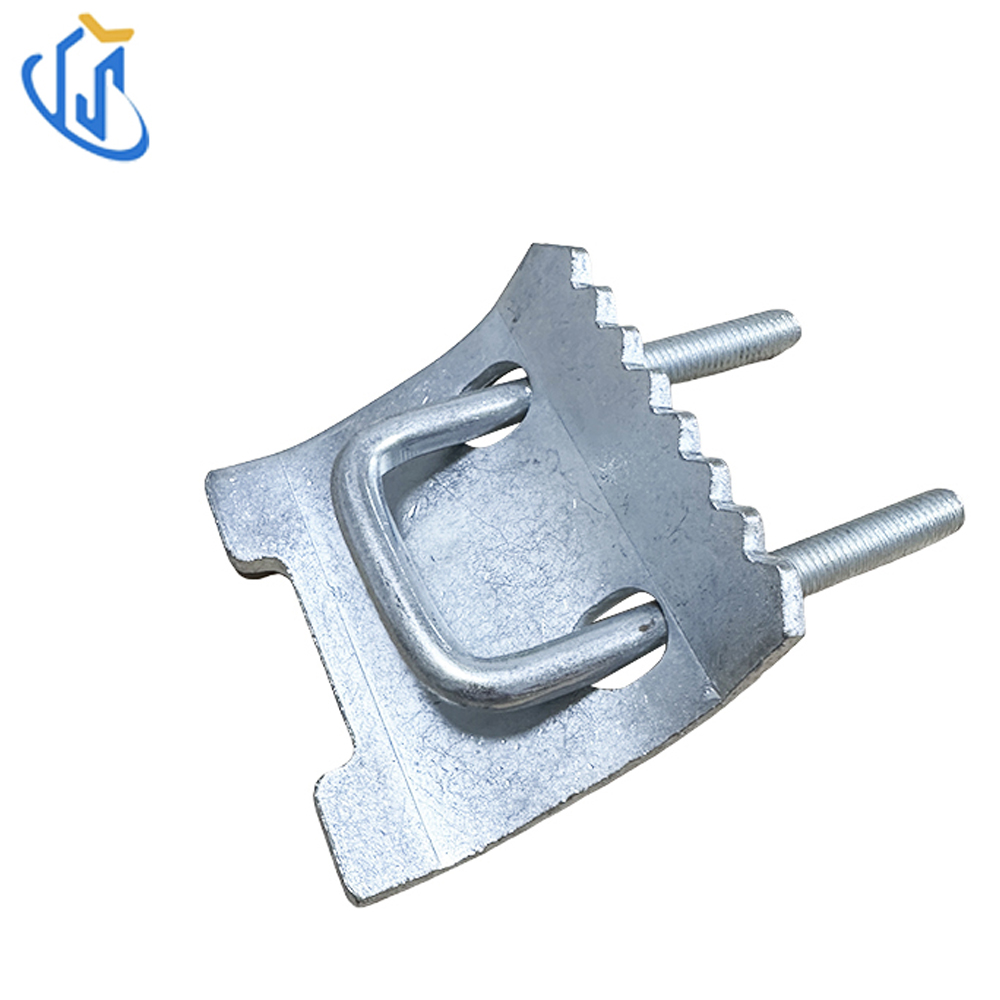

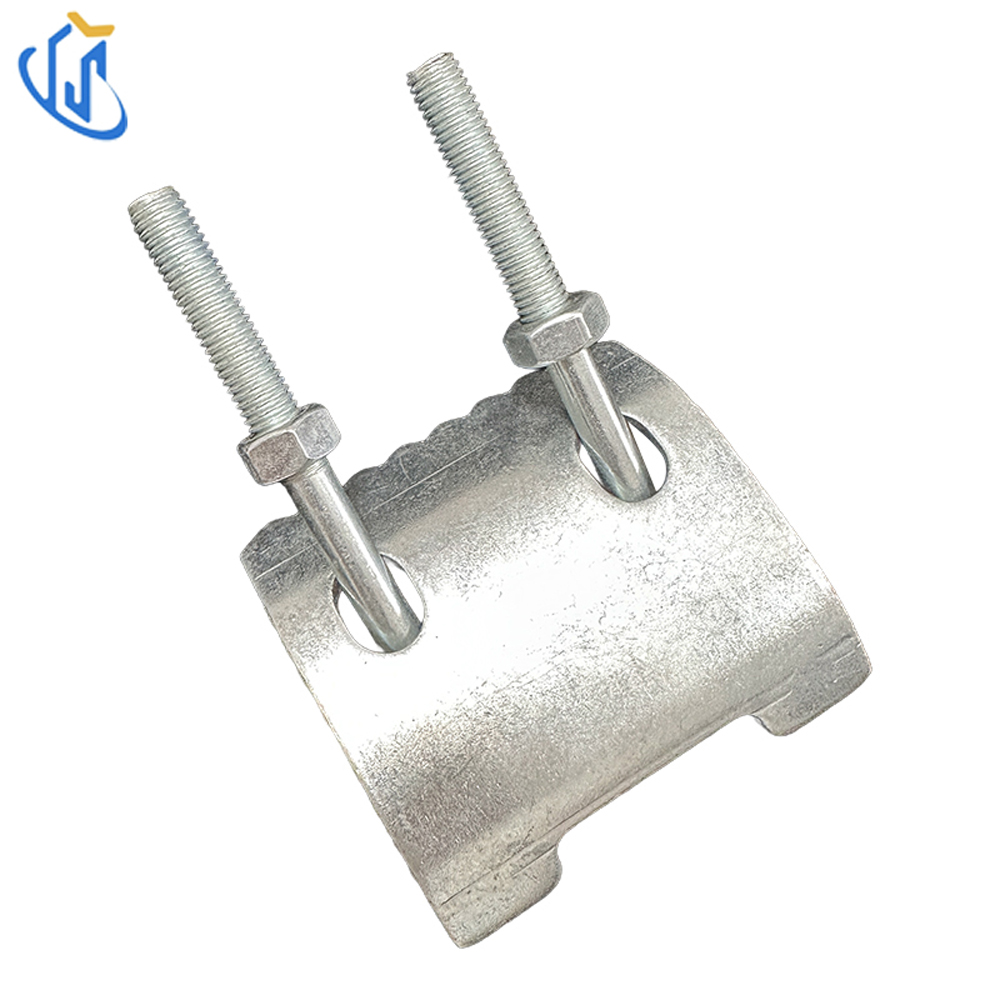

UTT1103 beam adapter is carbon steel connecting fitting designed for non-drilling installation between C41 channel steel and I/H shaped structural beams. Channel installation length and mounting position can be adjusted arbitrarily on site, product is used in paired layout on both beam sides. Four different anti-corrosion surface options are available to satisfy diverse environment demands, widely matched with UTT series fittings for fire sprinkler and MEP pipeline seismic support systems.
Key Features
Core Function: Connect C41 channel steel to I-beam/H-beam without beam drilling, freely adjust channel position
Raw Material: High strength carbon steel
Applicable Channel: Standard C41 channel steel
Rated Design Load: 9000N
Surface Options: Electro-galvanized, HDG, Dacromet, epoxy spraying
Install Feature: Must be used in pairs on two sides of beam flange, adjustable mounting position

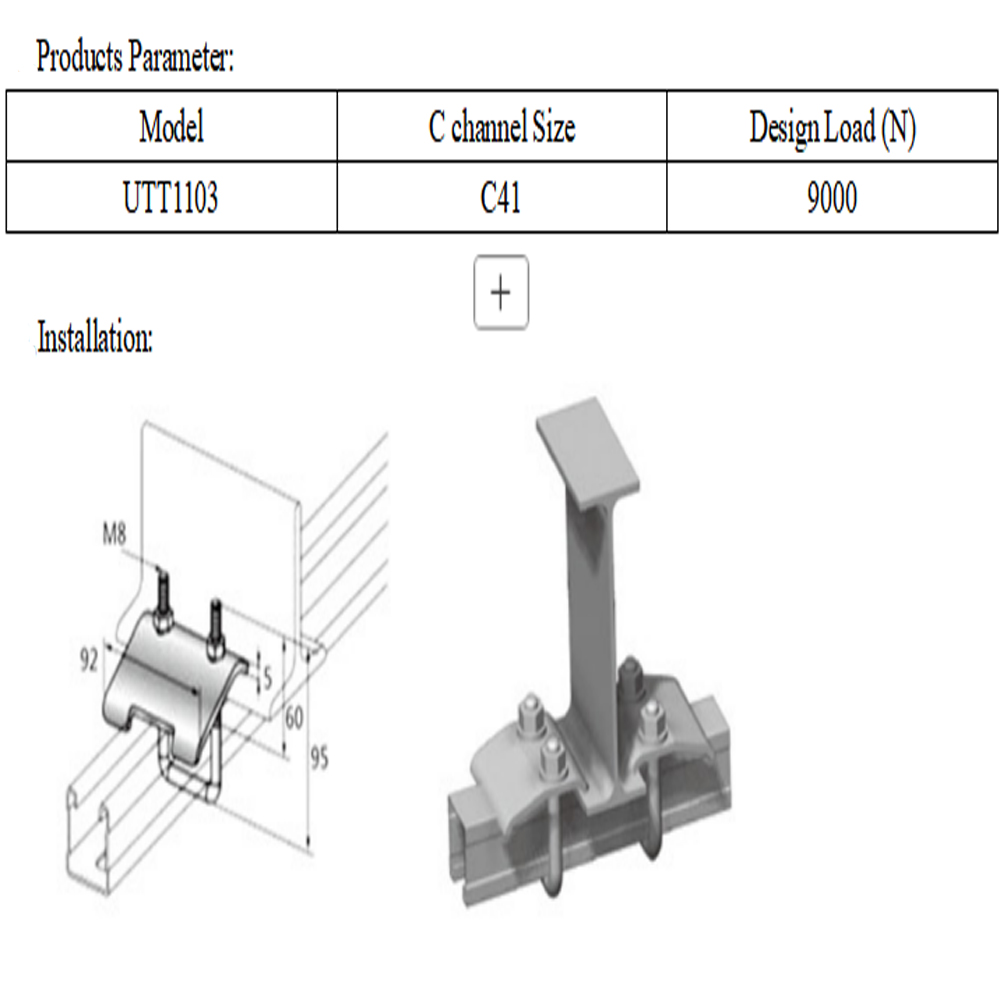

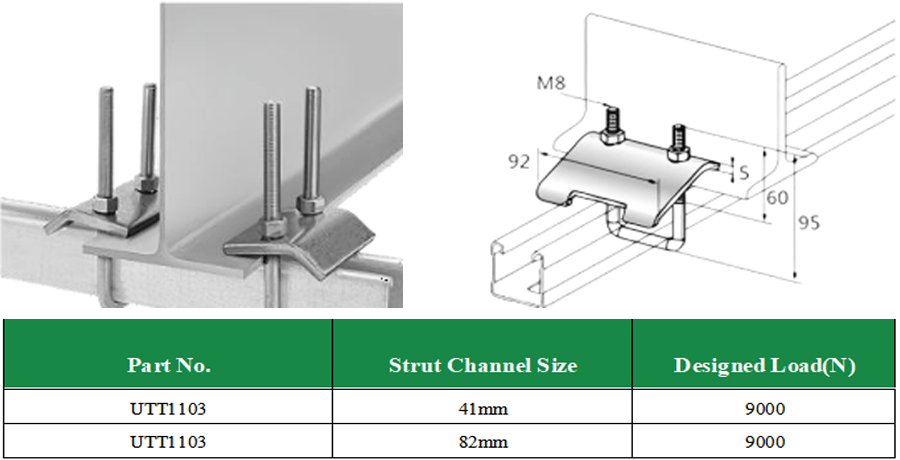

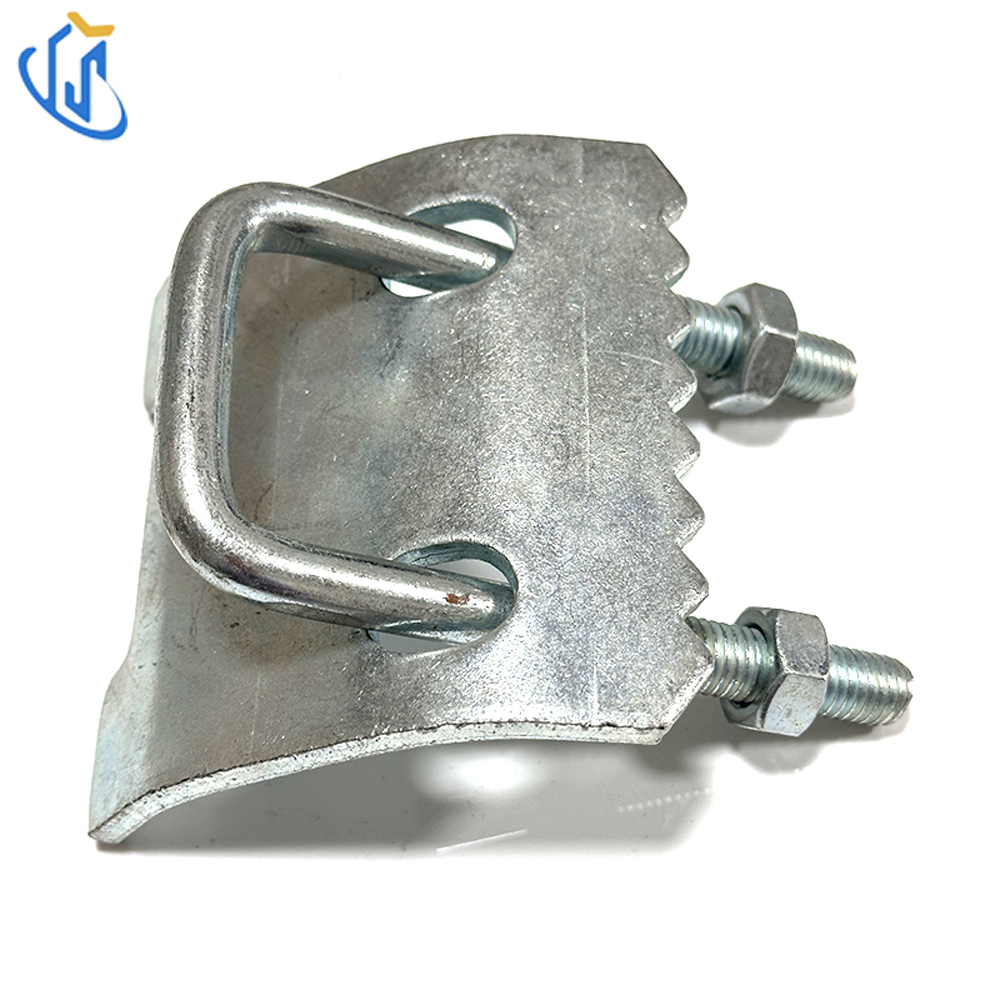

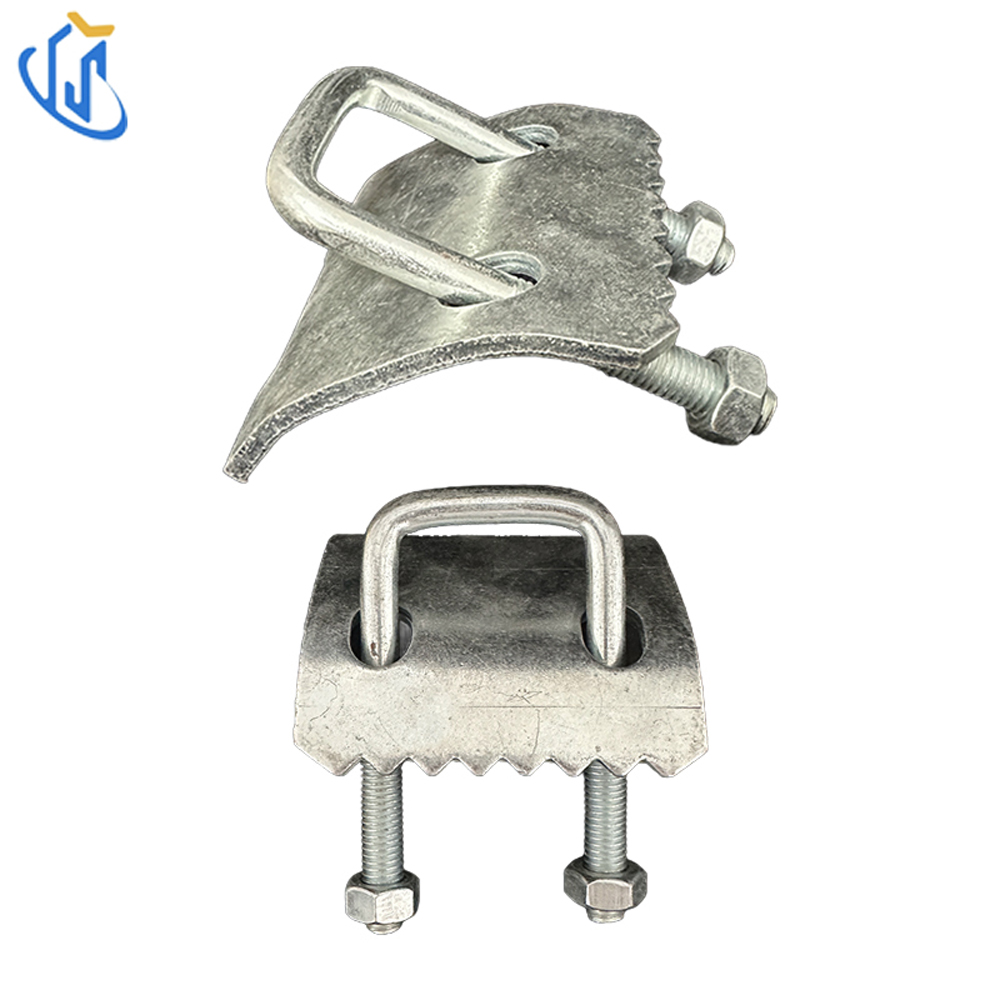

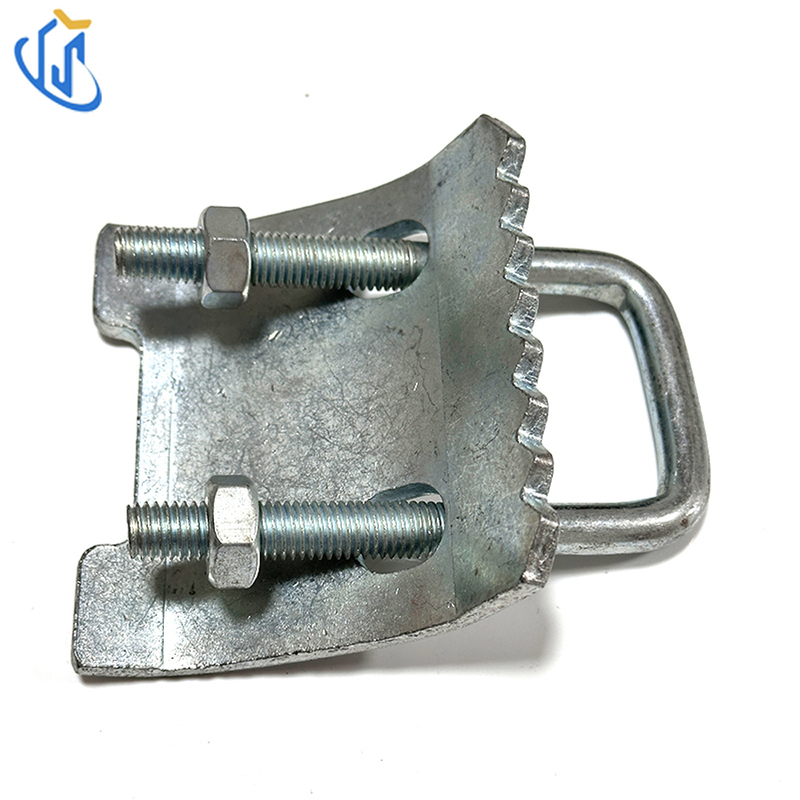

| Item | Specification |
| Model | UTT1103 |
| Raw Material | Carbon Steel |
| Applicable Channel | C41 standard channel steel |
| Design Max Load | 9000N |
| Available Surface | Electro-galvanized/HDG/Dacromet/Epoxy coating |
| Installation Requirement | Installed in pairs, freely adjustable channel length & position |
| Spec Service | Custom size available upon customer demand |
| Sample Supply | Free pre-order test samples available |
Application Scenarios

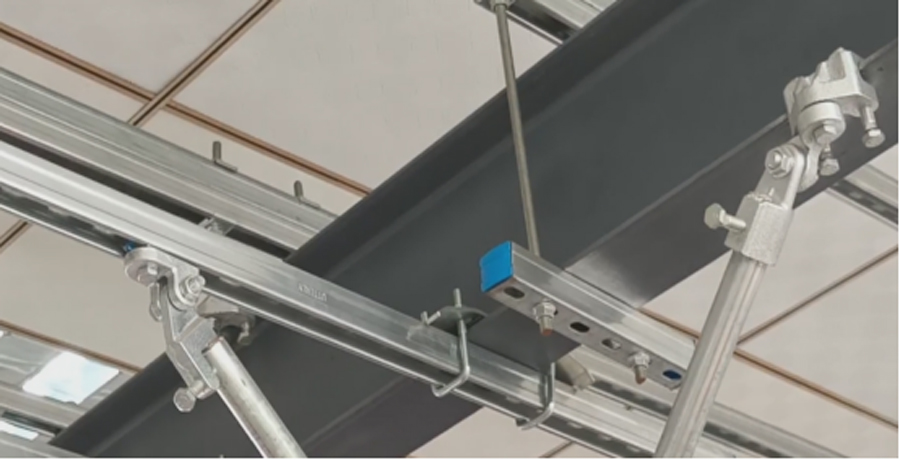

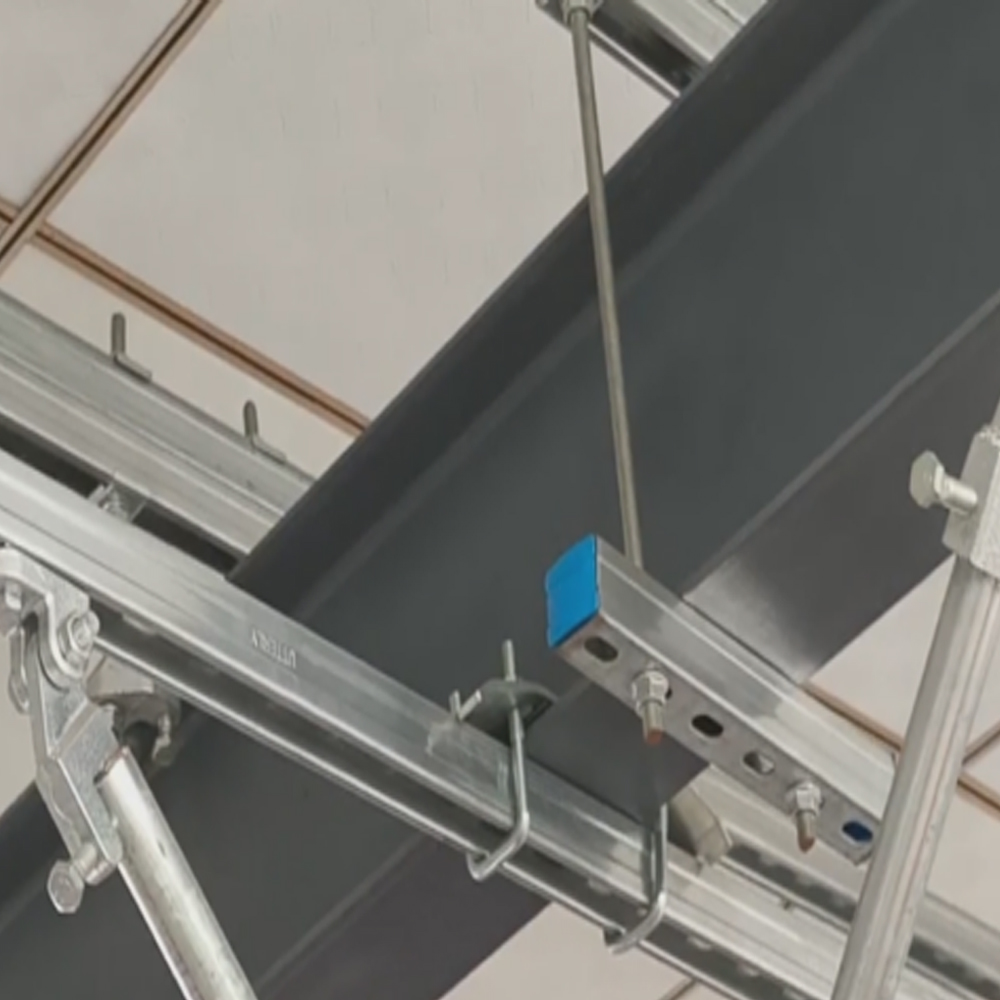

1.Fire Sprinkler System: Channel-to-beam connecting component for steel building sprinkler pipeline seismic bracing.
2.MEP & HVAC Engineering: Adjustable fixed accessory for cold/hot water and ventilation pipeline suspended support.
3.Steel Structure Projects: Flexible beam-channel connection fitting for factory and large commercial building frame layout.
Step-by-Step Installation Guide
1.Arrange two pieces of UTT1103 separately on both sides of I/H beam flange for paired installation.
2.Snap C41 channel steel into the adapter’s reserved clamping area.
3.Adjust channel’s stretching length and horizontal position according to on-site construction layout.
4.Tight all fixing bolts to lock channel and beam firmly into place.
5.Mount pipe clamp and bracing pipe to complete full seismic sway brace assembly.
Industry Compliance
1.Conforms to NFPA13 specification for fire protection seismic bracing construction requirements.
2.Various surface coatings meet international anti-corrosion industry standards.
3.Every finished product passes factory load testing and dimensional inspection before delivery.
Core Product Advantages
No-Drill Beam Mounting
Preserve original integrity of I/H beam without cutting or drilling, shorten construction period.
Full Adjustable Channel Layout
Randomly adjust channel length and position to adapt irregular site installation conditions.
Four Optional Anti-Rust Finishes
Multiple surface treatments fit indoor, humid and slightly corrosive different working environments.
Paired Stable Installation Design
Dual-side pairing structure ensures 9000N stable load bearing for long-term pipeline safety.
Customizable Dimension Support
Accept personalized size customization to satisfy special engineering project needs.
Perfect UTT Series Matching
Compatible with all UTT pipe clamps and seismic attachments for integrated bracing system.
FAQ
Q1: Main connection purpose of UTT1103?
A1: Connect C41 channel steel with I-beam/H-beam without drilling operation.
Q2: Matching channel specification?
A2: Specially applicable for standard C41 channel steel.
Q3: Rated load capacity?
A3: Design maximum load reaches 9000N.
Q4: Available surface treatments?
A4: Electro-galvanized, hot-dip galvanized, Dacromet and epoxy spraying four choices.
Q5: Installation requirement?
A5: Required to install in pairs on both sides of the structural beam.
