Overview

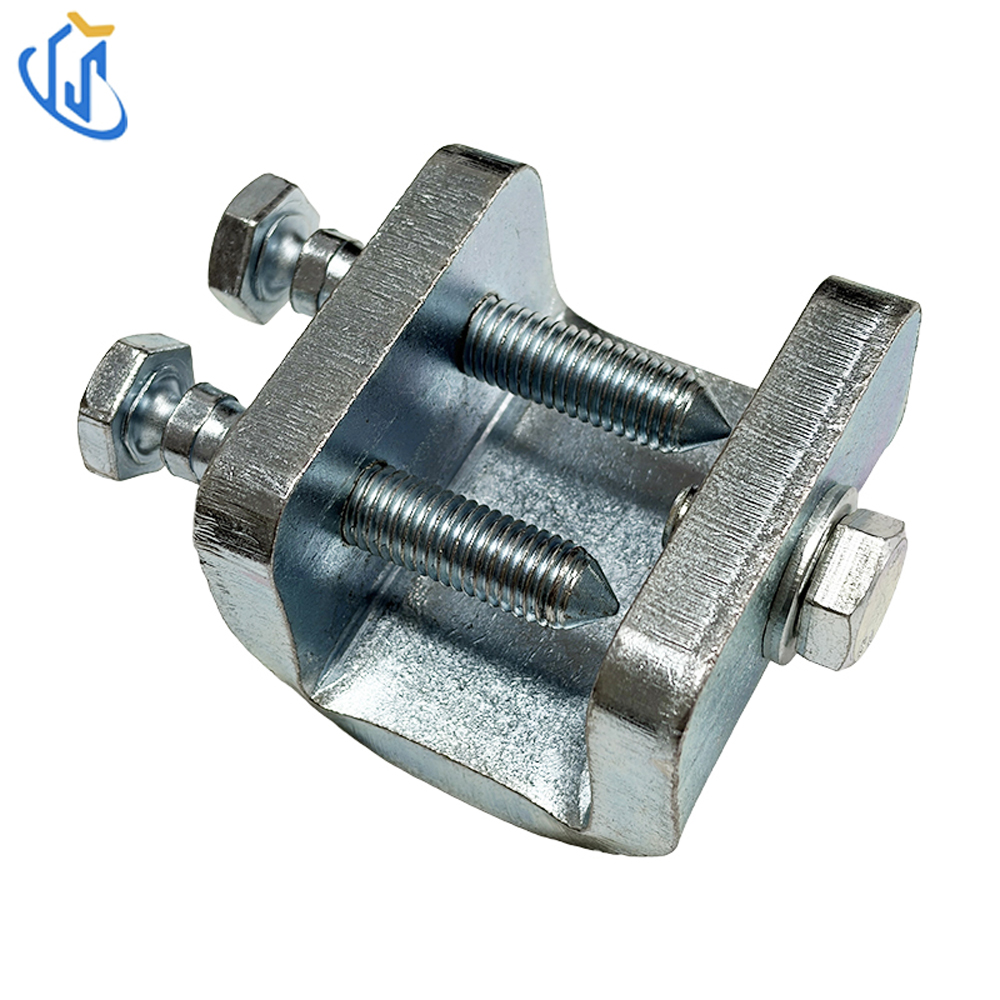

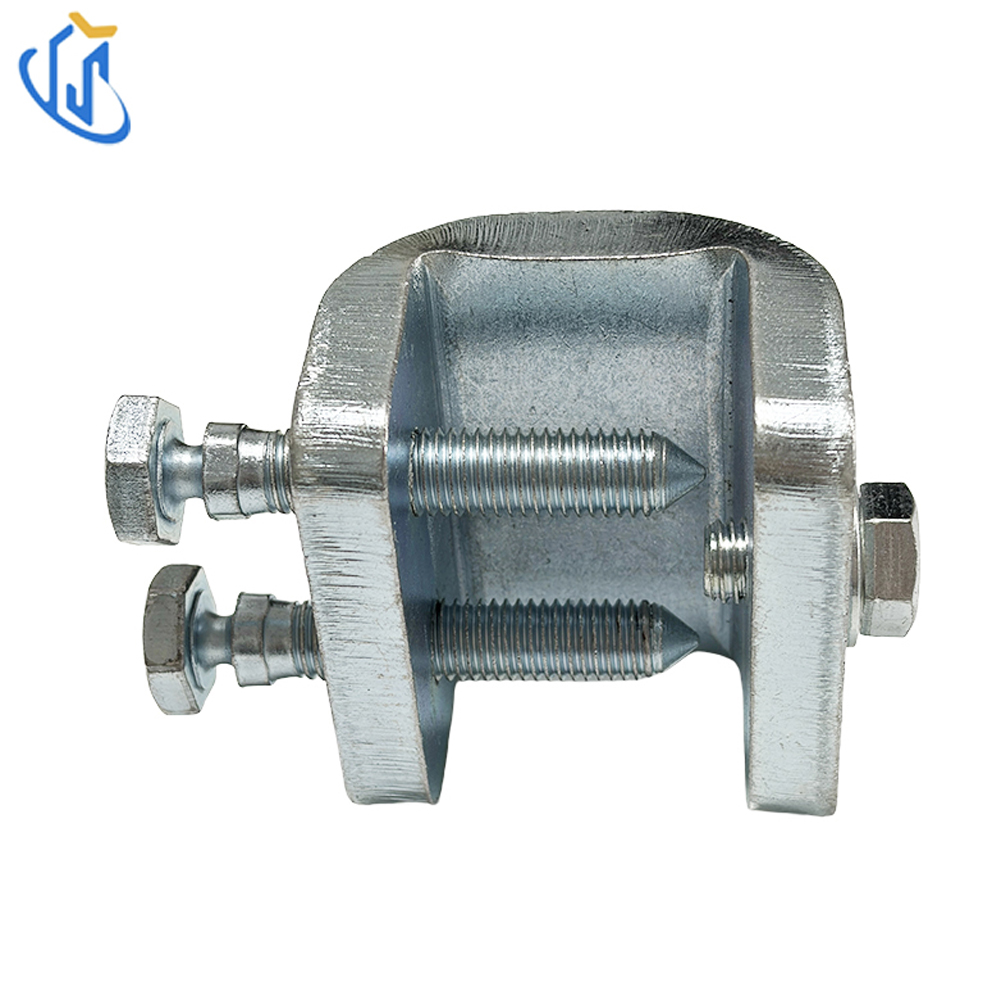

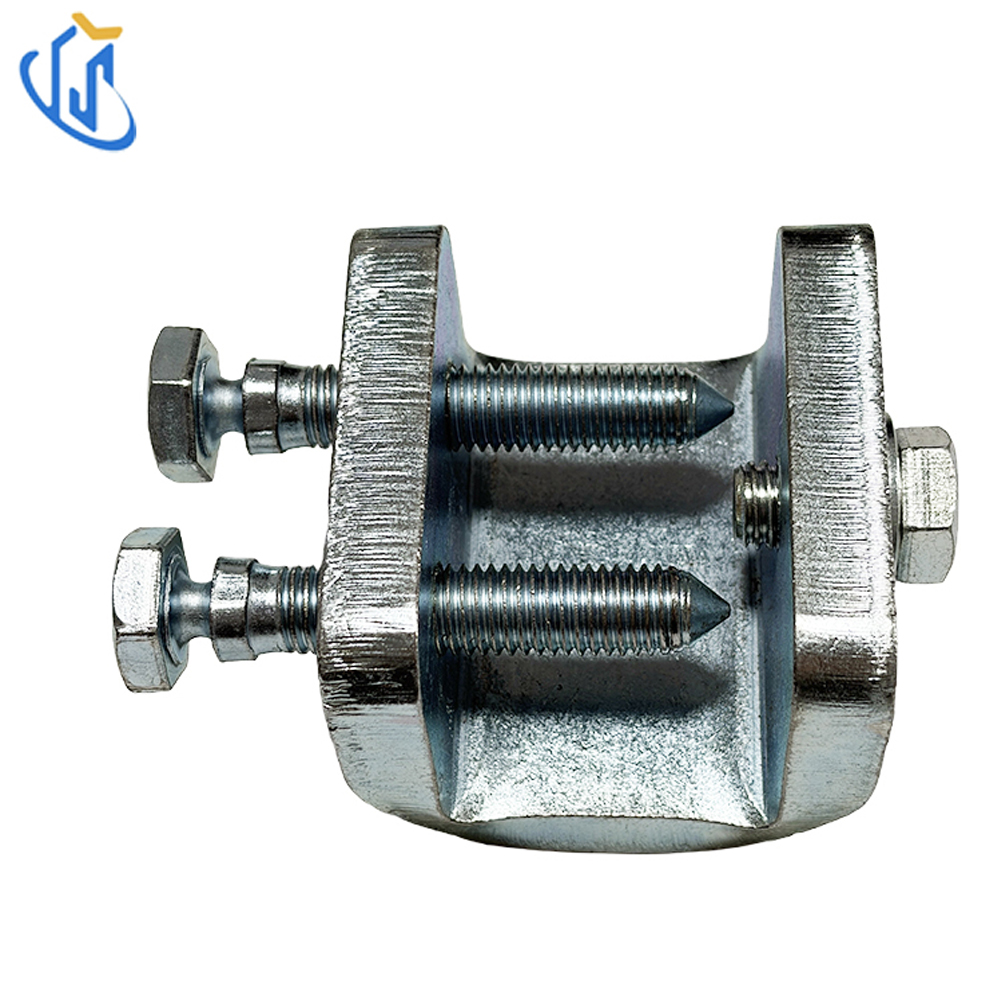

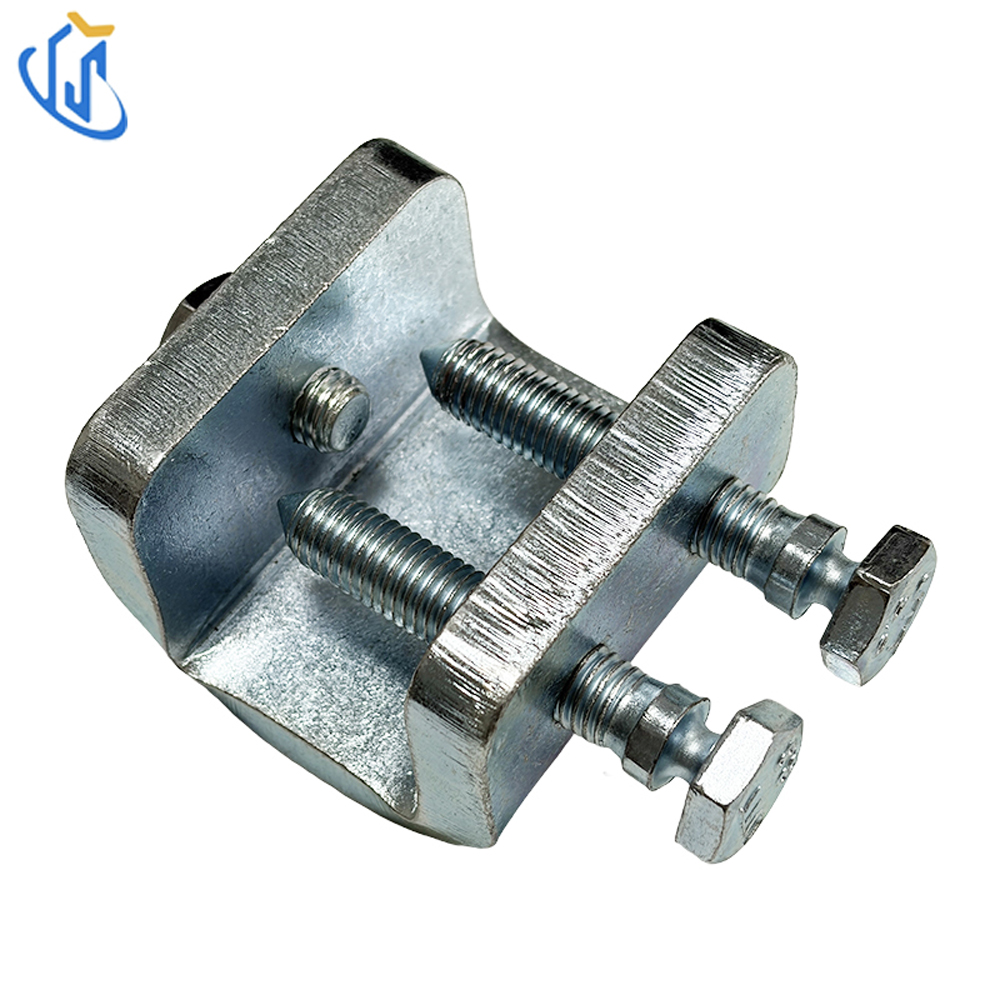

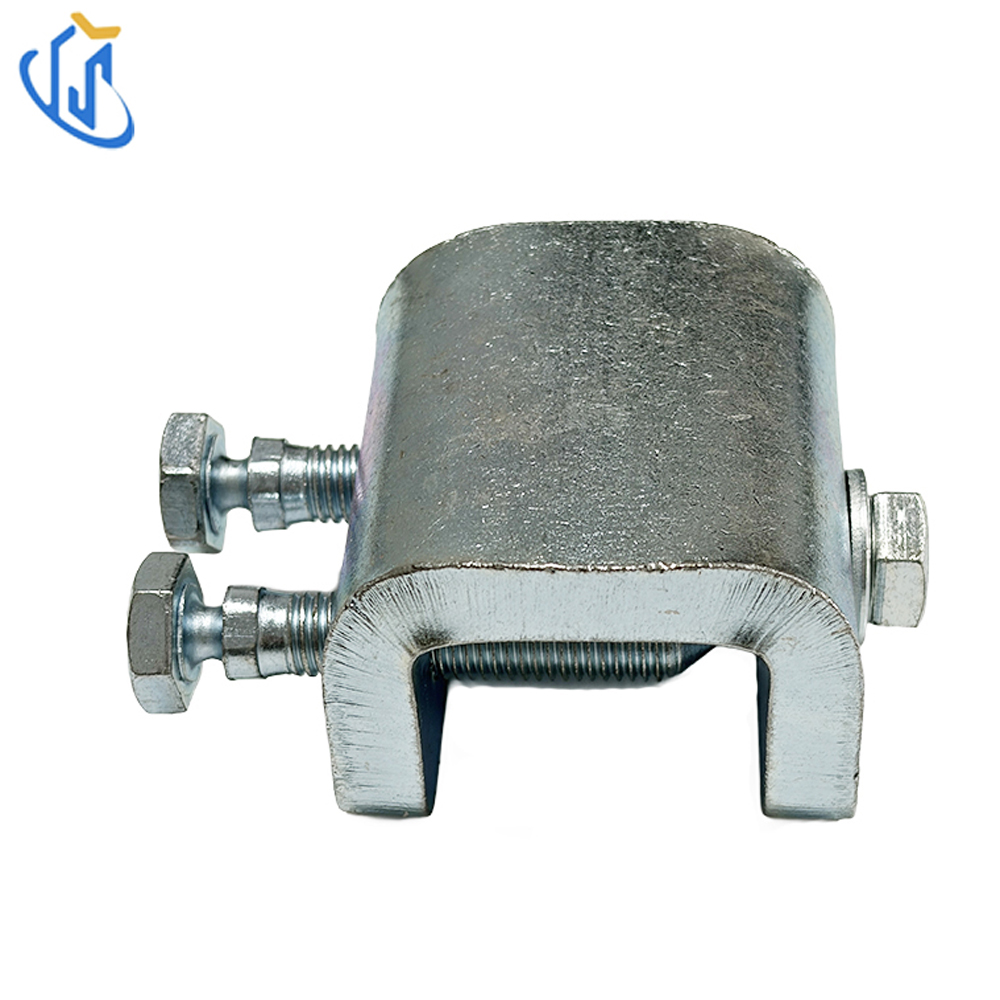

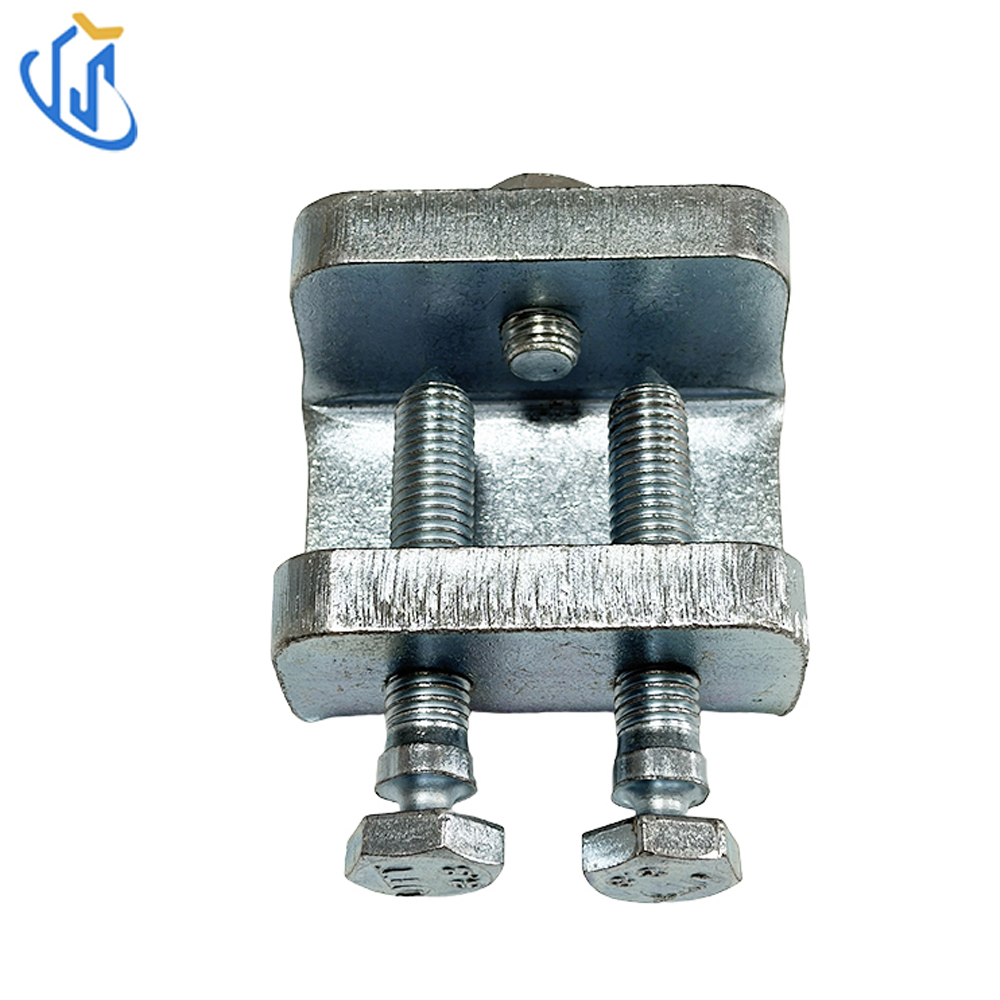

UTT1101 beam adapter is QT450 ductile iron seismic connection fitting designed for sway brace installation on steel structural beams. It eliminates drilling and welding on steel members, applicable for beam thickness ranging from 3/8 inch minimum to 1-1/4 inch maximum, matches Sch10,Sch40,GB/T3091,JIS G3454 standard pipes up to 8 inch, fully compliant with NFPA13 installation specifications for fire protection seismic projects.
Key Features
Core Function: Connect seismic sway brace onto steel beam without drilling or welding construction
Raw Material: QT450 ductile iron
Surface Finish: Electro-galvanized zinc coating
Applicable Steel Thickness: 3/8" ~1-1/4"
Max Supported Pipe Size: Up to 8 inch standard sprinkler pipe
Locking Mode: Break-off hex head set screw for standardized installation torque

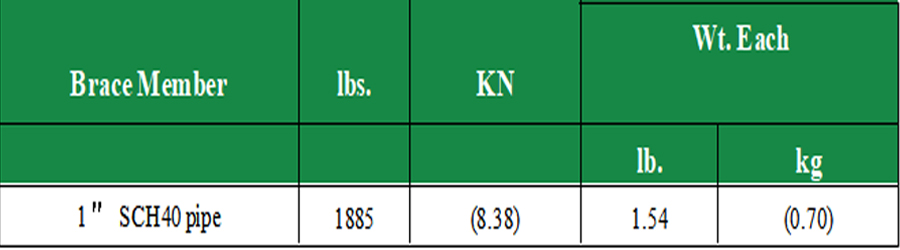

| Item | Specification |
| Model | UTT1101 |
| Raw Material | QT450 Ductile Iron |
| Surface Treatment | Electro-galvanized |
| Clamping Range | Steel beam thickness 3/8"~1-1/4" |
| Max Matching Pipe | 8 inch |
| Fixing Method | Break-off set screw locking |
| Sample Supply | Free pre-order test samples available |
Application Scenarios
1.Fire Sprinkler System: No-drill beam connection for sprinkler pipeline lateral sway bracing on steel structure buildings.
2.MEP&HVAC Engineering: Seismic fixing adapter for water and ventilation pipeline where beam drilling is forbidden.
3.Steel Structure Construction: Quick seismic connection fitting for factory and commercial steel frame projects.
Step-by-Step Installation Guide
1.Cover UTT1101 onto steel beam flange and make flange closely fit inner jaw surface.
2.Pre-tighten set screws by hand, then uniformly fasten until screw hex heads break off.
3.Fix matched UTT series structural attachment with supporting bolt and ensure bolt fully seated.
4.Link bracing pipe and pipe clamp to finish complete sway brace assembly.
5.Check overall connection tightness before pipeline hydraulic pressure test.
Industry Compliance
1.Follow NFPA13 standard for fire protection seismic bracing installation rules.
2.Electro-galvanized coating meets international anti-corrosion industry standards.
3.All finished goods pass factory dimension and load inspection before delivery.
Core Product Advantages
No Drilling & No Welding Installation
Protect original steel beam structure, save construction processing cost and working time.
QT450 High Toughness Material
Excellent shock resistance to bear long-term seismic load without cracking.
Break-off Screw Mounting
Realize uniform mounting force by breaking screw head, avoid uneven tightening on site.
Fixed Beam Thickness Range
Suitable for mainstream 3/8''~1-1/4'' building steel flange specification.
Full UTT Series Compatibility
Perfectly assemble with all UTT pipe clamps and seismic attachments for complete bracing system.
FAQ
Q1: Core advantage of UTT1101?
A1: Mount on steel beam without drilling or welding to keep beam integrity.
Q2: Available steel clamping thickness?
A2: Suitable for 3/8"~1-1/4" thick structural steel member.
Q3: Max matched pipeline size?
A3: Support seismic bracing for pipe size up to 8 inch.
Q4: Installation locking way?
A4: Tight set screw until hex head breaks off for fixed locking force.
Q5: Free sample available?
A5: Free inspection samples can be supplied prior to bulk order.
