UTT80 galvanized two-piece split pipe clamp made of carbon steel, designed for fast fixing DN25~DN200 pipelines onto C-channel for seismic bracing, 32×2.0mm band specification, applicable to compact dense piping layout with optional customized surface treatments.

UTT BC1 is a UL & FM certified structural attachment made of carbon steel and QT450 ductile iron with black or galvanized surface. It complies with WW-H-171 and ANSI/MSS-SP-58 standards, available in M10 and M12 sizes, designed for mounting on top and bottom of I-beams, purlins, channel steel and angle iron, with setscrew torqued on the sloped side of I-beam for firm installation.

UTT42 pre-galvanized non-swivel adjustable band hanger is integrally stamped carbon steel pipe support with double thickness load-bearing section, vertical adjustable range from 5/8'' to 2'', fits DN20~DN200(3/4''~8'') pipeline, matches M10/M12/M16 threaded rod for automatic sprinkler system gravity suspension without swivel nut.

UTT41 galvanized cup nut loop hanger complies with MSS SP-58 Type7 standard, carbon steel with pre-galvanized or electro-galvanized finish, sized from 1/2''~8''(DN25~DN200), equipped with flange & cup nut for free vertical adjustment to bear gravity load of automatic sprinkler piping systems.

UTT7403 4-hole flat plate fitting is made of durable carbon steel, available in black, electro-galvanized and hot-dip galvanized finishes. It is specially designed for 90-degree corner connections of strut channel frames, sitting flush on two intersecting channel lips. Various sizes are provided and custom dimensions are acceptable to meet diverse connection requirements for strut systems.

UTT7304 Sway Brace Multi-Fastener Adapter is made of carbon steel with electro-galvanized finish. Designed to enhance the load carrying capacity of sway brace fittings, it supports multiple fastener attachments and customized sizes to meet seismic bracing requirements.

UTT7101 Strut Base Plate is made of carbon steel with black, electro-galvanized and hot-dip galvanized finishes. It acts as a sturdy post base to fix strut channels and build stable metal frames, with multiple sizes and custom dimensions available for diverse installation requirements.

This threaded rod is manufactured from premium carbon steel with electro-galvanized surface finish. It serves as a reliable suspension fastener widely used with loop hangers for strut channel systems, available in complete metric and imperial sizes to meet various load and installation demands.

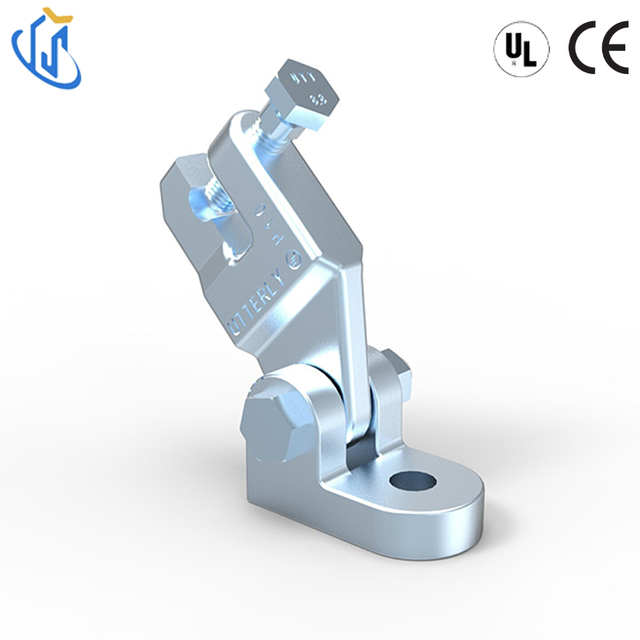

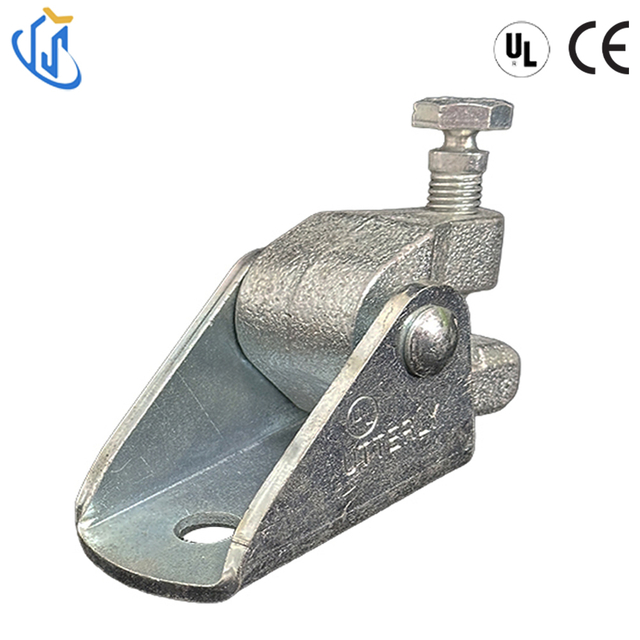

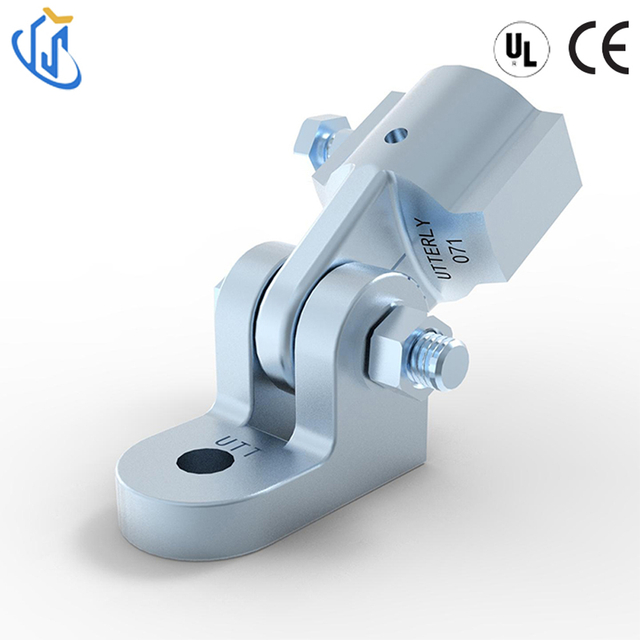

UTT10 is a UL/FM/CE certified seismic structure attachment for sprinkler pipes up to 8 inches. Made of electro-galvanized carbon steel, it resists sway and seismic disturbance with easy shear-bolt installation.

UTT45 Roller Chair features cast iron roller and carbon steel frame with hot-dip galvanized finish. This two-hole base pipe roller support accommodates pipe thermal expansion, reduces friction and wear, ideal for HVAC, steam and hot water pipeline systems with smooth axial movement.

UTT7062D Back-to-Back Strut Channel is made of Q235B carbon steel with hot-dip or electro-galvanized finishes. This heavy-duty welded strut is designed for prefabricated load-bearing supports and seismic bracing systems, with a size of 41×62D×2.5/2.75mm.

UTT7408 Seal Rod Coupling is made of carbon steel with electro-galvanized finish. Designed for connecting and extending threaded rods, it is available in sizes M4 to M20 with lengths from 20mm to 70mm.
