UTT BC1
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface Finish: | |
| Size: | |
| Quantity: | |

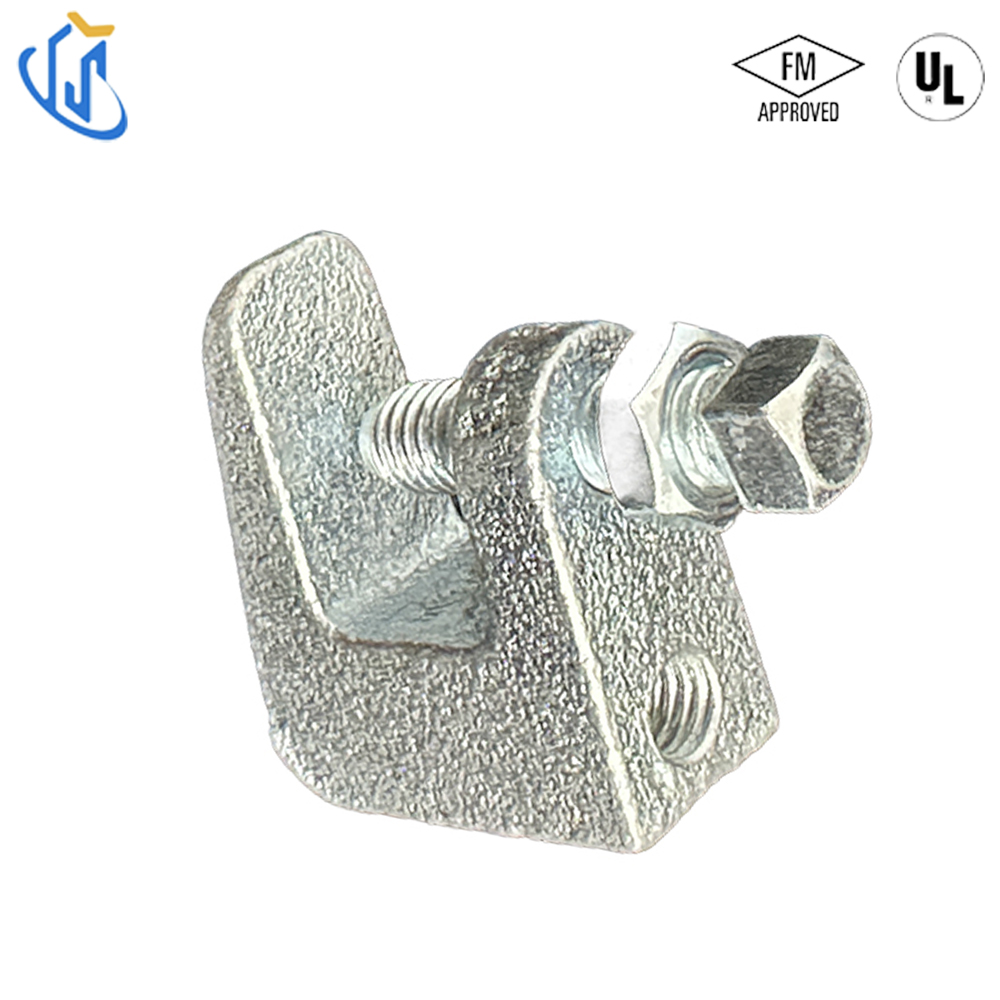

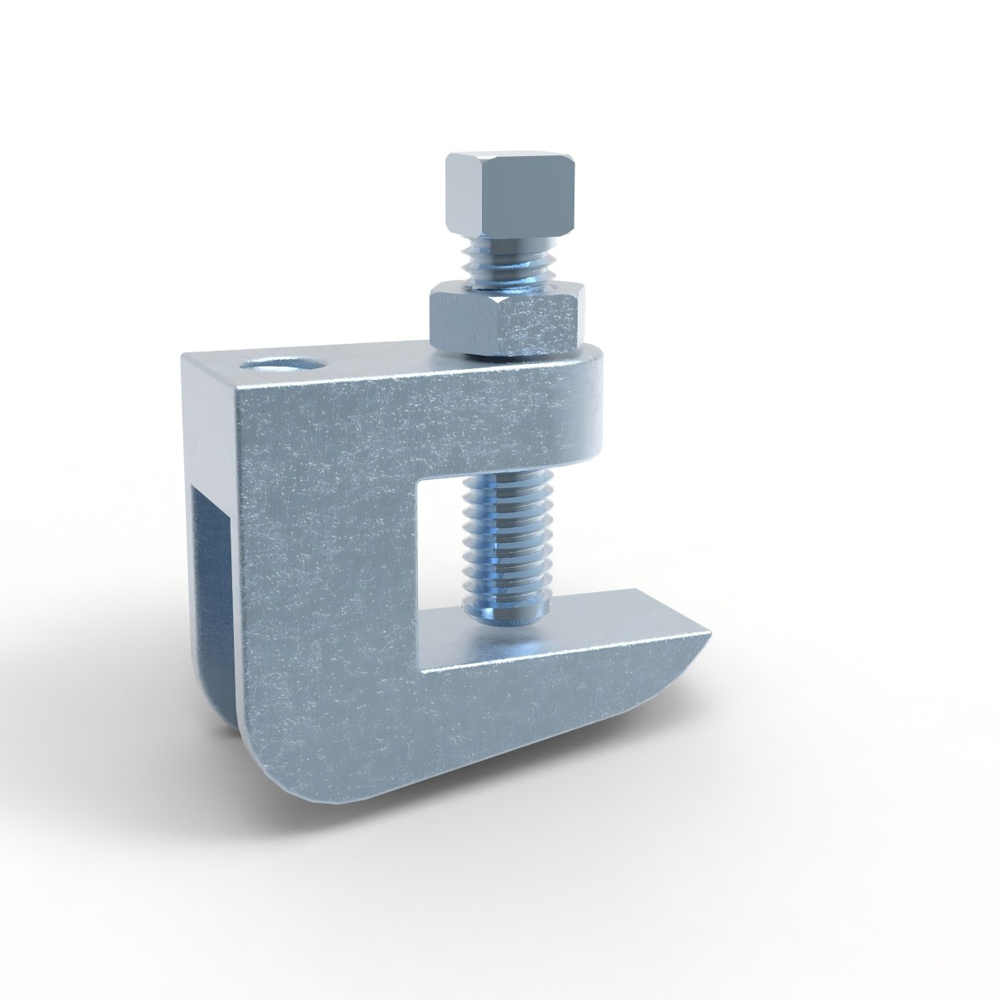

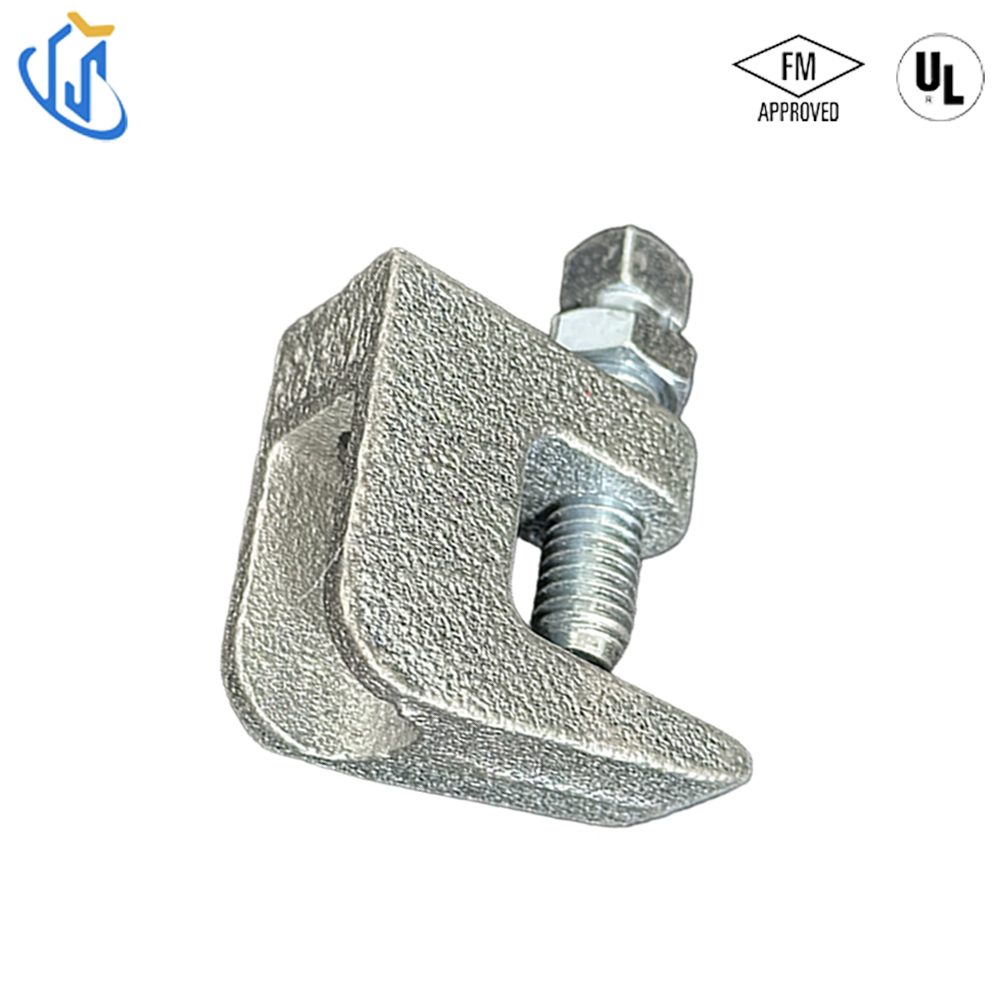

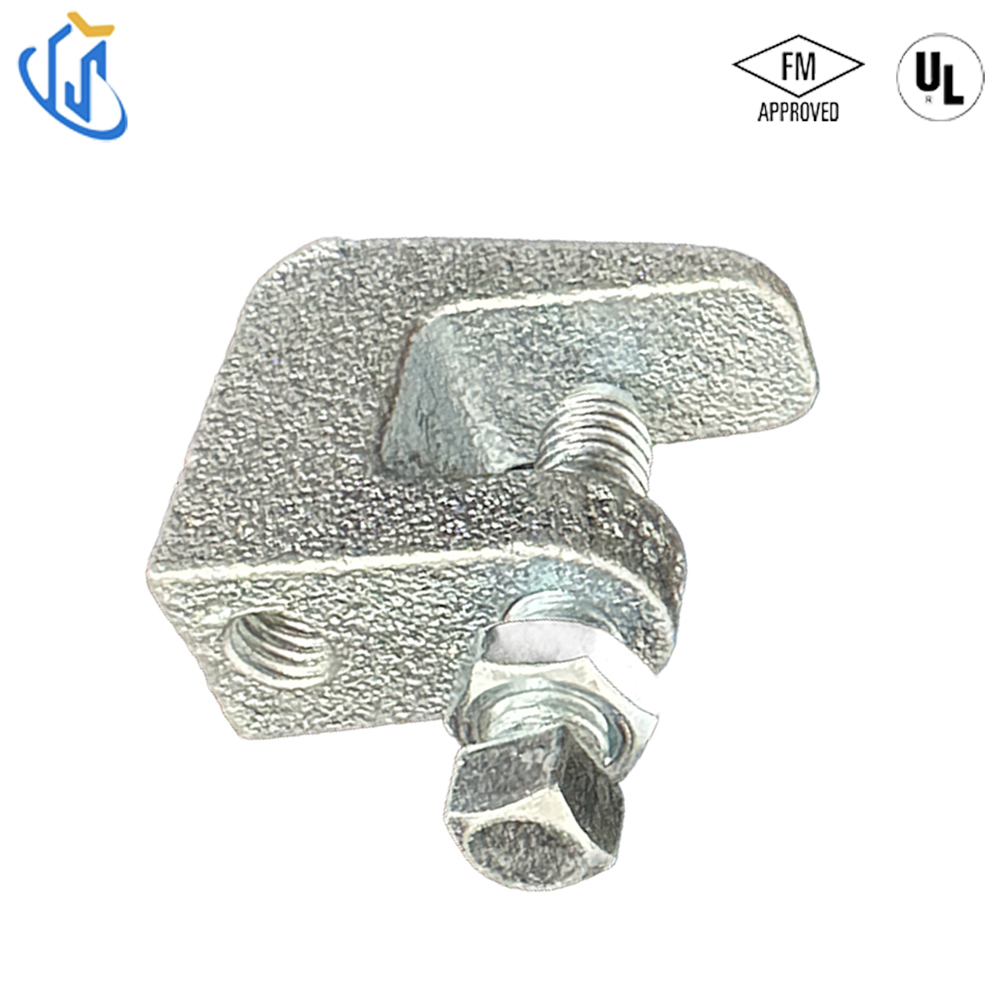

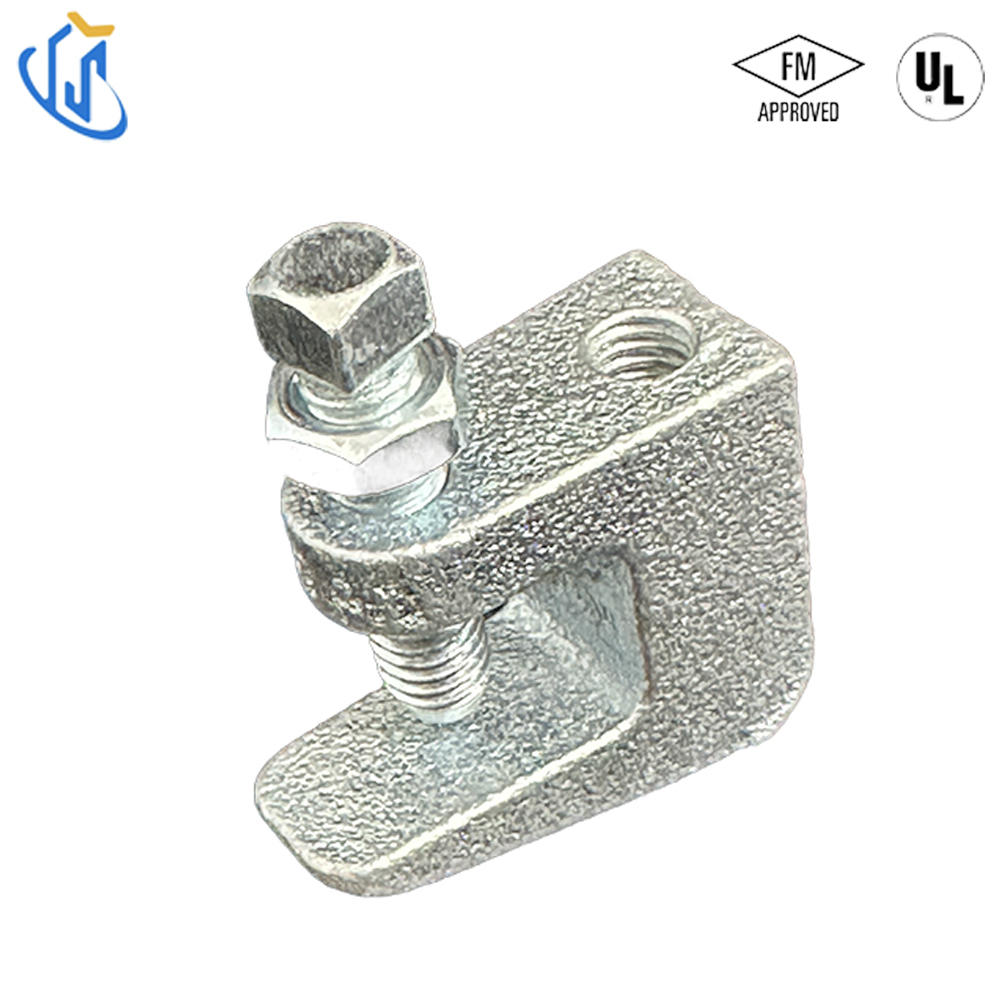

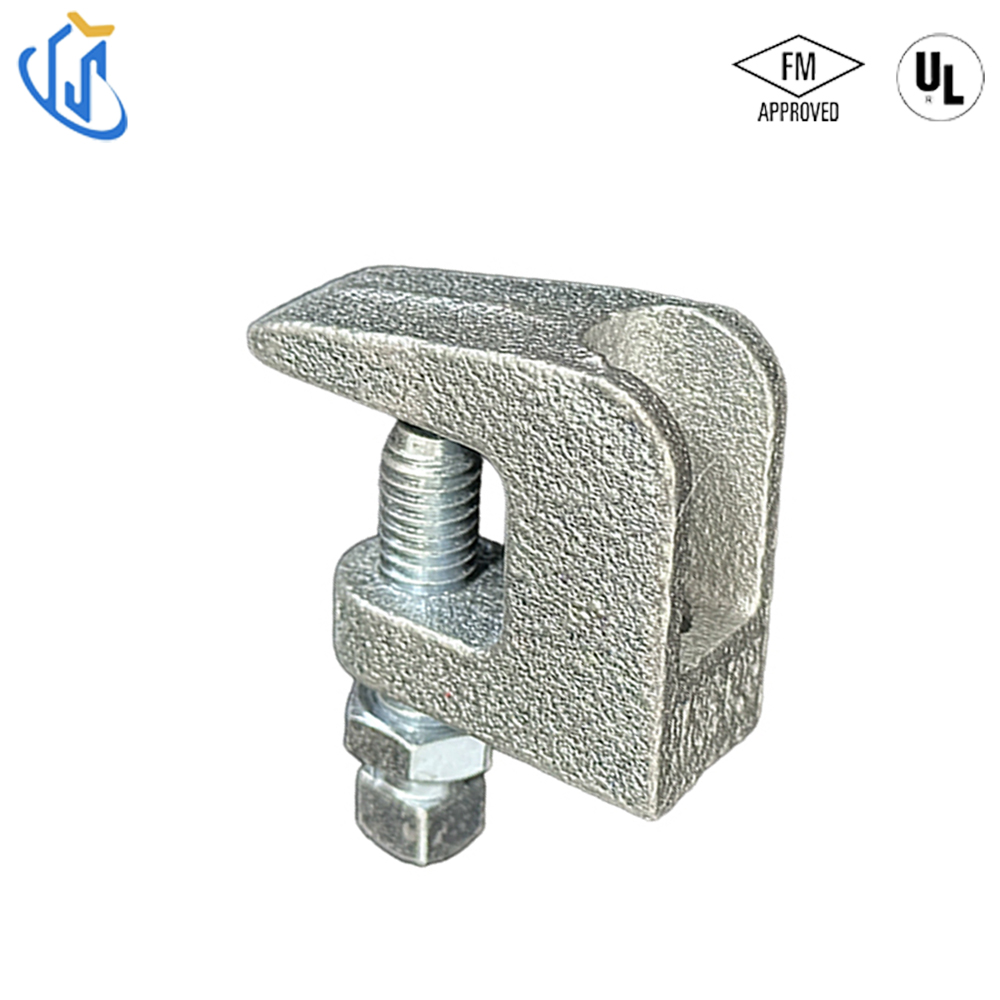

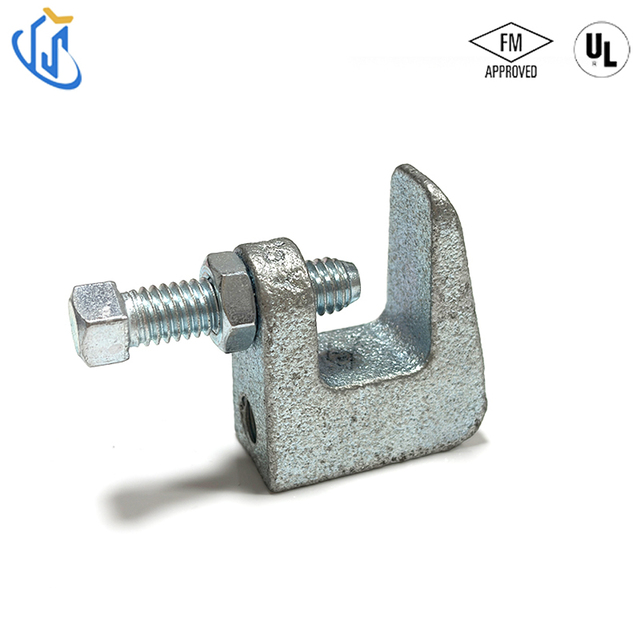

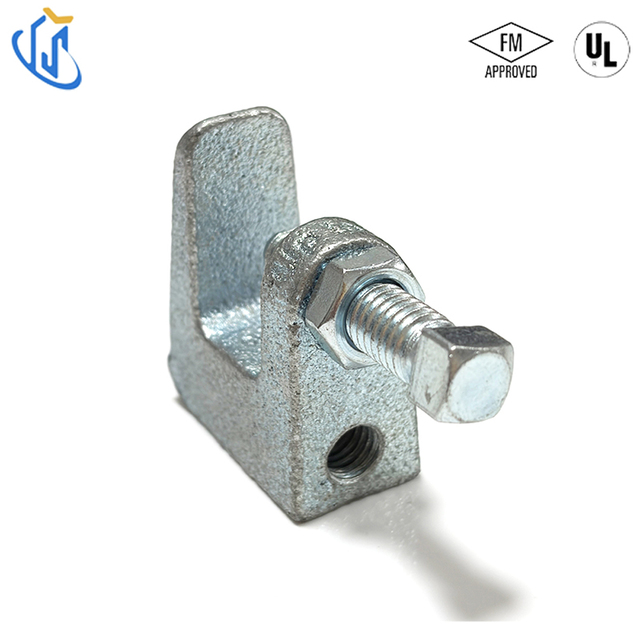

UTT BC1 is a professional structural connection component for pipeline support systems. It adopts two material options: high-strength carbon steel and QT450 ductile iron, and provides black raw steel and galvanized anti-rust finishes to adapt to different working environments. The product strictly conforms to Federal Specification WW-H-171 (Type 23) and ANSI/MSS-SP-58 (Type 19 & 23), and shall be installed in accordance with ANSI/MSS-SP-69. It is available in two specifications: 3/8"(M10) and 1/2"(M12). This fitting is widely used for connecting pipeline support assemblies to metal beams, purlins, channel steel and angle iron in steel structure buildings, and requires the setscrew to be fully tightened and torqued against the sloped surface of I-beams to ensure stable bearing performance.
Core Function: Serve as structural connector to install pipeline supports on the top and bottom of I-beams, purlins, channel steel and angle iron
Raw Material: Carbon Steel / QT450 Ductile Iron
Surface Finish: Black finish / Galvanized finish
Compliance Standard: WW-H-171(Type 23), ANSI/MSS-SP-58(Type 19&23), ANSI/MSS-SP-69
Available Sizes: 3/8"(M10), 1/2"(M12)
Installation Requirement: Torque the setscrew onto the sloped side of I-beam

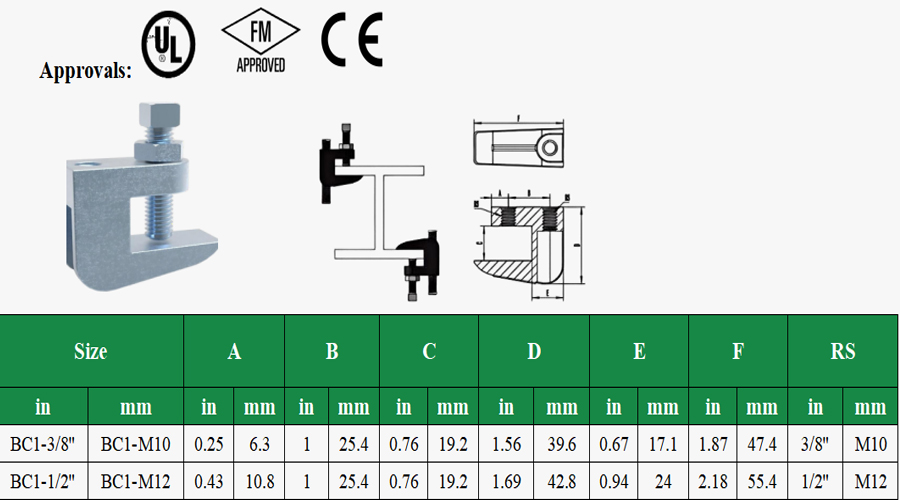

Item | Specification |
|---|---|
Model | UTT BC1 Series |
Raw Material | Carbon Steel / QT450 Ductile Iron |
Surface Treatment | Black / Galvanized |
Standard Compliance | WW-H-171 Type23, MSS SP-58 Type19&23, MSS SP-69 |

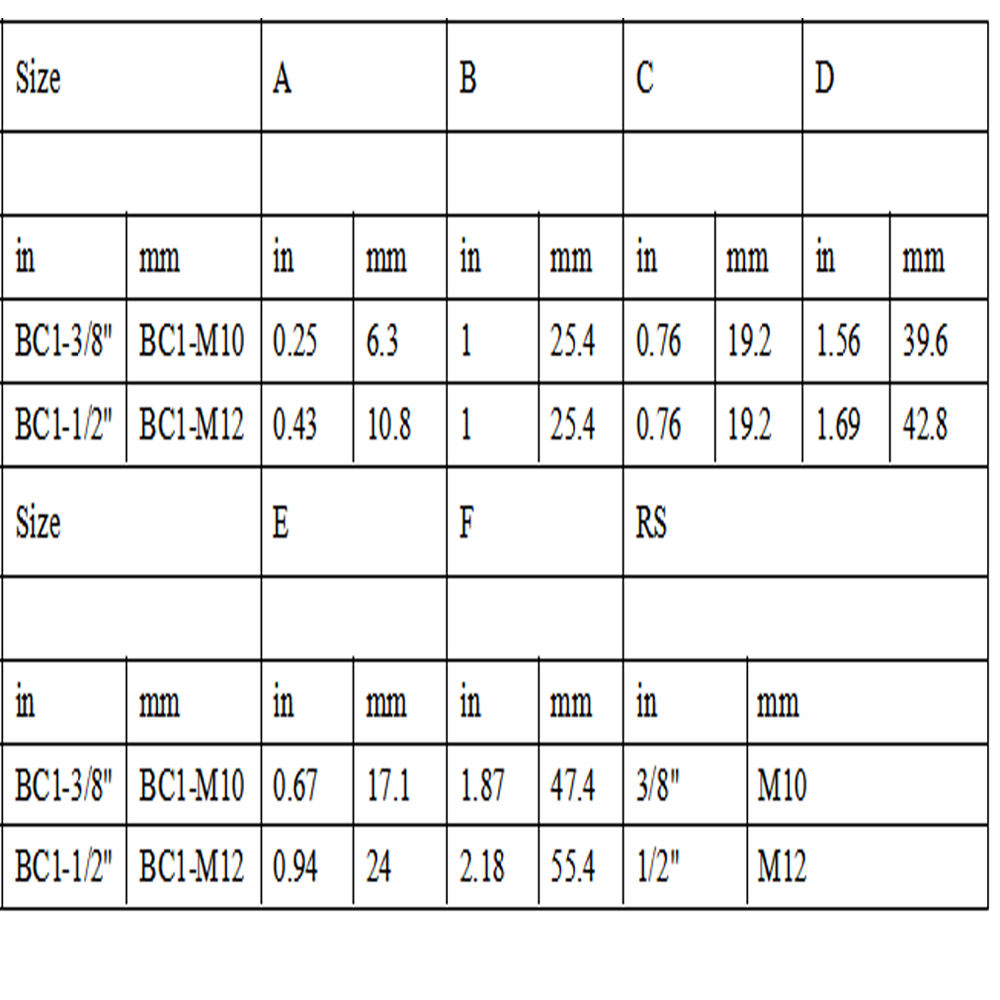

Size Specification | 3/8"(M10), 1/2"(M12) |
Applicable Base | Metal beam, purlin, channel steel, angle iron |
Certification | UL & FM Approved |
Sample Supply | Free pre-order test samples available |
1.Fire Protection System: Structural connection for fire sprinkler pipe bracing on steel beams and purlins of commercial and industrial buildings.
2.Steel Structure Engineering: Fixed connection fitting for MEP pipeline supports on I-beams, channel steel and angle iron of factory buildings.
3.Seismic Bracing Project: Certified structural connector for seismic sway brace assembly in large-scale steel frame construction projects.
1.Select UTT BC1 in M10 or M12 size according to on-site installation requirements.

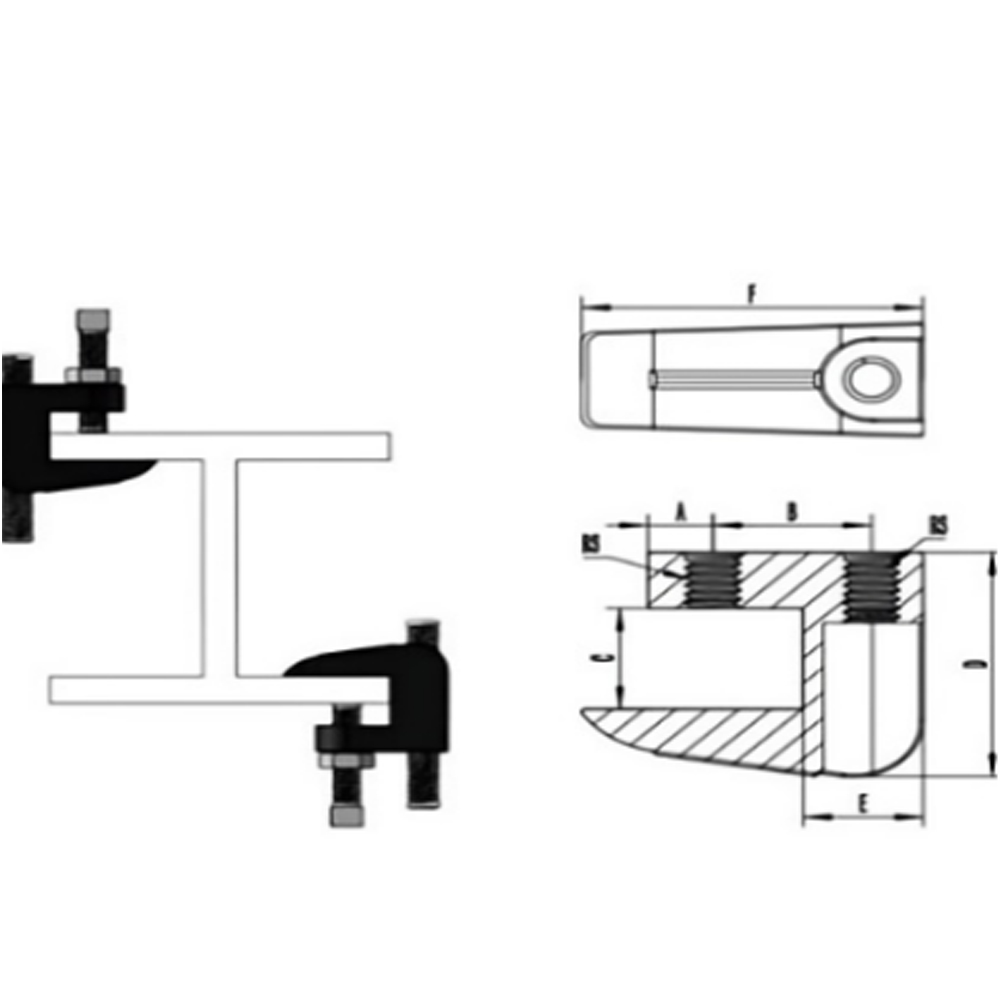

2.Place the attachment onto the top or bottom position of target I-beam, purlin, channel steel or angle iron.
3.Align the setscrew with the sloped side of I-beam.
4.Tighten the setscrew and apply specified torque to lock the fitting firmly in place.
5.Assemble matched pipe clamps and bracing components to complete the whole support system installation.
1.Fully complies with US Federal Specification WW-H-171 and international ANSI/MSS series pipe hanger & structural attachment standards.
2.Black and galvanized finishes meet general industrial anti-corrosion and surface treatment requirements.
3.All products have passed UL and FM third-party certification, with strict factory dimensional and torque inspection before delivery.
1.Dual Material Selection: Carbon steel for cost-effective conventional projects, QT450 ductile iron for high load and anti-seismic occasions with excellent impact resistance.
2.Two Surface Finishes: Black finish for dry indoor environments, galvanized finish for humid spaces to achieve long-term rust prevention.
3.Authoritative Certification: UL & FM dual certification meets strict acceptance requirements for fire protection and international engineering projects.
4.Multi-Scene Adaptation: Compatible with I-beams, purlins, channel steel and angle iron, widely applicable to various steel structure bases.
5.Standardized Installation Design: Clear torque requirement for setscrew on I-beam sloped surface to avoid loose connection and ensure overall safety.
6.Two Standard Sizes: M10 and M12 two mainstream specifications cover most common pipeline support connection demands.
Q1: What standards does UTT BC1 comply with?
A1: It conforms to WW-H-171(Type 23), ANSI/MSS-SP-58(Type 19&23) and ANSI/MSS-SP-69, and holds UL & FM certification.
Q2: What material options are available?
A2: High-strength carbon steel and QT450 ductile iron for selection.
Q3: Available surface treatments?
A3: Black finish and galvanized anti-rust finish.
Q4: What are the available sizes?
A4: Two specifications: 3/8" corresponding to M10, and 1/2" corresponding to M12.
Q5: Where should the setscrew be tightened?
A5: The setscrew must be torqued onto the sloped side of the I-beam.
