Overview

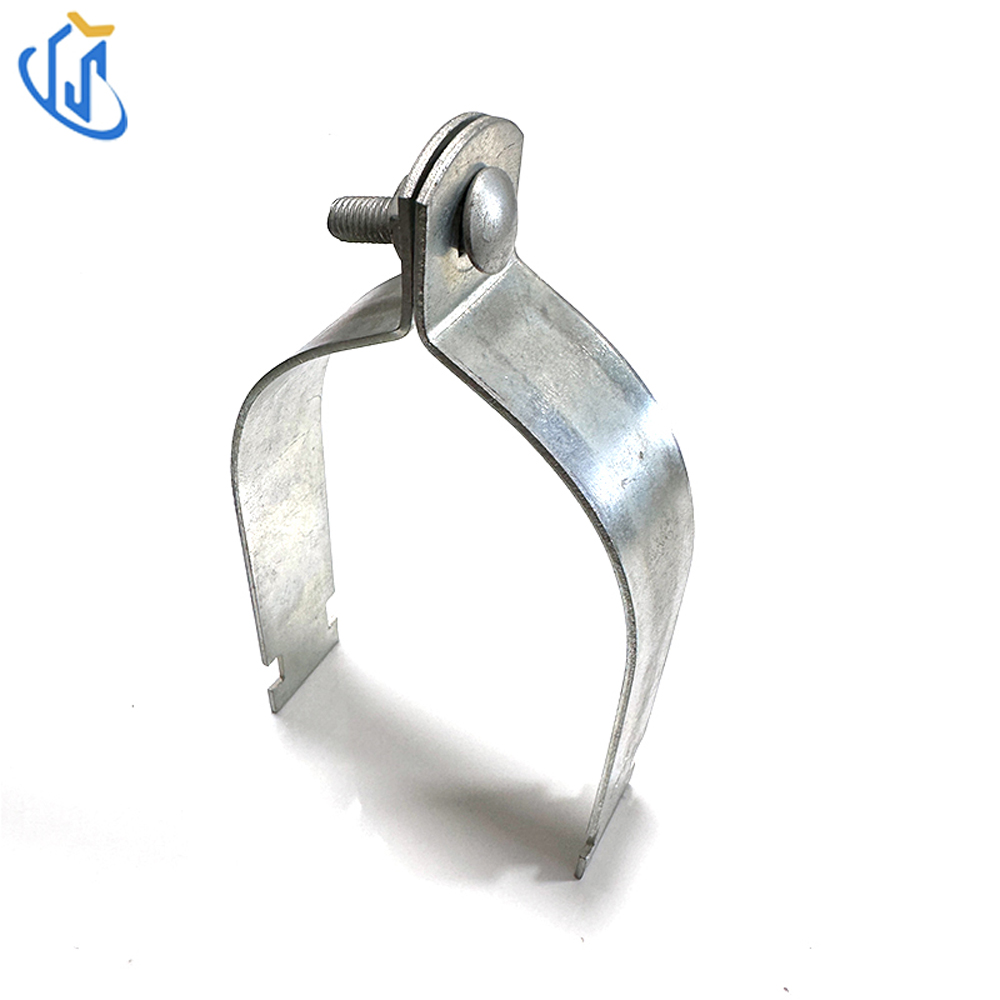

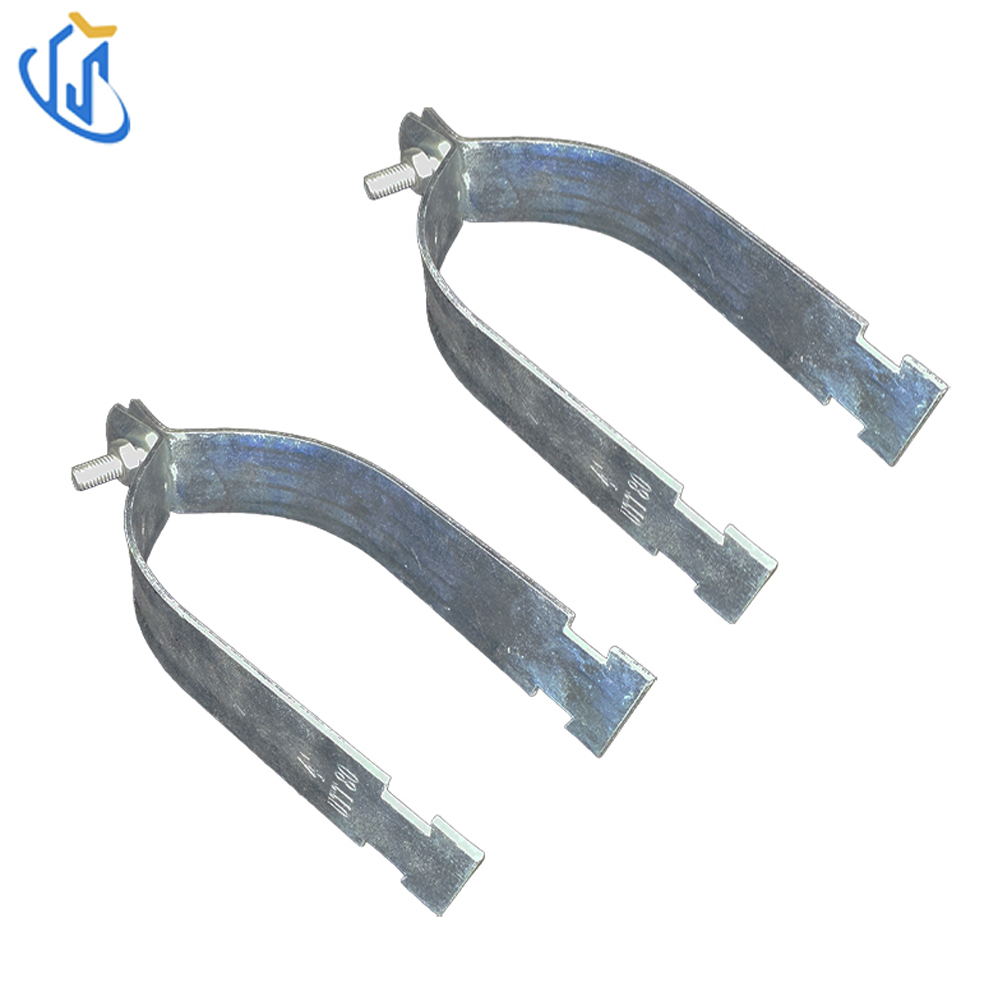

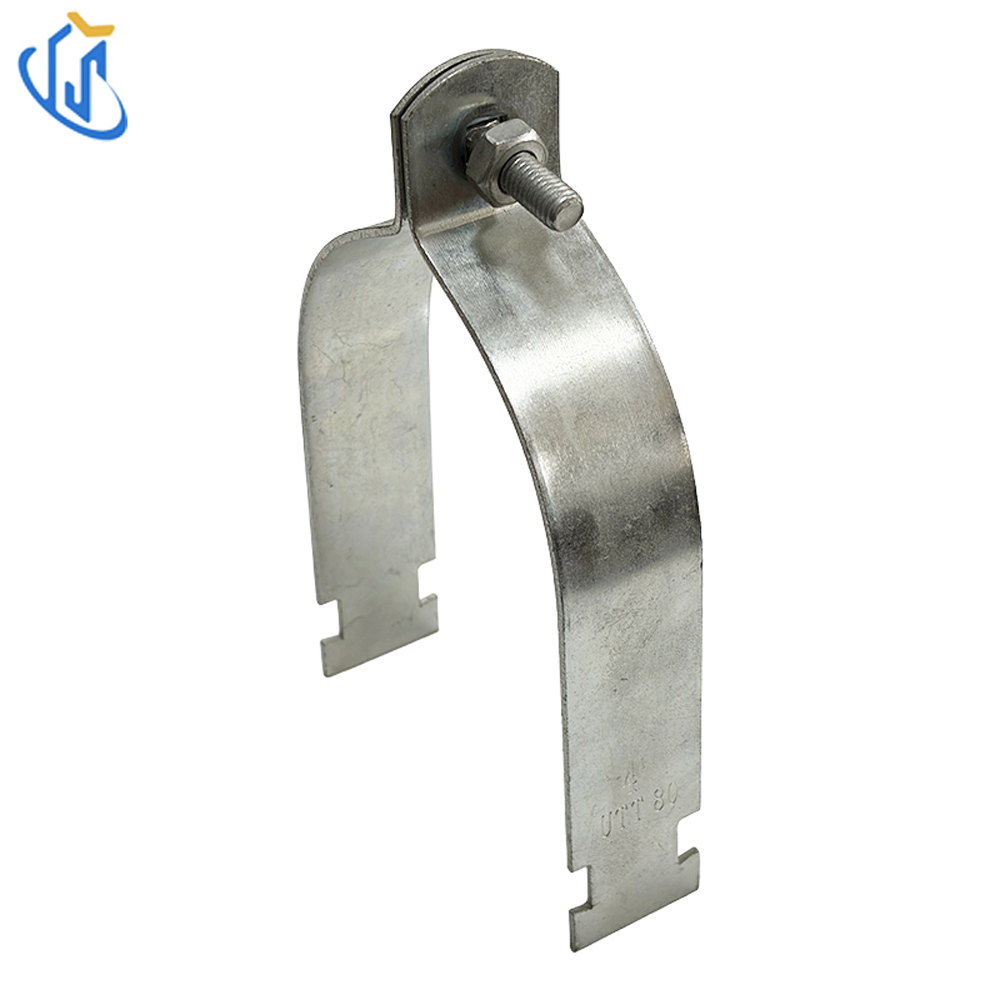

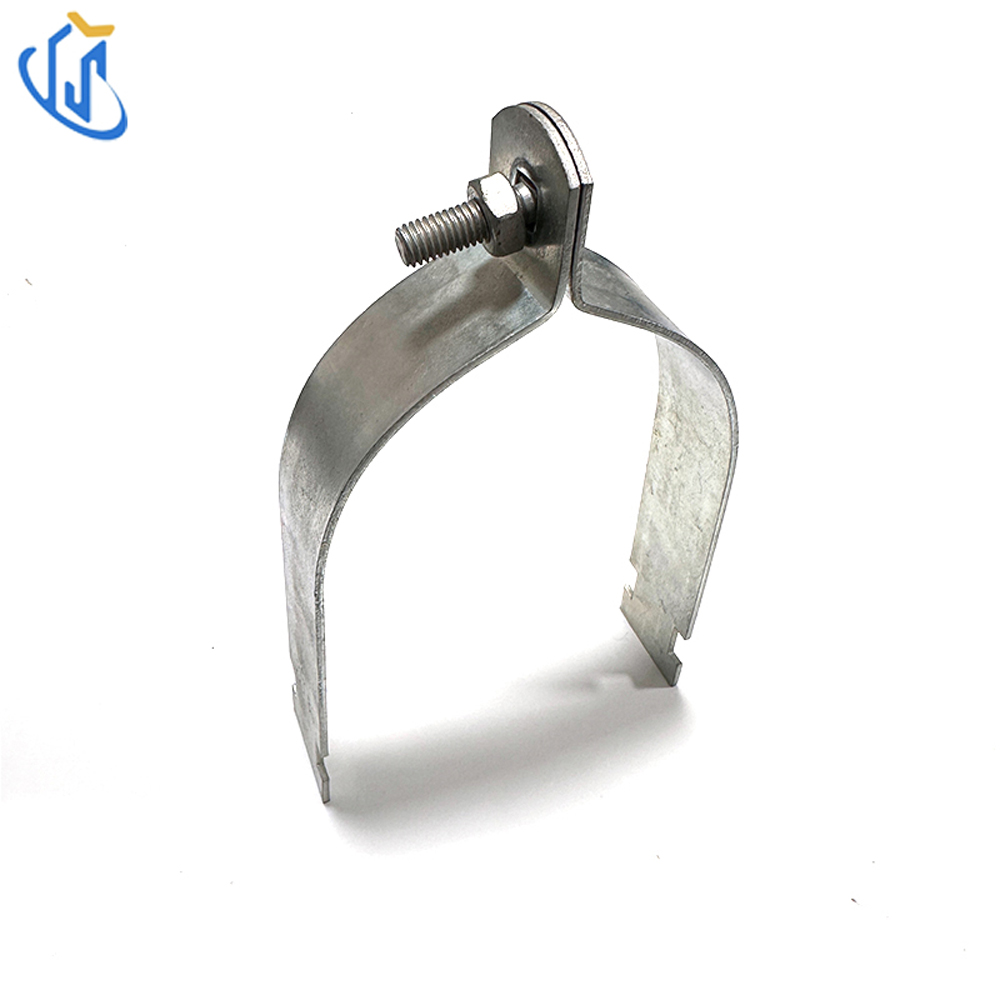

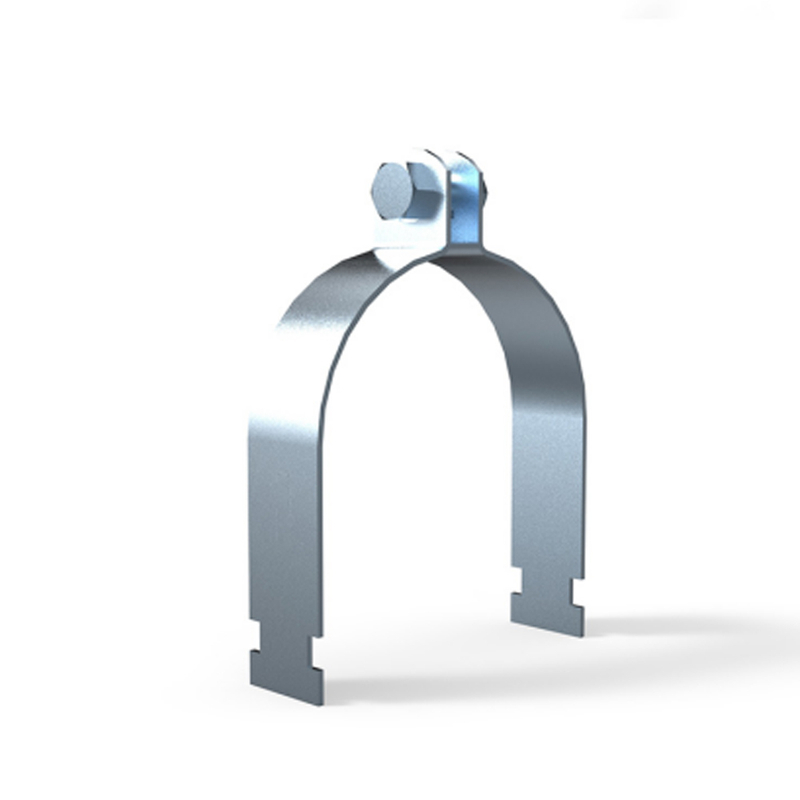

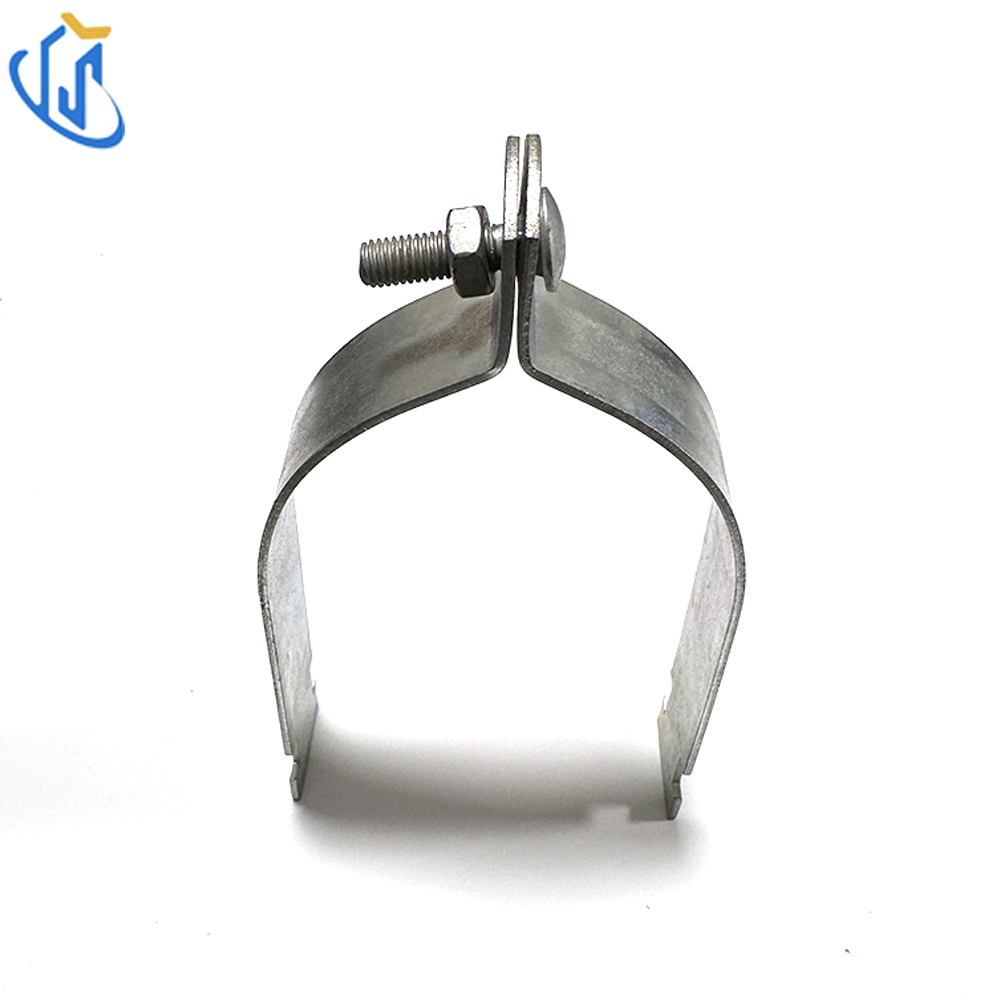

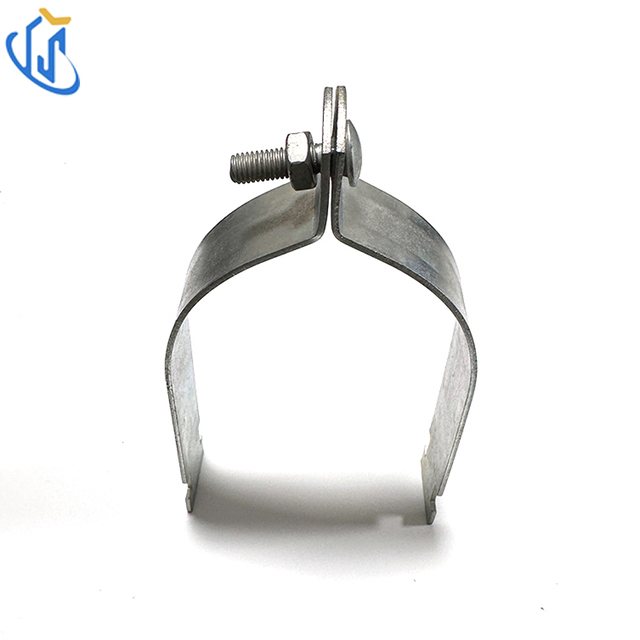

UTT80 two-piece split pipe clamp is dedicated channel-mounted seismic fixing component for pipeline concentrated layout projects. Standard galvanized carbon steel material, alternative surface coating available per customer requirement; integral strip size 32×2.0mm, full range from DN25(1") to DN200(8"). Split two-piece structure enables rapid clamping installation especially in narrow gaps and densely arranged multi-pipe systems, matched with C-shaped channel steel to compose complete seismic fixed support for fire protection and MEP pipelines.
Key Features
Core Function: Quick secure single pipeline onto C-channel, realize anti-seismic restraint for dense multi-pipe arrangement
Raw Material: High-strength carbon steel
Surface Finish: Standard galvanized, other finishes customizable on demand
Applicable Pipe Range: DN25(1")~DN200(8")
Band Spec: Uniform 32mm width ×2.0mm thickness
Installation Advantage: Split design, rapid mounting for compact narrow construction space

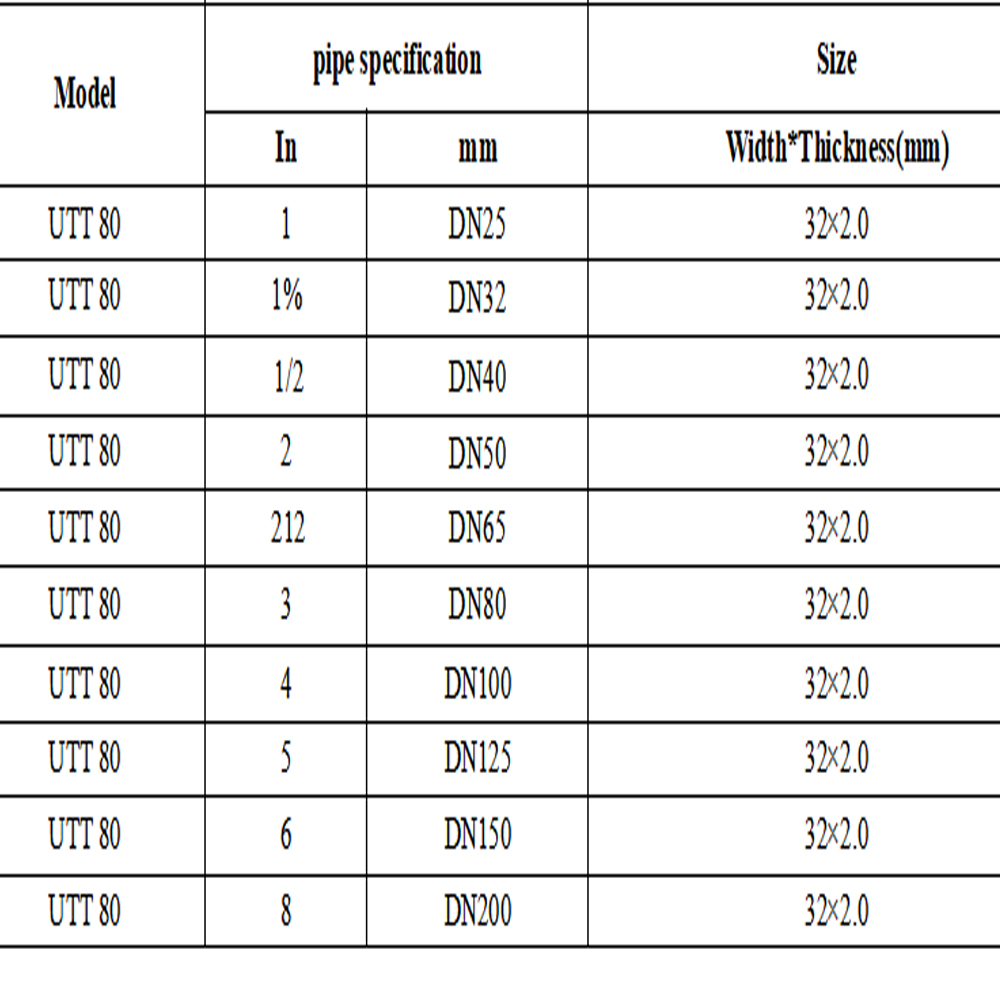

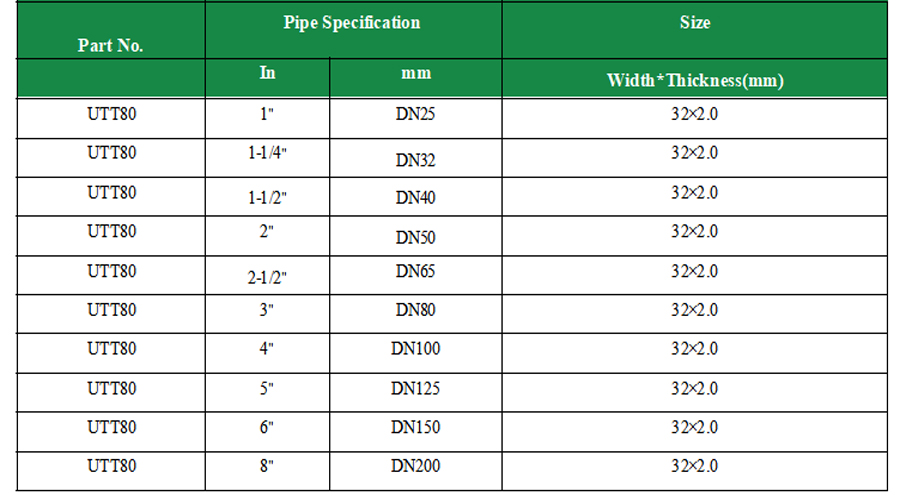

| Item | Specification |
| Model | UTT80 Series DN25~DN200 |
| Raw Material | Carbon Steel |
| Surface Treatment | Galvanized, customized finish optional |
| Applicable Pipe | DN25~DN200(1"~8") |
| Strip Dimension | 32×2.0mm unified specification |
| Matching Base | Standard C channel steel |
| Applicable Scene | Dense piping & narrow installation space |
| Sample Supply | Free pre-order test samples available |
Application Scenarios

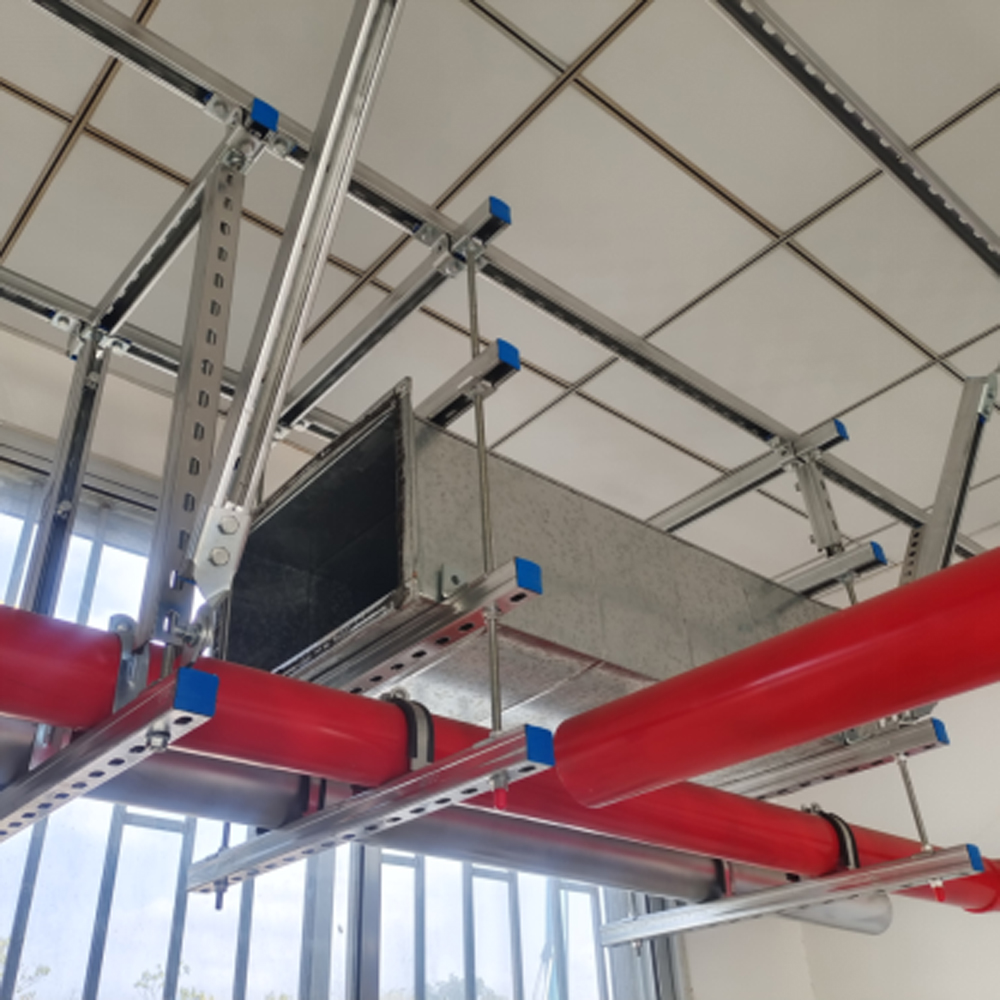

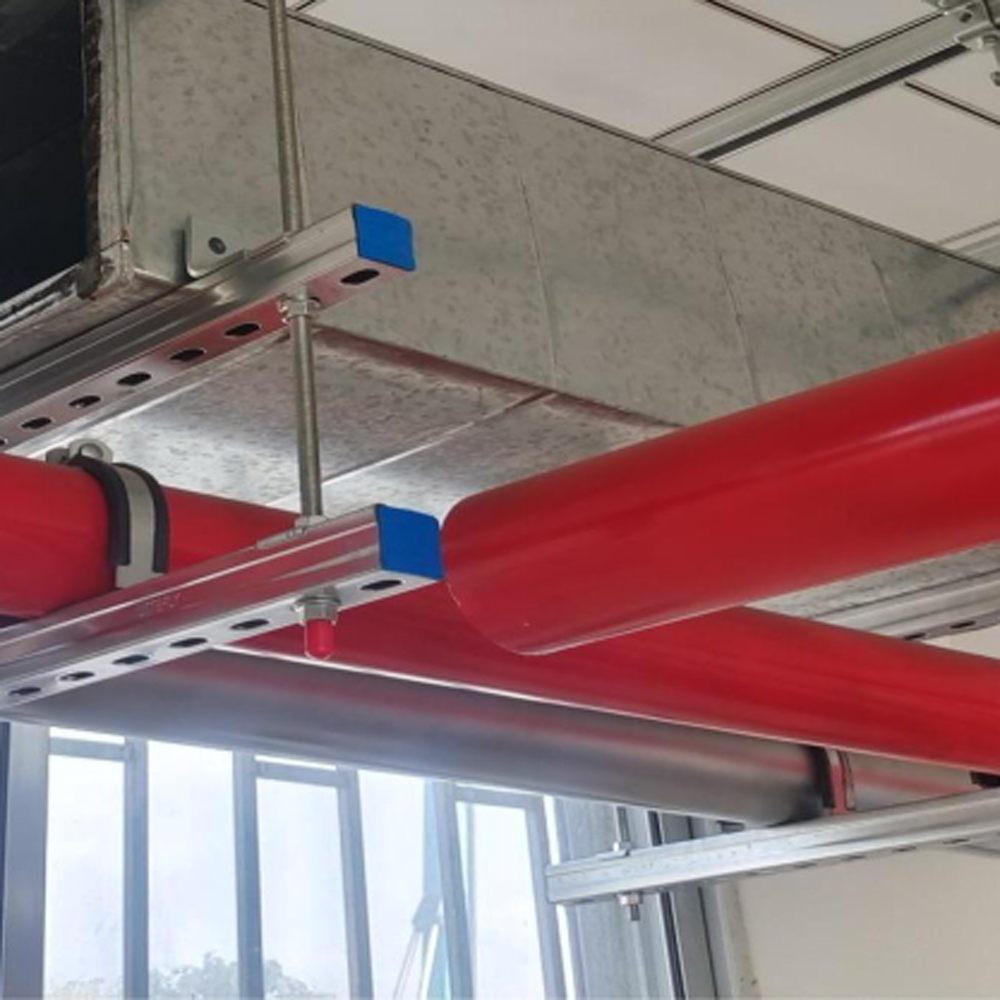

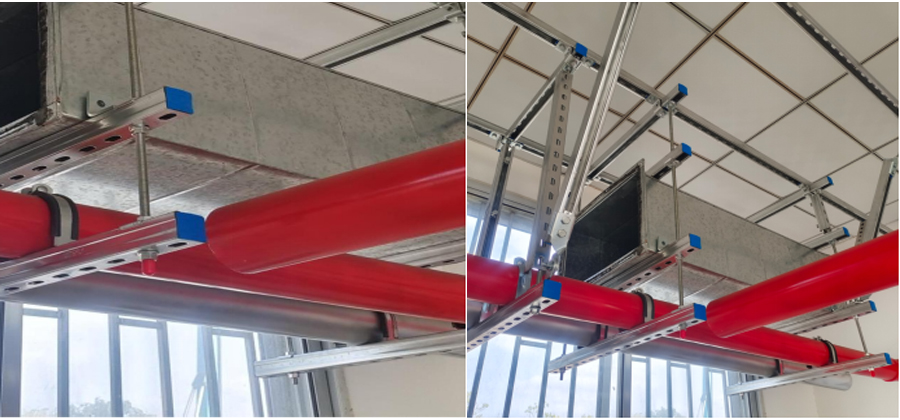

1.Fire Sprinkler System: Seismic fixed clamp for densely arranged sprinkler pipelines mounted on C-channel inside commercial buildings.
2.MEP & HVAC Engineering: Rapid installation support for centralized cold/hot water and ventilation compact piping layout.
3.Industrial Construction: Anti-seismic fixing fitting for factory intensive equipment pipeline with limited installation clearance.
Step-by-Step Installation Guide
1.Choose corresponding UTT80 size matching the outer diameter of target pipeline.
2.Split two-piece clamp and wrap closely around the outer wall of the pipe.
3.Calibrate position and snap the clamp onto pre-mounted C-shaped channel steel.
4.Tighten connecting bolts uniformly to lock clamp, finish pipeline anti-seismic positioning.
5.Inspect overall clamping tightness after full construction set.
Industry Compliance
1.Conforms to NFPA13 and conventional domestic pipeline seismic installation construction specifications.
2.Galvanized coating meets international anti-corrosion coating industry standards.
3.All finished goods pass factory dimensional inspection and clamping force sampling test before delivery.
Core Product Advantages
Two-Piece Split Quick Assembly
No pipe cutting required, greatly improve installation efficiency for dense crowded piping areas.
Unified Thickened Band Specification
32×2.0mm strip ensures stable load bearing for full-size range DN25~DN200 pipelines.
Customizable Anti-Corrosion Surface
Standard galvanized for regular indoor space, special coating for humid or corrosive working environment.
Optimized for Narrow Space Layout
Structure tailored for compact installation gaps ideal for intensive multi-pipe centralized arrangement.
Exclusive C-Channel Matching Design
Perfectly cooperate with standard C channel steel to form reliable seismic bracing assembly.
Full UTT Series Compatibility
Compatible with all UTT beam adapters, hangers and accessories for integrated support system.
FAQ
Q1: Main application of UTT80?
A1: Fast fix pipelines on C-channel for seismic bracing, specially for dense and narrow-space piping.
Q2: Applicable pipe specification?
A2: Covers DN25 up to DN200, corresponding nominal size 1''~8''.
Q3: Band size of UTT80?
A3: Unified 32mm width ×2.0mm thickness for all specifications.
Q4: Surface options?
A4: Standard galvanized finish, other surface treatments can be customized.
Q5: Free sample available?
A5: Free inspection samples can be supplied before bulk purchase.
