FM/UL Certified Seismic Bracing Hardware: Why Certification Is Non-Negotiable For Fire Protection Systems

Views: 0     Author: Site Editor     Publish Time: 2026-05-19      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Standard gravity hangers routinely fail during major seismic events. They simply cannot withstand multi-directional dynamic loads. Earthquakes generate intense lateral, longitudinal, and torsional forces. These destructive forces easily tear ordinary pipe supports apart. You face a harsh regulatory reality today. Achieving a certificate of occupancy requires strict adherence to ASCE 7, IBC, and NFPA 13 codes. Securing commercial property insurance demands the exact same rigorous compliance. Sourcing fm ul certified seismic bracing hardware is never an optional premium upgrade. It serves as your absolute baseline requirement. Code officials look for these specific certifications. Property insurers mandate them before underwriting risk. By prioritizing properly tested components, you ensure legal compliance, protect human life, and guarantee long-term system resilience. You will learn exactly how varying codes dictate your hardware selection below.

Key Takeaways

  • Regulatory Lock-In: Uncertified bracing hardware routinely results in failed inspections, delayed occupancy, and denied insurance coverage under FM Global and NFPA standards.

  • Diverging Standards: UL 203A and FM 1950 carry distinct testing requirements; understanding the difference dictates hardware selection based on project Seismic Design Categories (SDC).

  • Engineering Upgrades: Modern certified hardware integrates verifiable installation mechanisms (e.g., break-off torque nuts) and elevated safety factors (e.g., 2.2 under new UL standards).

The Business Case: Why Uncertified Hardware Derails Fire Protection Projects

Insurance and Liability Realities

Fire protection systems demand extreme durability. Unbraced pipes swing wildly during seismic activity. They crash into structural beams or other mechanical systems. This violent movement shatters pipe joints quickly. Water pressure plummets. Secondary fires then spread rapidly through the vulnerable facility. Post-earthquake blazes cause massive financial losses. Insurers track these failure points closely.

FM Global enforces strict underwriting guidelines. Facilities located in 50-to-500-year seismic zones face severe scrutiny. Insurers require FM Approved hardware to mitigate risk. If you install uncertified parts, underwriters will deny coverage. Property owners cannot secure financing without valid insurance policies. Using compliant supports protects both physical assets and financial viability.

Code Compliance Intersections

Engineers must navigate a rigid compliance hierarchy. First, the International Building Code (IBC) establishes the foundational legal requirements. IBC determines your Risk Category. It then points you directly to ASCE 7 rules. ASCE 7 dictates the specific structural load criteria. From there, ASCE 7 directs engineers to NFPA 13 codes. NFPA 13 governs the physical execution of fire sprinkler layouts.

Breaking this chain carries devastating consequences. The Authority Having Jurisdiction (AHJ) inspects every site thoroughly. Inspectors verify component stamps against approved submittals. Uncertified components invite immediate rejection. AHJ rejections force complete system tear-downs. You lose precious labor hours. Project timelines stretch indefinitely. Material waste ruins profit margins. Legal compliance prevents these catastrophic project delays.

Decoding the Standards: UL 203A vs. FM 1950 Certification

UL 203A (Underwriters Laboratories)

UL 203A focuses heavily on structural safety performance. It evaluates how well sway brace components handle dynamic loads. The standard evolves continually to match engineering realities. Recently, UL implemented a massive testing shift. They increased the safety factor requirement from 1.5 to 2.2. This major jump aligns testing protocols against updated NFPA 13 allowable stress design criteria. Manufacturers had to redesign their catalogs entirely. They could no longer rely on older, weaker component ratings.

FM 1950 (Factory Mutual)

FM 1950 serves high-risk commercial environments. Petrochemical plants, automated warehouses, and massive data centers rely on this standard. FM Global engineered FM 1950 to be incredibly strict. It enforces limitations far beyond basic NFPA codes. For example, FM caps the slenderness ratio (l/r) at 200. A lower l/r ratio means the brace must be thicker and stiffer. NFPA 13 normally allows an l/r ratio up to 400. Furthermore, FM removes common loopholes. NFPA 13 sometimes exempts short-rod hangers from lateral bracing. FM 1950 strictly prohibits this exemption. Every component must endure extreme loads without buckling.

Selection Logic

Engineers face conflicting requirements across agencies. Dual-certified hardware solves this problem instantly. Specifying fm ul certified seismic bracing hardware prevents frustrating multi-agency review delays. AHJ inspectors look for UL listings. Insurance underwriters demand FM approvals. Dual-certified components satisfy both parties simultaneously. You avoid buying identical parts from different vendors.

Comparison Chart: Standard Differences

Standard Attribute

UL 203A

FM 1950

Primary Focus

General structural safety and load performance

Extreme risk environments (petrochemical, data centers)

Safety Factor

Elevated to 2.2

Stringent multi-hazard dynamic testing

Slenderness (l/r) Limit

Up to 400 (aligns with NFPA 13)

Strictly capped at 200

Short-Rod Exemptions

Generally permitted under specific NFPA rules

Exemptions completely removed

Critical Evaluation Dimensions for FM/UL Certified Seismic Bracing Hardware

  1. Load Capacity and Safety Factors: Evaluate how the physical hardware design evolved. Manufacturers must meet the newly elevated 2.2 safety factor honestly. They cannot simply derate old specifications on paper. Look for thicker steel gauges. Inspect the alloy quality. True certified hardware feels robust. These stronger alloys resist shearing under violent multi-directional forces.

  2. Verifiable Installation Mechanisms: You must prioritize verifiable installation features. Break-off torque nuts are essential here. Visual indicators provide immediate proof. Installers tighten the nut until the head snaps off cleanly. This snap guarantees the correct torque tension. It completely eliminates friction during AHJ walkthroughs. Inspectors verify torque visually without lugging specialized tools around.

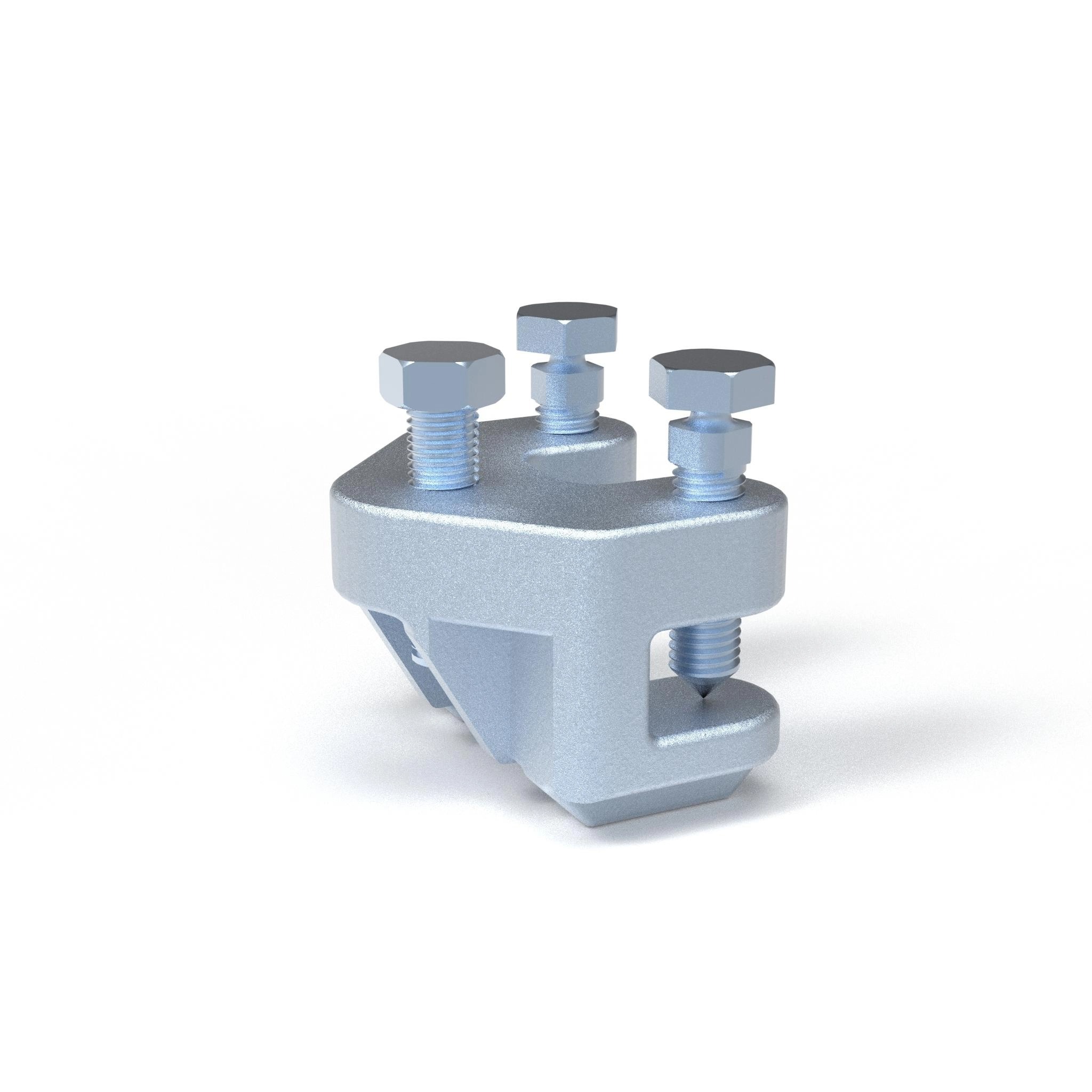

  3. Adaptability to Structural Elements: Building materials vary wildly. You need universal upper attachments. High-quality beam clamps attach to structural steel safely. You avoid drilling holes into structural beams. Drilling weakens the steel frame. Welding wastes time and requires hot-work permits. Clamp-based hardware adapts seamlessly to different flange thicknesses.

  4. System Modularity: Evaluate your spatial constraints carefully. You must compare rigid bracing against pure tension bracing. Rigid pipes or struts work perfectly in open commercial builds. Cable sway braces function differently. Cables operate purely under tension. They maneuver easily around crowded ceilings. Retrofit projects benefit heavily from tension cables. You can avoid clashing alongside existing ductwork and electrical trays.

Implementation Realities: Engineering, Spacing, and Load Distribution

Calculating the Seismic Load (Fpw)

Hardware selection relies on basic physics. Engineers calculate the required seismic load using a specific formula: Fpw = CpWp. You must understand these variables. Wp represents the total weight of the operating system. This includes the bare steel pipes. It includes the heavy water filling those pipes. It also requires an additional 15% allowance. This allowance accounts for valves, fittings, and unexpected component weights. Cp acts as the seismic coefficient. It derives directly from regional soil and fault line data.

Zones of Influence (ZOI)

Hardware selection depends heavily on the specific Zone of Influence. The ZOI dictates how much physical pipe a single brace supports. You calculate the zone by measuring halfway to the adjacent braces. A single lateral brace carries an immense burden. It must handle the full weight of the main line within its zone. It also must support all branch lines attached inside that zone. You can only deduct branch line weight if you brace those smaller lines independently. Accurate ZOI mapping prevents overloaded anchors.

Adhering to Spacing Maximums

You must follow strict NFPA 13 spacing limits. Failure here guarantees immediate inspection failures.

  • Lateral braces: Limit spacing to a maximum of 40 feet center-to-center. Install your end braces within 6 feet of the pipe run end.

  • Longitudinal braces: Limit spacing to a maximum of 80 feet. Install the end braces within 40 feet of the pipe end or any change of direction.

  • 4-Way Risers: Vertical pipes need distinct support. Place the top restraints within 3 feet of the highest point. Space all subsequent riser restraints no more than 25 feet apart.

Spacing Rules Summary Chart

Brace Type

Maximum Center-to-Center Spacing

End Distance Limit

Lateral

40 feet

Within 6 feet of pipe end

Longitudinal

80 feet

Within 40 feet of end / direction change

4-Way Riser

25 feet

Top restraint within 3 feet of top

Shortlisting Suppliers: Evaluating the Manufacturer Ecosystem

BIM and Proprietary Calculation Software

Top-tier manufacturers offer robust software ecosystems. High-quality certified hardware always comes paired with proprietary design tools. This software automates complex NFPA 13 and ASCE 7 calculations instantly. It applies the correct conversion factors automatically. You avoid manual math errors. The software outputs ready-to-submit engineering documents. These clean submittal packages impress AHJ reviewers. They accelerate project approvals significantly.

Third-Party Simulation and Testing

Never rely solely on marketing brochures. Look for transparent testing data. Elite manufacturers publish third-party seismic simulation results. They post these results right alongside their official FM/UL certificates. They prove their hardware survives simulated earthquake forces. Transparent data builds immense trust. It proves the manufacturer invests heavily in life safety engineering rather than minimum compliance.

Supply Chain and Project Phasing

Your hardware supplier must execute flawlessly. Evaluate their manufacturing supply chain deeply. You cannot afford unexpected lead times. Check their inventory depth. They must supply varied pipe sizes ranging from 1" up to massive 12" mains. Furthermore, evaluate their technical support capabilities. Site conditions change unexpectedly. Installers encounter weird structural angles. Good manufacturers provide rapid field support. They help you adapt fm ul certified seismic bracing hardware to unique site challenges smoothly.

Conclusion

Specifying fully certified components remains a fundamental risk management decision. Doing so protects human life, shields expensive property, and secures tight project timelines. Passing stringent AHJ and FM Global inspections requires total accuracy. You must match the right certified component perfectly to the localized seismic load calculation.

Take proactive steps on your next project. Advise your procurement teams carefully. Ask them to request comprehensive submittal packages from every vendor. Demand updated UL 203A and FM 1950 certificates immediately. Instruct engineering teams to rely on software-backed ZOI calculation reports. Holding your suppliers to these high standards guarantees a resilient, legally compliant fire protection system.

FAQ

Q: What is the difference between UL listed and FM approved seismic bracing?

A: UL listed components meet baseline safety and load standards defined under UL 203A. FM approved components satisfy FM 1950. FM Global typically requires FM 1950 for facility insurance. It enforces stricter installation triggers. For example, FM 1950 limits the slenderness (l/r) ratio more aggressively than standard codes.

Q: Can I use standard hangers instead of seismic bracing in low-risk areas?

A: Standard hangers only resist vertical gravity loads. Depending on your building's Seismic Design Category (SDC), ASCE 7 may exempt lightweight systems. This includes individual weights under 20 lbs or distributed systems under 5 lbs/ft. However, C and D categories typically demand multi-directional seismic bracing.

Q: Why did the UL safety factor for seismic bracing increase to 2.2?

A: The safety factor testing requirement increased from 1.5 to 2.2 recently. This major update was implemented to perfectly align testing limits with updated allowable stress design (ASD) load combinations. These updated combinations were formally defined in recent NFPA 13 editions.

Q: When should I use cable sway braces instead of rigid pipe braces?

A: Cable braces act purely via tension. They are absolutely ideal for tight clearance spaces and challenging retrofits. They help you avoid clashing heavily alongside existing mechanical systems. You must simply ensure your chosen cable components carry dual certification for the specific localized seismic load.
