UTT60
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |

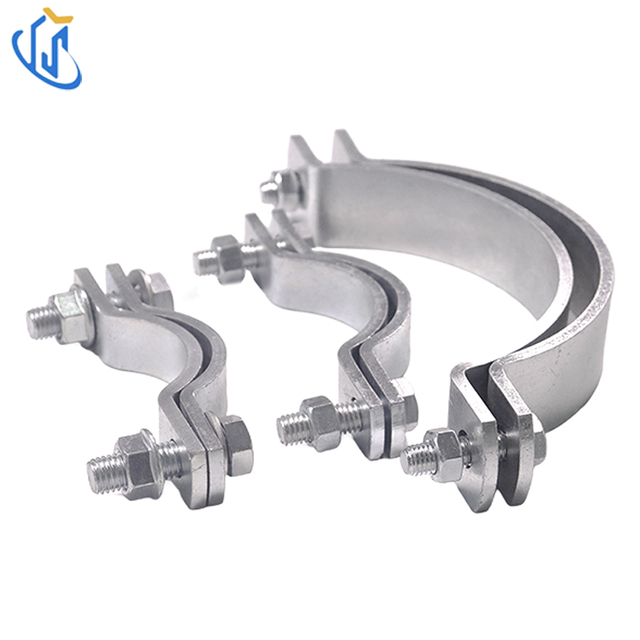

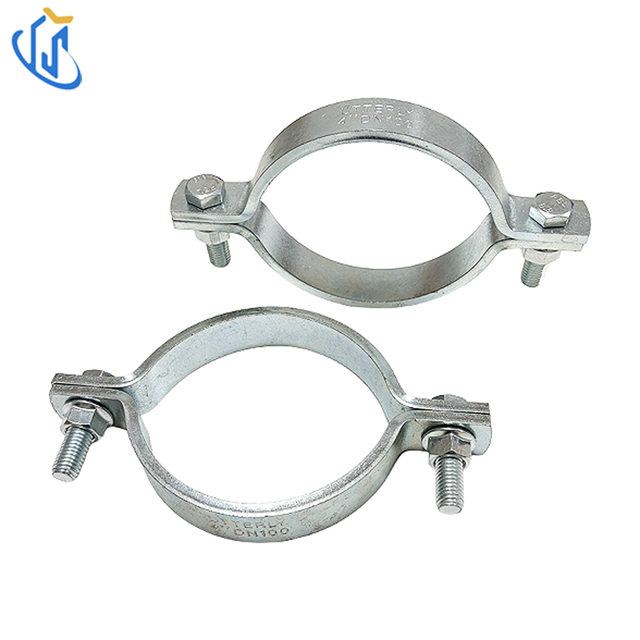

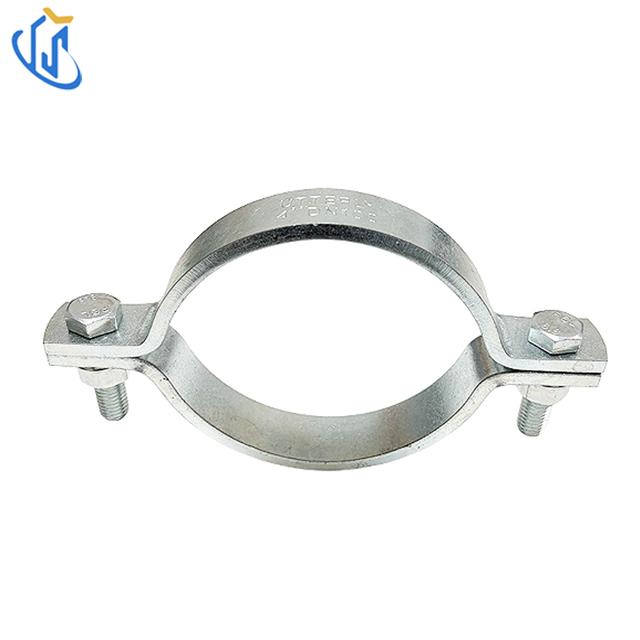

UTT60 standard split pipe clamp is UL/FM certified two-piece split pipe fixing component designed for standard steel pipeline suspension, manufactured strictly per US federal A-A-1192A(Type8) and international MSS SP-58/SP-69 Type8 industry specifications. Available with three surface options: black raw steel, painted finish and galvanized coating for different working environments; plain carbon steel withstand high temperature up to 650°F while galvanized version max 450°F. Full specification range from DN15 to DN200, paired with weldless eye nut and threaded eye rod as standard assembly for horizontal fire sprinkler and MEP piping fixed suspension across commercial and industrial construction.
Core Function: Two-piece split structure to wrap and fix standard steel pipe for horizontal pipeline gravity suspension, matched with eye nut & eye rod for overhead mounting
Raw Material: High-strength carbon steel

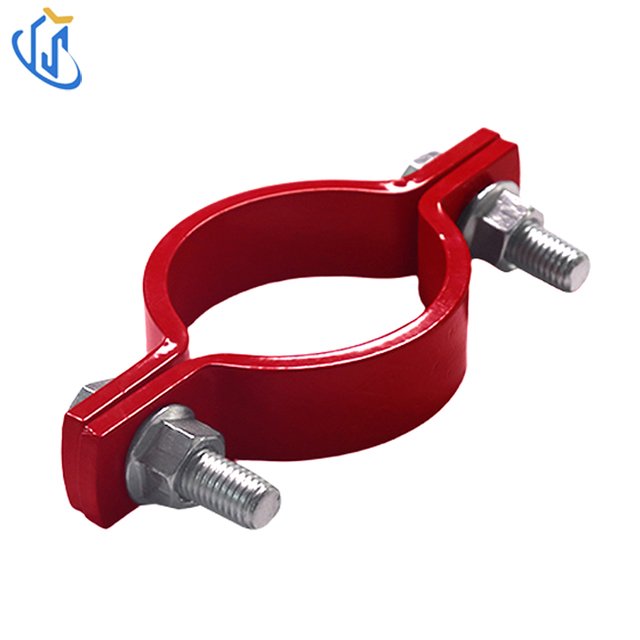

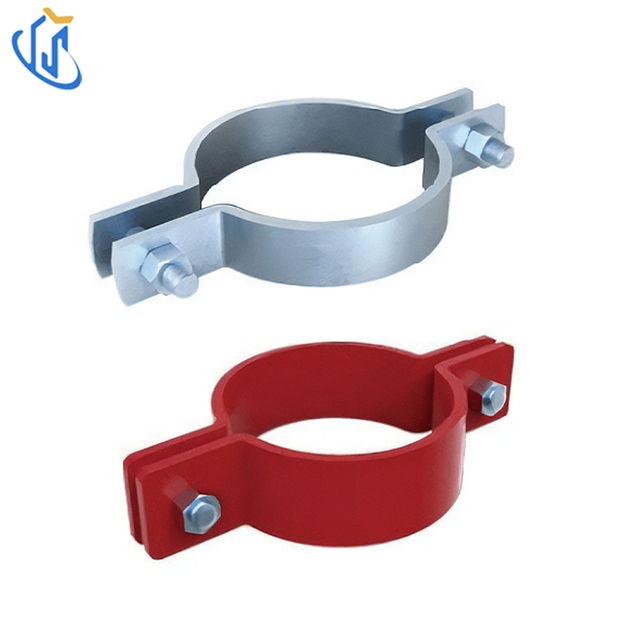

Surface Options: Black raw steel / painted / galvanized three choices
Certification: UL + FM dual certification
Compliance Standard: A-A-1192A(Type8), MSS SP-58, MSS SP-69(Type8)
Applicable Pipe Size: DN15(1/2") ~ DN200(8") standard steel pipe
Temperature Resistance: Plain steel:650°F; Galvanized finish:450°F
Matching Fastener: M10/M12 fixing bolt, assembled with weldless eye nut/eye rod

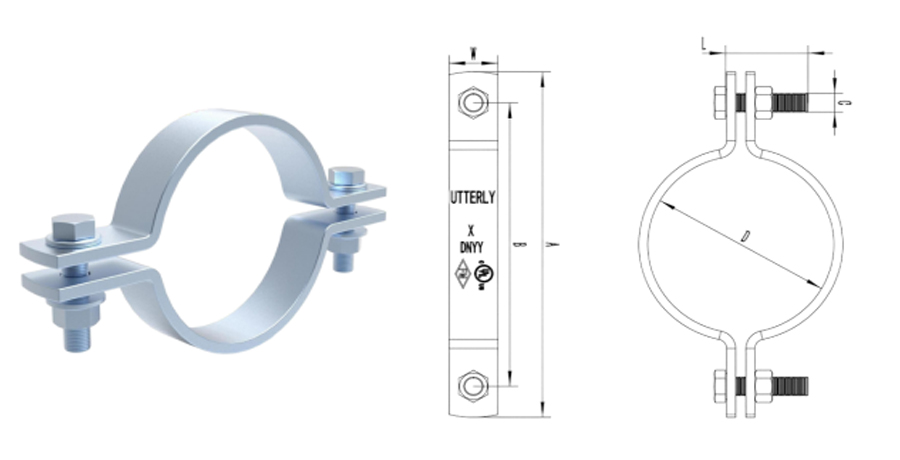

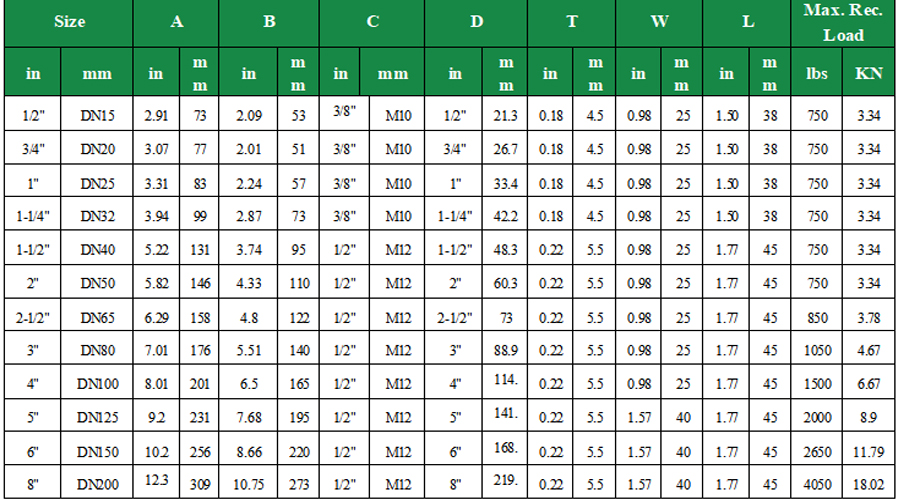

Item | Specification |
|---|---|
Model | UTT60 Series（DN15~DN200） |
Raw Material | Carbon Steel |
Surface Treatment | Black / Painted / Galvanized three options |
Applicable Pipe | DN15(1/2")~DN200(8") standard steel pipe |
Working Temp | Plain:650°F / Galvanized:450°F |
Fixing Bolt | M10(DN15~DN125), M12(DN150~DN200) |
Max Recommended Load | 3.34kN~18.02kN graded by pipe diameter |
Matching Accessory | Weldless eye nut & eye rod |
Certification | UL & FM Approved |
Sample Supply | Free pre-order test samples available |
1.Fire Sprinkler System: Standard horizontal suspension clamp for automatic sprinkler bare steel piping compliant with NFPA & MSS specifications.
2.MEP & HVAC Engineering: Gravity fixed support for horizontal cold/hot water steel pipeline in high-rise, shopping mall and residential buildings.
3.Industrial Construction: Conventional pipe suspension fitting for factory process horizontal standard steel piping layout.
1.Select UTT60 size matching outer diameter of target standard steel pipe.
2.Split two halves of UTT60 and fully wrap around pipe outer surface.
3.Tighten corresponding M10/M12 bolts evenly to lock clamp tightly on pipeline.
4.Thread weldless eye nut onto upper threaded eye rod fixed on ceiling/channel steel.
5.Hook assembled UTT60 clamp onto eye nut to finish whole horizontal suspension installation and check fastening tightness.
1.Full compliance with US Federal A-A-1192A(Type8) and international MSS SP-58/SP-69 Type8 manufacturing standards.
2.Black, painted and galvanized surface all meet international anti-corrosion and high-temperature technical criteria.
3.All specifications passed UL&FM third-party certification and factory load destructive testing before shipment.
Black for low-cost indoor project, painted for general damp environment, galvanized for high-humidity anti-rust working condition.
Pass strict third-party fire safety inspection for US and global engineering project acceptance.
Two Grade High Temperature Resistance
Plain carbon steel adapts high-temperature industrial piping, galvanized version for regular indoor sprinkler pipeline.
No need to cut pipeline during installation, greatly improve on-site construction efficiency.

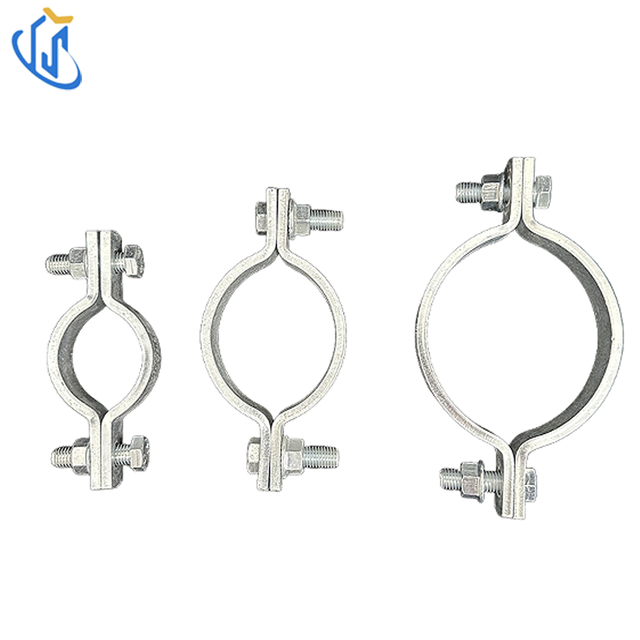

DN15~DN200 full specs with progressive load capacity to satisfy different horizontal pipeline dead weight demands.
Perfectly matched with UTT threaded rod, beam adapters and other pipe fittings for integrated pipeline support system.
Q1: What industry standards does UTT60 comply with?
A1: A-A-1192A(Type8), MSS SP-58 & MSS SP-69 Type8 with UL and FM certification.
Q2: Available surface treatment choices?
A2: Three options: black raw steel, painted finish and galvanized coating.
Q3: Temperature resistance parameter?
A3: Plain steel max 650°F, galvanized version maximum working temperature 450°F.
Q4: Required matching parts?
A4: Normally assembled with weldless eye nut and eye rod for overhead suspension installation.
Q5: Free sample policy?
A5: Free inspection samples can be provided before bulk order confirmation.
