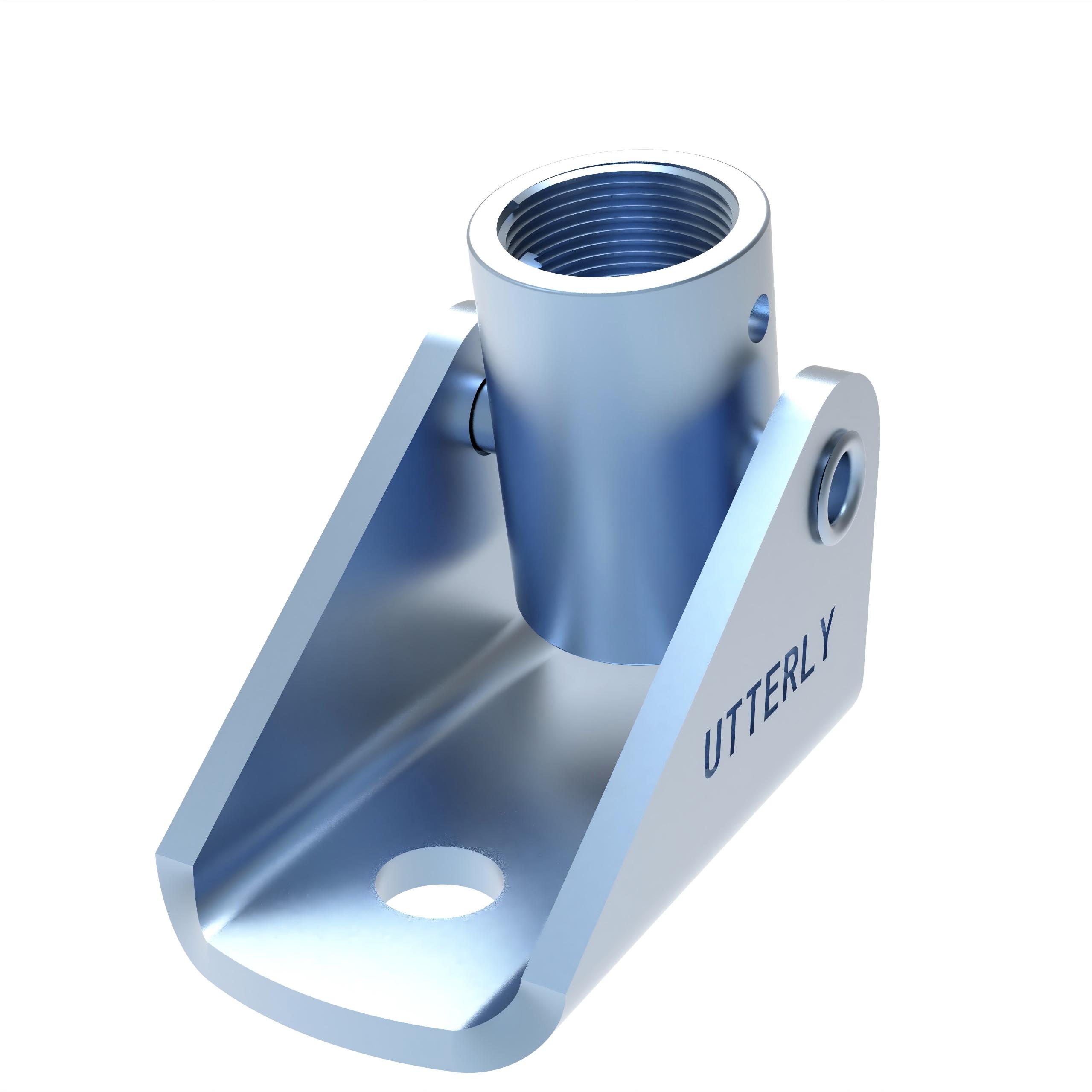

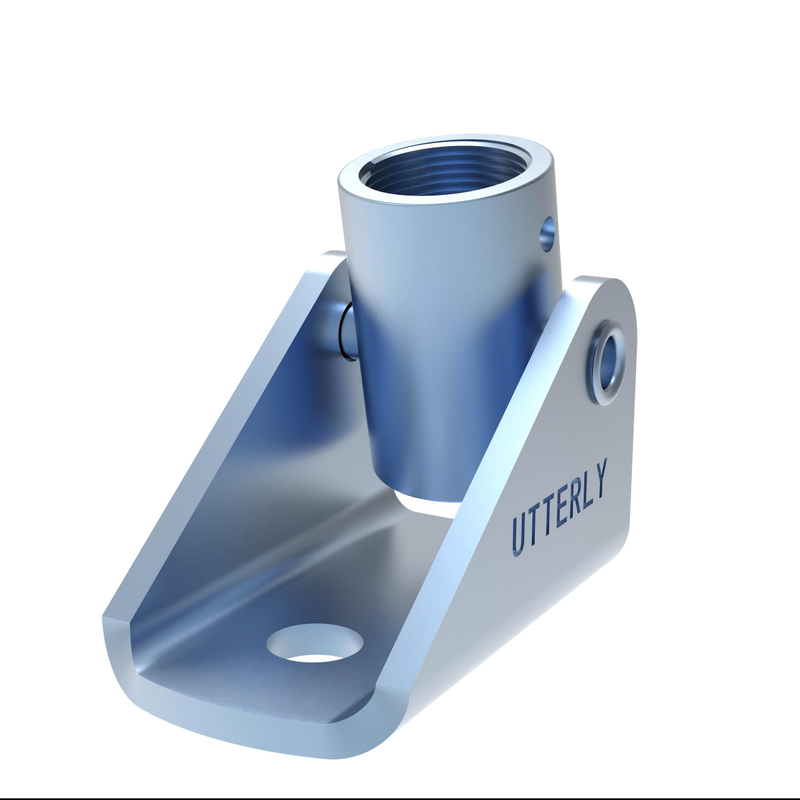

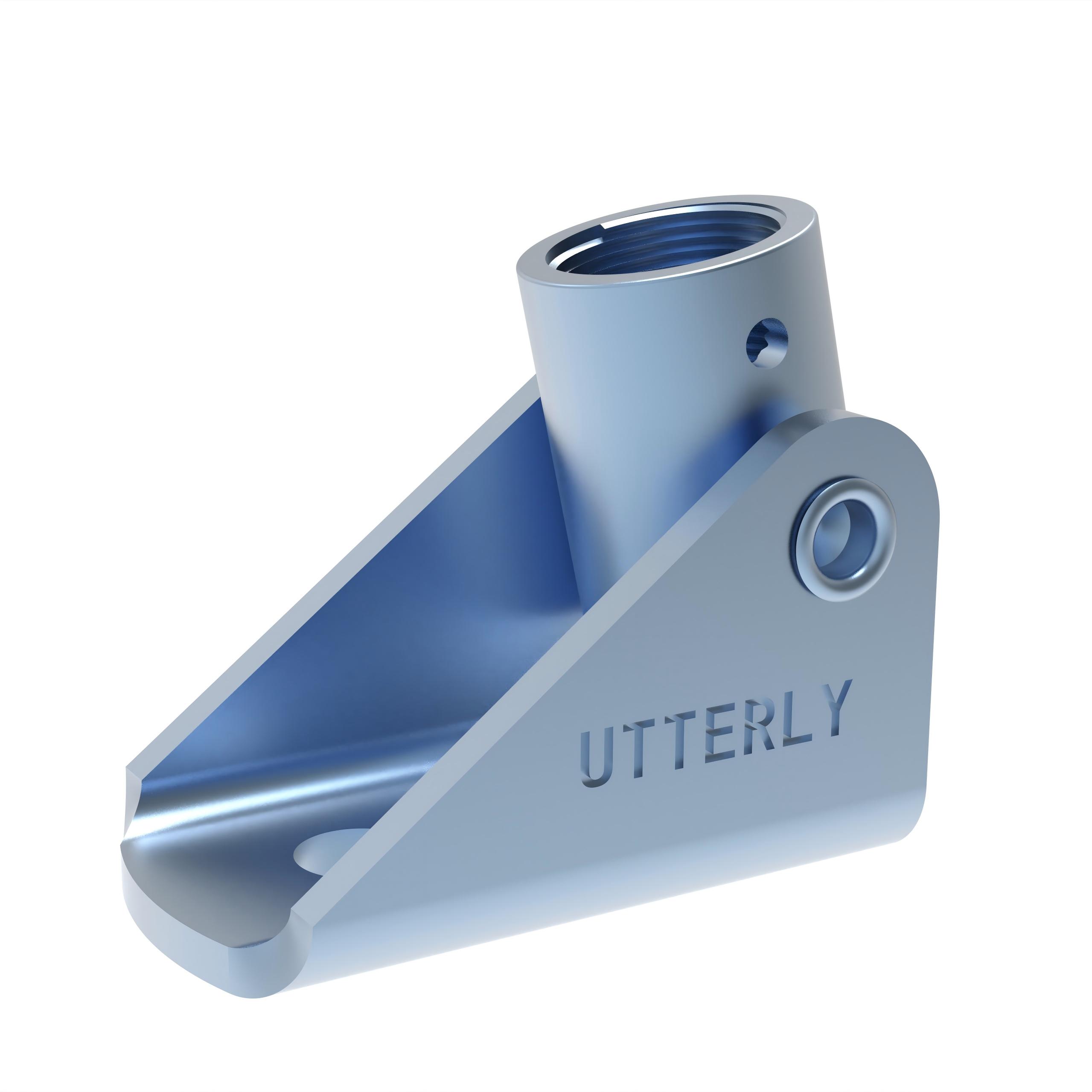

UTT1001
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Sample: | |
| Moq: | |
| Surface: | |
| Quantity: | |
Size Range — 11⁄4" bracing pipe. For brace pipe sizes larger than 1-1/4", use UTT10.
Material — Carbon Steel

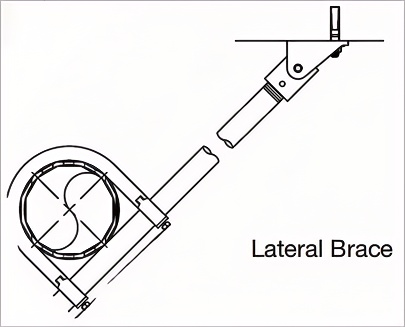

Function — For bracing pipe against sway and seismic disturbances. The building attachment component of a sway brace system; the UTT1001 is used in conjunction with the UTT18, UTT13 or with a UTT60 Pipe Clamp and joined together with a brace pipe per NFPA 13.

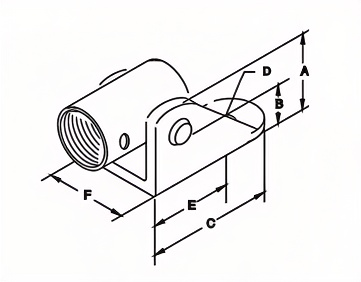

Dimensions*Weights | ||||||||
Pipe Size | A | B | C | Hole | E | F | Max. | Approx. |
1-1/4 | 2 | 1-1/2 | 3 | 45916 | 2-5/16 | 2 | 2015 | 99 |
Size Range — 11⁄4" bracing pipe. For brace pipe sizes larger than 1-1/4", use UTT10.
Material — Carbon Steel
Function — For bracing pipe against sway and seismic disturbances. The building attachment component of a sway brace system; the UTT1001 is used in conjunction with the UTT18, UTT13 or with a UTT60 Pipe Clamp and joined together with a brace pipe per NFPA 13.
Dimensions*Weights | ||||||||
Pipe Size | A | B | C | Hole | E | F | Max. | Approx. |
1-1/4 | 2 | 1-1/2 | 3 | 45916 | 2-5/16 | 2 | 2015 | 99 |
