UTT10 & UTT11
UTTERLY TY
| Applicable Pipe: | |
|---|---|
| Anti-rust Grade: | |
| Installation Way: | |
| Quantity: | |
Function

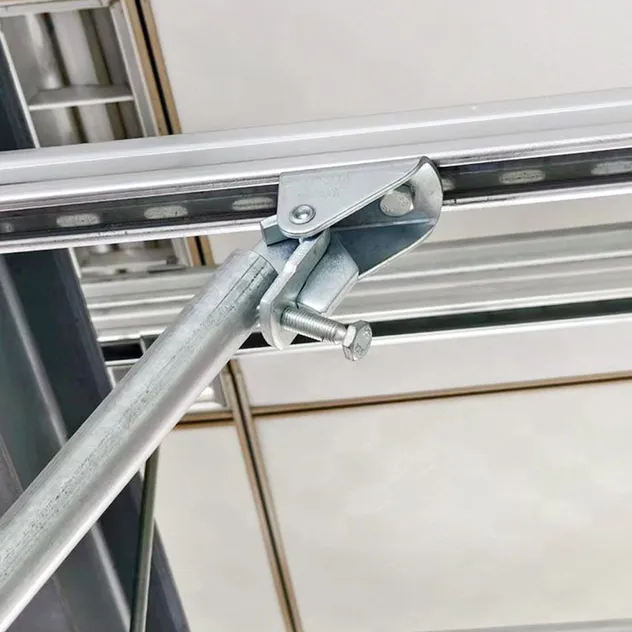

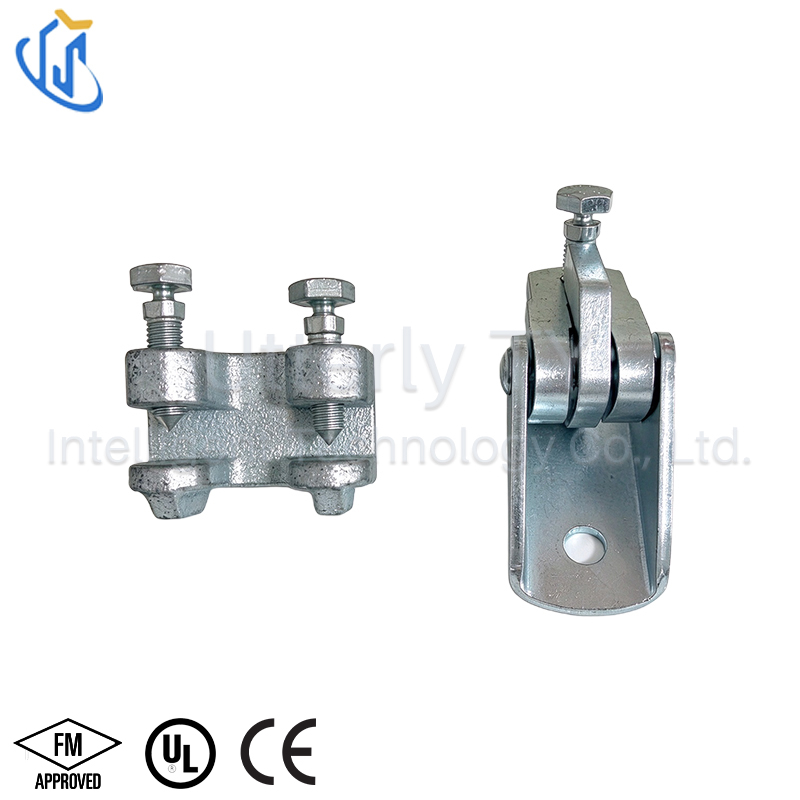

The UTT10 and UTT11 are designed for bracing pipe against sway and seismic disturbance. As the pipe attachment component of a sway brace system, each is used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element to form a complete sway brace assembly.
Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer's installation instructions.
Key Features
UL Listed and FM Approved for fire protection seismic bracing
One size fits braced pipe up to 8" — reduces inventory and simplifies selection
1/2" bolt hole for structure connection
Electro-galvanized finish for corrosion resistance
Shear bolt design — bolt heads break off automatically at correct torque, ensuring reliable installation

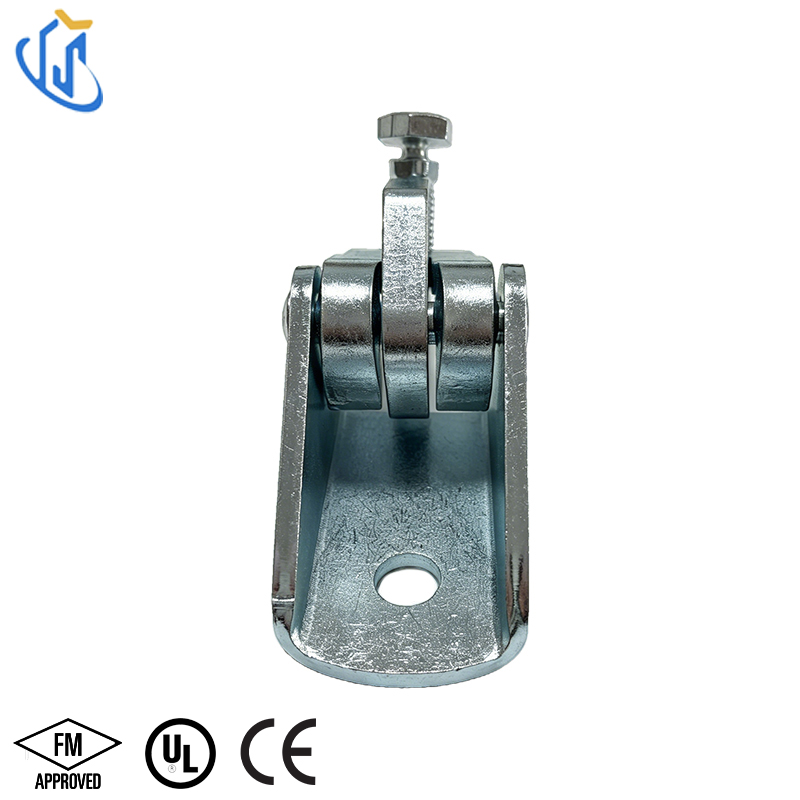

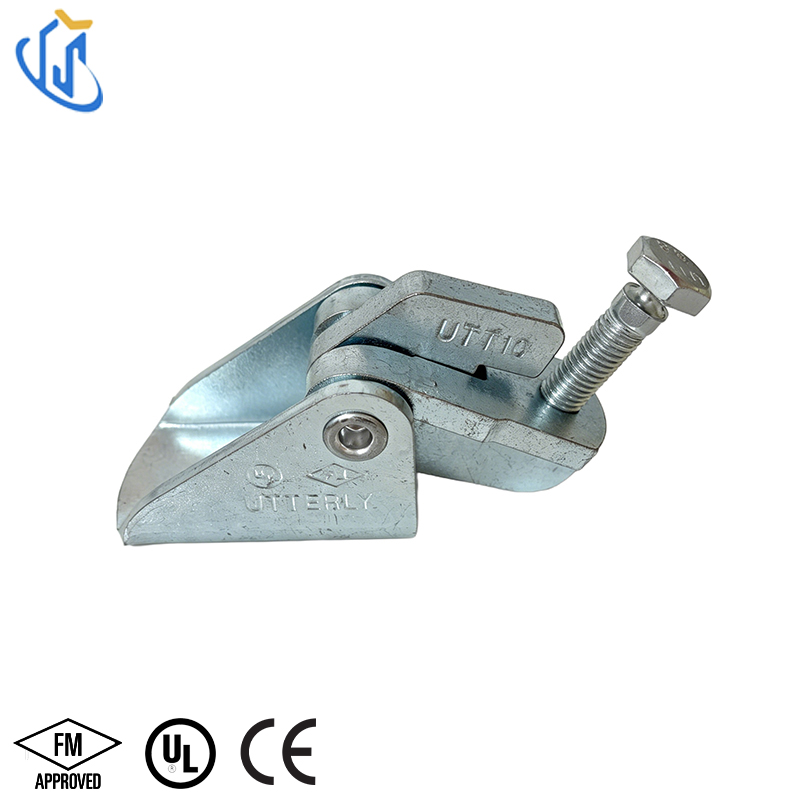

UTT10: carbon steel construction, connects directly to the building structure with SCH40 1-inch pipe

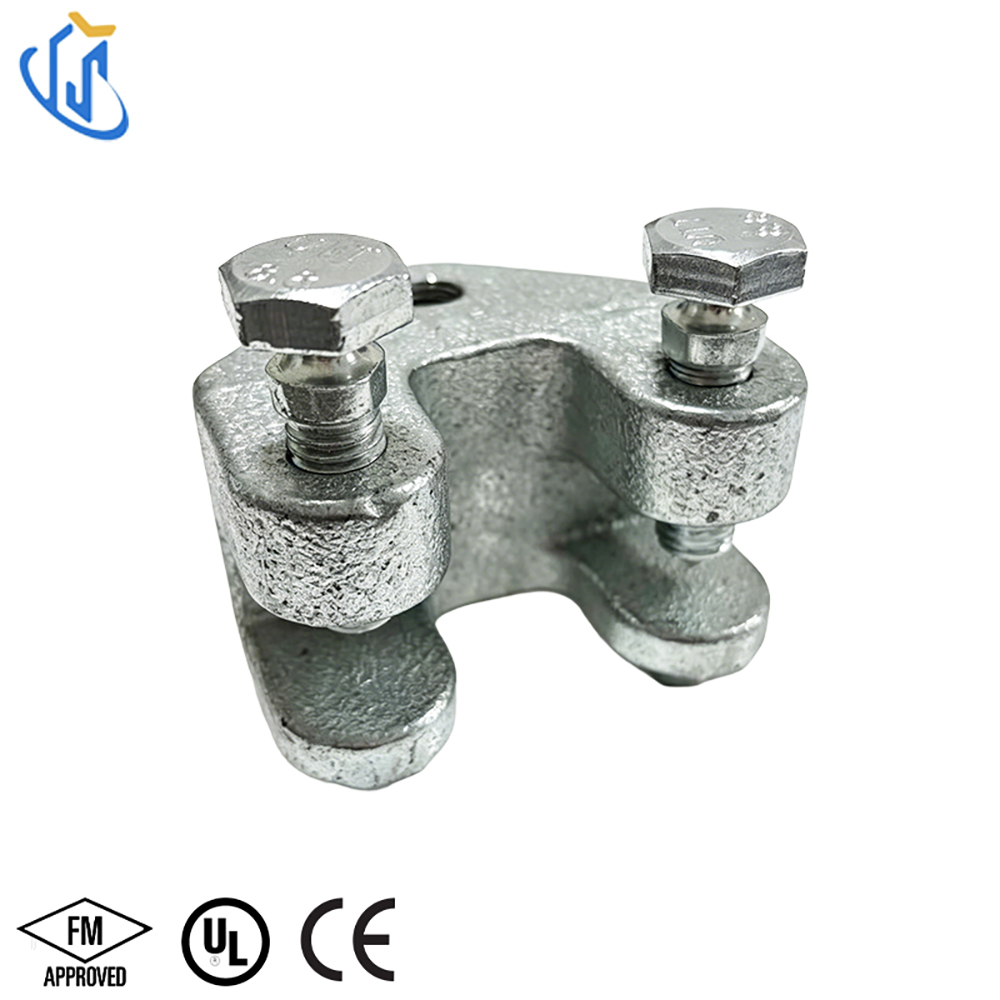

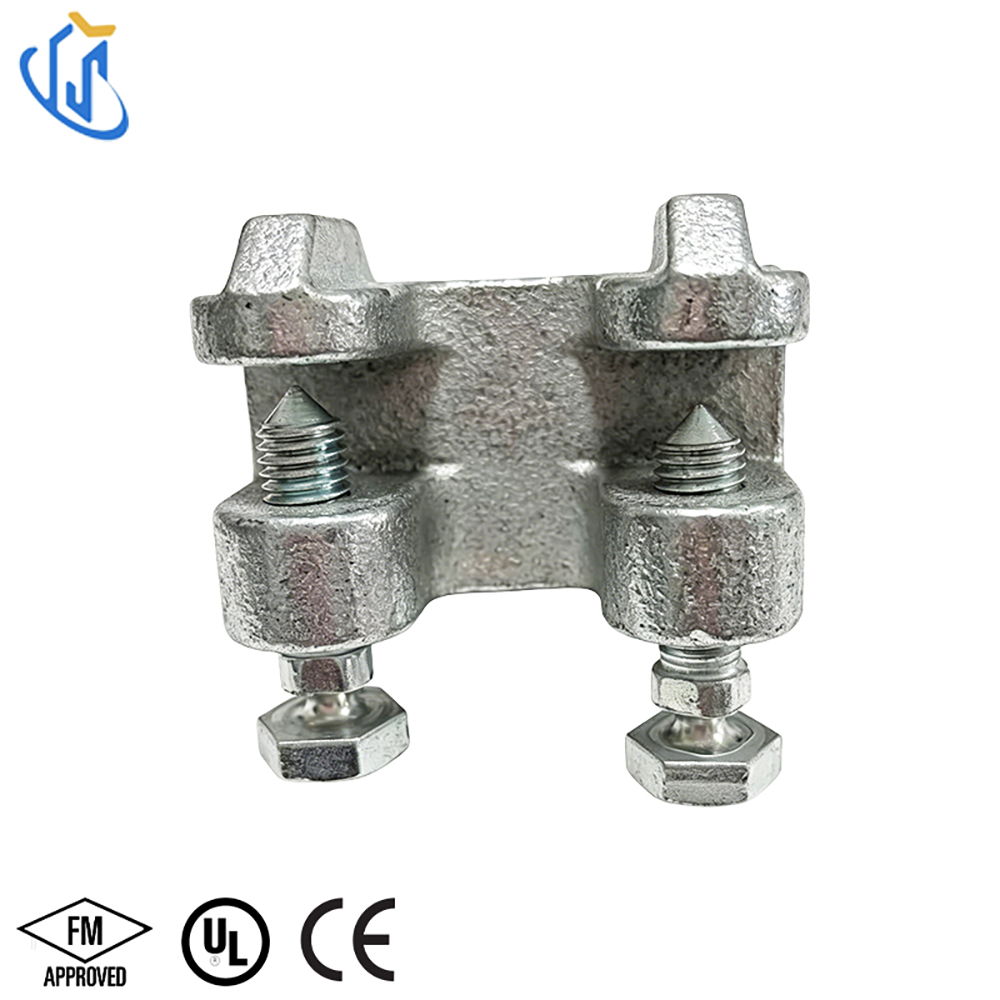

UTT11: ductile iron QT450 construction, mounts on H steel up to 16 mm thick with UTT10 connecting accessories
Applicable Pipe Standards
Sprinkler pipe: Sch 10, Sch 40, GB/T 3091, JIS G3454
Specification
UL Maximum Design Load | ||||||
Brace Member | lbs. | KN | Wt.Each | |||
lb. | kg | |||||
1''SCH40 pipe | 1885 | (8.38) | 1.54 | (0.70) | ||
FM Maximum Design Load | ||||||
Brace Member | Horizontal load ratings installation angle 30°-44° | Horizontal load ratings installation angle 45°-59° | Wt.Each | |||
Ibs. | kN | Ibs. | kN | lb. | kg | |
1''SCH40 pipe | 1490 | (6.62) | 1980 | (8.80) | 1.54 | (0.70) |
UL Maximum Design Load | ||||||
Brace Member | lbs. | KN | Wt.Each | |||
lb. | kg | |||||
1''SCH40 pipe | 1890 | (4.84) | 1.94 | (0.88) | ||
FM Maximum Design Load | ||||||
Brace Member | Horizontal load ratings installation angle30°-44° | Horizontal load ratings installation angle45°-59° | Wt.Each | |||
Ibs. | kN | Ibs. | kN | lb. | kg | |
1''SCH40 pipe | 970 | (4.31) | 1660 | (7.38) | 1.94 | (0.88) |
Certifications
Installation
The connection mode of base part connected with the building.The connection belween the base pat and the building is copleled.The accessonies couIected with the base part is sch40 1-inch pipe.The pipe must be clamped to the bottom of the base part,then fixed with the shear bolt.Tighten the shear bolt until heads break off.Tighten the shear bolt until heads break off.
The installation procedure of UTT11 accessories as shown ni the figure, the connecting accessories use the UTT10, the installation torque of bolt is 50~65N · M.

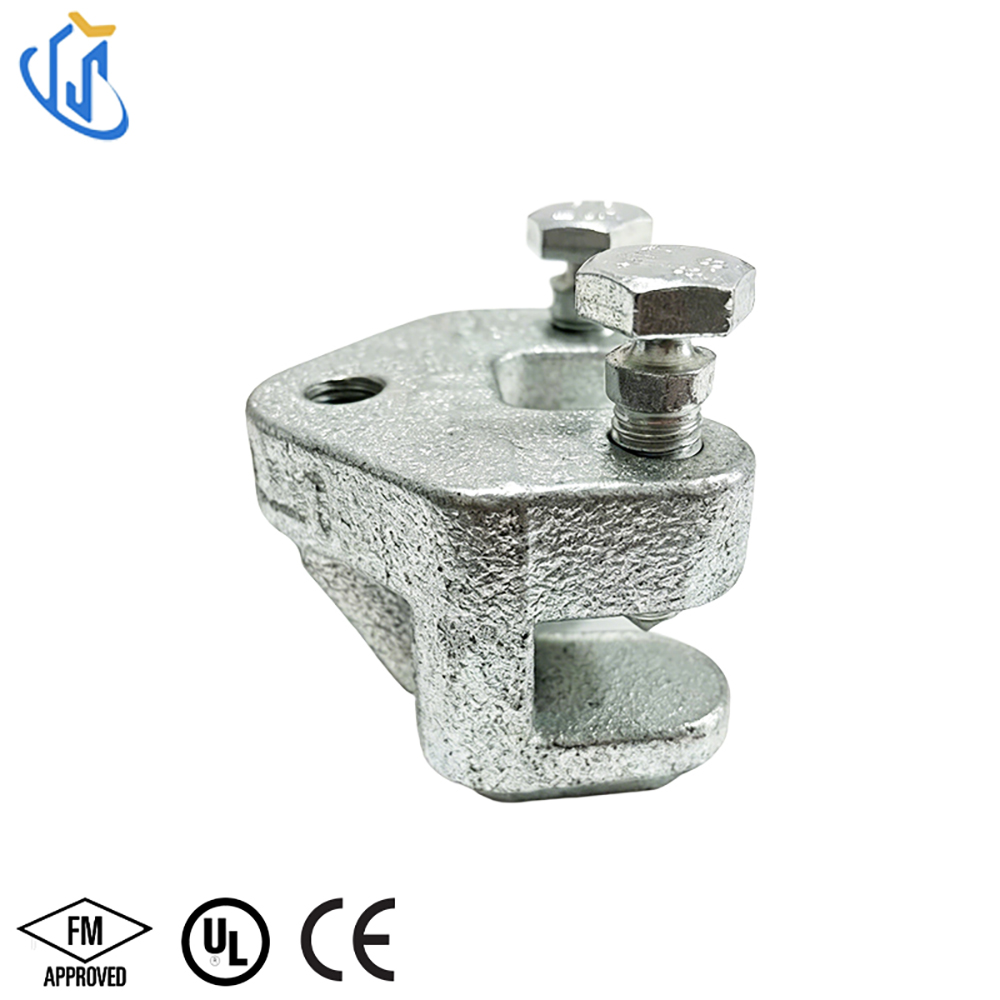

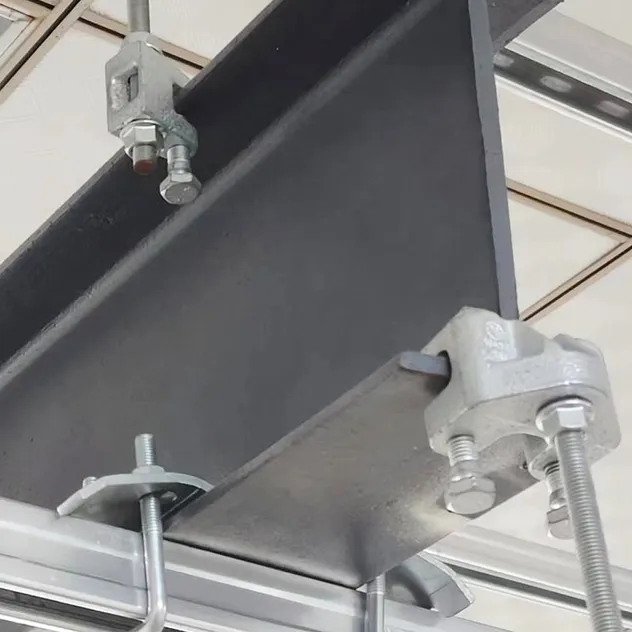

Tighten the shear bolt until heads break off after gripping the H steel.
The maximum thickness of H steel is 16mm.

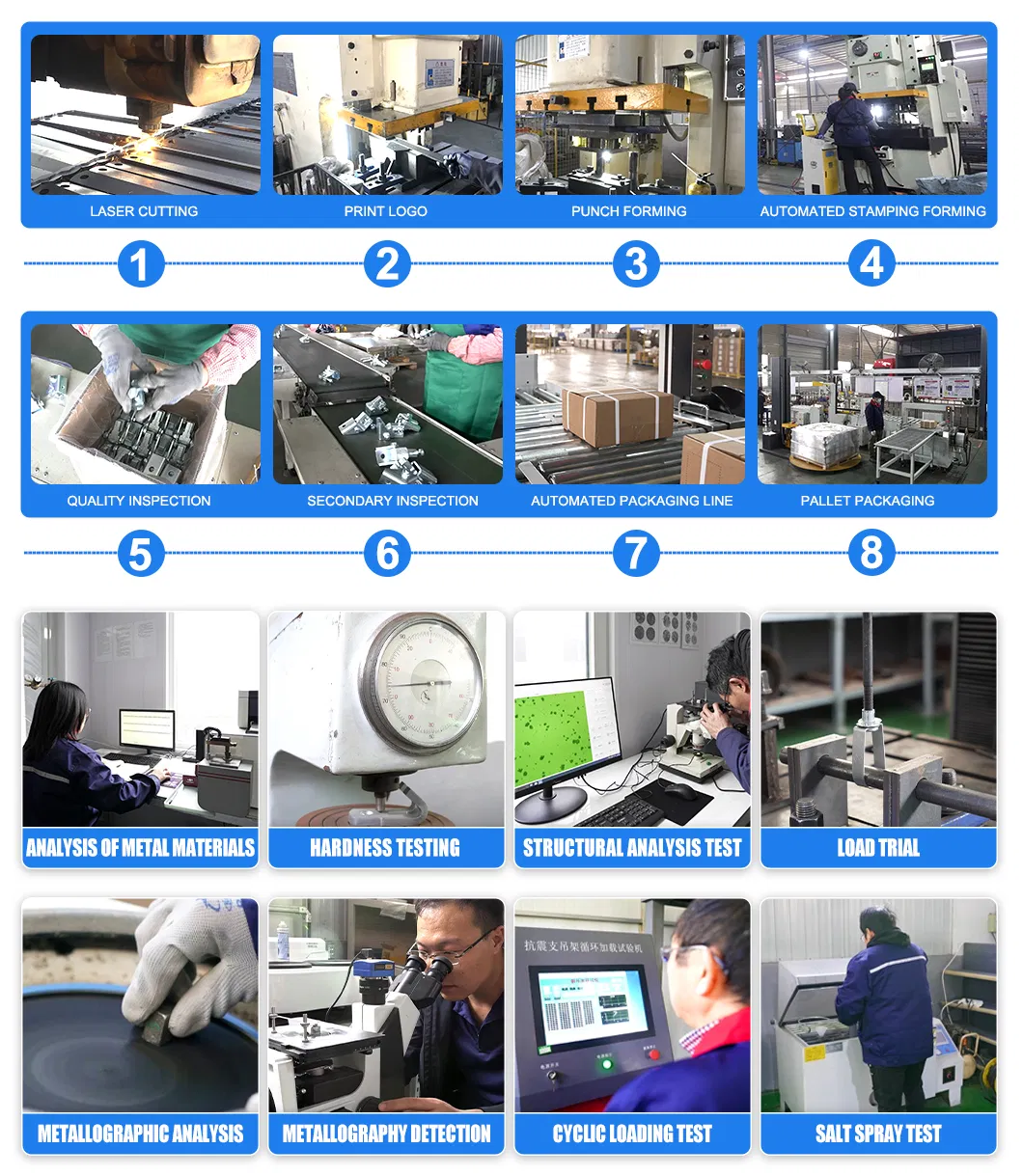

Production Process
Packaging & Shipping
Inner Packing: Each pipe clamp packed in a plastic bag, then placed in an export-standard carton box.
Outer Packing: Secured on fumigation-free plywood pallets with strapping bands, suitable for safe long-distance transportation.
Shipping Methods: Sea freight, air freight, and international express are available.
Shipping Port: Qingdao Port, Shandong, China.
Lead Time: 7–15 days for regular models, subject to order quantity.
