UTT41
UTTERLY
| Size: | |
|---|---|
| Material: | |
| Sample: | |
| Finish: | |
| Quantity: | |

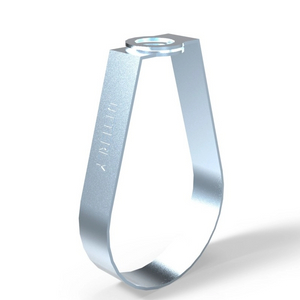

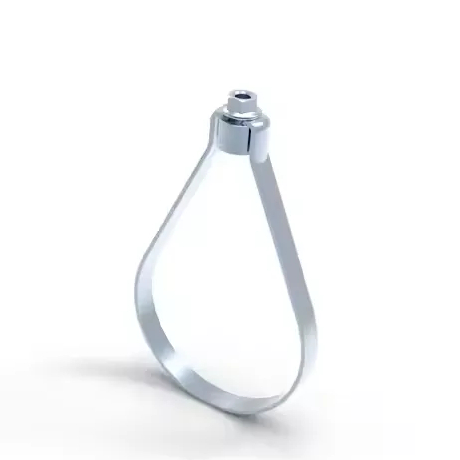

UTT 42 C-Swivel Hanger
Size Range：1″ through 8″
Material：Carbon steel
Finish：Zinc plated, other finish available upon request
Service：Recommended for automatic sprinkler system
Configuration：Supplied with Flange nut and cup nut
Ordering：Specify Part Number

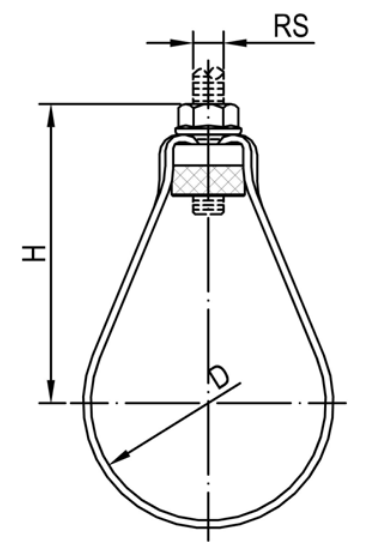

| Part Number | Nominal Pipe Size | RS | D | H | WT. | Max. Load | |
| in. | mm | mm | mm | mm | 9 | N | |
| UTT41-025-M8 | 1 | DN25 | M8 | 34 | 65 | 52 | 1660 |
| UTT41-032-M8 | 1-1/4 | DN32 | M8 | 43 | 65 | 54 | 1660 |
| UTT41-040-M8 | 1-1/2 | DN40 | M8 | 49 | 70 | 56 | 1660 |
| UTT41-050-M8 | 2 | DN50 | M8 | 61 | 79 | 58 | 1660 |
| UTT41-025-M10 | 1 | DN25 | M10 | 34 | 65 | 52 | 1660 |
| UTT41-032-M10 | 1-1/4 | DN32 | M10 | 43 | 65 | 54 | 1660 |
| UTT41-040-M10 | 1-1/2 | DN40 | M10 | 49 | 70 | 56 | 1660 |
| UTT41-050-M10 | 2 | DN50 | M10 | 61 | 79 | 58 | 1660 |
| UTT41-065 | 2-1/2 | DN65 | M10 | 77 | 98 | 145 | 3860 |
| UTT41-080 | 3 | DN80 | M10 | 90 | 113 | 160 | 3860 |
| UTT41-100 | 4 | DN100 | M10 | 115 | 142 | 190 | 3860 |
| UTT41-125 | 5 | DN125 | M12 | 142 | 153 | 210 | 7755 |
| UTT41-150 | 6 | DN150 | M12 | 170 | 184 | 270 | 7755 |
| UTT41-200 | 8 | DN200 | M12 | 221 | 236 | 575 | 11270 |
