UTT42
UTTERLY
| Size: | |
|---|---|
| Material: | |
| Sample: | |
| Finish: | |
| Quantity: | |

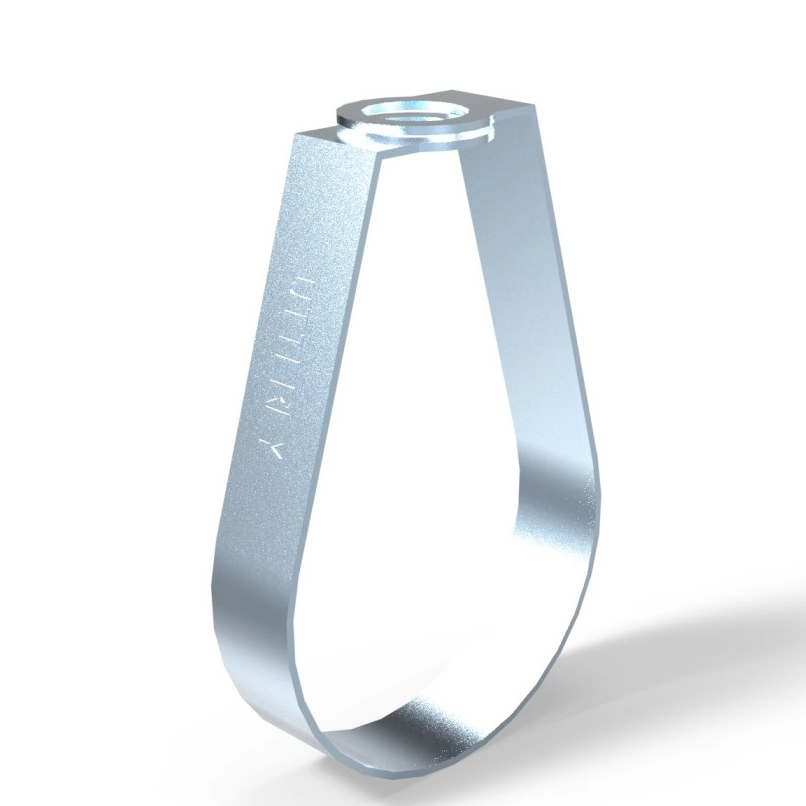

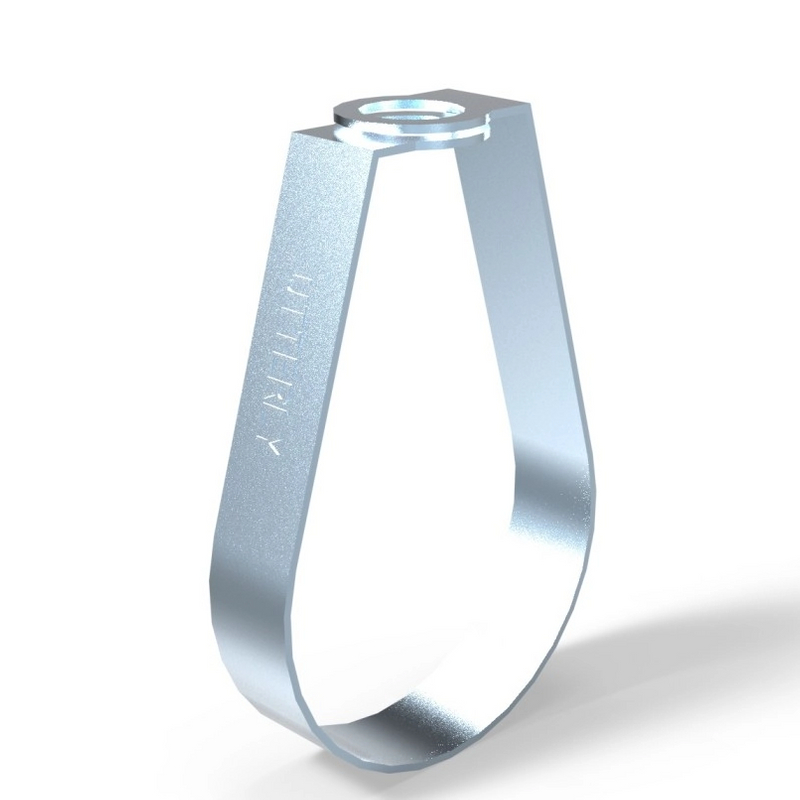

UTT42 Adjustable Band Hanger Without Swivel Nut
Size Range：DN20 through DN200
Material：Carbon steel
Finish：Galvanized, other finish available upon request
Ordering：Specify Part Number

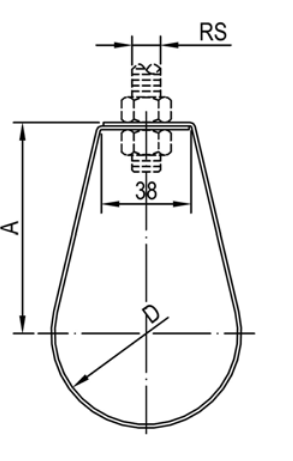

Part Number | Nominal Pipe Size | RS | D | A | Max.Rec. Load | WT |
| mm | mm | mm | mm | N | kg | |
| UTT42-020 | DN20 | M10 | 27 | 64 | 220 | 0.06 |
| UTT42-025 | DN25 | M10 | 34 | 67 | 220 | 0.07 |
| UTT42-032 | DN32 | M10 | 43 | 73 | 220 | 0.08 |
| UTT42-040 | DN40 | M10 | 49 | 75 | 220 | 0.09 |
| UTT42-050 | DN50 | M10 | 61 | 81 | 220 | 0.09 |
| UTT42-065 | DN65 | M12 | 77 | 89 | 290 | 0.14 |
| UTT42-080 | DN80 | M12 | 90 | 102 | 290 | 0.16 |
| UTT42-100 | DN100 | M12 | 115 | 114 | 450 | 029 |
| UTT42-150 | DN150 | M12 | 166 | 222 | 1260 | 0.71 |
| UTT42-200 | DN200 | M16 | 221 | 250 | 1260 | 0.89 |
UTT42 Adjustable Band Hanger Without Swivel Nut
Size Range：DN20 through DN200
Material：Carbon steel
Finish：Galvanized, other finish available upon request
Ordering：Specify Part Number
Part Number | Nominal Pipe Size | RS | D | A | Max.Rec. Load | WT |
| mm | mm | mm | mm | N | kg | |
| UTT42-020 | DN20 | M10 | 27 | 64 | 220 | 0.06 |
| UTT42-025 | DN25 | M10 | 34 | 67 | 220 | 0.07 |
| UTT42-032 | DN32 | M10 | 43 | 73 | 220 | 0.08 |
| UTT42-040 | DN40 | M10 | 49 | 75 | 220 | 0.09 |
| UTT42-050 | DN50 | M10 | 61 | 81 | 220 | 0.09 |
| UTT42-065 | DN65 | M12 | 77 | 89 | 290 | 0.14 |
| UTT42-080 | DN80 | M12 | 90 | 102 | 290 | 0.16 |
| UTT42-100 | DN100 | M12 | 115 | 114 | 450 | 029 |
| UTT42-150 | DN150 | M12 | 166 | 222 | 1260 | 0.71 |
| UTT42-200 | DN200 | M16 | 221 | 250 | 1260 | 0.89 |
