UTT83
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |

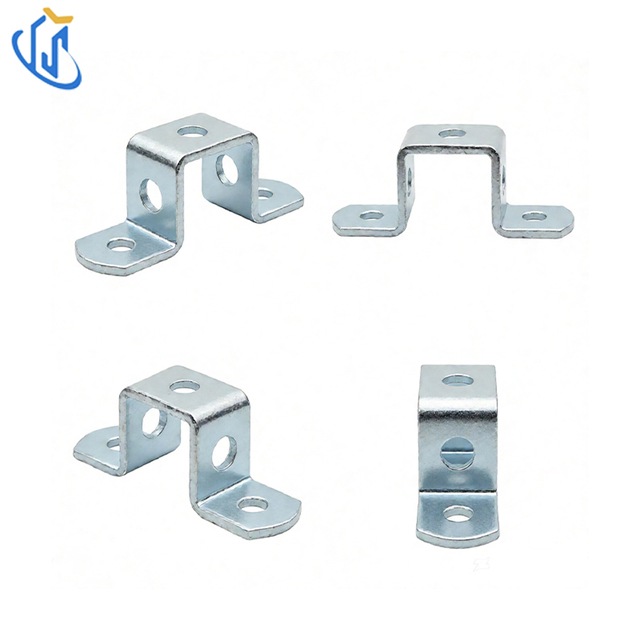

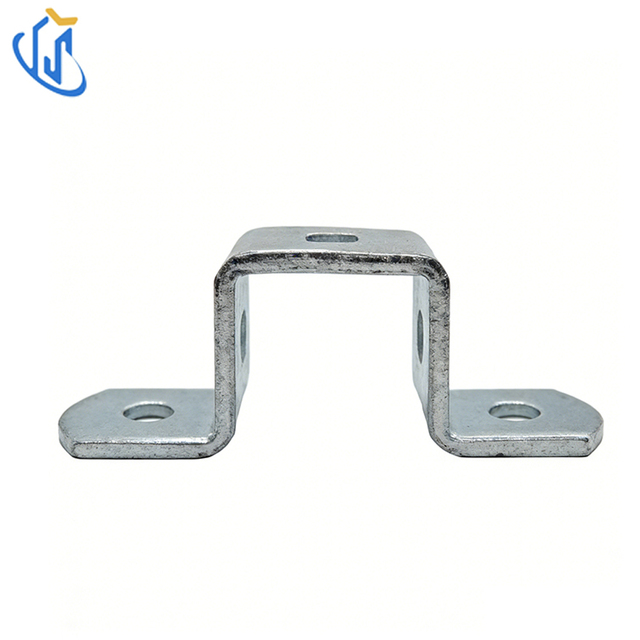

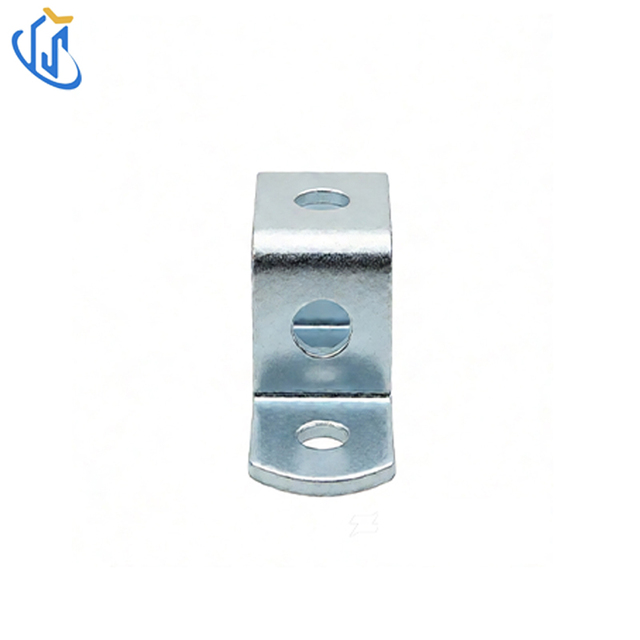

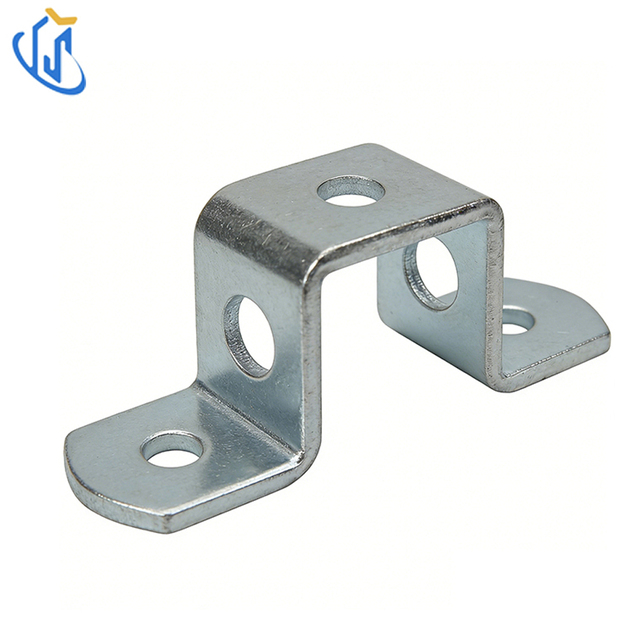

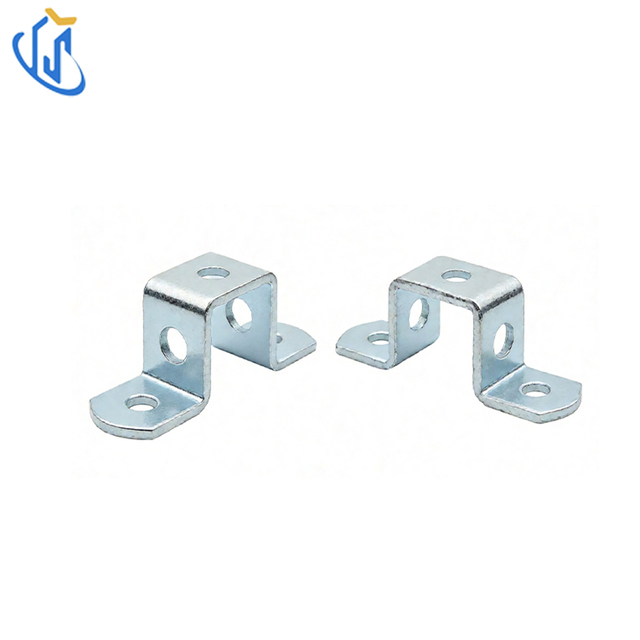

UTT83 square saddle clamp is customized saddle-type fastener exclusively designed for square and rectangular tubular products. Made of carbon steel with full zinc plated anti-rust coating, the inner cavity adopts precise square forming to closely attach outer surface of square pipe, each clamp end is reserved with bolt holes for secure locking onto C-channel or building structural components. Mainly applicable for electrical conduits, rectangular ventilation ducts and solid metal bar fixed positioning in fire protection, MEP and general industrial construction projects.
Core Function: Firmly clamp square/rectangular pipes, conduits and solid bars onto channel or structural members
Raw Material: High-strength carbon steel
Surface Finish: Standard zinc plated anti-corrosion coating
Structural Advantage: Precision square inner profile for snug pipe fit, dual-end prefabricated bolt holes for easy fastening
Applicable Workpiece: Square pipe, rectangular duct, electrical conduit, solid metal bar.
Item | Specification |
|---|---|
Model | UTT83 Square Saddle Clamp Series |
Raw Material | Carbon Steel |
Surface Treatment | Zinc plated finish |
Applicable Product | Square tube, rectangular conduit, solid metal bar |
Structure Feature | Square inner contour + two-end mounting bolt holes |
Mounting Method | Fasten via bolts onto C-channel or structural steel |
Sample Supply | Free pre-order test samples available |
1.Electrical Engineering: Fixed support for square electrical conduits inside commercial and industrial buildings.
2.HVAC System: Position fixing for small rectangular ventilation ducts and air conditioning piping.
3.Industrial Construction: Clamping fixation for solid metal bars and square process pipelines on equipment frames.
1.Select matched UTT83 saddle size according to outer dimension of target square pipe/conduit.
2.Cover square saddle’s inner square cavity tightly on the outer wall of rectangular workpiece.
3.Align two-end reserved bolt holes with pre-punched holes on C-channel or structural plate.
4.Insert matching bolts and nuts then evenly tighten to complete firm clamping and positioning.
5.Check overall fastening tightness before subsequent pipeline layout construction.
1.Conforms to domestic electrical conduit installation specifications and common international pipeline fixing standards.
2.Zinc plating layer meets universal anti-rust coating industry technical requirements.
3.All finished products pass factory dimensional inspection and clamping strength spot check before delivery.
Inner contour fits square pipe tightly to avoid pipeline shifting and slipping under load.
Pre-drilled mounting holes save on-site hole-drilling work and boost installation speed.
Whole-body electroplating effectively isolate moisture for long-term anti-rust in conventional indoor environment.
Suitable for square pipe, rectangular duct, electrical conduit and solid bar four kinds of fixing demands.
Compatible with all UTT C-channel, U-bolts and other pipe fittings for complete fixing system.
Q1: What’s the unique structural feature of UTT83?
A1: Square inner profile for snug fit on square/rectangular pipes, bolt holes pre-set on both clamp ends.
Q2: Main applicable objects?
A2: Square pipes, rectangular conduits, electrical tubes and solid metal bars.
Q3: Surface processing of UTT83?
A3: Standard full zinc plated carbon steel finish.
Q4: How to finish field installation?
A4: Fit saddle onto workpiece then fasten bolts through two-end holes onto C-channel or structure.
Q5: Free sample available?
A5: Free inspection samples can be supplied prior to bulk purchase confirmation.
