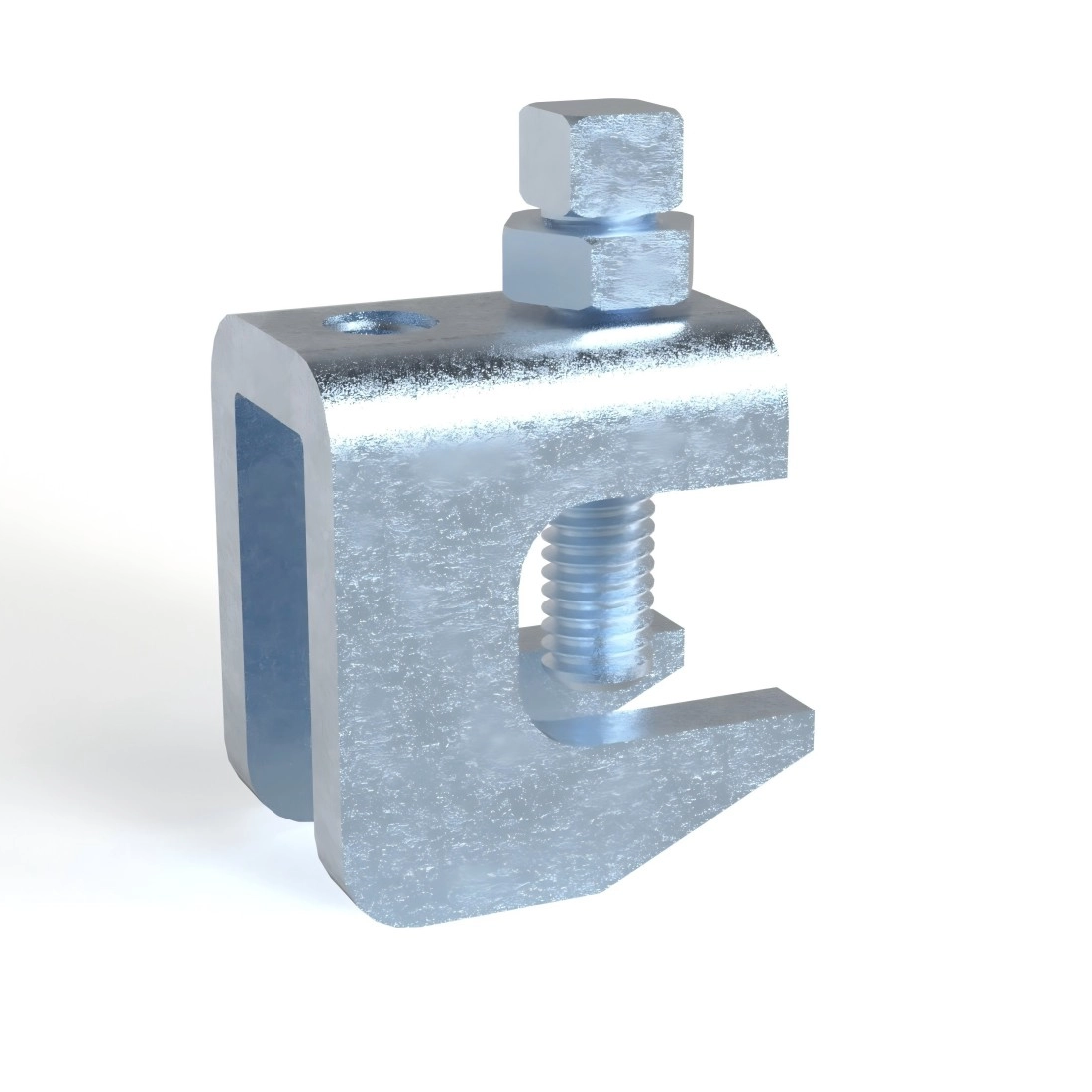

BC4 Universal Beam Clamp
Function: Structural attachment to top or bottom of metal beams,purlins, channel, or angel iron
Size: 3/8" or M10
Material: Carbon Steel Q235B
Finish: Black or Galvanized
Approval:
※Set screw must be tightened and torqued onto the sloped side of the I-beam
| Size | A | B | C | D | E | F | RS | Max.Rec.Load | |
| in | in | in | in | in | in | in | in | Ibs | KN |
| BC4-3/8° | 0.35 | 0.71 | 0.75 | 1.86 | 0.55 | 1.54 | 3/8" | 6.8 | |
| mm | mm | mm | mm | mm | mm | mm | mm | Ibs | KN |
| BC4-M10 | 9 | 18 | 19 | 47.3 | 14 | 39 | M10 | 6.8 | |
