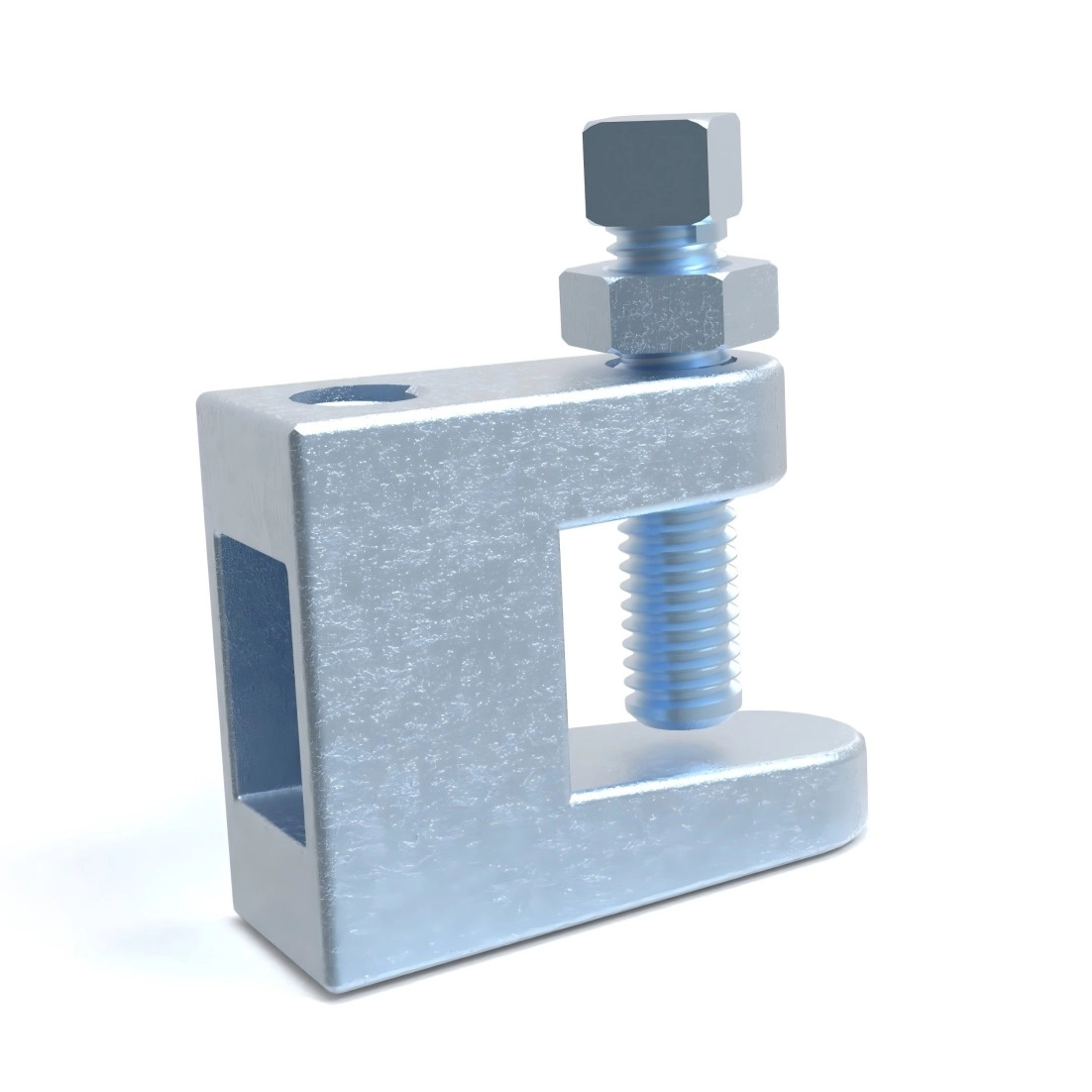

BC3 Universal Beam Clamp
Function: Structural attachment to top or bottom of metal beams,purlins, channel, or angel iron
Size: 3/8"、M10 or 1/2"、M12
Material: Ductile iron QT450
Finish: Black or Galvanized
Approval:
※Set screw must be tightened and torqued onto the sloped side of the I-beam

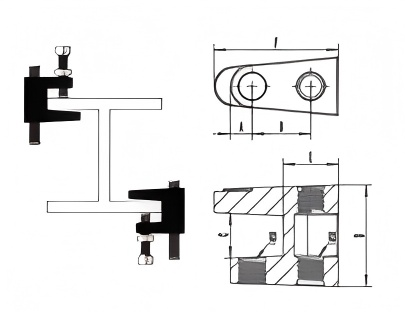

| Size | A | B | C | D | E | F | RS | Max.Rec.Load | |
| in | in | in | in | in | in | in | in | Ibs | KN |
| BC3-3/8'' | 0.29 | 0.94 | 0.8 | 1.59 | 0.78 | 1.91 | 3/8" | 6.8 | |
| BC3-1/2'' | 0.39 | 1.07 | 0.8 | 1.79 | 0.98 | 2.22 | 1/2" | 18.1 | |
| mm | mm | mm | mm | mm | mm | mm | mm | Ibs | KN |
| BC3-M10 | 7.4 | 24.0 | 20.2 | 40.3 | 19.8 | 48.5 | M10 | 6.8 | |
| BC3-M12 | 10 | 27.3 | 20.2 | 45.5 | 25 | 56.4 | M12 | 18.1 | |
