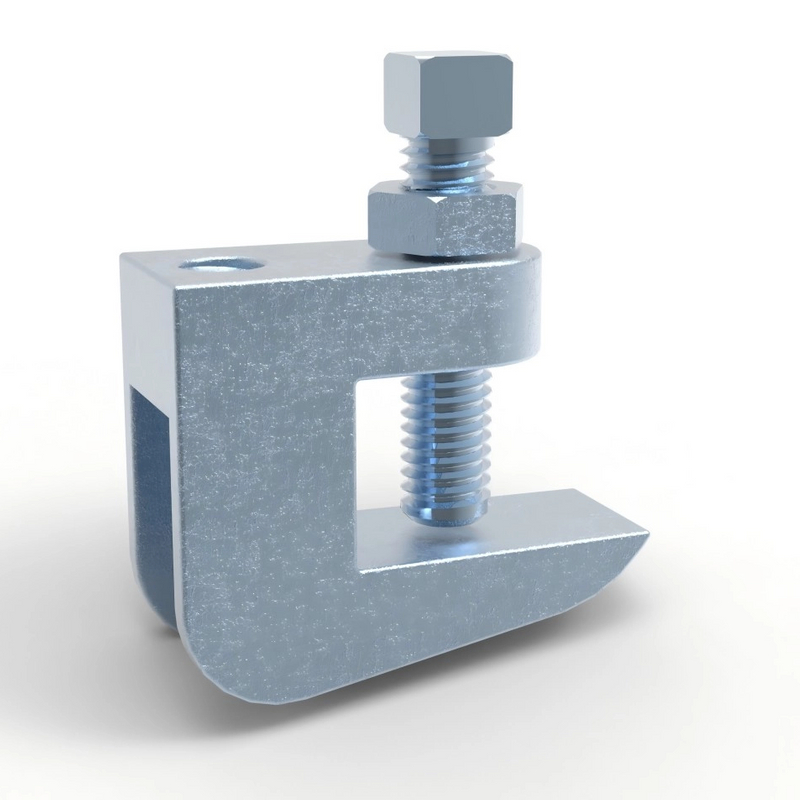

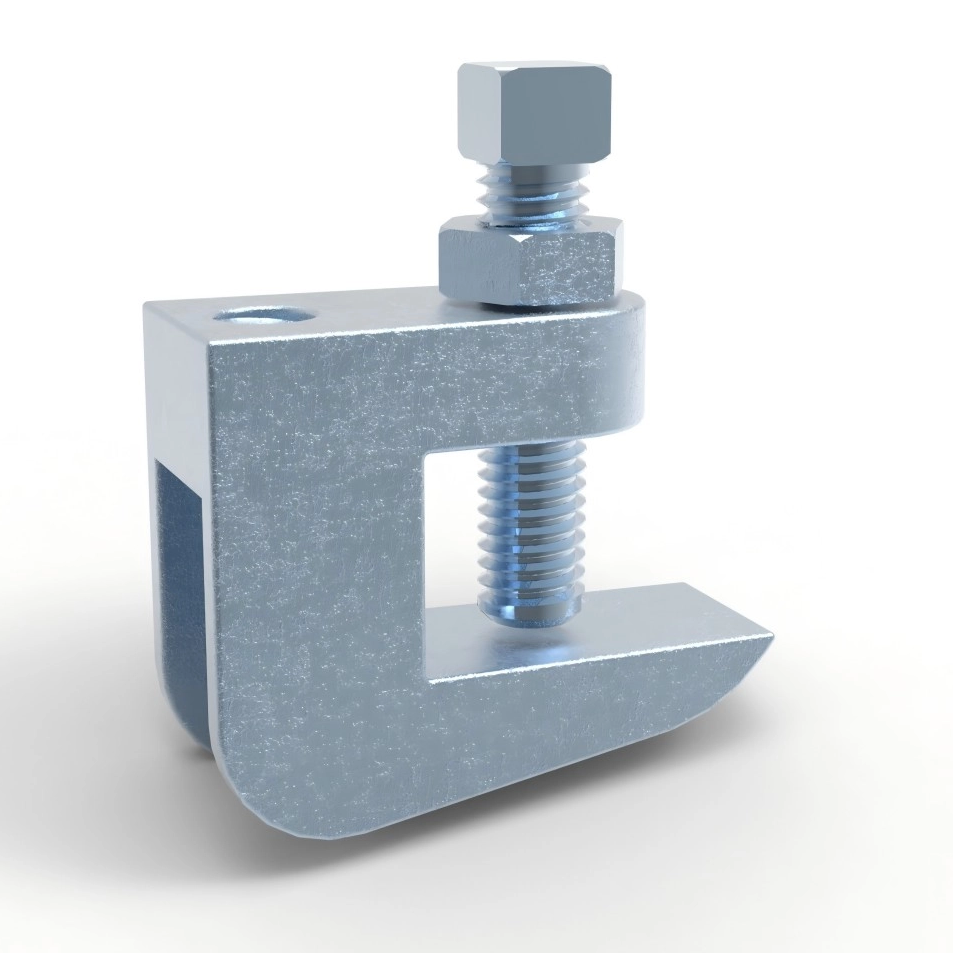

BC1 Universal Beam Clamp
Function:Structural attachment to top or bottom of metal beams,purlins, channel, or angel iron,one thru-hole for easier installation of threaded rod.
Size:3/8"、M10 or 1/2"、M12
Material:Ductile iron QT450
Finish:Black or Galvanized
Approval:
※Set screw must be tightened and torqued onto the sloped side of the I-beam

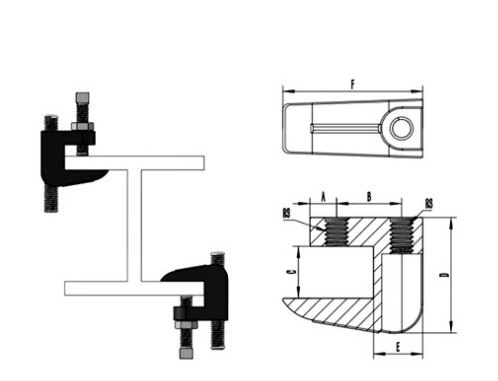

| Size | A | B | C | D | E | F | RS | Max.Rec.Load | |
| in | in | in | in | in | in | in | in | Ibs | KN |
| BC1-3/8" | 0.33 | 0.91 | 0.77 | 1.55 | 0.68 | 1.87 | 3/8° | 6.8 | |
| BC1-1/2" | 0.36 | 1.10 | 0.74 | 1.70 | 0.94 | 2.13 | 1/2° | 9 | |
| mm | mm | mm | mm | mm | mm | mm | mm | Ibs | KN |
| BC1-M10 | 8.3 | 23 | 19.5 | 39.3 | 17.3 | 47.5 | M10 | 6.8 | |
| BC1-M12 | 9.2 | 28 | 18.9 | 43.2 | 23.9 | 54.2 | M12 | 9 | |
