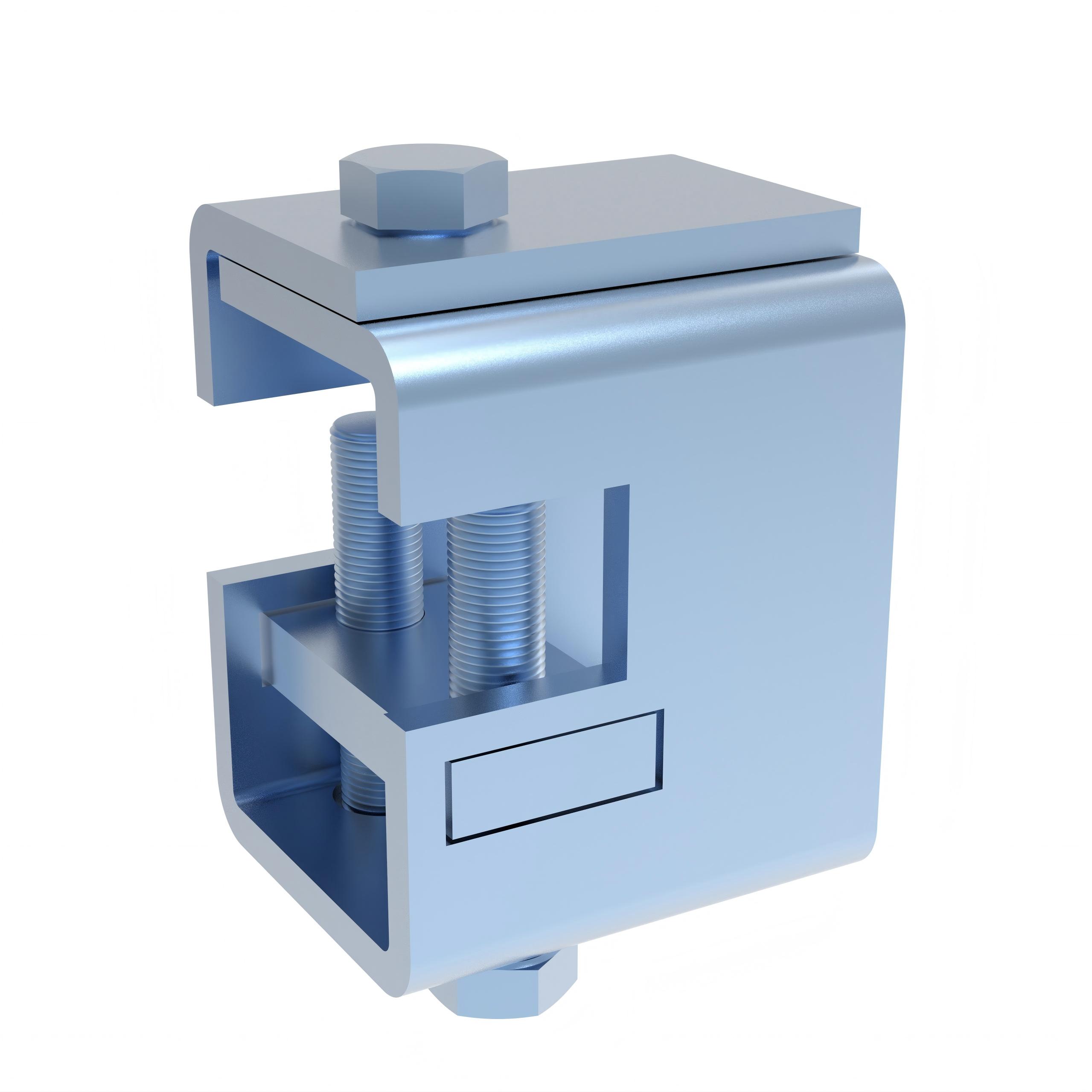

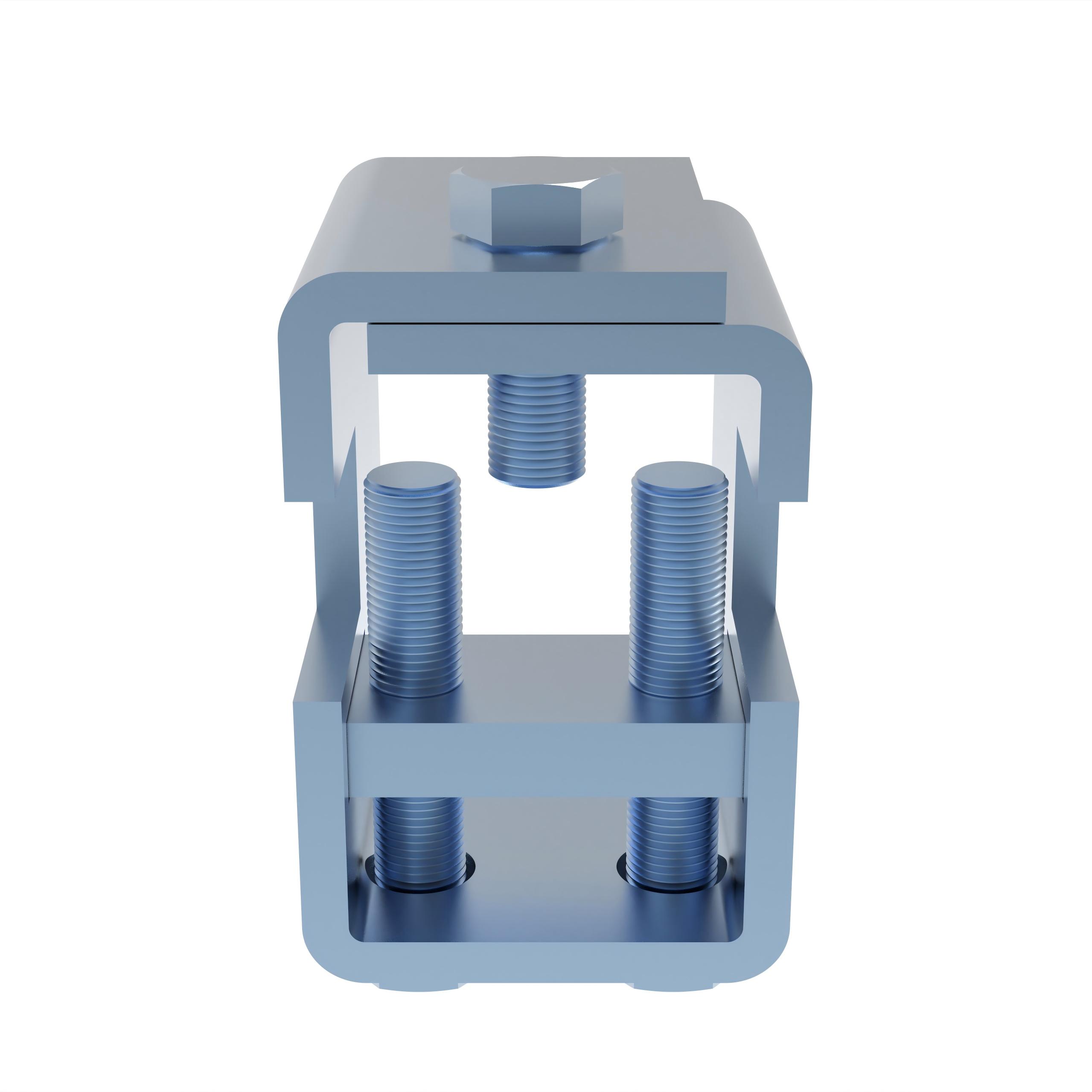

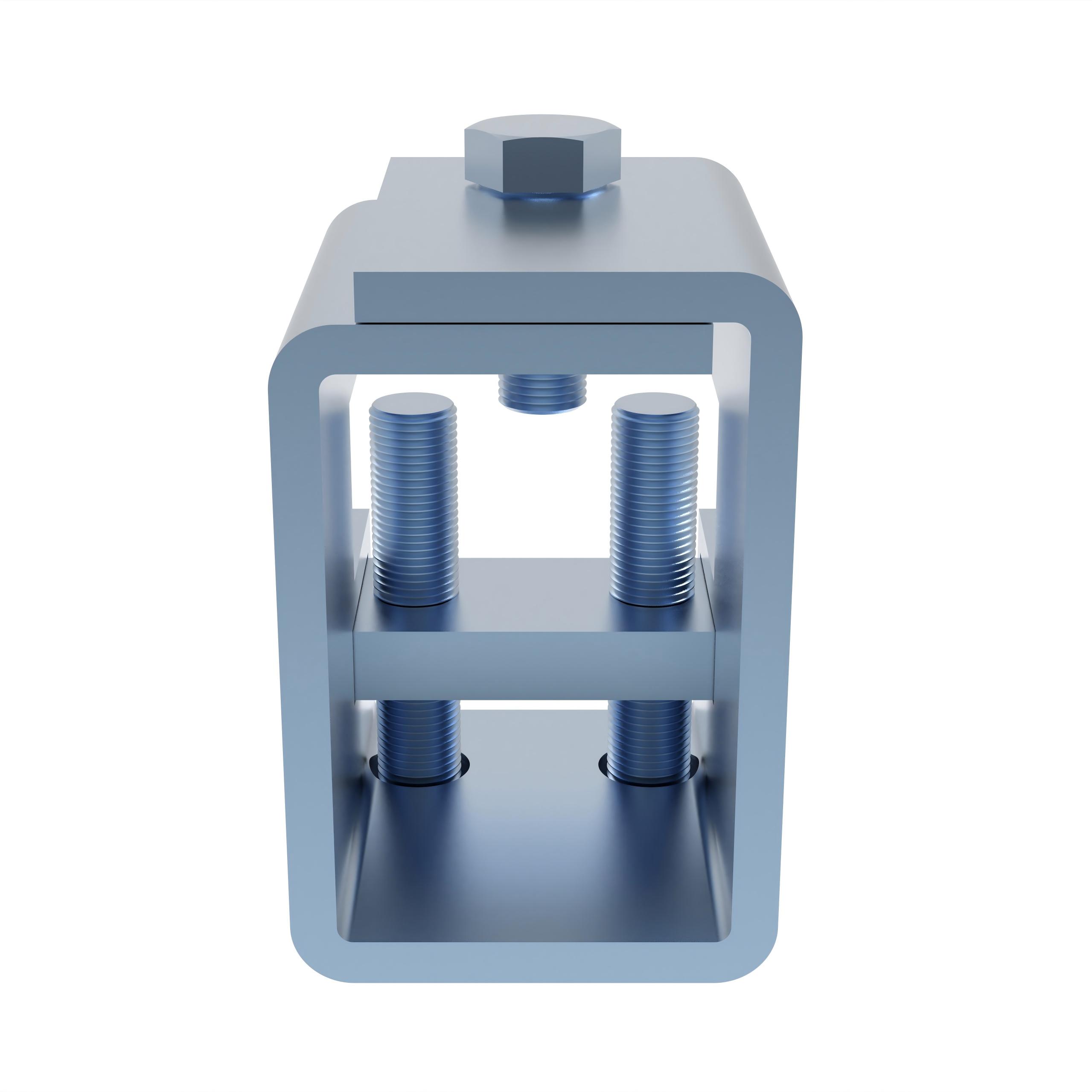

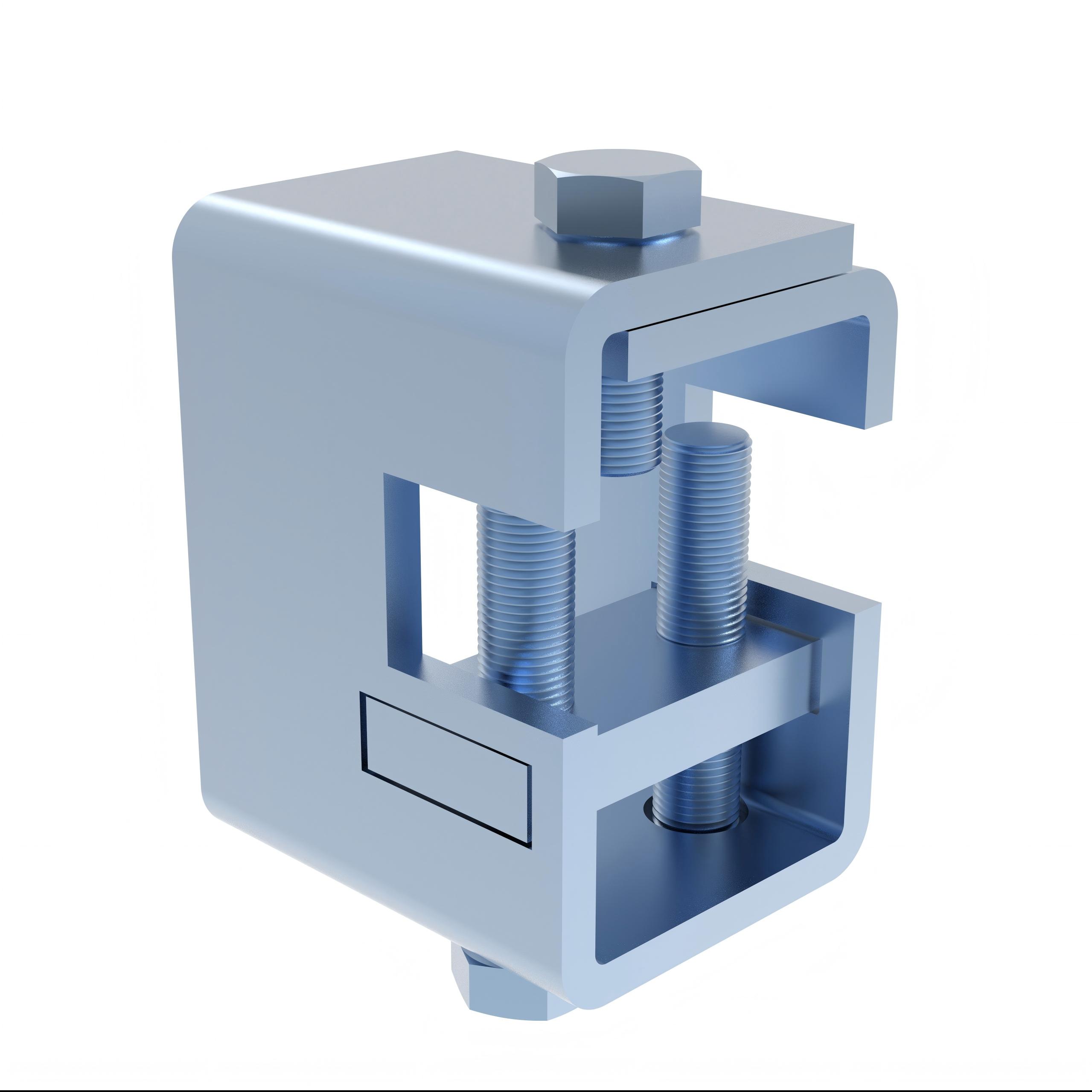

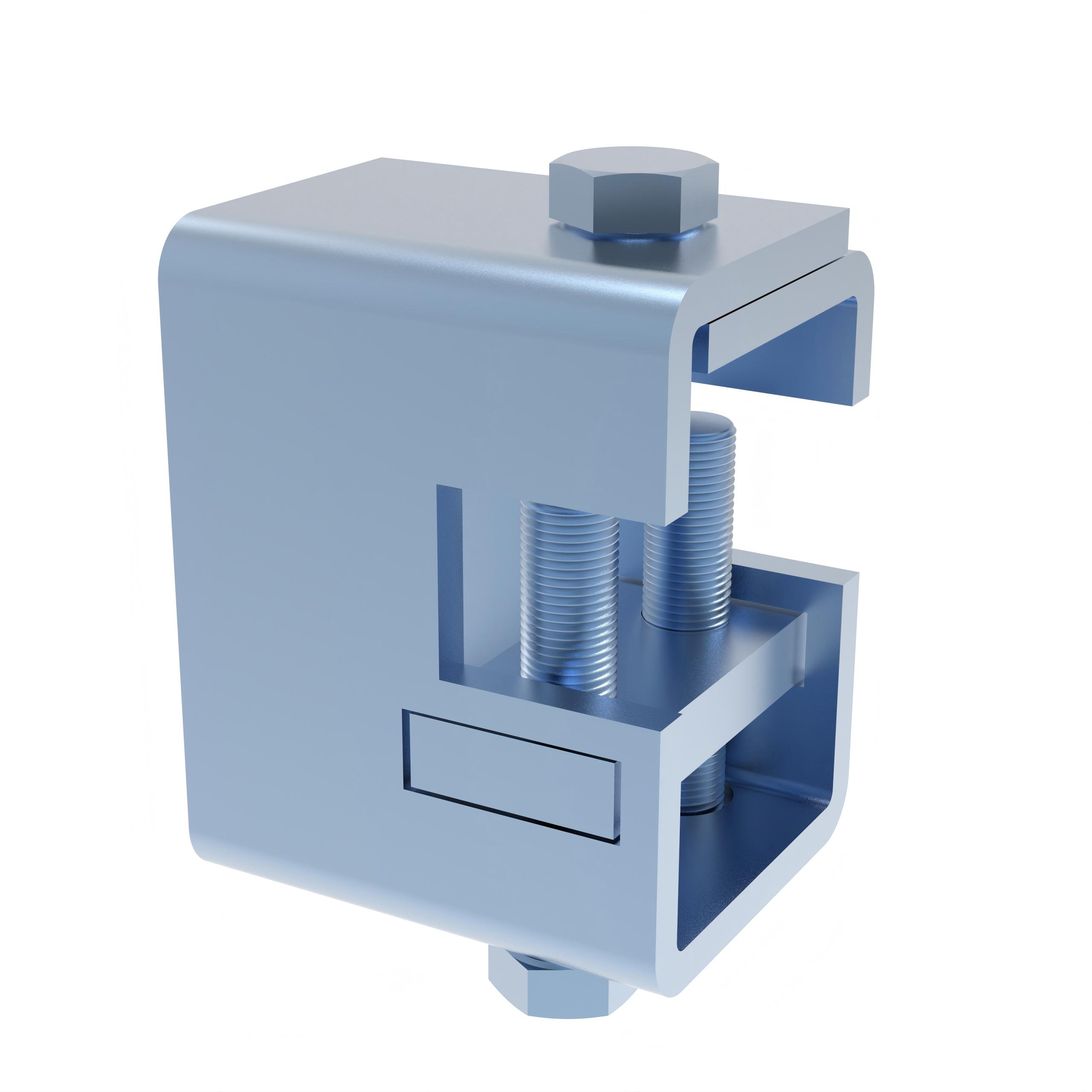

UTT1102 Beam Adapter

  • UTT1102

  • UTTERLY

Color:
Sliver
Material:
Carbon Steel
Surface:
Electro-galvanized
MOQ:
10
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

1(1)2(1)6(1)


Material:Steel

Finish:Plain or Electro-Galvanized

Service:To attach bracing to various types of steel structural members.

Ordering:Figure number and finish.

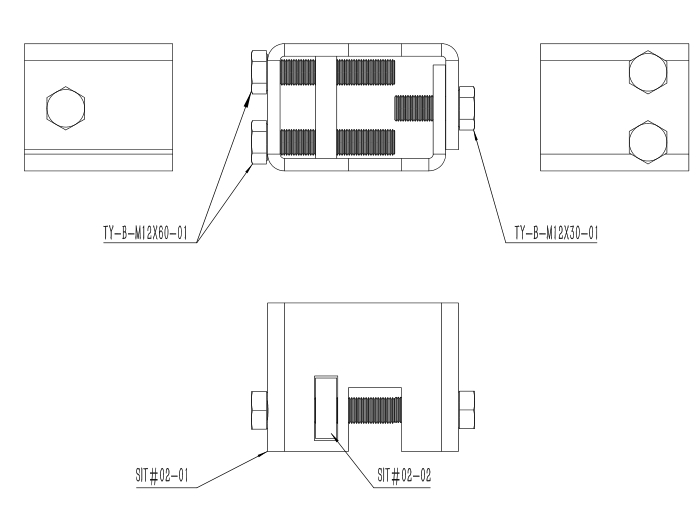

微信截图_20250626141246微信截图_20250626141303

                                      Max Horizontal Design Load
                                  With Brace Parallel to the Beam
                              Brace Angle (degrees from vertical)
30-44 degrees
45-59degrees
60-74 degrees
75-90 degrees
Lbs
kN
Lbs
kN
Lbs
kN
Lbs
kN
690
3.07
970
4.31
1210
5.38
1330
5.
