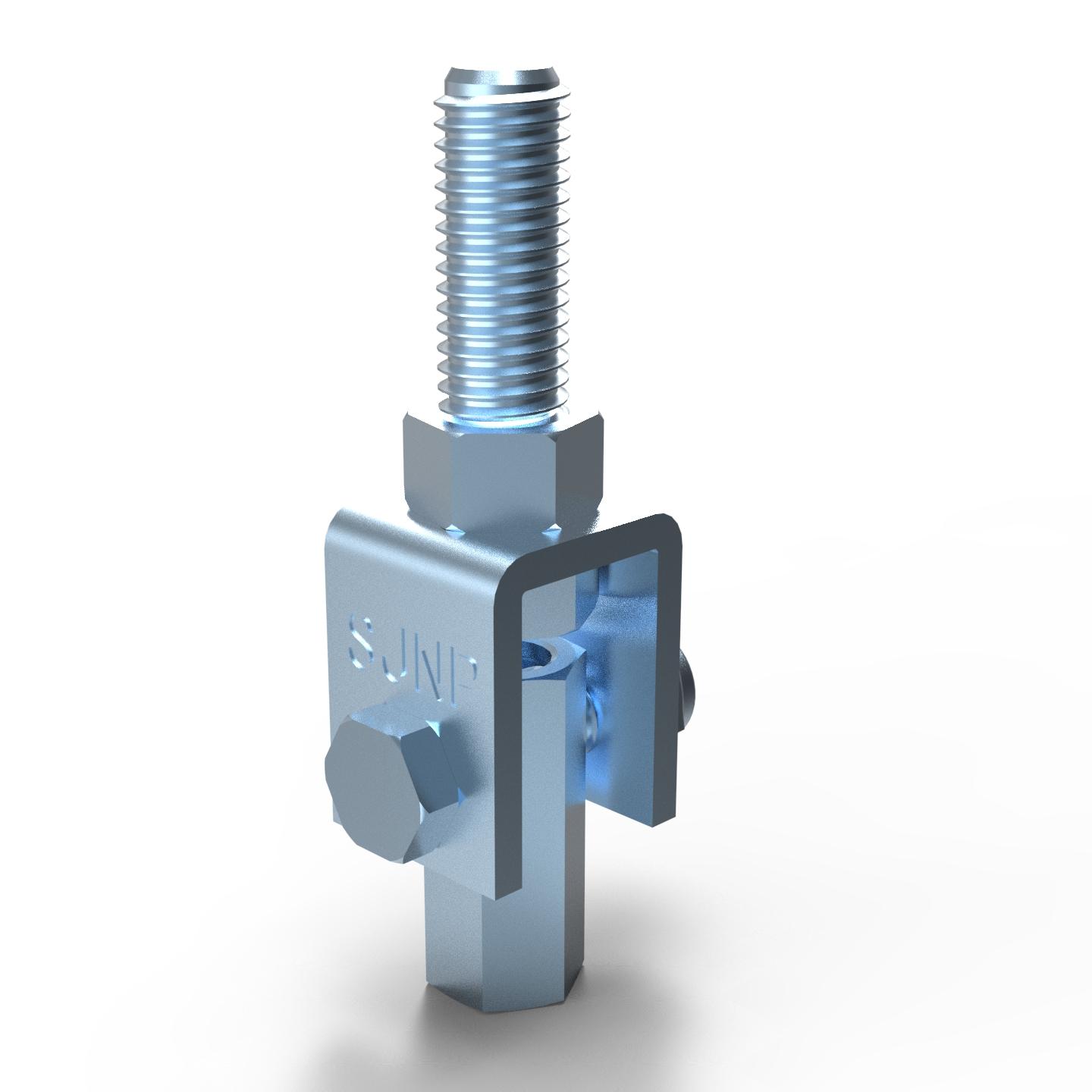

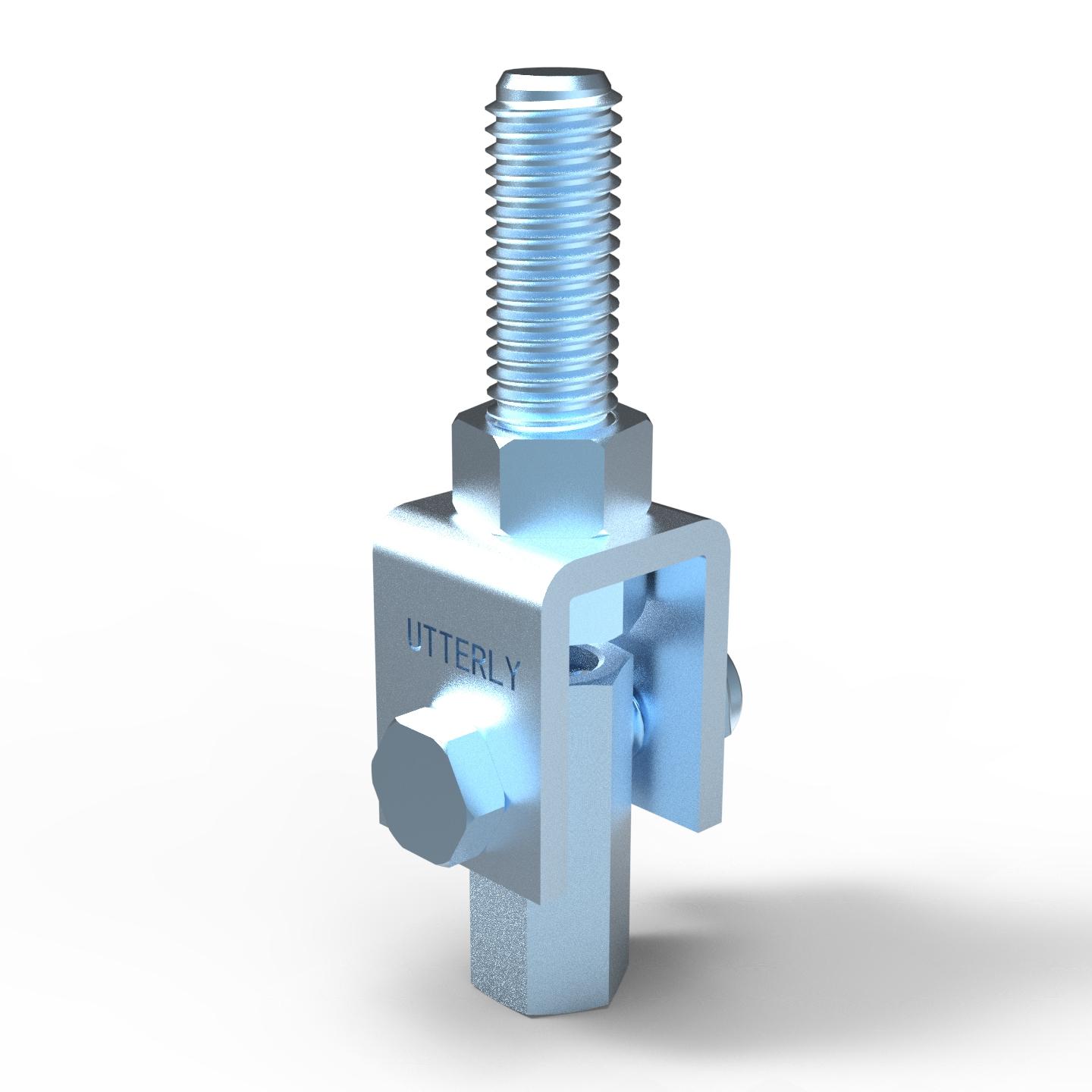

UTT14 Swivel Attachment

Thread inserts type:
3/8''
Size:
3/8" - 1/2"
Applications:
Connection for Pipe Hanger
Moq:
500
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Size Range: 3 /8" rod diameter, Service Line: 1" through 4"
Material: Carbon steel
Finish: Zinc Plated

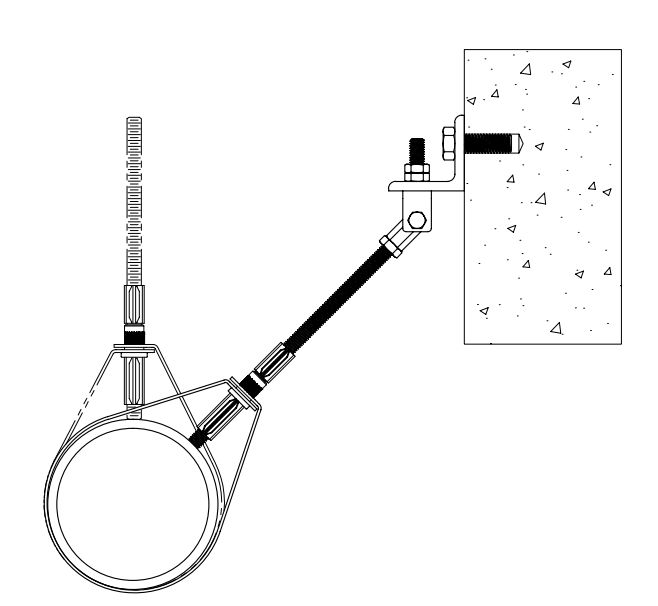

Restraint Service: Used to restrain pipe systems. A lateral restraint connector that is attached to a structure or structural attachment for a branch line restraint assembly.

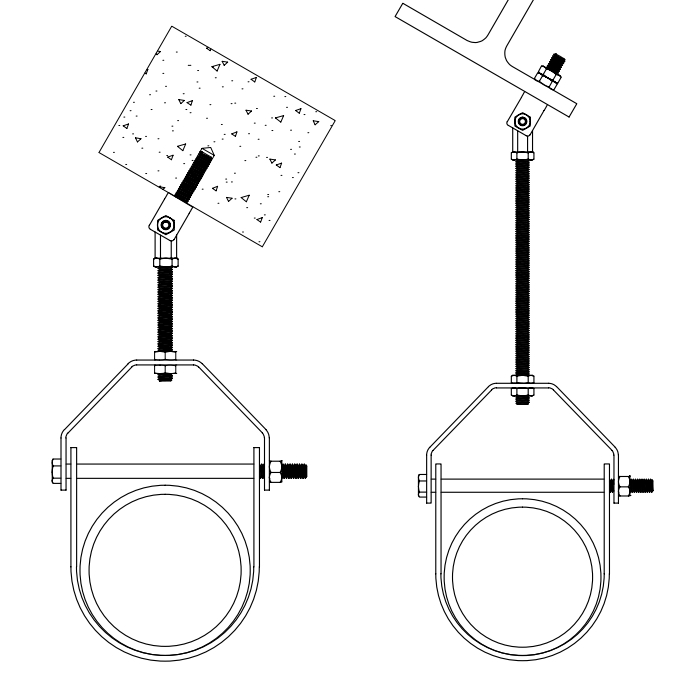

Hanger Service: Used to adapt 3 /8" threaded rod to angled building structures
Features: 1.  Comes assembled and ready for installation
                  2.  3 /8-16UNC threaded hole to receive threaded rod

微信截图_20250610101947微信截图_20250610102003

                  Loads (lbs) • Weight (lbs) • Dimensions (in)
Rod Size

Max Load

Max Threaded Rod
Length Weight
3/8"
Restraint: 1,000
Hanger: Up to 4" Pipe
Restraint: 29
Hanger: N/A
0.19
