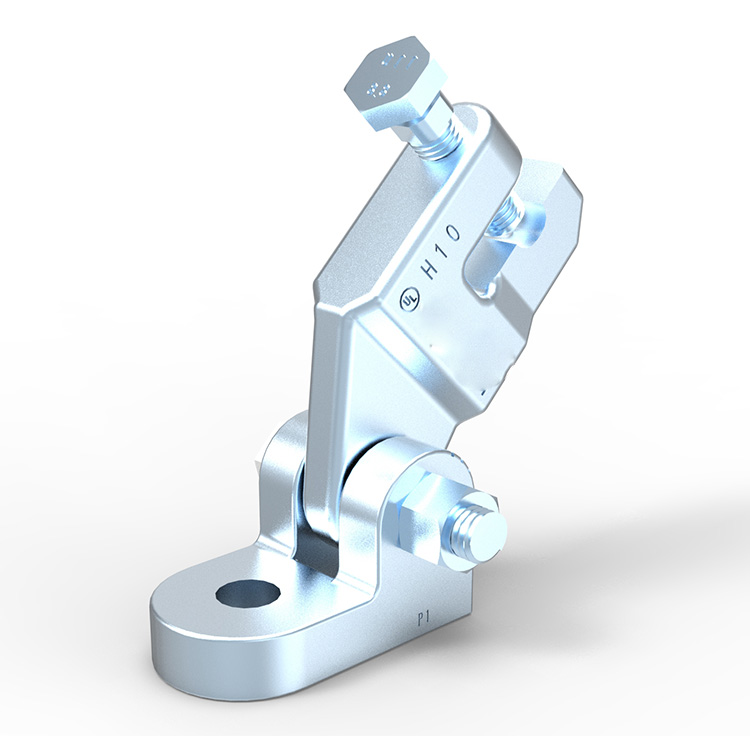

UTT H10
UTTERLY
| Quantity: | |
|---|---|

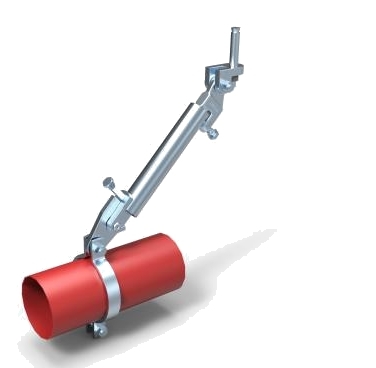

Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions.
Type:Sprinkler Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454
Size: One size fits braced pipe up to 8＂,with 1/2＂ bolt hole for structure.
Material: Ductile iron QT450
Finish: Electro - galvanized
Approvals:
UL Maximum Design Load | ||||
Brace Member | lbs. | KN | Wt. Each | |
lb. | kg | |||
1＂ SCH40 pipe | 1885 | (8.38) | 1.96 | (0.89) |

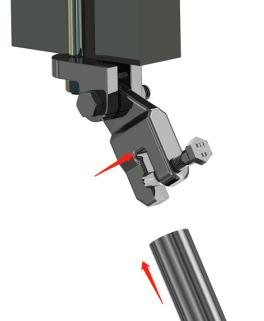

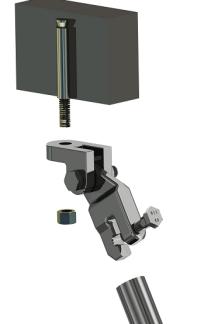

Step 1 | Step 2 | Step 3 |
 |  |  |
| Install: The installation mode as shown which the base part confined with the building ,the installation torque of bolt M12X60 is 50~65N·M; The accessories connected to base is the sch40 1-inch pipe; the bottom of pipe clamp to connector is connected by shear bolt; Tighten the shear bolt until heads break off, the installation is complete. | ||
