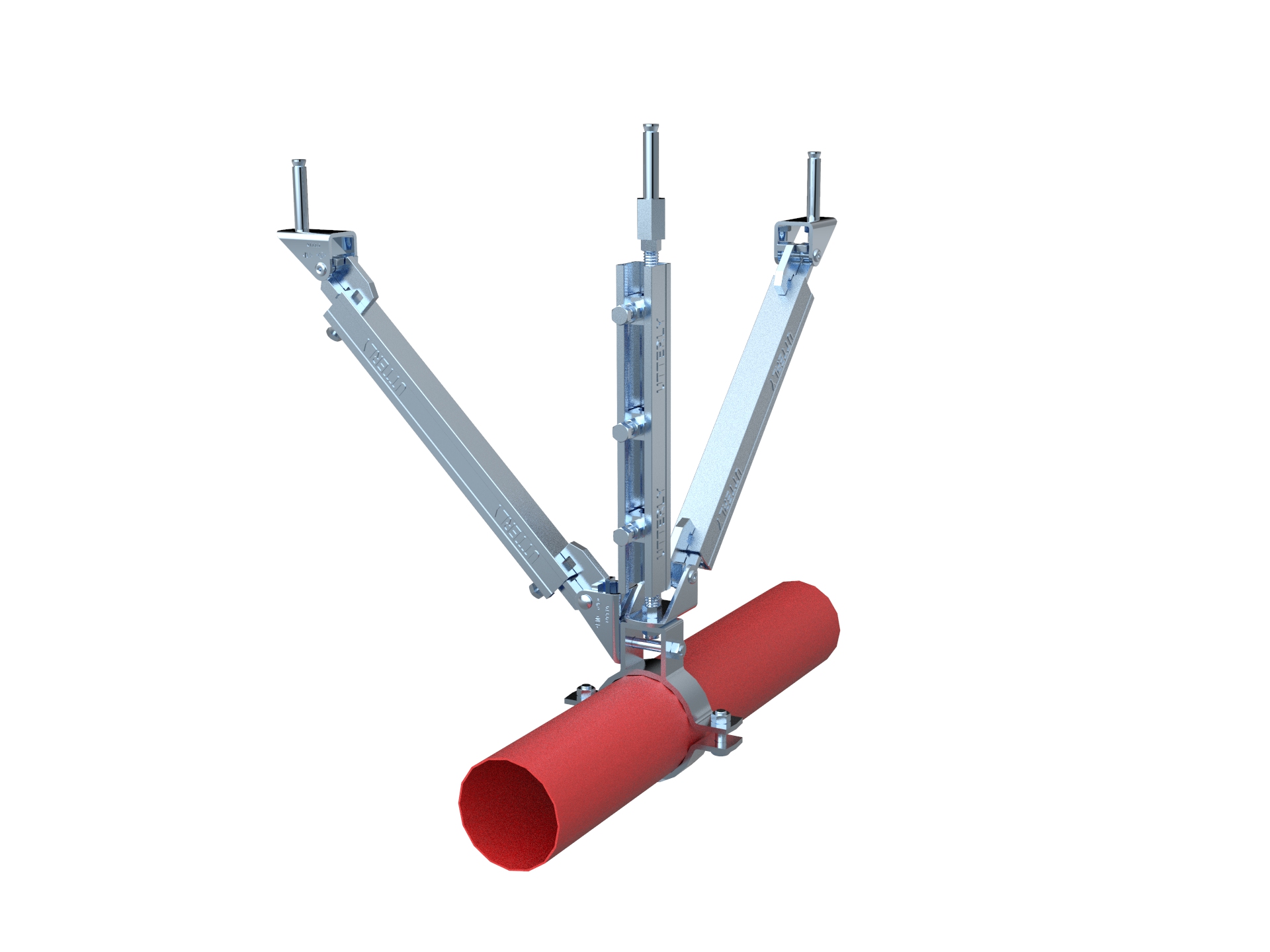

UTT63
UTTERLY
| Color: | |
|---|---|
| Size: | |
| Finish: | |
| Material: | |
| MOQ: | |
| Quantity: | |

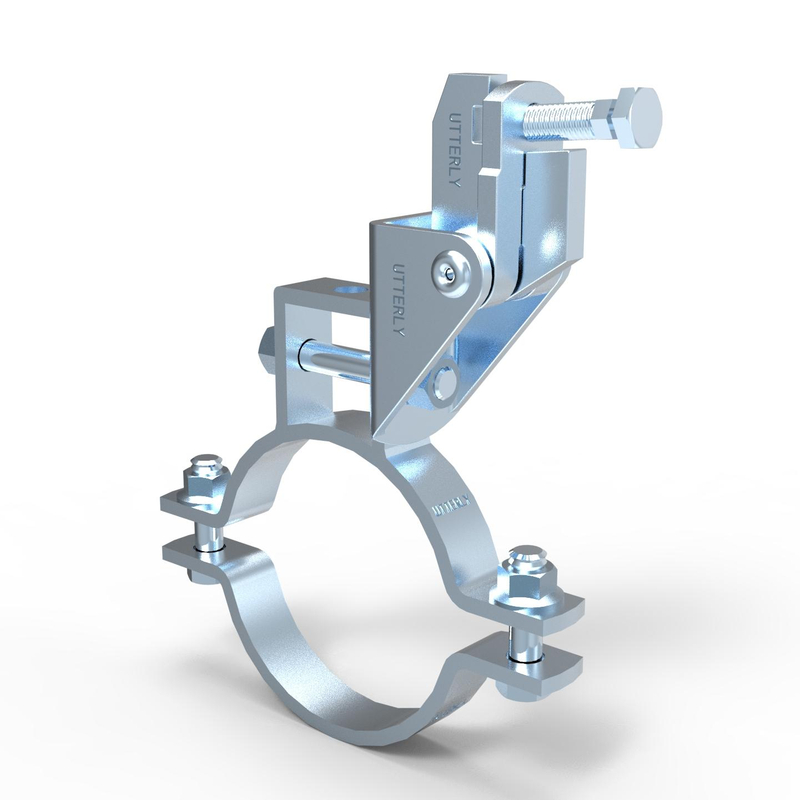

Function :Braces pipe against sway or seismic disturbance. Versatile design provides ability to function in lateral or longitudinal direction at any angle.
Size: Braces pipe from 2” to 8” .
Finish: Zinc plated. Other finishes upon request.
Material: Carbon steel

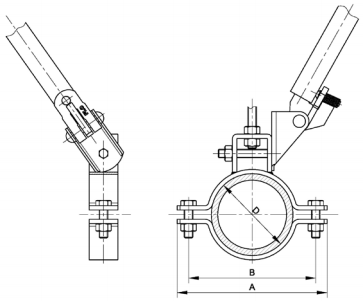

Pipe Size | D | A | B | Brace Member | Max. Design Load |
in | mm | mm | mm | lbs. (kN) | |
2 | 60 | 154 | 146 | 1” SCH40 Pipe | 1000 (4.45） |
2 1/2 | 76 | 170 | 158 | 1” SCH40 Pipe | 1000 (4.45） |
3 | 89 | 183 | 176 | 1” SCH40 Pipe | 1000 (4.45） |
4 | 114 | 210 | 201 | 1” SCH40 Pipe | 1000 (4.45） |
5 | 140 | 236 | 231 | 1” SCH40 Pipe | 1600 (7.15） |
6 | 168 | 265 | 256 | 1 ” SCH40 Pipe | 1600 (7.15） |
8 | 219 | 315 | 334 | 1 ” SCH40 Pipe | 2015 (8.96） |
