UTT7301
UTTERLY
| Size Range: | |
|---|---|
| Material: | |
| MOQ: | |
| Quantity: | |

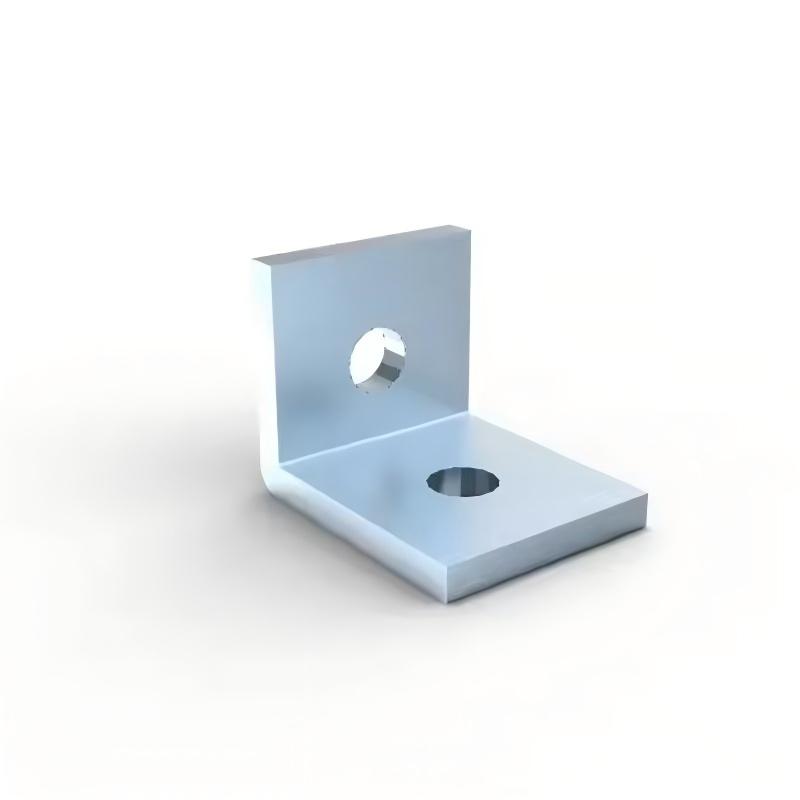

90º Side Beam Bracket
Function : Recommended for attaching hanger rod to side of beams or walls.
Size Range :3/8" thru 7/8" rod
Material: Carbon Steel
Finish: Plain
Note : Available in Electro-Galvanized and HDG finish.

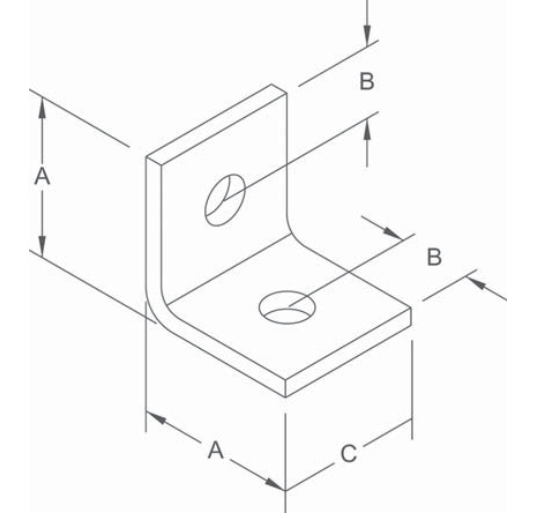

| Dimensions ·Weights | ||||||
| Rod Size | A | B | C | Hole Size | Max.Rec. Load Lbs. | Approx. Wt./100 |
| 3/8 | 2 | 3/4 | 2 7/16 | 700 | 35 | |
| 1/2 | 2 | 3/4 | 2 9/16 | 700 | 35 | |
| 5/8 | 2 | 3/4 | 2 11/16 | 700 | 32 | |
| 3/4 | 21/2 | 3/4 | 21/2 13/16 | 1250 | 110 | |
| 7/8 | 21/2 | 3/4 | 21/2 15/16 | 1250 | 100 | |
